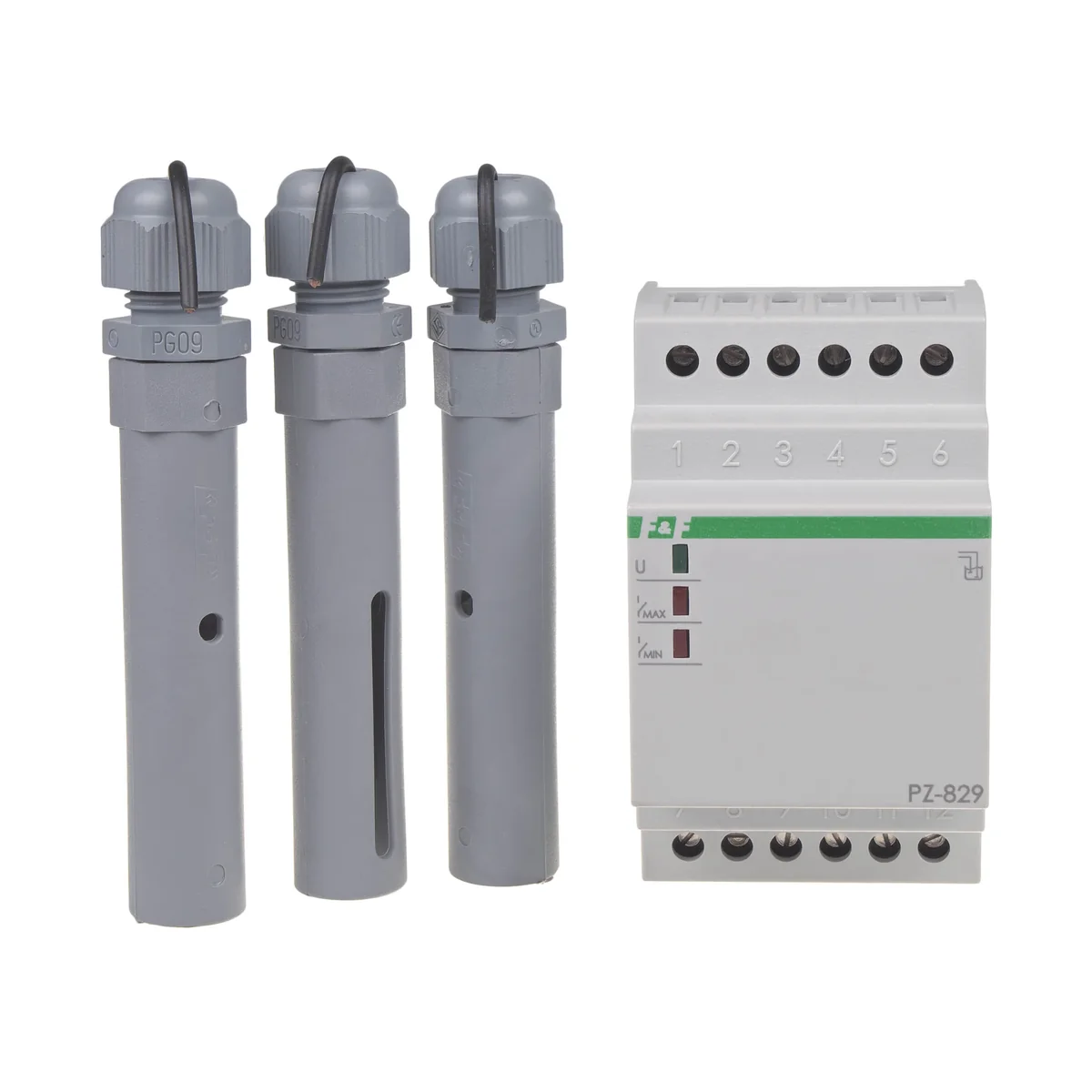

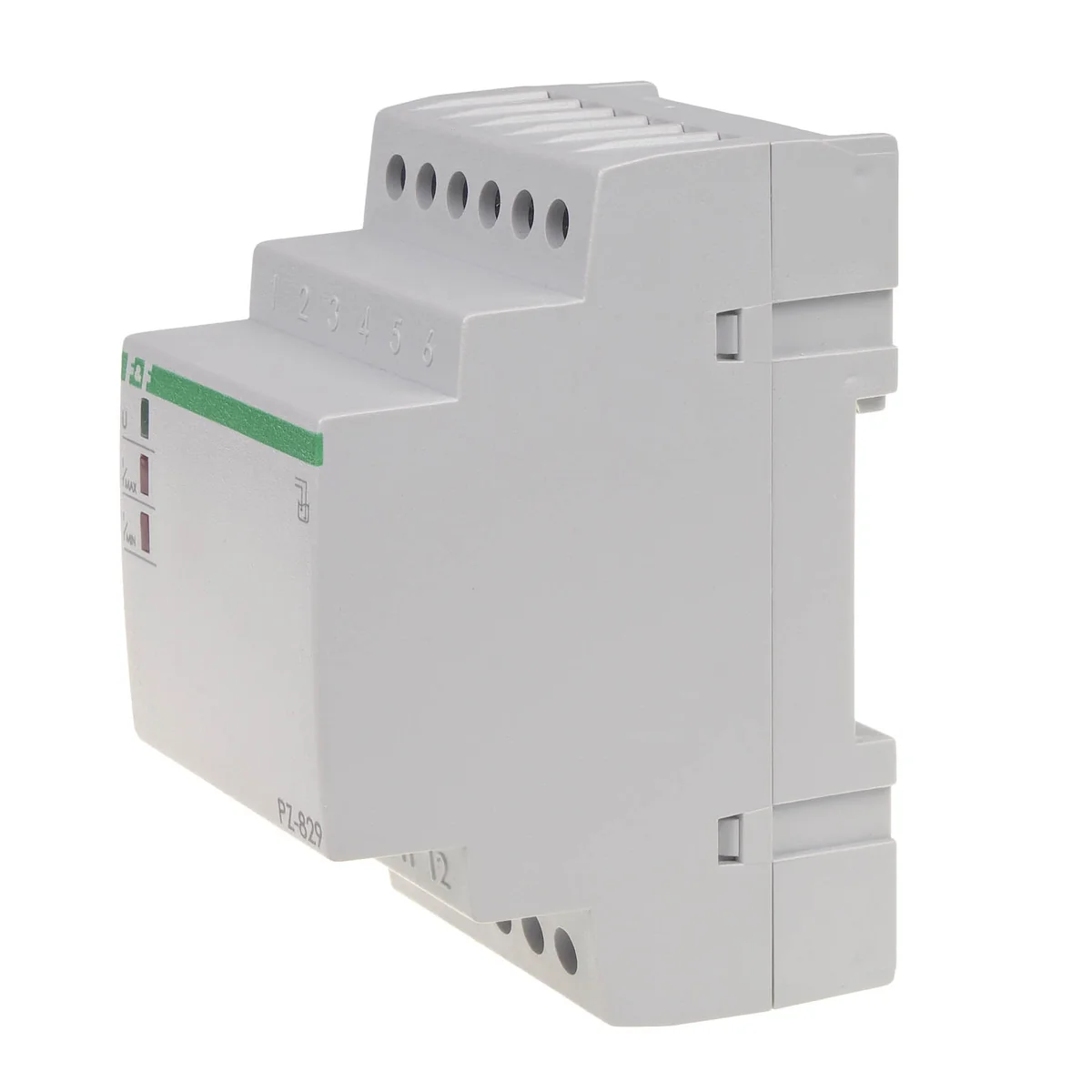

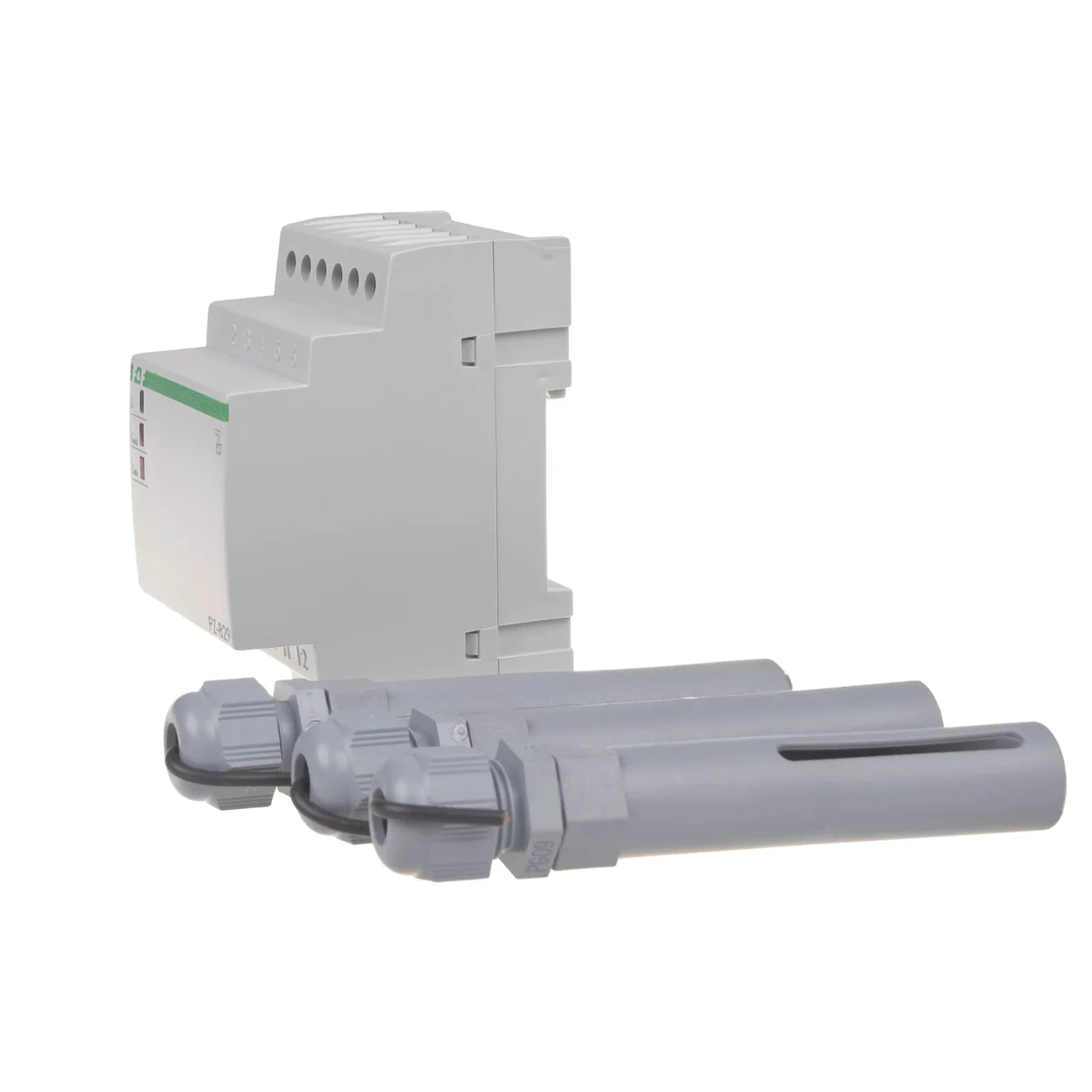

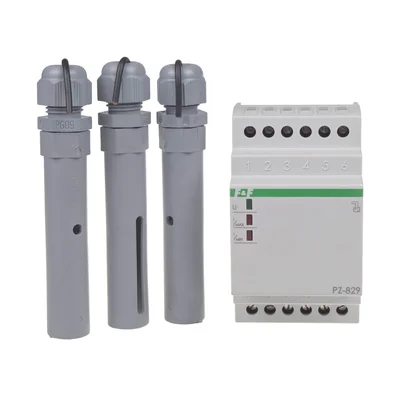

Two-state liquid level control relay PZ-829 PZ-829

local index:
APE022FIFQ
Catalog No:
PZ-829
EAN code:
5908312596288
Manufacturer: F&F
Length [mm]: 95
Power [W]: 1.1
Installation: On the TH-35 rail
Price:
60,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PZ-829 relays are used to detect the presence of electrically conductive liquids at the levels of installed flood probes. They allow to maintain the minimum and maximum states of the controlled liquid within the range set by the user.

Technical data

  • Length [mm]
    95
  • Installation
    On the TH-35 rail
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Dimensions
    3 modules (52.5mm)
  • Package width [mm]
    60
  • PKWIU
    26.51.70.0
  • Power [W]
    1.1
  • Electrode voltage [V]
    6
  • load current [A]
    16
  • Diameter [mm]
    15
  • Package height [mm]
    150
  • Package weight [kg]
    0.3

Other technical data

  • Type of electric connection
    Screw connection
  • Number of inputs for electrodes
    3
  • Number of contacts as change-over contact
    2
  • Voltage type for actuating
    AC
  • Response value sensitivity adjustable
    Yes
  • Physical measurement principle
    Conductive

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,245
Width (m) 0,071
Length (m) 0,114
Depth (m) 0,070
