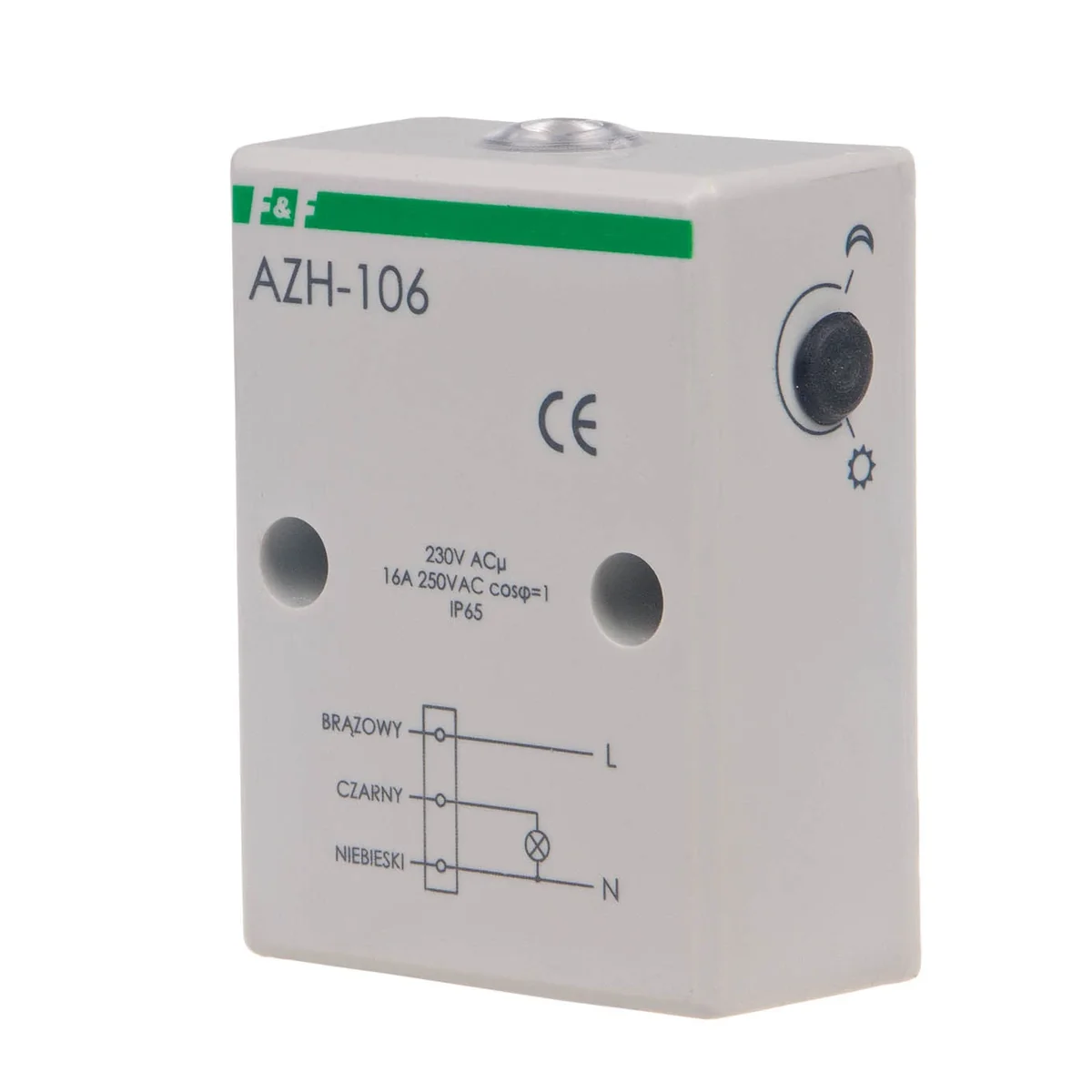

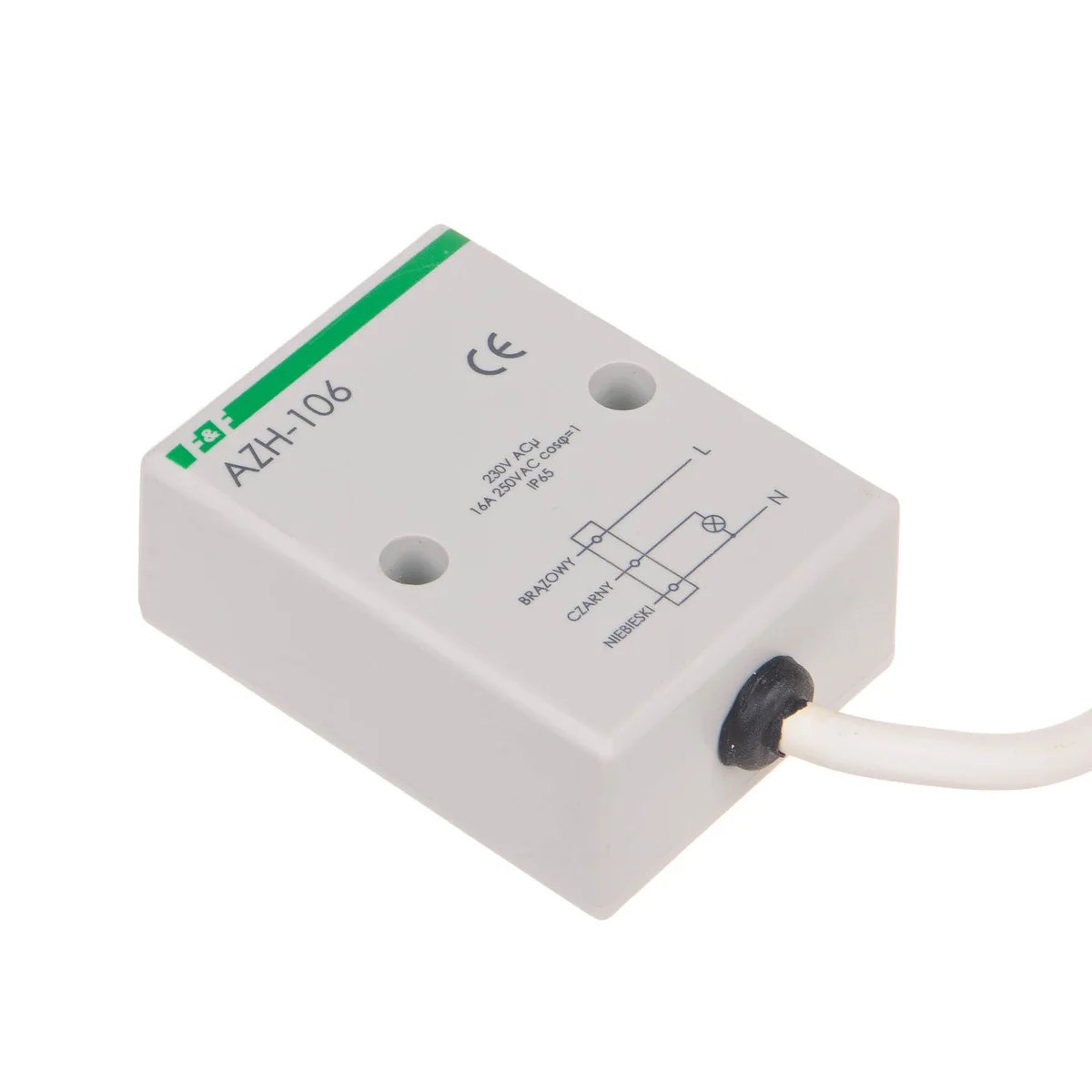

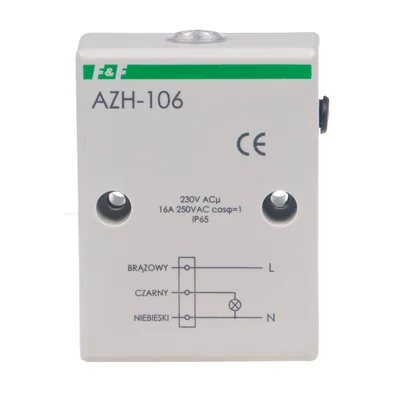

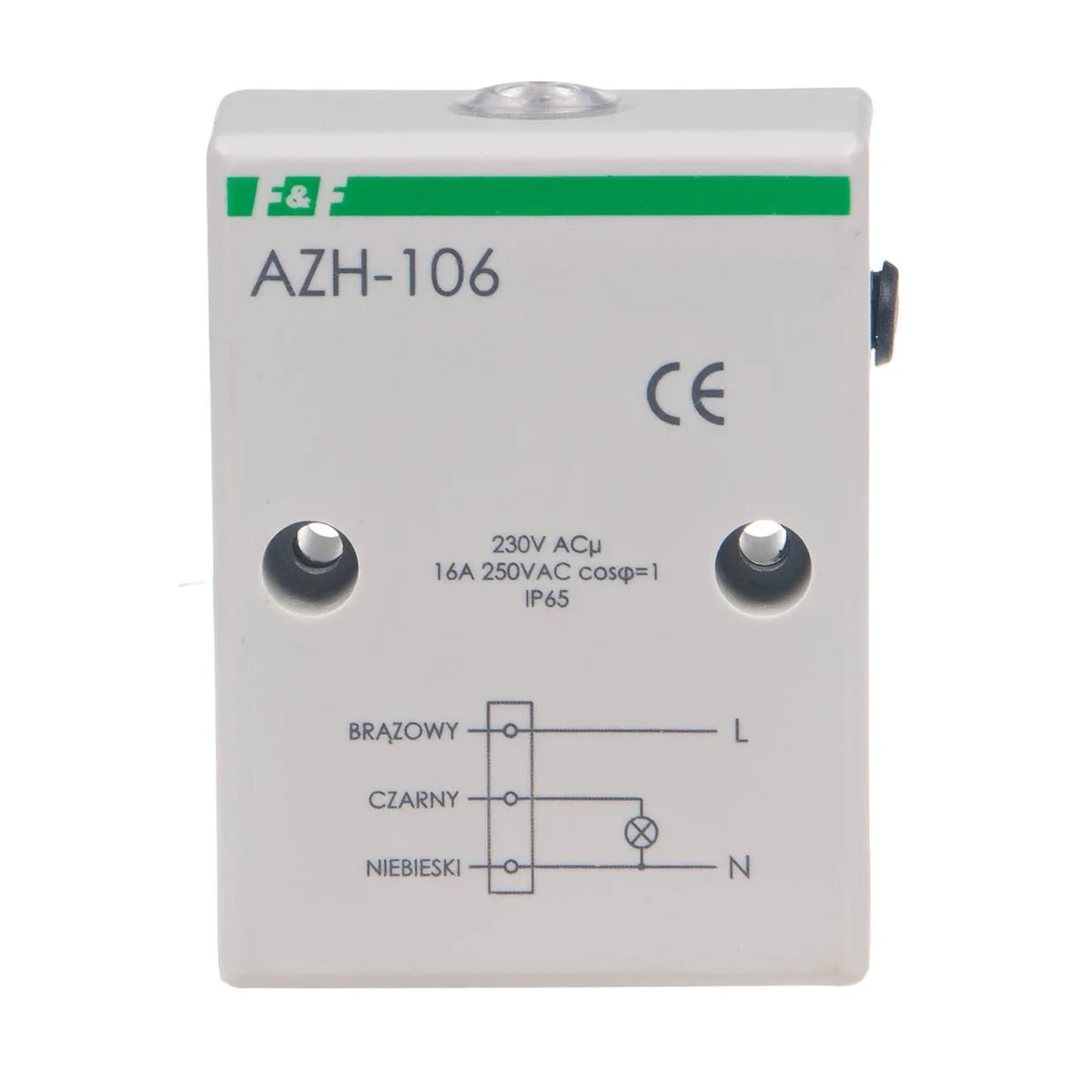

Twilight switch with internal photosensitive sensor AZH-106 AZH-106

local index:
APF103FIFQ
Catalog No:
AZH-106
EAN code:
5908312591078
Manufacturer: F&F
Depth [mm]: 26
Hysteresis: Approx. 15Lx
Power [W]: 0.56
Price:
17,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 40 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

The twilight switch is used to automatically turn on the lighting of streets, squares, exhibitions, advertisements, etc. at dusk and turn off the lighting at dawn. If the length of the probe's connection cable exceeds 10 m, it should not be run close to the parallel cable under voltage. mains or carrying large currents.

Technical data

  • Depth [mm]
    26
  • Power [W]
    0.56
  • Shutdown activation delay [s]
    10-30
  • Actuation threshold - adjustable
    2-1000Lx
  • Actuation threshold - set [Lx]
    7
  • Mounting method
    For screws
  • Width [mm]
    67
  • Height [mm]
    50
  • Power supply AZ-B / AZ-B PLUS [V]
    230
  • Package width [mm]
    67
  • PKWIU
    27.12.23.0
  • Hysteresis
    Approx. 15Lx
  • ON delay [s]
    1-15
  • load current [A]
    <16
  • Actuation threshold - adjustable [Lx]
    2-1000
  • connection
    OMY 3×1.0mm ; l=0.8m
  • Level of security
    IP65
  • Working temperature [°C]
    -25-50
  • Power [V]
    230
  • Package height [mm]
    50
  • Package weight [kg]
    0, 15

Other technical data

  • Type of sensor
    Built-in light sensor
  • Engaging brightness
    2 ... 1000 lx
  • Switch-off delay
    10 s
  • Max. switching power
    1500 W
  • Material
    Plastic
  • Halogen free
    yes
  • Transparent
    no
  • Max. switching current (resistive load)
    10 A
  • Contacts
    1 make contact (NO)
  • Switching-off brightness
    7 ... 7 lx
  • Switching-on delay
    5 s
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Nominal voltage
    230 V
  • Suitable for degree of protection (IP)
    IP65

Bulk packaging

A kind of package Sztuka Karton
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,115 -
Width (m) 0,031 -
Length (m) 0,095 -
Depth (m) 0,070 -
