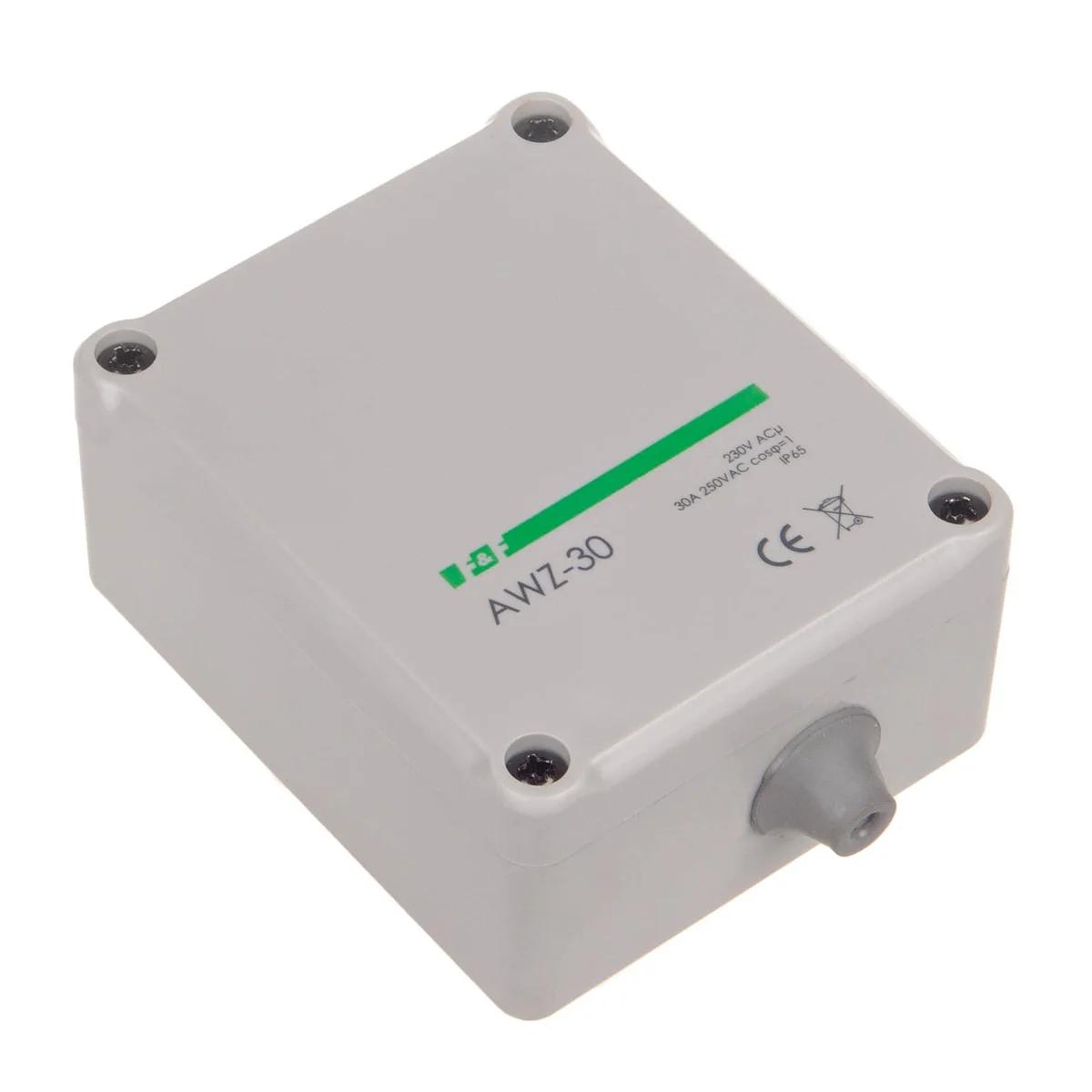

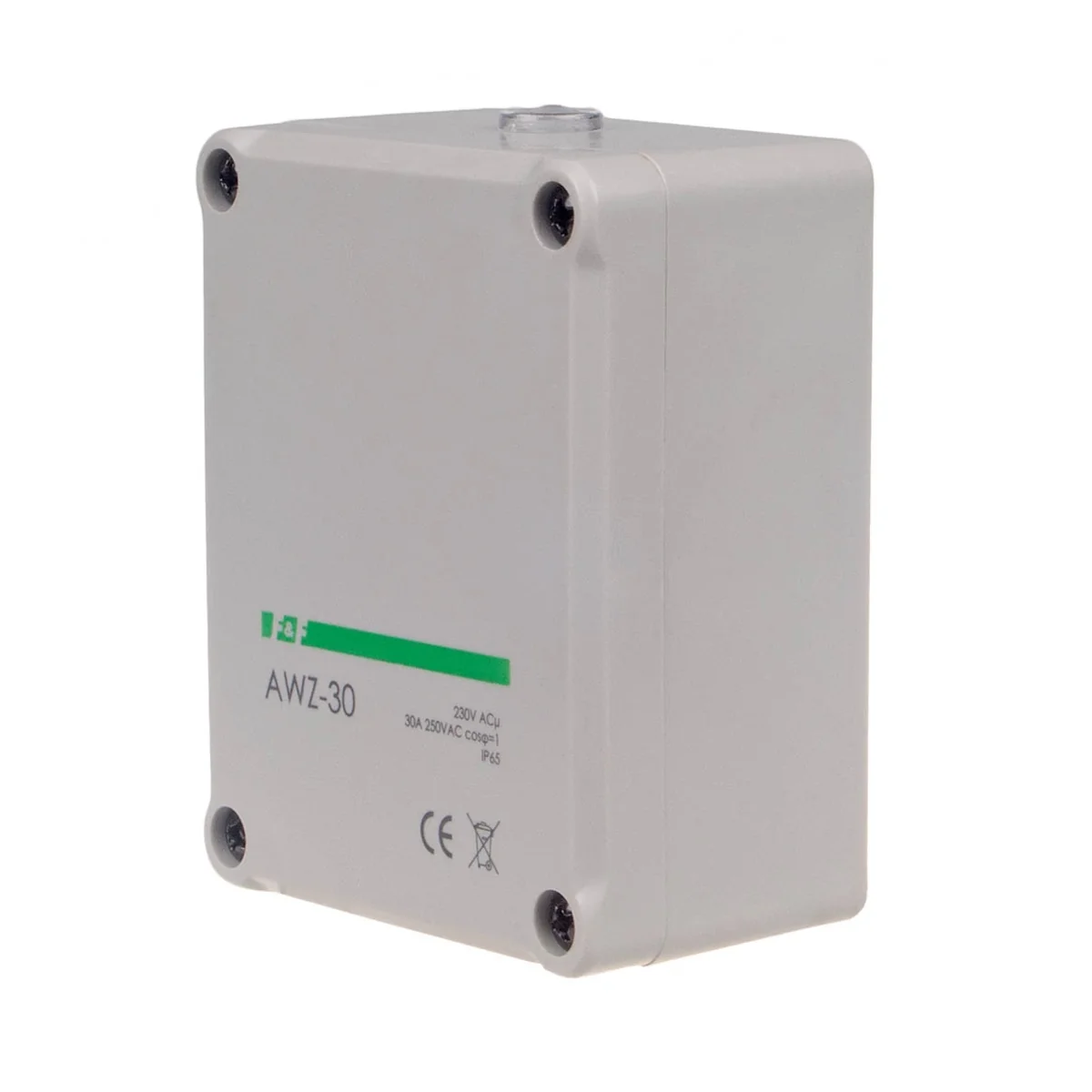

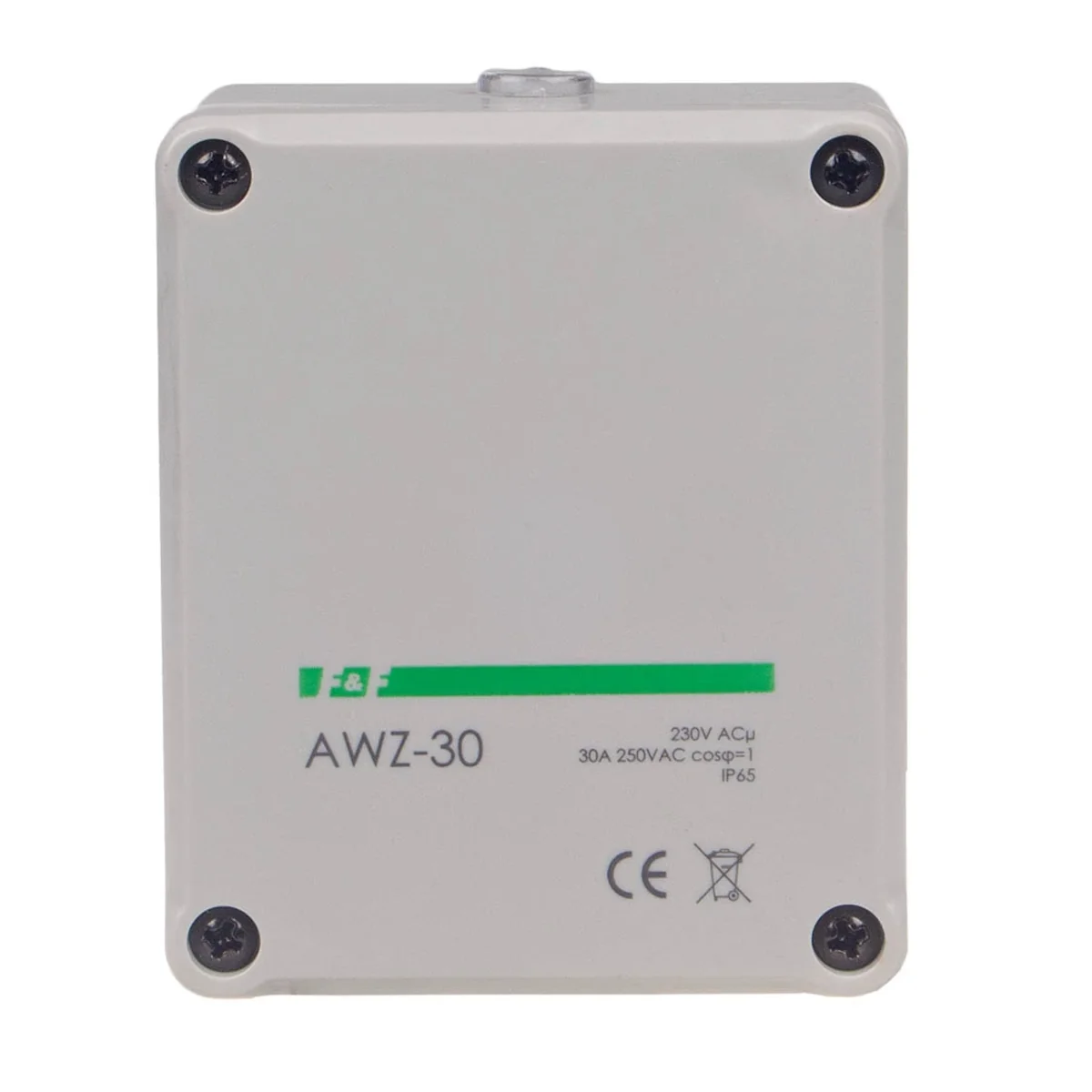

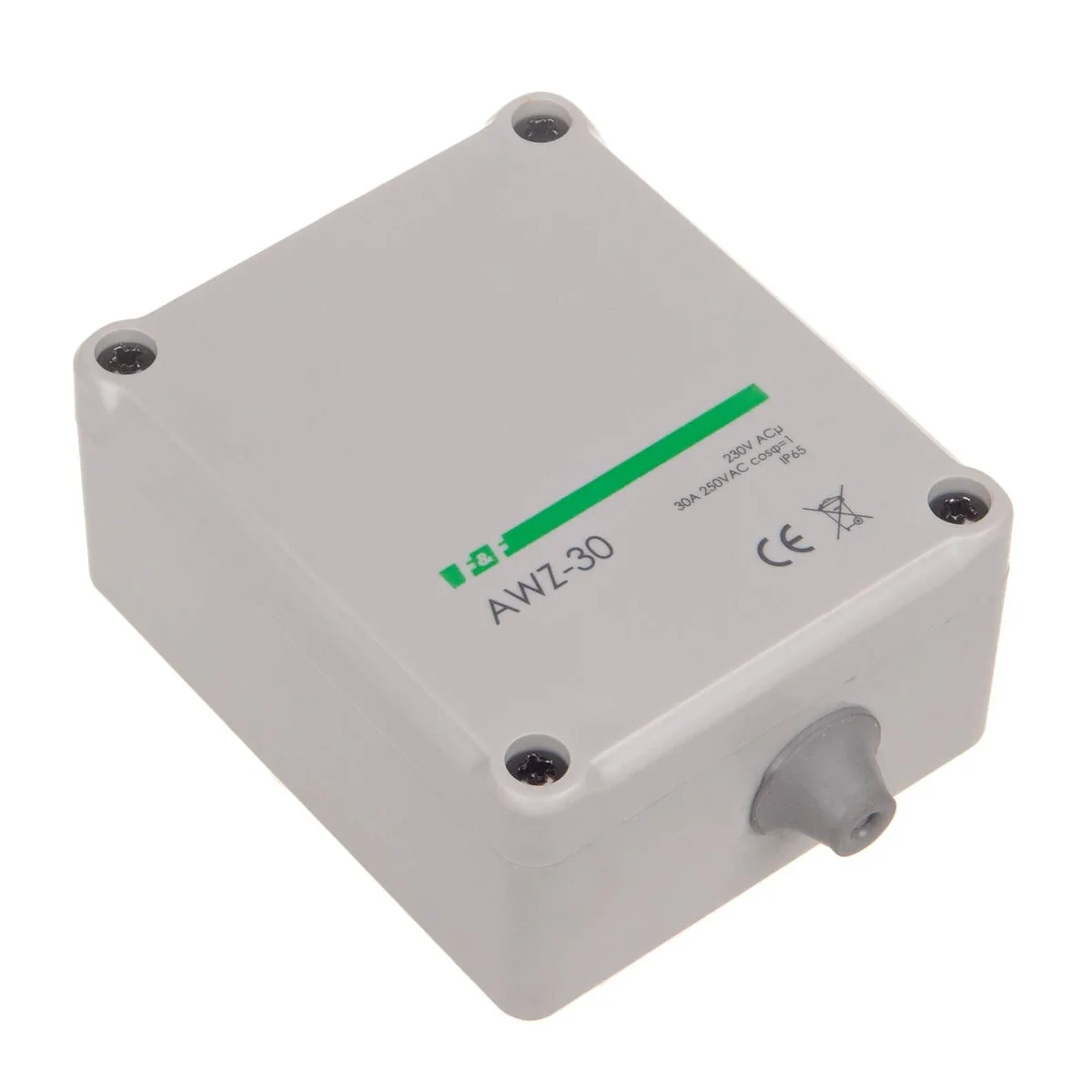

Twilight switch with internal AWZ-30 photosensitive sensor AWZ-30

local index:
APF113FIFQ
Catalog No:
AWZ-30
EAN code:
5908312591085
Manufacturer: F&F
Depth [mm]: 36
Hysteresis: 15
Power [W]: 0.8
Price:
23,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 26 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Twilight switch in a plastic housing with a special sealing flange, fixed to the ground with two screws, closed with a cover with a silicone gasket for four screws. Possibility of special execution of twilight switches for voltages other than those given in the table  technical data, e.g. 12V, 24V, 48V and 110V AC/DC and others.

Technical data

  • Depth [mm]
    36
  • Power [W]
    0.8
  • ON delay [s]
    1-15
  • load current [A]
    <30
  • Actuation threshold - set [Lx]
    7
  • Mounting method
    For screws
  • Width [mm]
    85
  • Height [mm]
    76
  • Package width [mm]
    85
  • PKWIU
    27.12.23.0
  • Hysteresis
    15
  • Rated voltage [V]
    230
  • Shutdown activation delay [s]
    10-30
  • Actuation threshold - adjustable [Lx]
    2-1000
  • connection
    4.0mm screw terminals
  • Level of security
    IP65
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    76
  • Package weight [kg]
    0.25

Other technical data

  • Type of sensor
    Built-in light sensor
  • Engaging brightness
    2 ... 2 lx
  • Switch-off delay
    10 s
  • Max. switching power
    4000 W
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    White
  • Max. switching current (resistive load)
    30 A
  • Contacts
    1 make contact (NO)
  • Switching-off brightness
    1000 ... 1000 lx
  • Switching-on delay
    5 s
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Transparent
    Yes
  • Suitable for degree of protection (IP)
    IP65

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,266
Width (m) 0,045
Length (m) 0,109
Depth (m) 0,075
