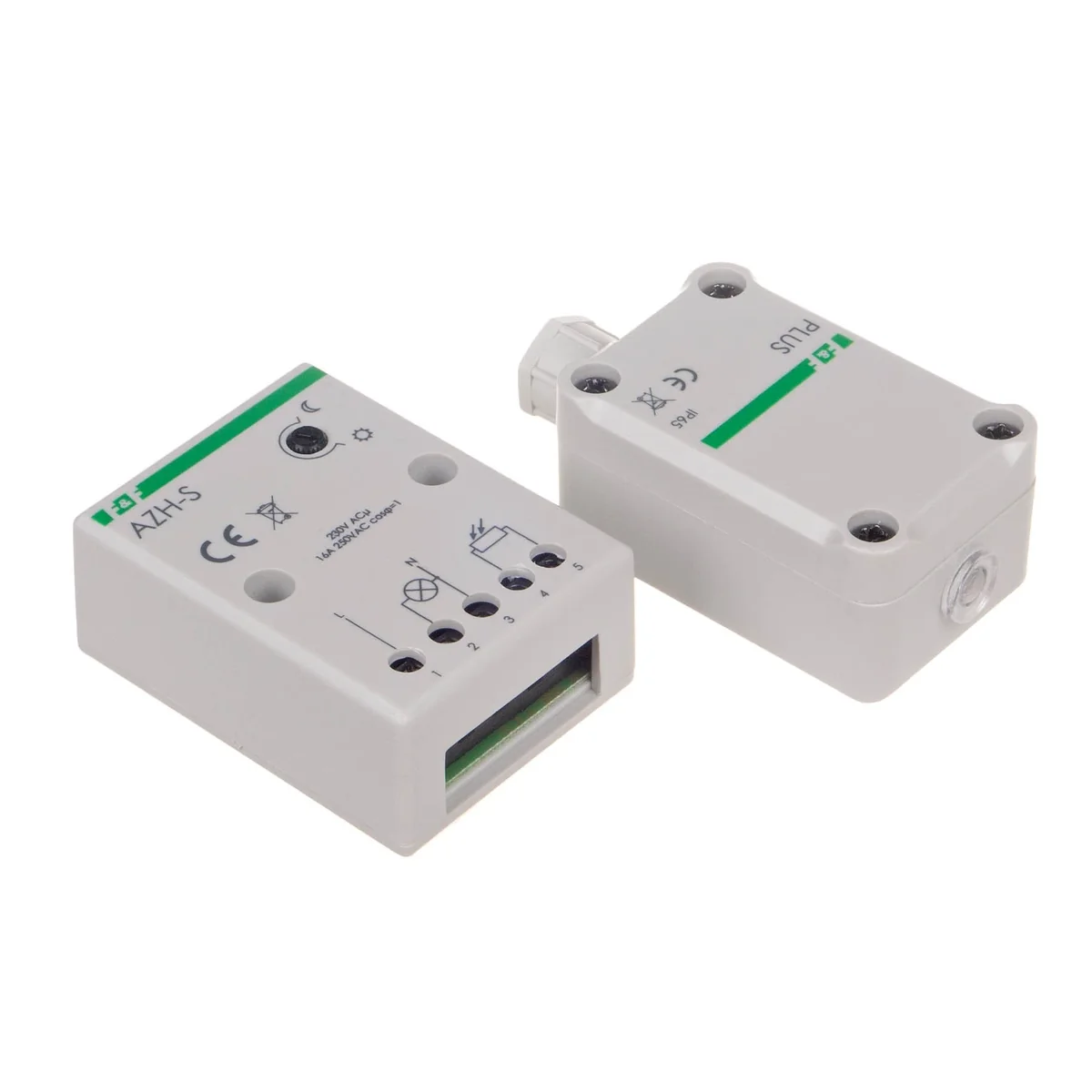

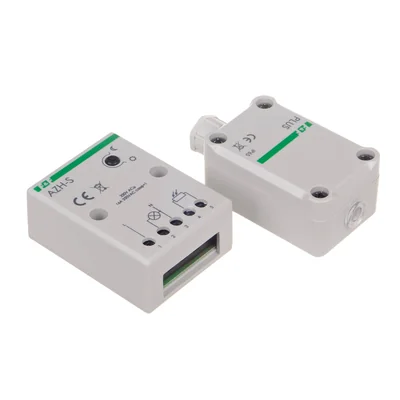

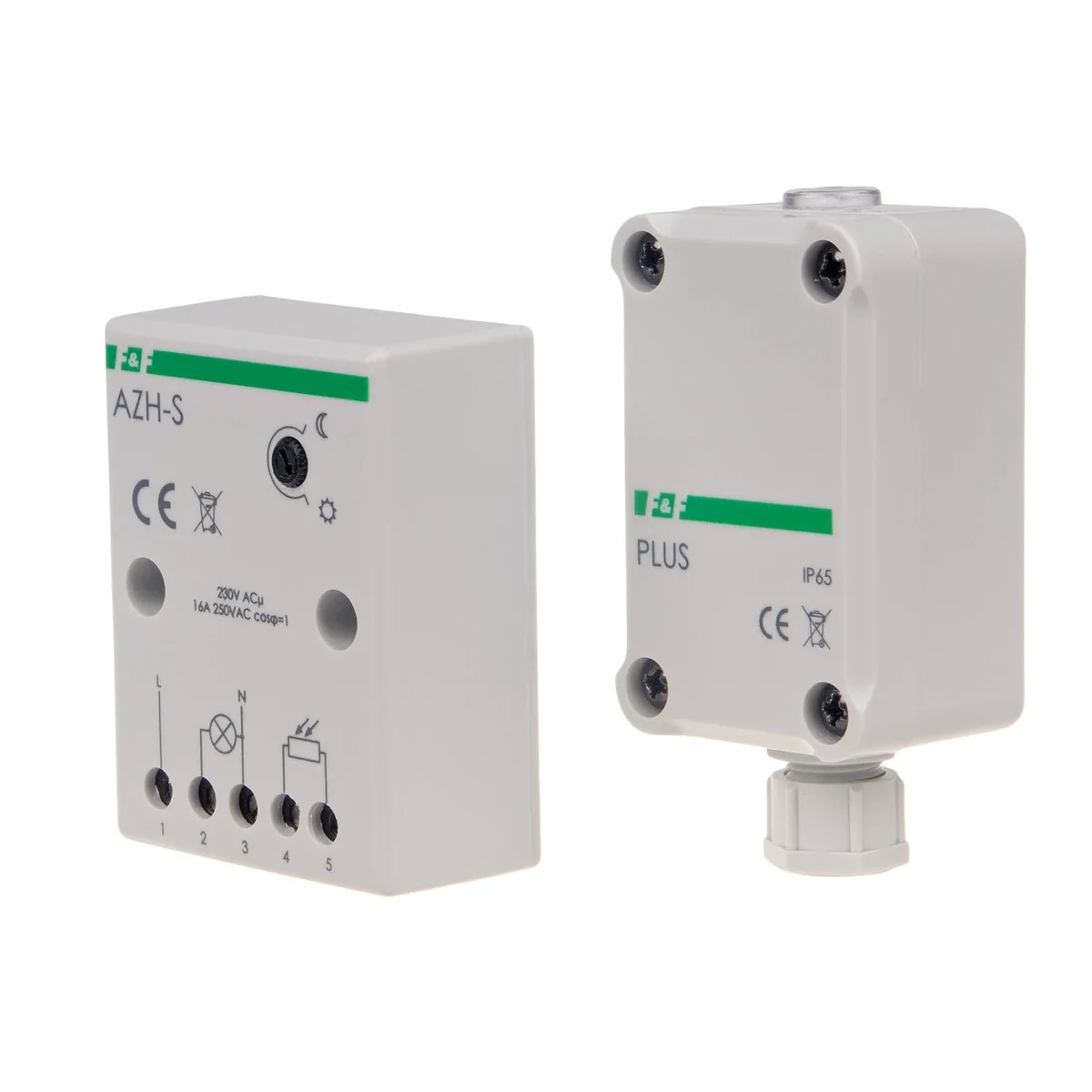

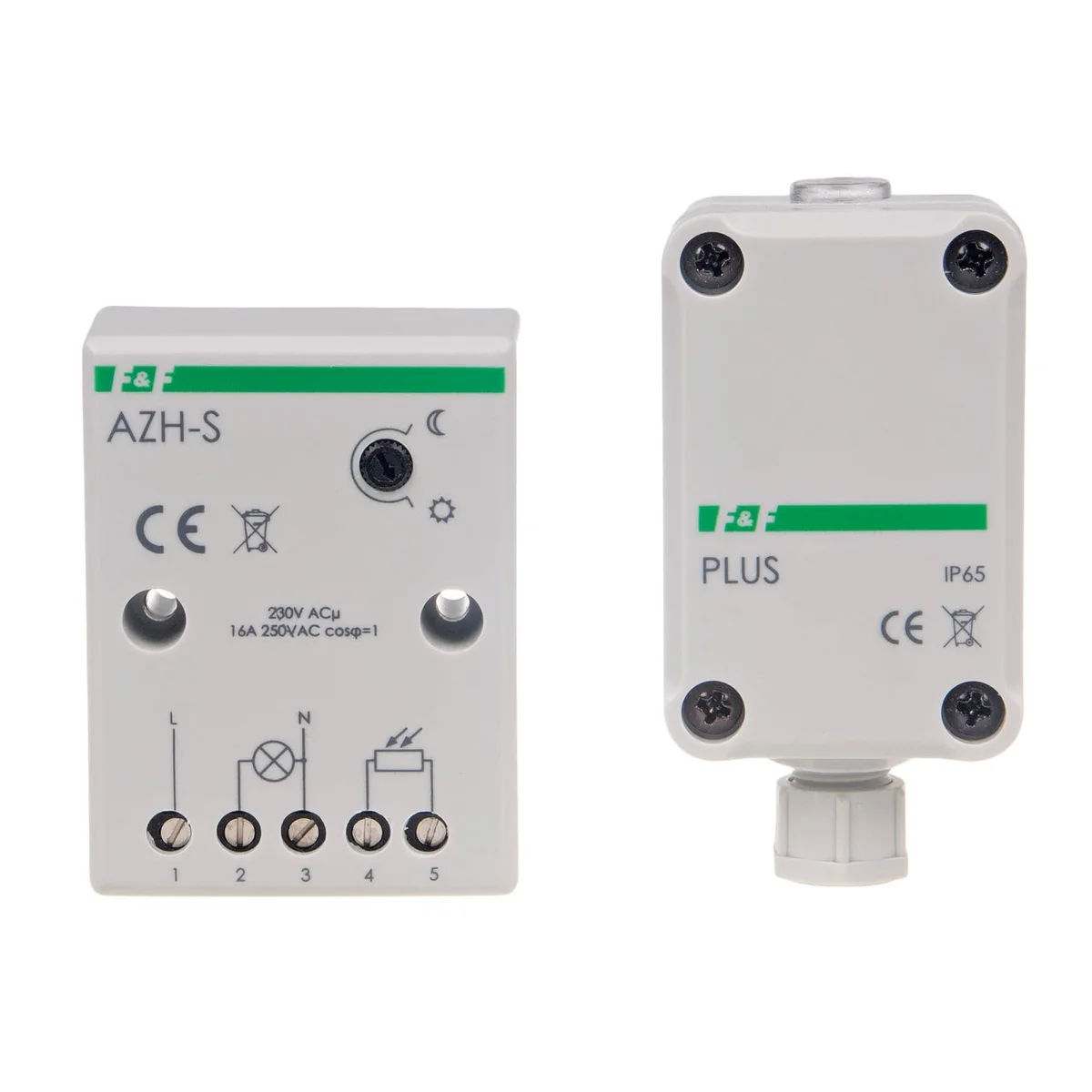

Twilight switch with external hermetic probe AZH-S PLUS AZH-S-PLUS

local index:
APF118FIFQ
Catalog No:
AZH-S-PLUS
EAN code:
5908312591115
Manufacturer: F&F
Depth [mm]: 26
Hysteresis: Approx. 15Lx
Power [W]: 0.56
Price:
23,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The twilight switch is used to automatically turn on the lighting of streets, squares, exhibitions, advertisements, etc. at dusk and turn off the lighting at dawn. If the length of the probe's connection cable exceeds 10 m, it should not be run close to the parallel cable under voltage. mains or carrying high currents.

Technical data

  • Depth [mm]
    26
  • Power [W]
    0.56
  • ON delay [s]
    1-15
  • load current [A]
    <16
  • Actuation threshold - set [Lx]
    7
  • Mounting method
    For screws
  • Width [mm]
    67
  • Height [mm]
    50
  • Package width [mm]
    67
  • PKWIU
    27.12.23.0
  • Hysteresis
    Approx. 15Lx
  • Rated voltage [V]
    230
  • Shutdown activation delay [s]
    10-30
  • Actuation threshold - adjustable
    2-1000Lx
  • connection
    2.5mm screw terminals
  • The degree of protection of the probe
    IP65
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    50
  • Package weight [kg]
    0.2

Other technical data

  • Type of sensor
    Built-in light sensor
  • Switch-off delay
    10 s
  • Max. switching power
    2300 W
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    White
  • Nominal voltage
    230 V
  • Suitable for degree of protection (IP)
    IP65
  • Contacts
    1 make contact (NO)
  • Switching-on delay
    5 s
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Transparent
    No
  • Max. switching current (resistive load)
    16 A

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,125
Width (m) 0,056
Length (m) 0,095
Depth (m) 0,070
