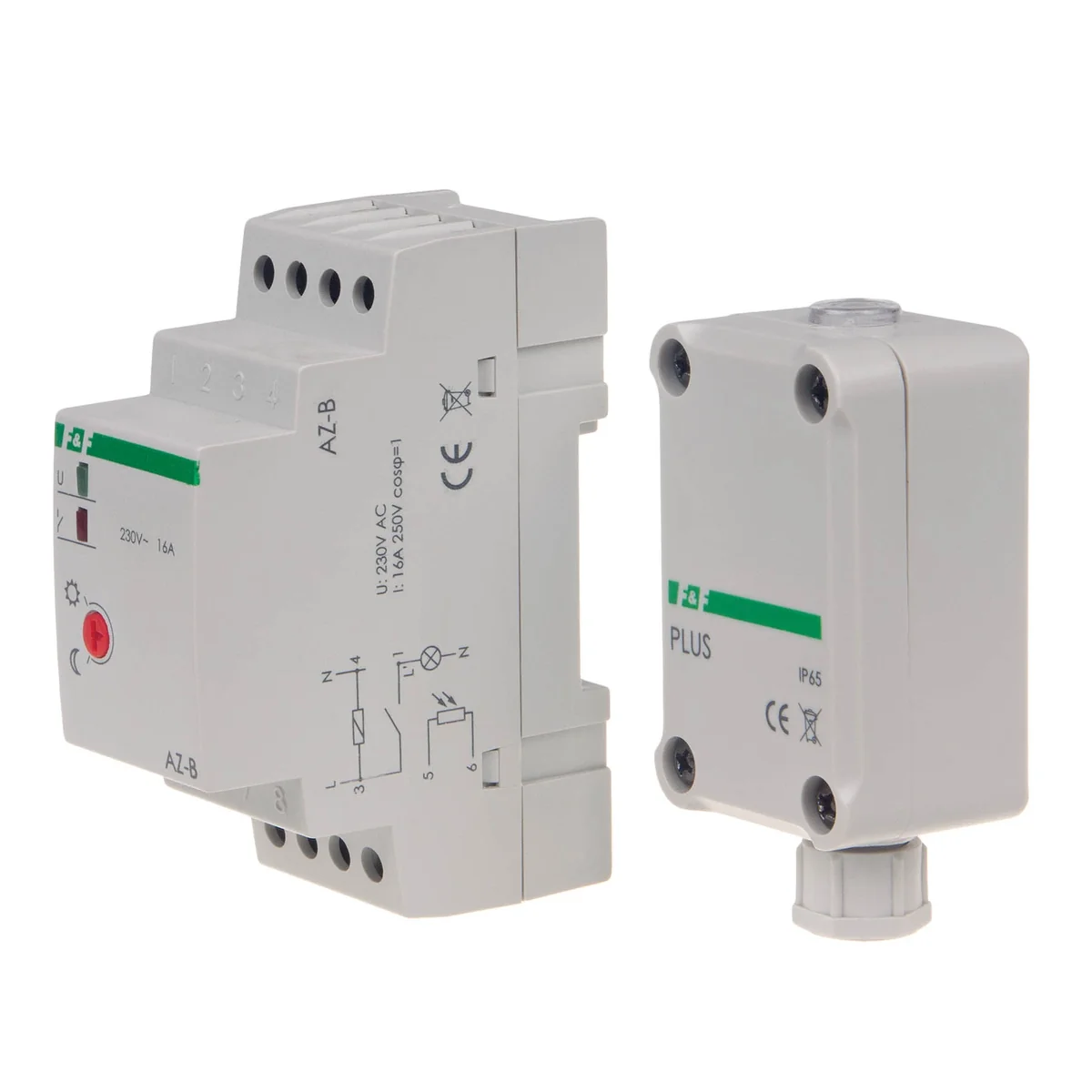

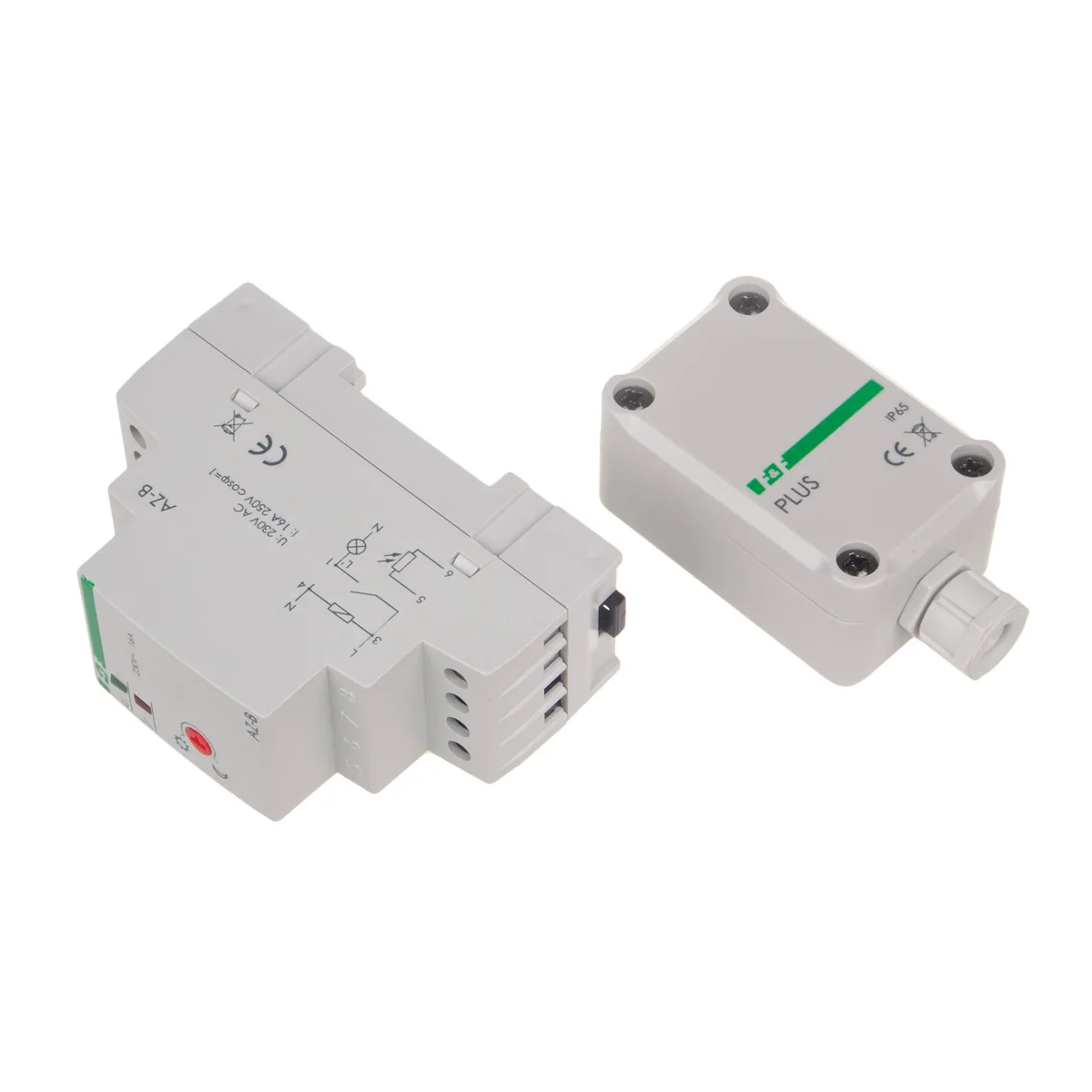

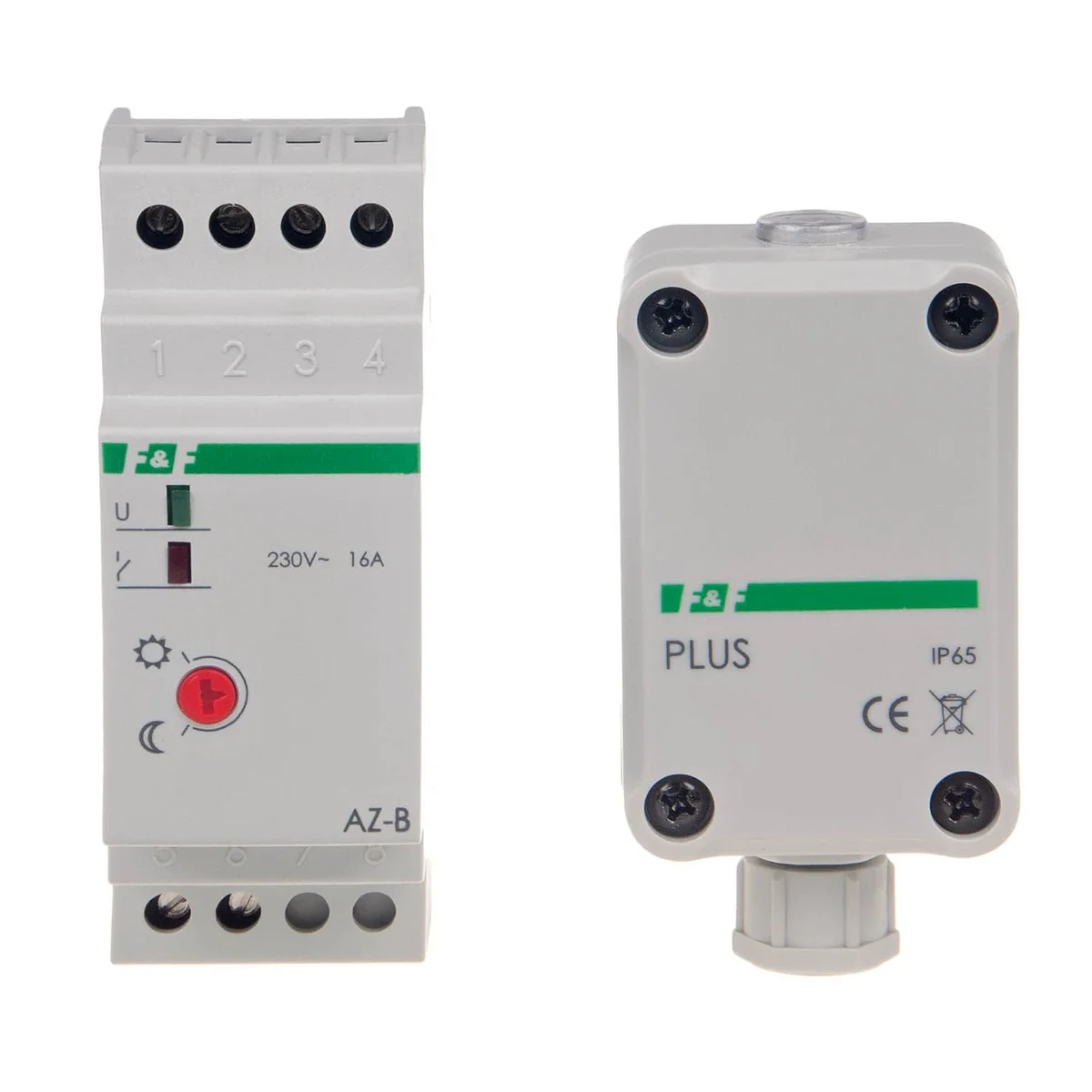

Twilight switch with external hermetic probe AZ-B PLUS AZ-B-PLUS
local index:
APF111FIFQ
Catalog No:
AZ-B-PLUS
EAN code:
5908312591092
Price:
28,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The twilight switch is used to automatically turn on the lighting of streets, squares, exhibitions, advertisements, etc. at dusk and turn off the lighting at dawn. If the length of the probe's connection cable exceeds 10 m, it should not be run close to the parallel cable under voltage. or carrying large currents.
Technical data
-
HysteresisApprox. 15Lx
-
Shutdown activation delay [s]1-15
-
Actuation threshold - adjustable [Lx]2-1000
-
connection2.5mm screw terminals
-
Working temperature [°C]-25-50
-
Power supply AZ-B / AZ-B PLUS [V]230
-
Package height [mm]150
-
Package weight [kg]0.35
-
Power [W]0.8
-
load current [A]<16
-
Actuation threshold - set [Lx]Approx. 7Lx
-
Level of securityIP65
-
Power [V]230
-
AZ-B UNI / AZ-B PLUS UNI power supply12-264V AC/DC
-
Package width [mm]45
-
PKWIU27.12.23.0
Other technical data
-
Rated voltage230 V
-
Max. incandescent lamp load2300 W
-
Max. load fluorescent lamp (Duo circuit)1000 VA
-
Rated switch current16 A
-
Max. conductor length light sensor1.5 m
-
Mounting method light sensorOther
-
Width in number of modular spacings2
-
Degree of protection (IP)IP20
-
Rated frequency50 ... 50 Hz
-
Max. load fluorescent lamp550 VA
-
Max. load fluorescent lamp (parallel compensated)800 VA
-
Adjustment range brightness value2 ... 1000 lx
-
Protection class light sensorI
-
Mounting methodDIN rail
-
Built-in depth35 mm
-
Degree of protection (IP) light sensorIP65
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,151 |
| Width (m) | 0,070 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
