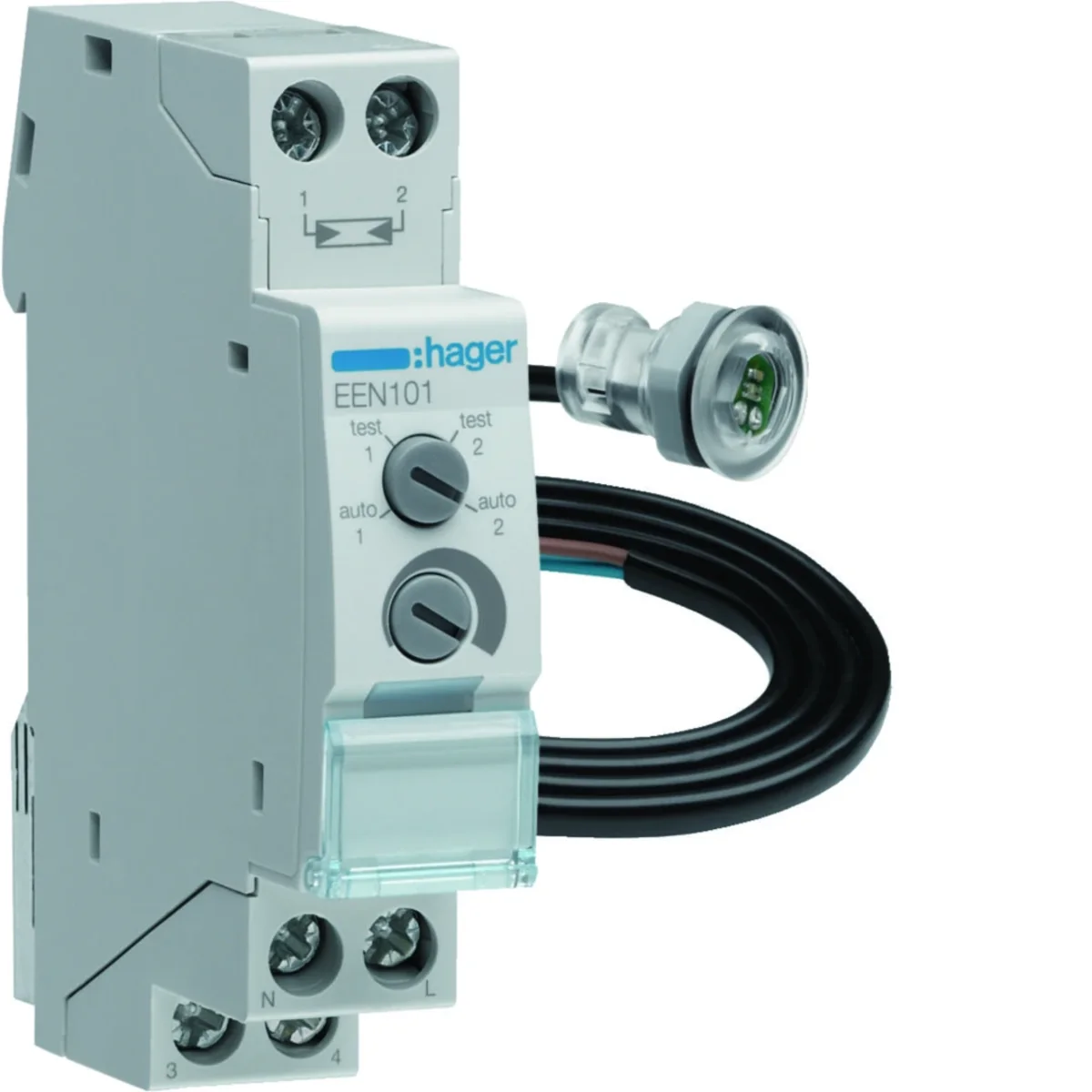

Twilight switch with built-in sensor EEN101
local index:
APF004HAGE
Catalog No:
EEN101
EAN code:
3250617579315
Price:
109,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Twilight switch with built-in sensor
Technical data
-
Rated frequency [Hz]60
-
Depth [mm]65
-
InstallationOn the TH-35 rail
-
Contact typePotential-free
-
power loss [W]0.3
-
Height [mm]83
-
Rated switching voltage [V]230
-
Maximum bulb power [W]2300
-
Connection typeWith screw terminals
-
Wire cross-section (cord) [mm²]1.5 - 6
-
PKWIU27.33.11.0
-
Length [mm]60
-
Input power [VA]0.3
-
Supply voltage [V]230
-
Level of securityIP20
-
Width [mm]17.8
-
Operating temperature range [°C]from -5 to 45
-
Number of modules1
-
AC operating voltage [V]230
-
storage temperature [°C]from -25 to 60
-
Conductor cross-section (wire) [mm²]1.5 - 6
Other technical data
-
Rated voltage230 V
-
Max. incandescent lamp load2300 W
-
Max. load fluorescent lamp (Duo circuit)1000 VA
-
Max. switching current (cos phi = 0.6)16 A
-
Adjustment range brightness value5 ... 2000 lx
-
Push button inputNo
-
Max. conductor length light sensor0.05 m
-
Mounting method light sensorOther
-
Width in number of modular spacings1
-
Degree of protection (IP)IP20
-
Rated frequency50 ... 60 Hz
-
Max. load fluorescent lamp1000 VA
-
Max. load fluorescent lamp (parallel compensated)1000 VA
-
Rated switch current16 A
-
With programmable overnight shutoffNo
-
Rated voltage light sensor230 V
-
Protection class light sensorII
-
Mounting methodDIN rail
-
Built-in depth17.8 mm
-
Degree of protection (IP) light sensorIP54
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 864 pcs. |
| Weight (kg) | 0,128 | 0,160 | 6,220 | 172,280 |
| Width (m) | 0,120 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,095 | 0,075 | 0,230 | 1,050 |
| Depth (m) | 0,080 | 0,095 | 0,360 | 1,200 |
