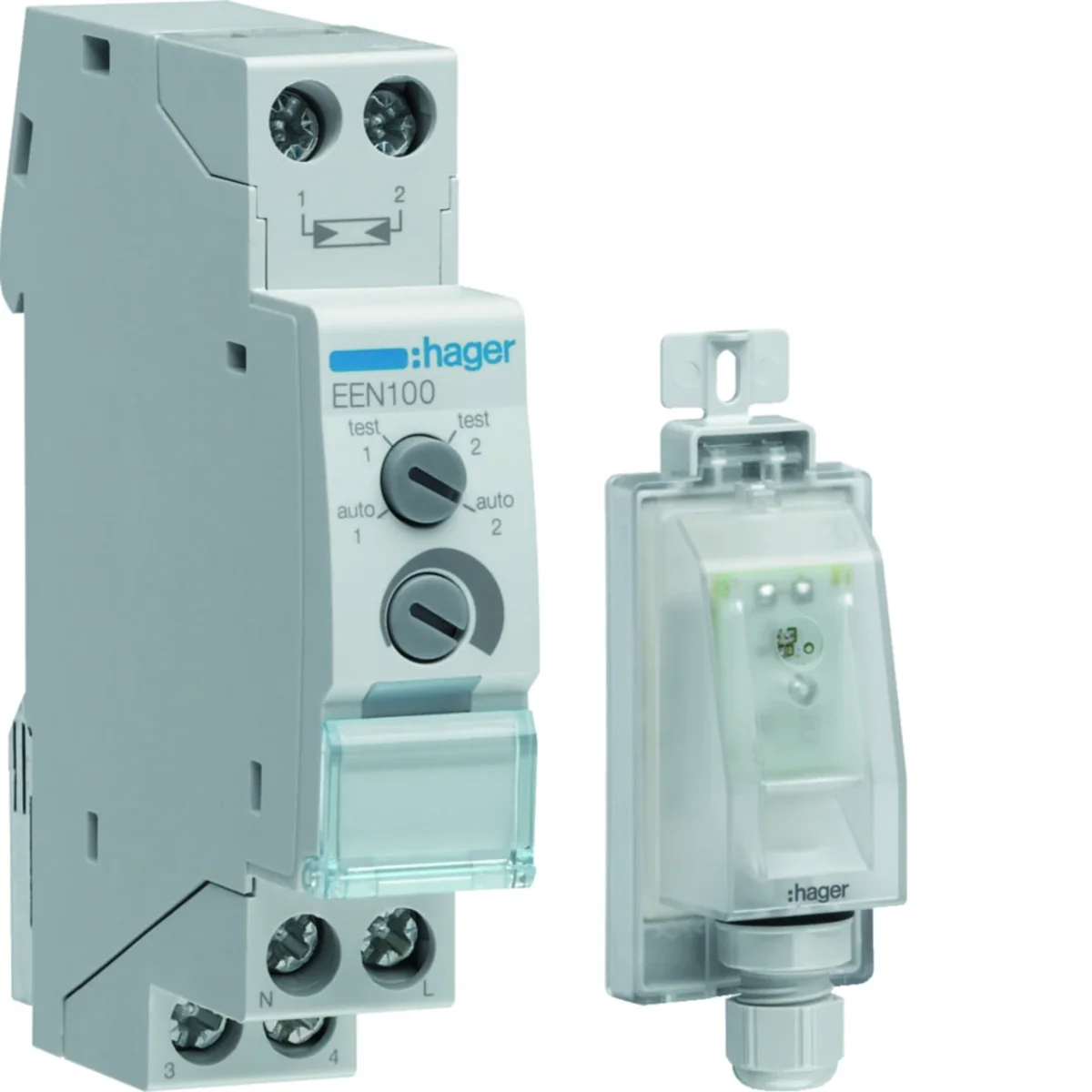

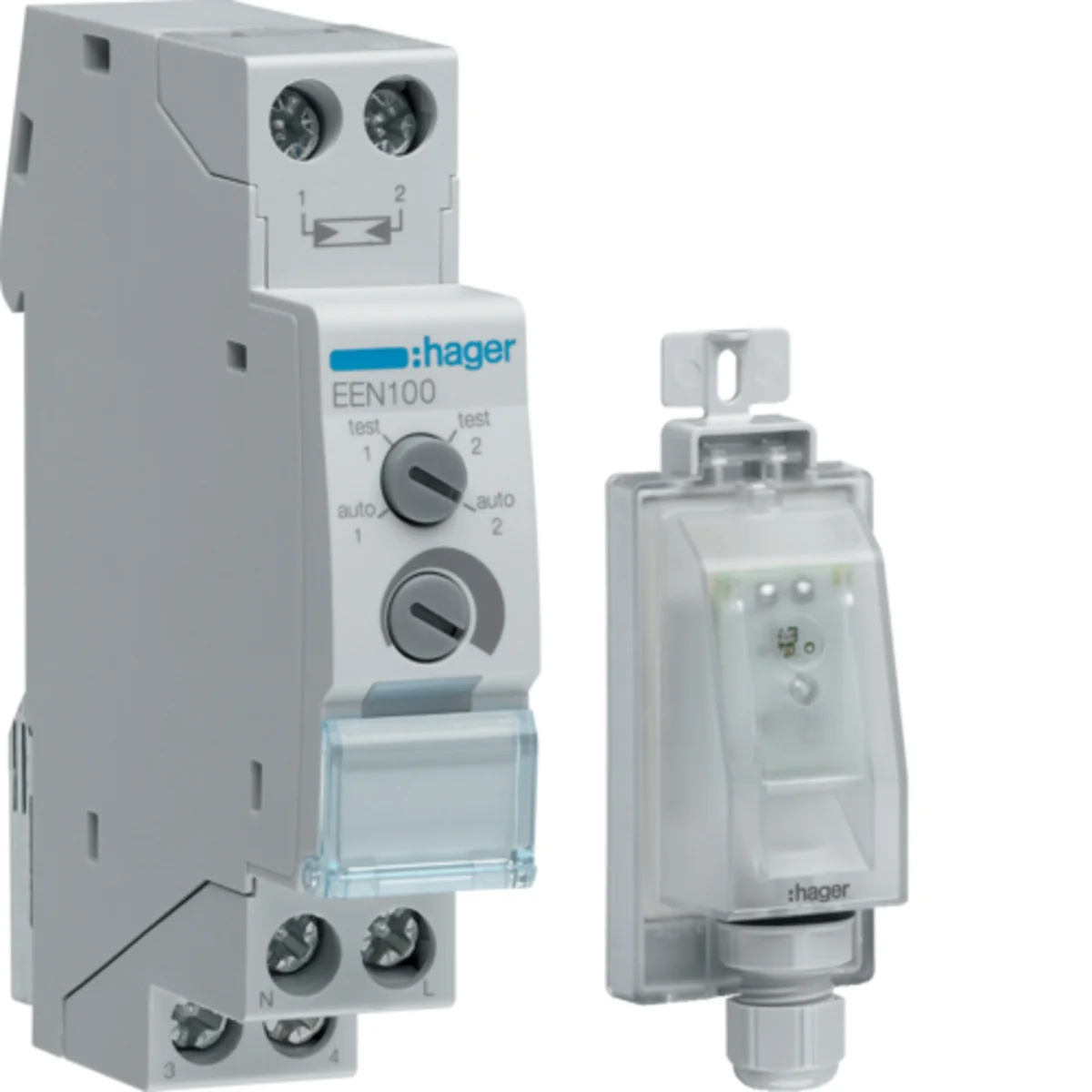

Twilight switch with a sensor in the housing EEN100
local index:
APF012HAGE
Catalog No:
EEN100
EAN code:
3250617579308
Price:
118,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Twilight switch with sensor in housing
| Maximum power of fluorescent lamps [VA] | 1000
Technical data
-
Number of modules1
-
Rated voltage [V]230
-
Illuminance Range [Lux]5 to 2000
-
Number of modules1
-
Maximum power [W]2300
-
Level of securityIP20
-
Breaking capacity16A 250V AC1
-
PKWIU27.33.11.0
Other technical data
-
Rated voltage230 V
-
Max. incandescent lamp load2300 W
-
Max. load fluorescent lamp (Duo circuit)1000 VA
-
Max. switching current (cos phi = 0.6)10 A
-
Adjustment range brightness value5 ... 2000 lx
-
Push button inputNo
-
Max. conductor length light sensor100 m
-
Mounting method light sensorOther
-
Width in number of modular spacings1
-
Degree of protection (IP)IP20
-
Rated frequency50 ... 60 Hz
-
Max. load fluorescent lamp1000 VA
-
Max. load fluorescent lamp (parallel compensated)1000 VA
-
Rated switch current10 A
-
With programmable overnight shutoffNo
-
Rated voltage light sensor230 V
-
Protection class light sensorII
-
Mounting methodDIN rail
-
Built-in depth17.8 mm
-
Degree of protection (IP) light sensorIP55
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 21 pcs. | 504 pcs. |
| Weight (kg) | 0,136 | 0,200 | 4,595 | 133,280 |
| Width (m) | 0,054 | 0,095 | 0,320 | 0,800 |
| Length (m) | 0,089 | 0,075 | 0,230 | 1,010 |
| Depth (m) | 0,065 | 0,155 | 0,365 | 1,200 |
