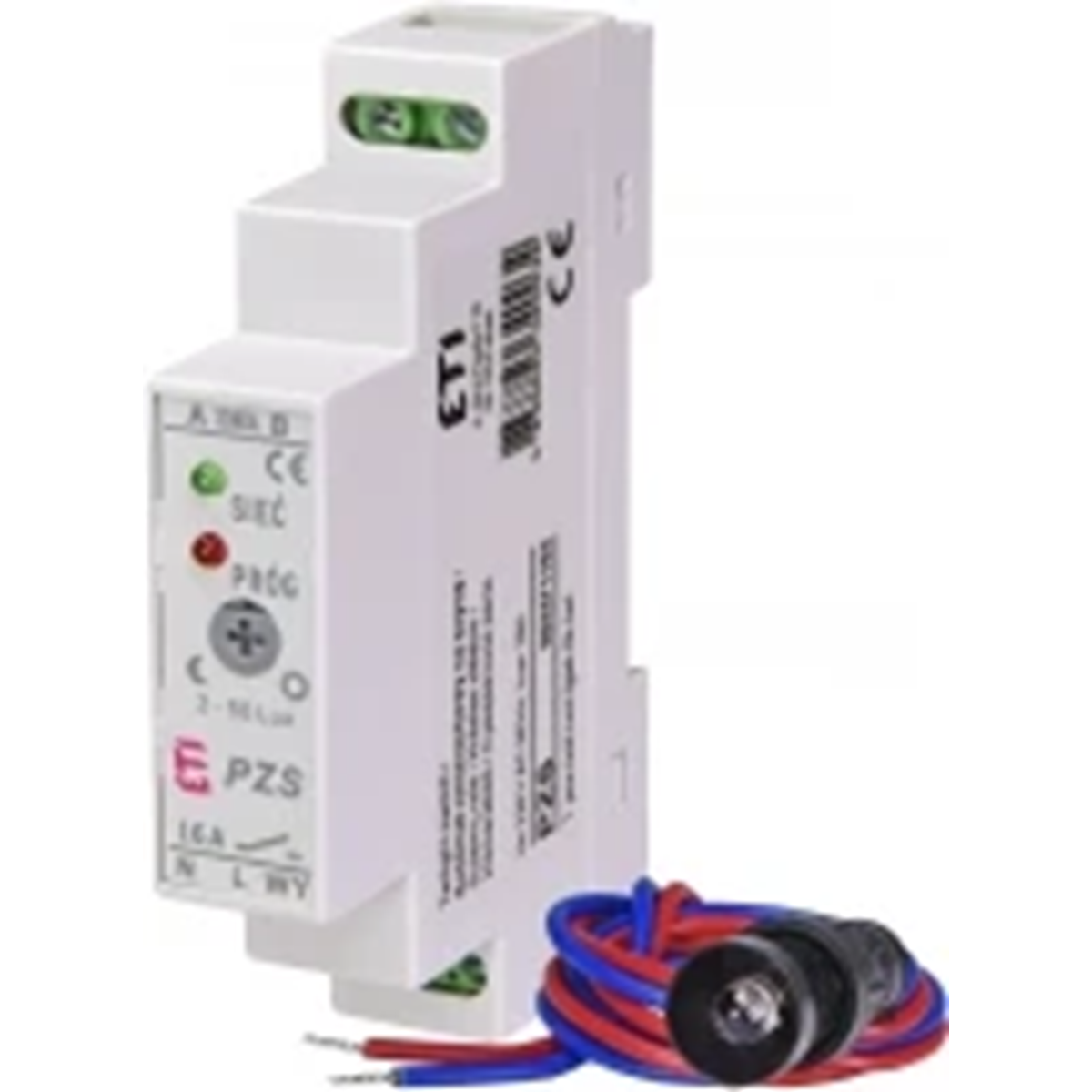

Twilight switch for PZS rail 002471103

local index:
APF030ETIP
Catalog No:
002471103
EAN code:
3838895340034
Manufacturer: ETI POLAM
Rated voltage [V]: 230
Clamps: 2.5mm2
Time ranges: 20 sec
Price:
47,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

They are used for remote control of external lighting, the time delay prevents accidental activation in the event of short-term changes in lighting intensity (lights of a passing car).

Advantages:

  •   the function of switching the lighting on and off depending on the light intensity in the place where the probe is placed,
  •  adjustment of the lighting intensity level (activation threshold),
  •  high-quality sensor with a handle adapted to for wall or door mounting - IP 65 (probe included)



Technical data

  • Rated voltage [V]
    230
  • Time ranges
    20 sec
  • Compliance with standards
    PN-EN 61812-1 PN - EN 50081 PN - EN 61000
  • Clamps
    2.5mm2
  • Power
    L - N terminals
  • PKWIU
    27.12.24.0

Other technical data

  • Rated voltage
    230 V
  • Rated switch current
    16 A
  • Mounting method light sensor
    Built-in
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Rated frequency
    50 ... 50 Hz
  • Adjustment range brightness value
    2 ... 200 lx
  • Mounting method
    DIN rail
  • Built-in depth
    68 mm
  • Degree of protection (IP) light sensor
    IP65

Manufacturer details

Bulk packaging

A kind of package Pudełko
Quantity 6 pcs.
Weight (kg) 0,850
Width (m) 0,190
Length (m) 0,085
Depth (m) 0,270
