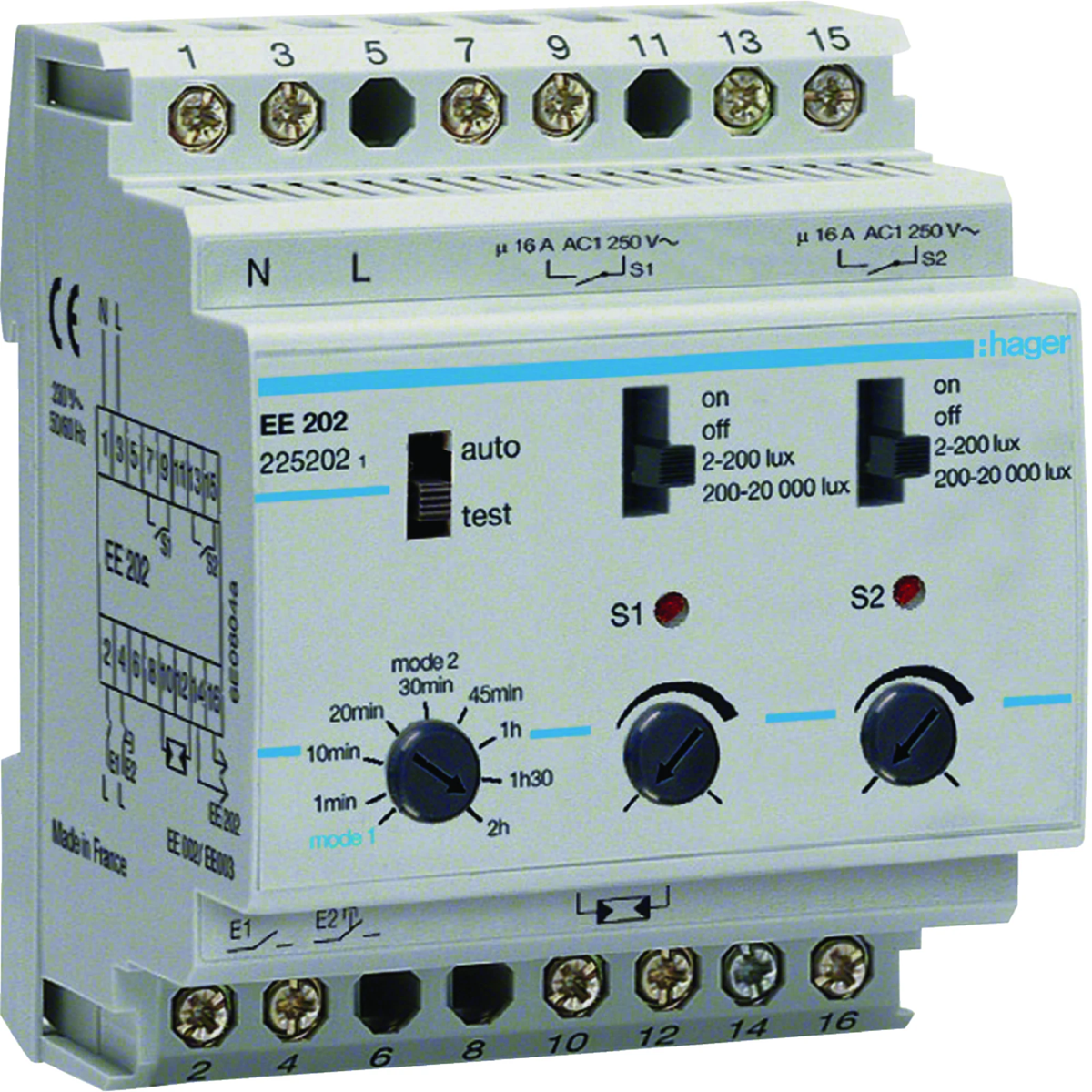

Twilight switch 230V 2P 16A Comfort functions EE202

local index:
APF003HAGE
Catalog No:
EE202
EAN code:
3250612252022
Manufacturer: HAGER
Rated frequency [Hz]: 50
Length [mm]: 58
Depth [mm]: 65
Price:
407,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Twilight switch 230V 2P 16A Comfort functions

Technical data

  • Rated frequency [Hz]
    50
  • Depth [mm]
    65
  • Installation
    On the TH-35 rail
  • Contact type
    2 NO
  • power loss [W]
    2
  • Height [mm]
    85
  • Rated switching voltage [V]
    230
  • Maximum bulb power [W]
    2000
  • Connection type
    With screw terminals
  • Wire cross-section (cord) [mm²]
    1 - 6
  • PKWIU
    26.52.24.0
  • Length [mm]
    58
  • Input power [VA]
    1.5
  • Supply voltage [V]
    230
  • Level of security
    IP20
  • Width [mm]
    71
  • Operating temperature range [°C]
    from 0 to 45
  • Number of modules
    4
  • AC operating voltage [V]
    230
  • storage temperature [°C]
    from -20 to 60
  • Conductor cross-section (wire) [mm²]
    1.5 - 10

Other technical data

  • Rated voltage
    230 V
  • Max. incandescent lamp load
    2000 W
  • Max. load fluorescent lamp (Duo circuit)
    1000 VA
  • Max. switching current (cos phi = 0.6)
    16 A
  • Adjustment range brightness value
    2 ... 20000 lx
  • Push button input
    No
  • Max. conductor length light sensor
    0.05 m
  • Mounting method light sensor
    Built-in
  • Width in number of modular spacings
    4
  • Degree of protection (IP)
    IP20
  • Rated frequency
    50 ... 60 Hz
  • Max. load fluorescent lamp
    1000 VA
  • Max. load fluorescent lamp (parallel compensated)
    1000 VA
  • Rated switch current
    16 A
  • With programmable overnight shutoff
    No
  • Rated voltage light sensor
    230 V
  • Protection class light sensor
    II
  • Mounting method
    DIN rail
  • Built-in depth
    71 mm
  • Degree of protection (IP) light sensor
    IP54

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,340 0,341 12,746 330,904
Width (m) 0,071 0,080 0,315 0,800
Length (m) 0,085 0,077 0,237 1,098
Depth (m) 0,058 0,095 0,365 1,200
