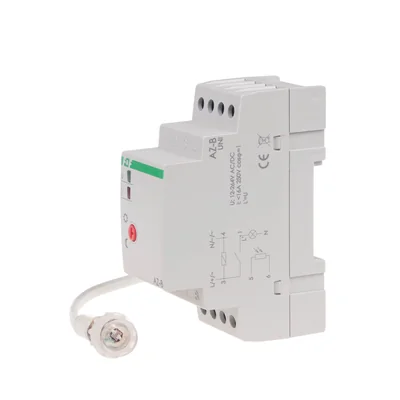

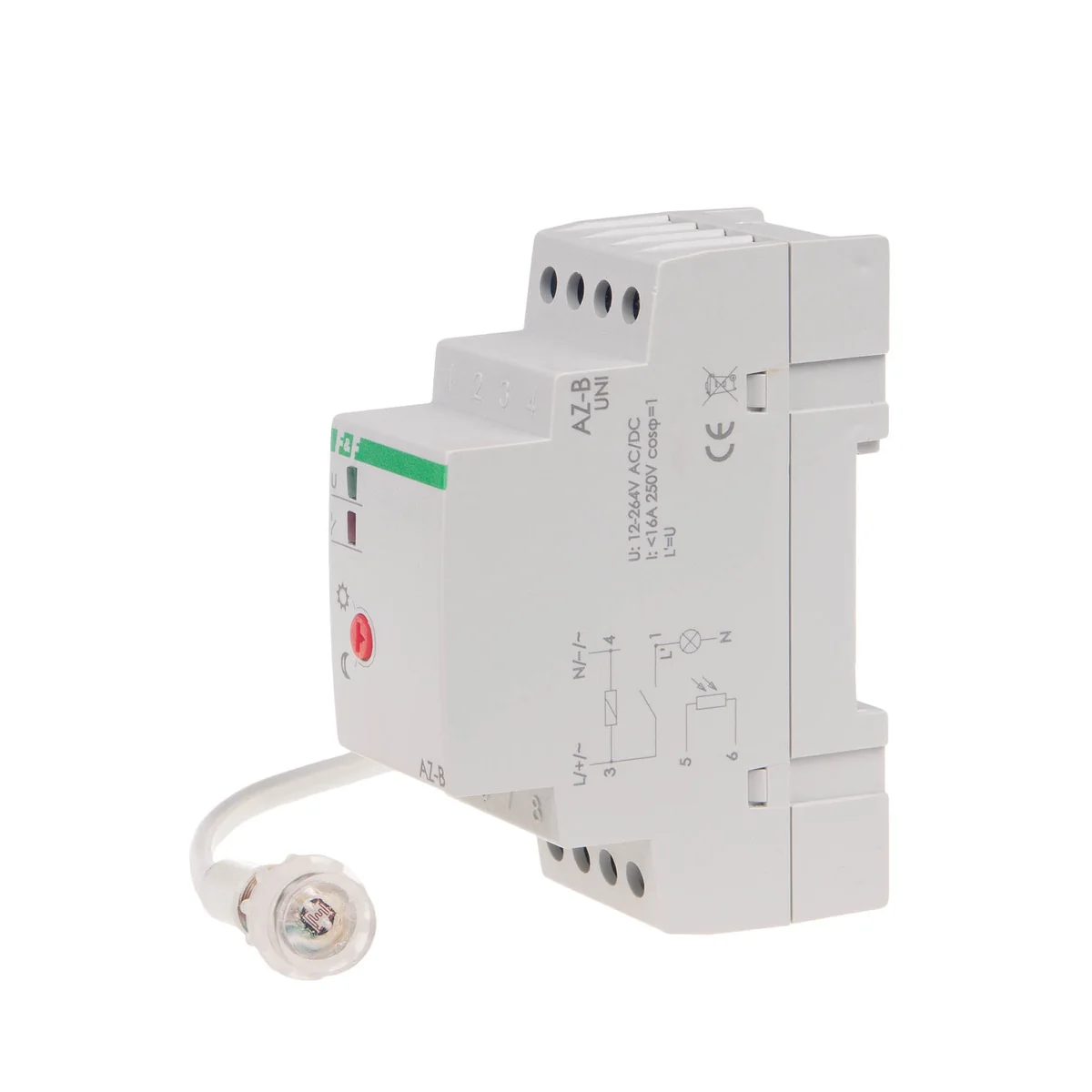

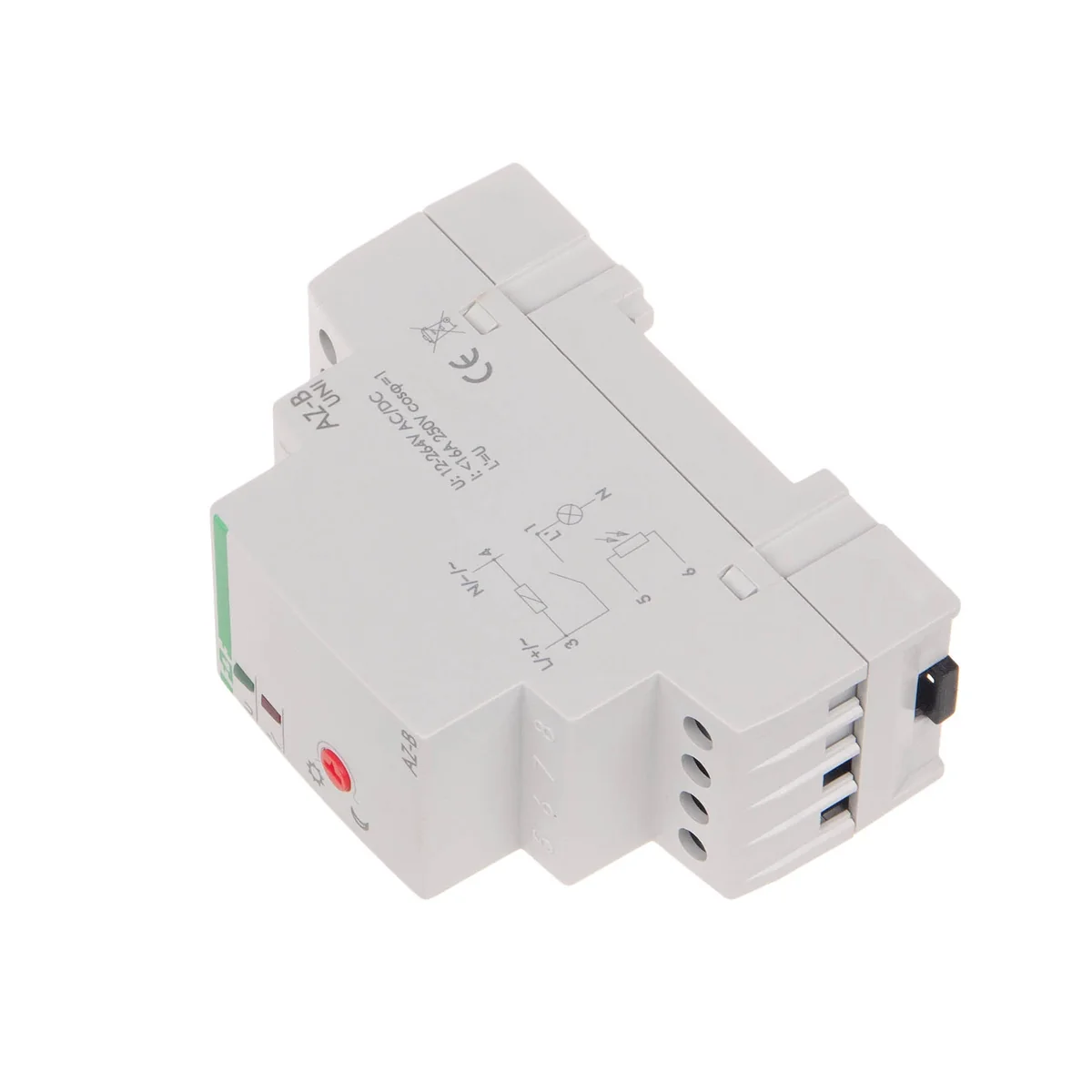

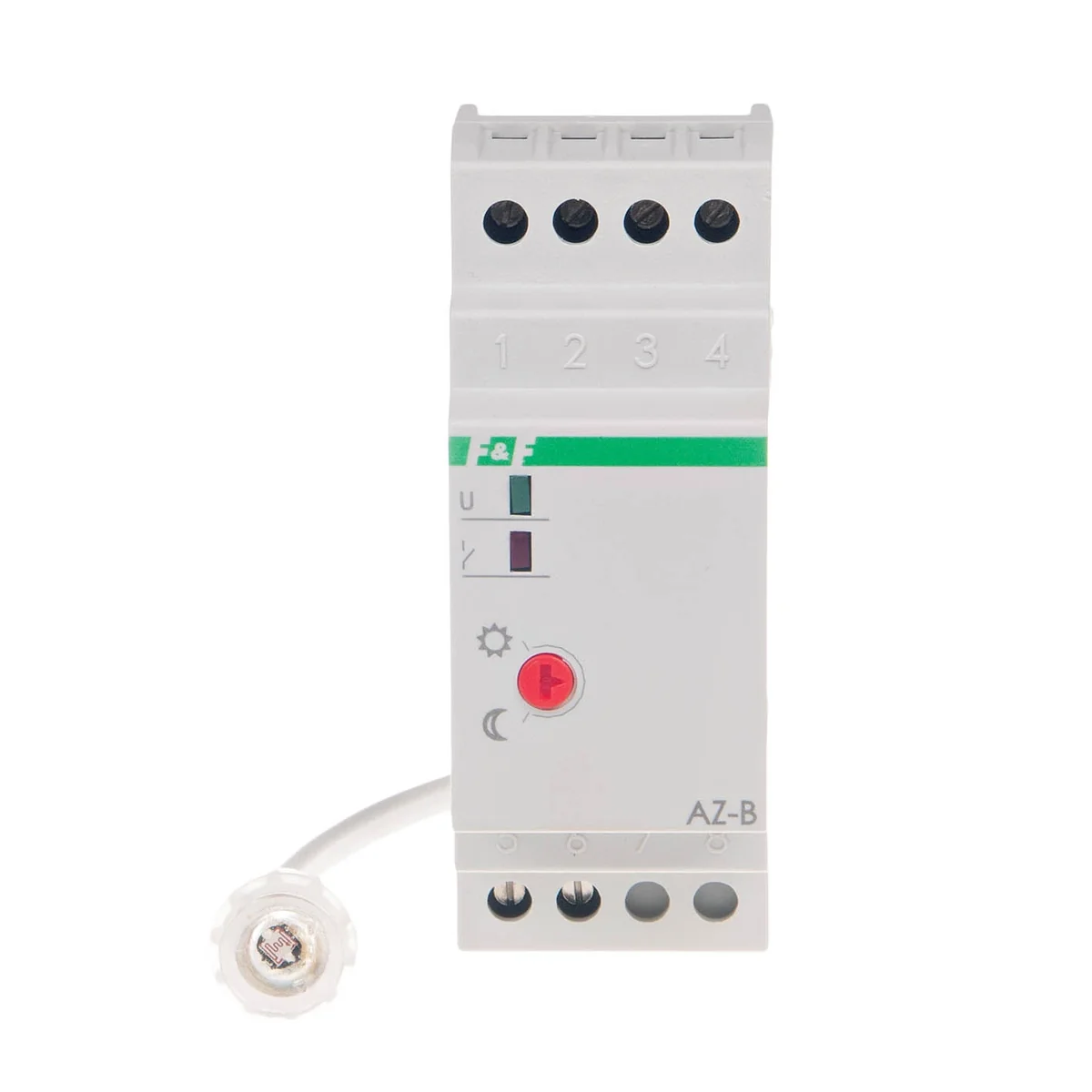

Twilight switch 16A U=12-264AC/DC AZ-B-UNI

local index:
APF112FIFQ
Catalog No:
AZ-B-UNI
EAN code:
5908312592600
Manufacturer: F&F
Hysteresis: Approx. 15Lx
Power [W]: 0.8
Installation: On the TH-35 rail
Price:
28,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

The twilight switch is used to automatically turn on the lighting of streets, squares, exhibitions, advertisements, etc. at dusk and turn off the lighting at dawn. If the length of the probe's connection cable exceeds 10 m, it should not be run close to the parallel cable under voltage. mains or carrying large currents.

Technical data

  • Hysteresis
    Approx. 15Lx
  • Installation
    On the TH-35 rail
  • Shutdown activation delay [s]
    10-30
  • Actuation threshold - adjustable [Lx]
    2-1000
  • connection
    2.5mm screw terminals
  • Working temperature [°C]
    -25-50
  • Power [V]
    230
  • Power supply AZ-B UNI / AZ-B PLUS UNI [V]
    12-264
  • Package width [mm]
    40
  • PKWIU
    27.12.23.0
  • Power [W]
    0.8
  • Tripping delay [s]
    1-15
  • load current [A]
    16
  • Actuation threshold - set [Lx]
    7
  • The degree of protection of the probe
    IP 65
  • Dimensions
    2 modules (35mm)
  • AZ-B / AZ-B PLUS power supply
    230V AC
  • Package height [mm]
    150
  • Package weight [kg]
    0.15

Other technical data

  • Rated frequency
    50 ... 50 Hz
  • Max. load fluorescent lamp (Duo circuit)
    1000 VA
  • Rated switch current
    16 A
  • Protection class light sensor
    I
  • Mounting method
    DIN rail
  • Degree of protection (IP)
    IP20
  • Max. load fluorescent lamp
    550 VA
  • Max. load fluorescent lamp (parallel compensated)
    800 VA
  • Adjustment range brightness value
    2 ... 1000 lx
  • Mounting method light sensor
    Other
  • Width in number of modular spacings
    1
  • Degree of protection (IP) light sensor
    IP65

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,125
Width (m) 0,056
Length (m) 0,095
Depth (m) 0,070
