el12 Automation Relays and drivers Photoelectric relays Twilight switch 16A U=12-264AC/DC

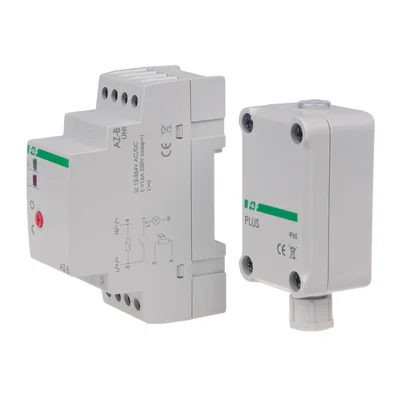

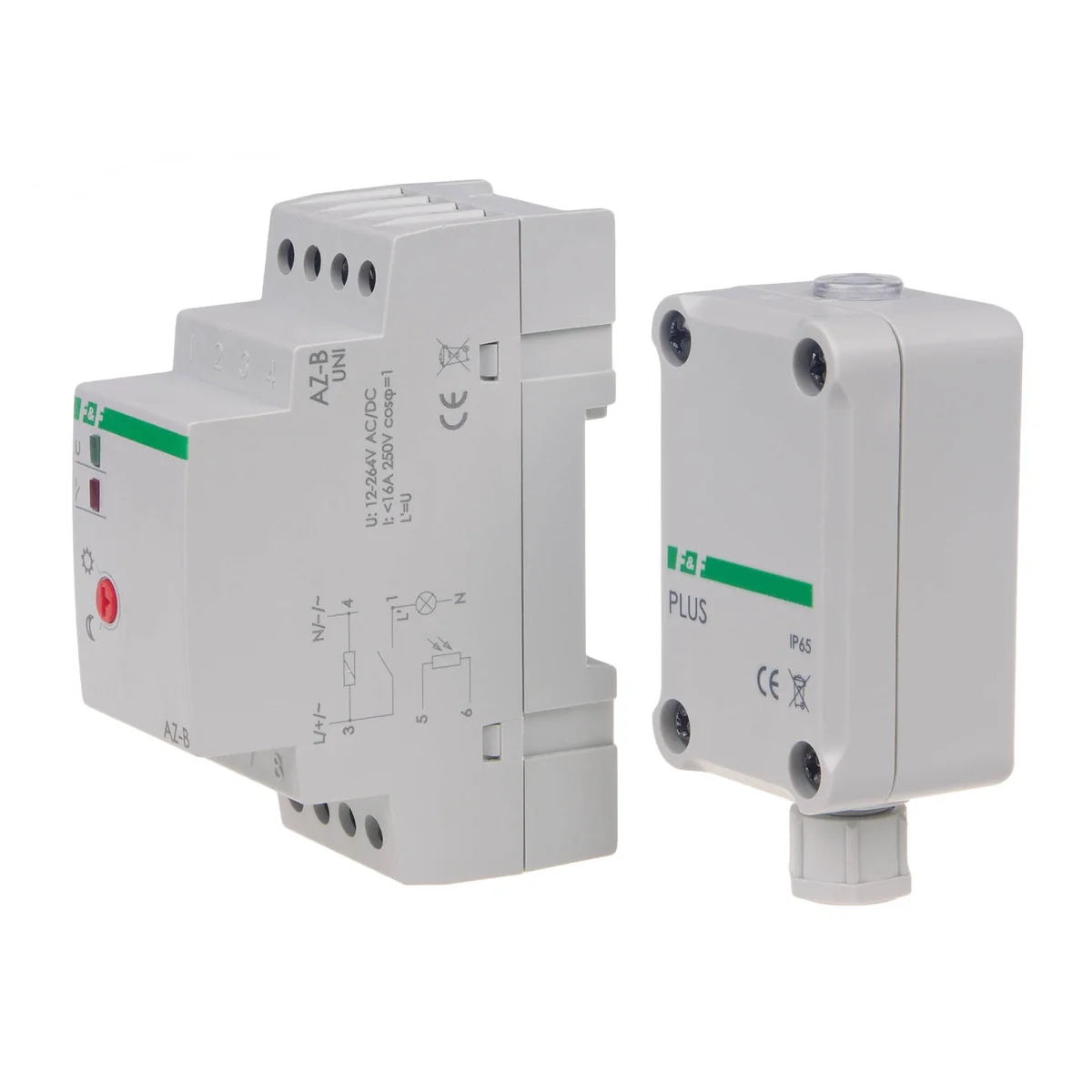

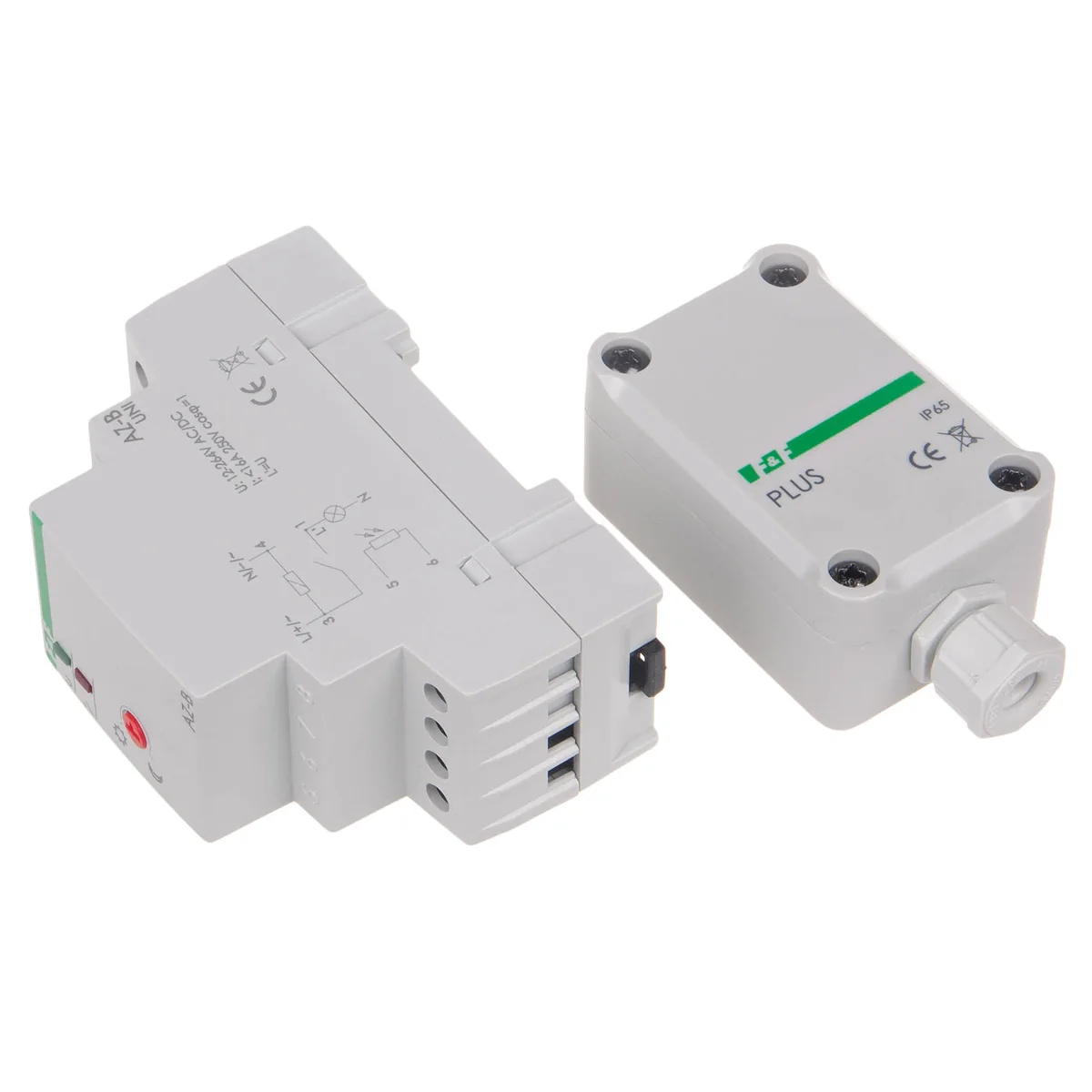

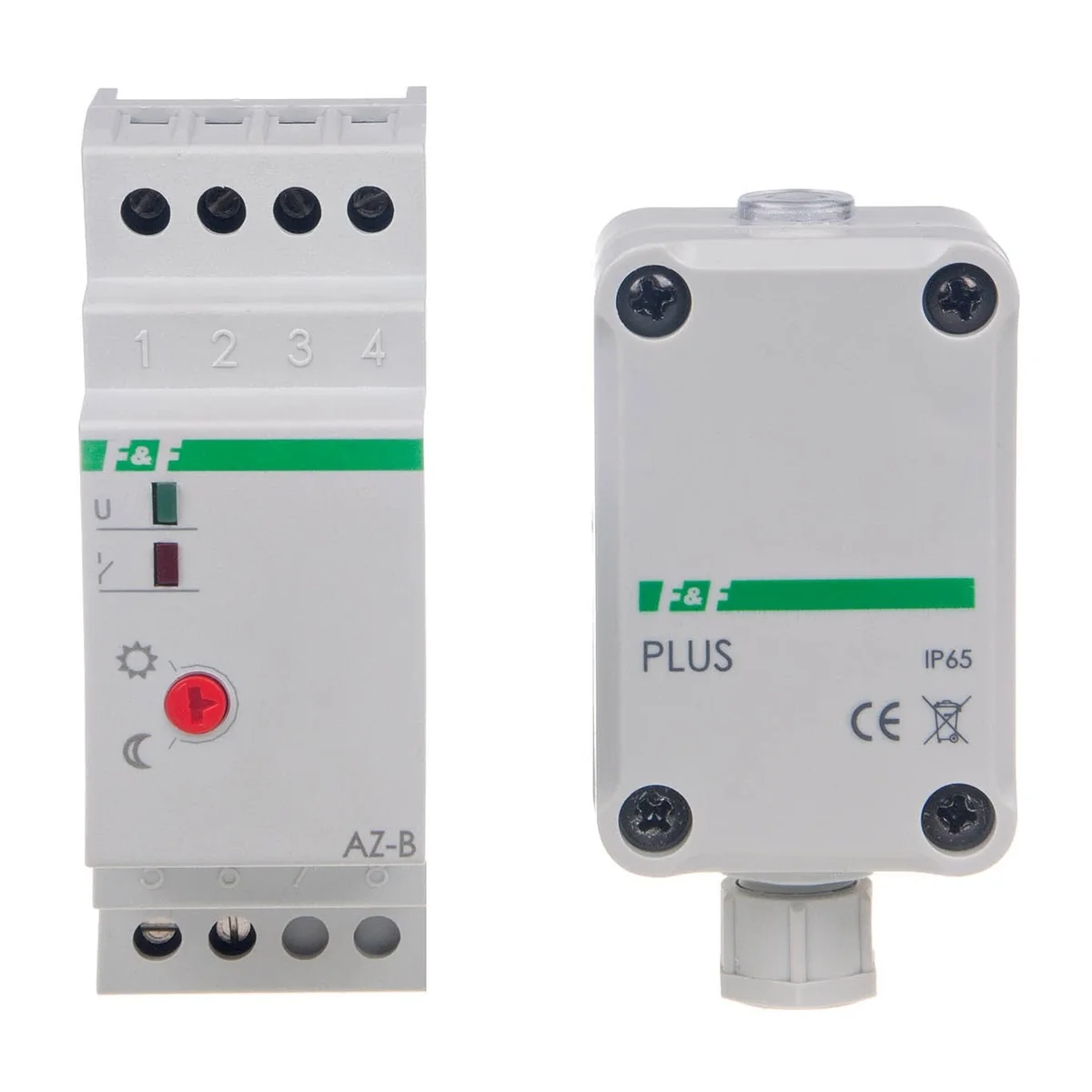

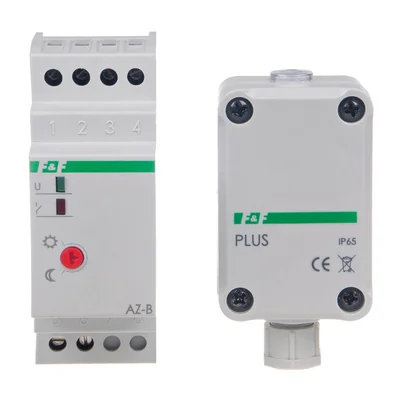

Twilight switch 16A U=12-264AC/DC
Twilight switch 16A U=12-264AC/DC

Click on the photo to enlarge

Twilight switch 16A U=12-264AC/DC
Twilight switch 16A U=12-264AC/DC
F&F

Twilight switch 16A U=12-264AC/DC AZ-B-PLUS-UNI

local index:
APF117FIFQ
Catalog No:
AZ-B-PLUS-UNI
EAN code:
5908312592617
Price:
30,81 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 22 pcs.
Delivery:
From 3,47 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

The twilight switch is used to automatically turn on the lighting of streets, squares, exhibitions, advertisements, etc. at dusk and turn off the lighting at dawn. If the length of the probe's connection cable exceeds 10 m, it should not be run close to the parallel cable under voltage. mains or carrying high currents.

Print the product sheet Report an error

Technical data

  • Hysteresis
    Approx. 15Lx
  • Installation
    On the TH-35 rail
  • Shutdown activation delay [s]
    10-30
  • Actuation threshold - adjustable [Lx]
    2-1000
  • connection
    2.5mm screw terminals
  • Working temperature [°C]
    -25-50
  • Power [V]
    12-264
  • Power supply AZ-B UNI / AZ-B PLUS UNI [V]
    12-264
  • Package width [mm]
    40
  • Power [W]
    0.8
  • Tripping delay [s]
    1-15
  • load current [A]
    16
  • Actuation threshold - set [Lx]
    7
  • The degree of protection of the probe
    IP 65
  • Dimensions
    2 modules (35mm)
  • AZ-B / AZ-B PLUS power supply
    230V AC
  • Package height [mm]
    150
  • Package weight [kg]
    0, 15

Other technical data

  • Rated voltage
    20 V
  • Max. load fluorescent lamp
    550 VA
  • Max. load fluorescent lamp (parallel compensated)
    800 VA
  • Adjustment range brightness value
    2 ... 1000 lx
  • Mounting method light sensor
    Other
  • Width in number of modular spacings
    3
  • Degree of protection (IP) light sensor
    IP65
  • Rated frequency
    50 ... 50 Hz
  • Max. load fluorescent lamp (Duo circuit)
    1000 VA
  • Rated switch current
    16 A
  • Protection class light sensor
    I
  • Mounting method
    DIN rail
  • Degree of protection (IP)
    IP20
