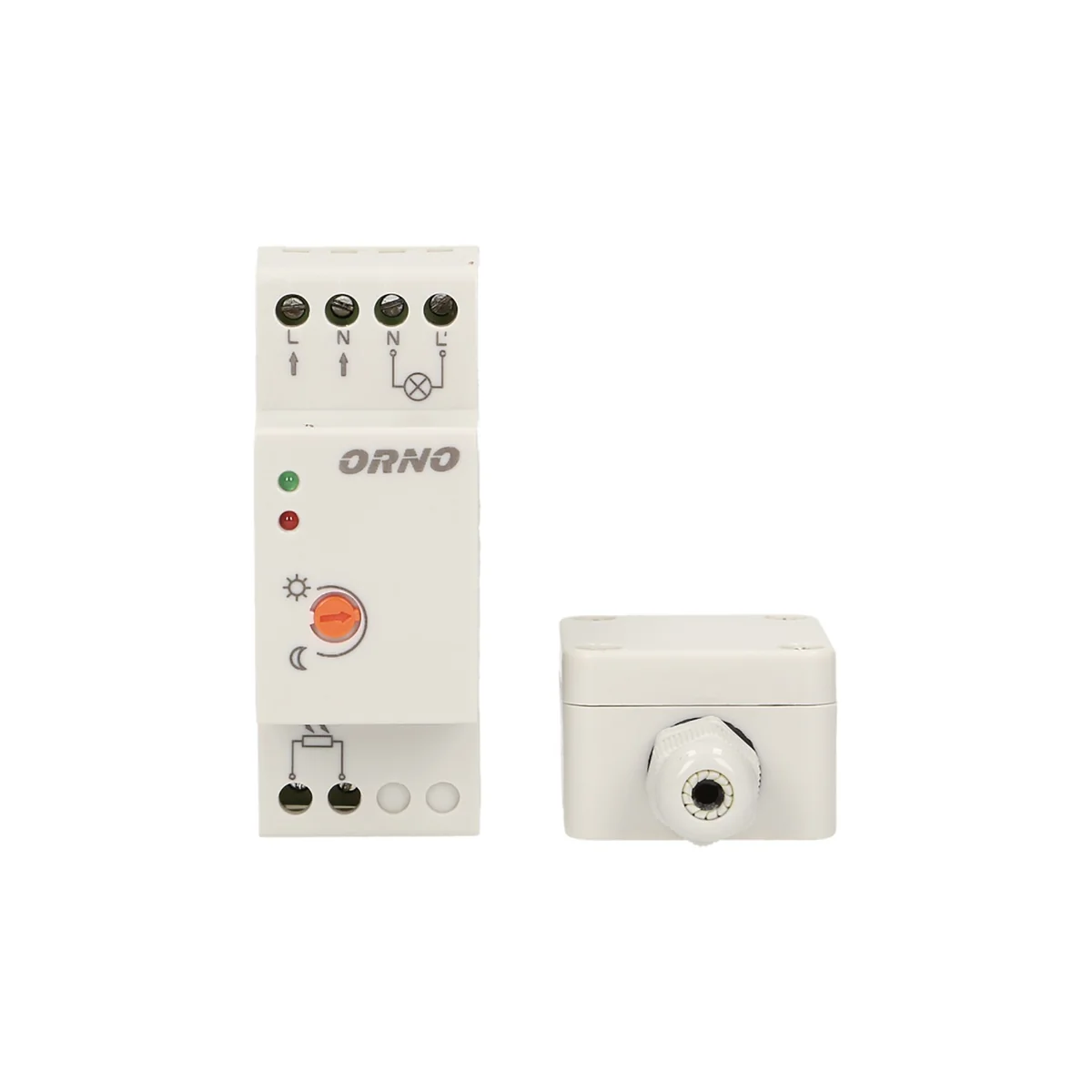

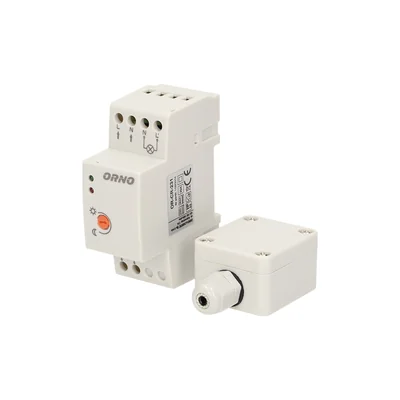

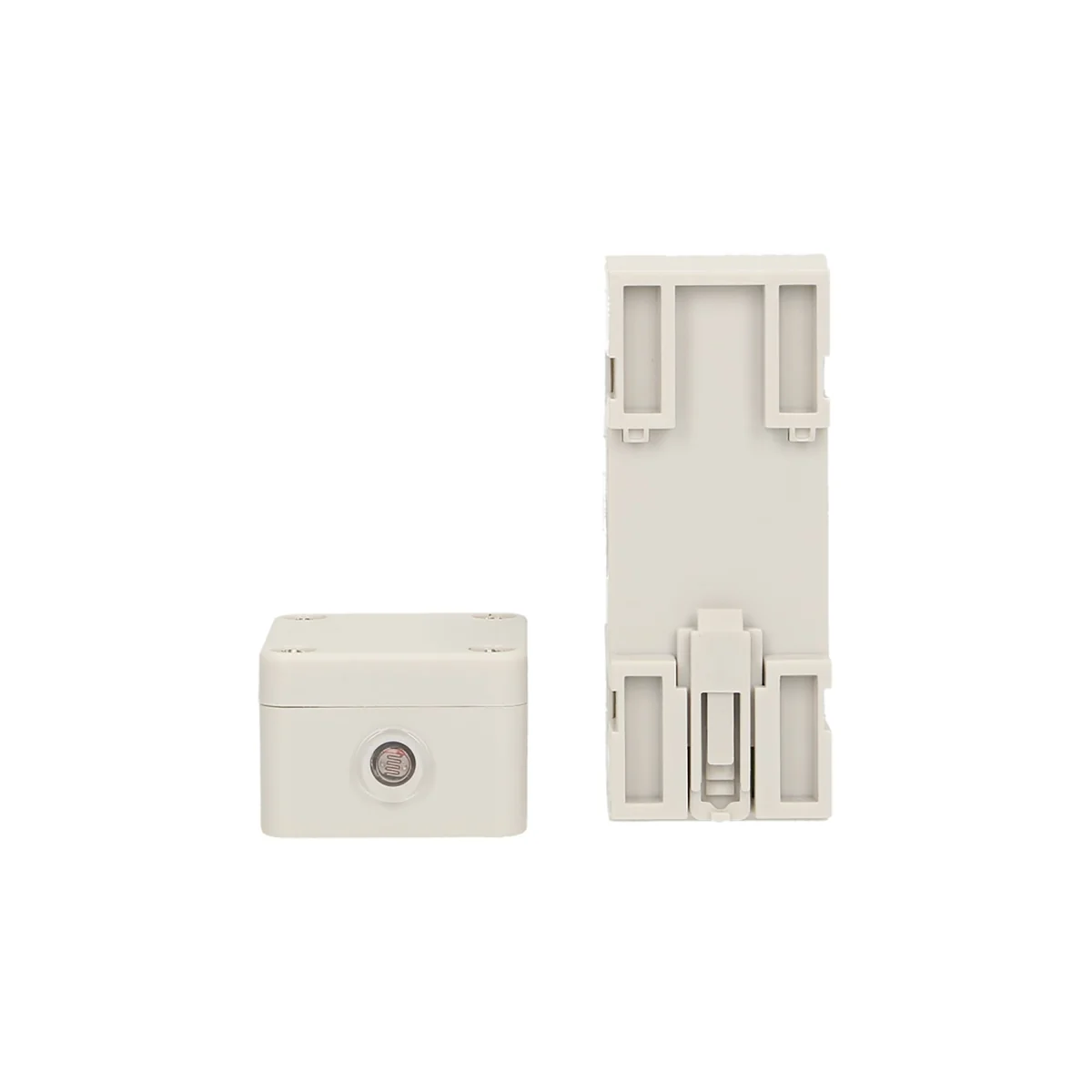

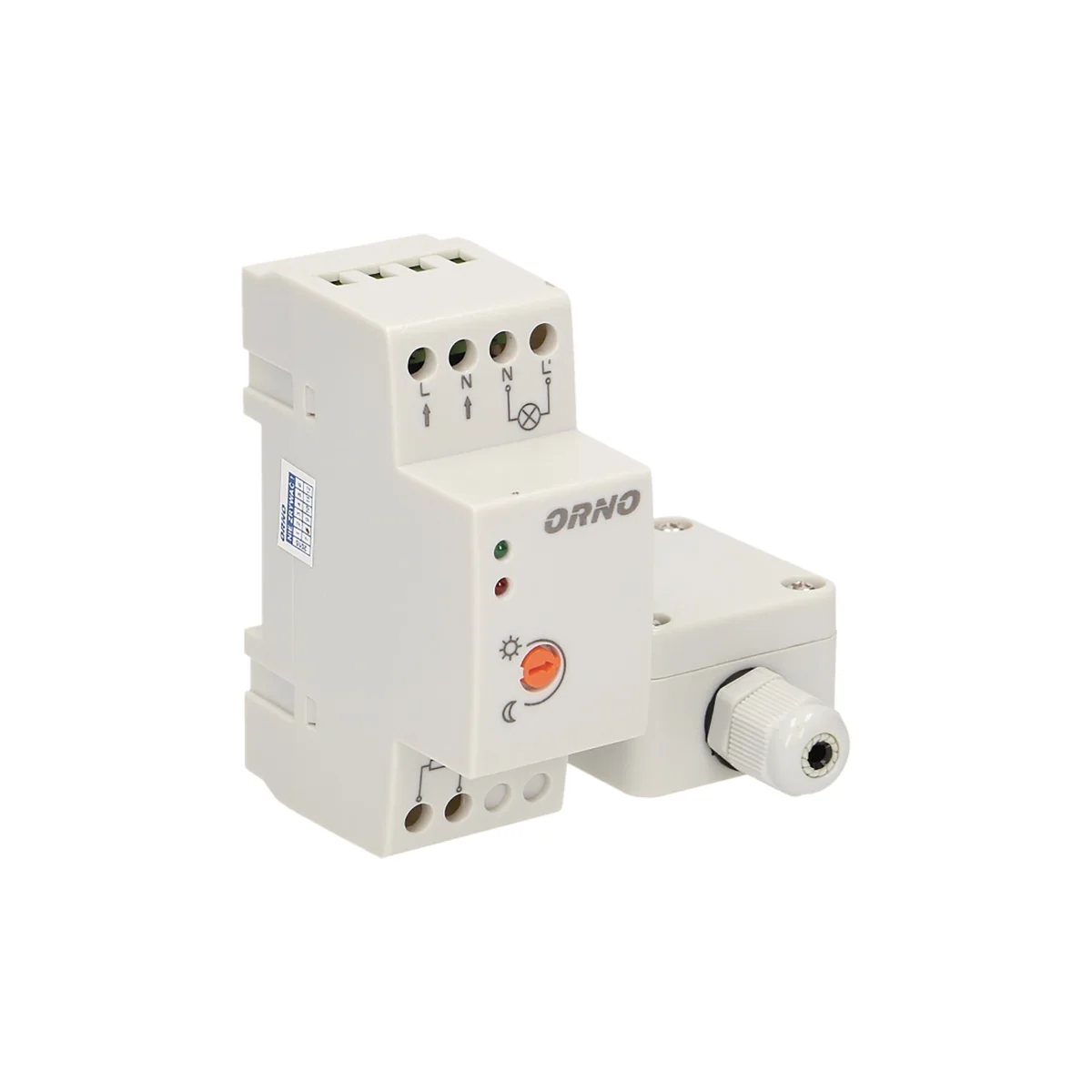

Twilight sensor for DIN rail with an external probe in a box, 2-100 lux 3000W, white OR-CR-231

local index:
APF005ORNO
Catalog No:
OR-CR-231
EAN code:
5901752483972
Manufacturer: ORNO POLSKA
Color: White
Material: Plastic
Installation: On the TH-35 rail
Price:
10,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Twilight sensor for a rail with an external probe placed in a box, IP65. The device is used to automatically control lighting or other electrical receivers while saving electricity.
Its task is to connect and disconnect the electrical circuit if the lighting intensity drops below a certain level . The photosensitive sensor is located in a special, small box.
  • type of material: plastic
  • regulation: light intensity
  • delay of switching on 1-2 seconds
  • on-off delay 4-5 seconds
  • sensor dimensions 35 x 90 x 66 mm
  • probe dimensions 42 x 48 x 30 mm
  • probe protection level IP65 / /IP20 sensor

Technical data

  • Color
    White
  • Installation
    On the TH-35 rail
  • Level of security
    IP65
  • Power
    230V
  • PKWIU
    27.33.11.0
  • Material
    Plastic
  • Light intensity [lux]
    2-100
  • Operating temperature range [°C]
    -20 - +50
  • Load [W]
    3000
