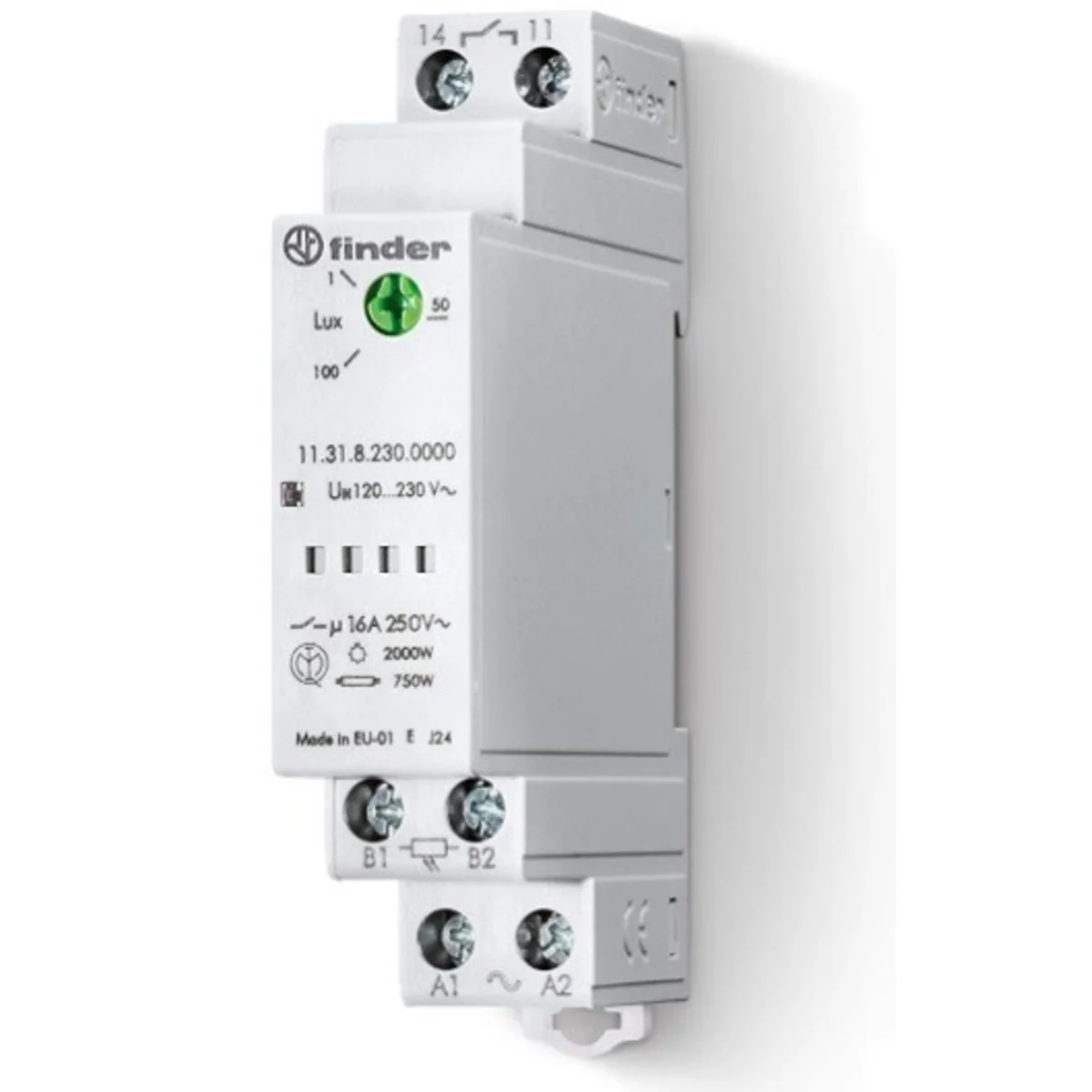

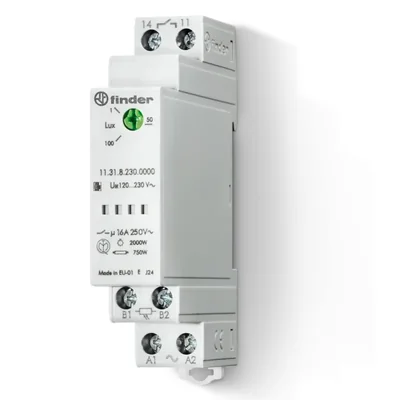

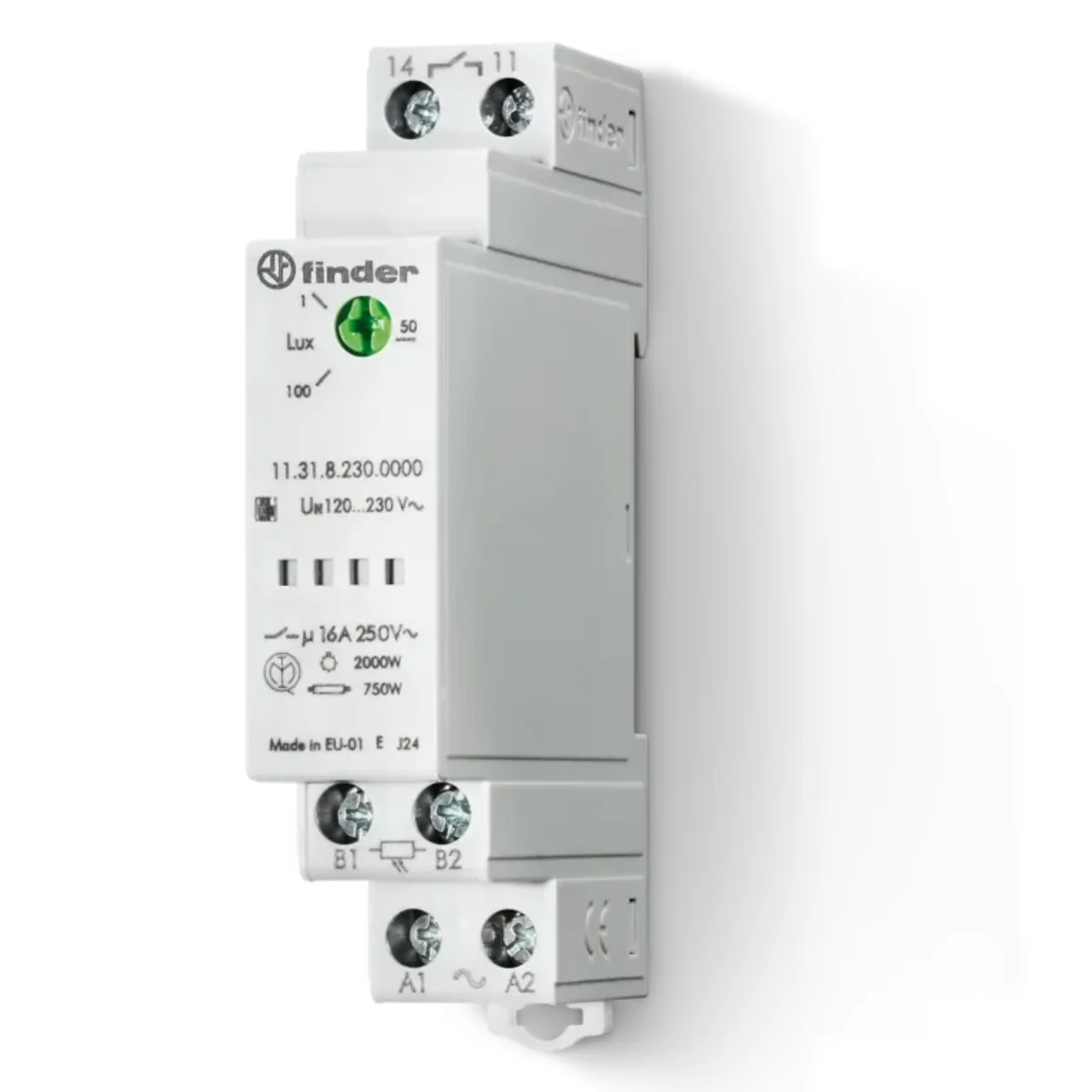

Twilight modular relay with sensor 1Z 16A 230V AC 1-100lx IP20/IP54 113182300000PAS

local index:
APF003FIND
Catalog No:
113182300000PAS
EAN code:
8012823347844
Manufacturer: FINDER
Contact material: AgSnO2
Installation: On the TH-35 rail
AC coil voltage [V]: 110-230
Price:
43,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 11 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Relays for automatic lighting control depending on the level of external light intensity – with a separate light sensor.

Technical data

  • Contact material
    AgSnO2
  • AC coil voltage [V]
    110-230
  • Overvoltage resistance [kV]
    3
  • Power consumption [W]
    0.9
  • Family
    11
  • Width [number of modules]
    1
  • Number of contacts
    1Z
  • Rated AC switching voltage [V]
    400
  • Rated switching power for AC15 (230V AC) [VA]
    750
  • Sensitivity setting range [lx]
    1-100
  • Return time [s]
    thirty
  • Installation
    On the TH-35 rail
  • Rated voltage [V]
    230
  • Power consumption [VA]
    2.5
  • Rated current [A]
    16
  • Level of security
    IP20/IP54
  • Rated inrush current [A]
    thirty
  • Type of coil voltage
    AC
  • Rated switching power for AC1 [VA]
    4000
  • Electrical durability AC1 [number of cycles]
    100000
  • Tripping time [s]
    15
