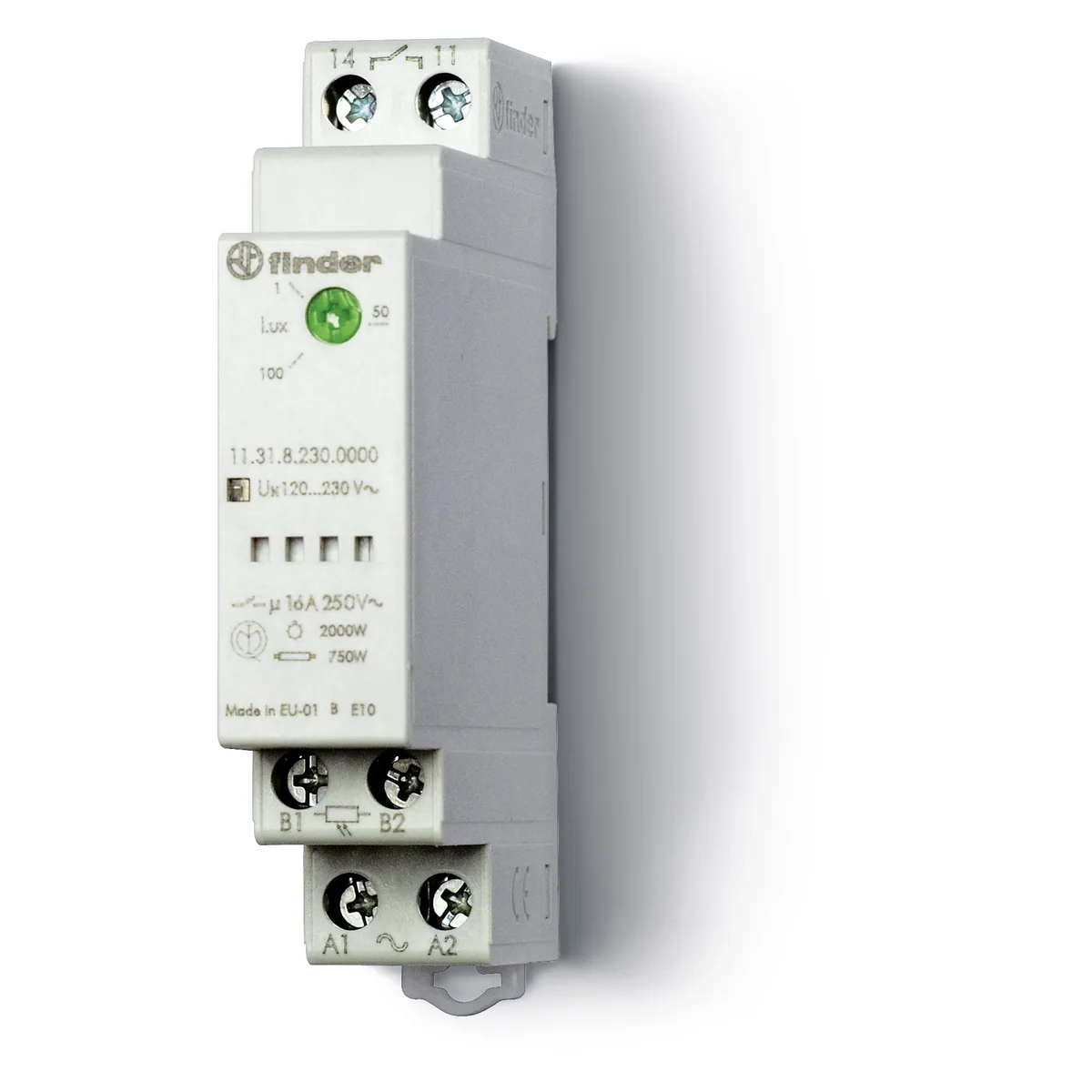

Twilight modular relay with sensor 1Z 16A 230V AC 1-100lx IP20/IP54 113182300000
local index:
APF013FIND
Catalog No:
113182300000
EAN code:
8012823347837
Manufacturer:
FINDER
Contact material: AgSnO2
Installation: On the TH-35 rail
AC coil voltage [V]: 110-230
Price:
43,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Relays for automatic lighting control depending on the level of external light intensity – with a separate light sensor.
Technical data
-
Contact materialAgSnO2
-
AC coil voltage [V]110-230
-
Overvoltage resistance [kV]3
-
Power consumption [W]0.9
-
Family11
-
Width [number of modules]1
-
Number of contacts1Z
-
Rated AC switching voltage [V]400
-
Rated switching power for AC15 (230V AC) [VA]750
-
Sensitivity setting range [lx]1-100
-
Return time [s]thirty
-
InstallationOn the TH-35 rail
-
Rated voltage [V]230
-
Power consumption [VA]2.5
-
Rated current [A]16
-
Level of securityIP20/IP54
-
Rated inrush current [A]thirty
-
Type of coil voltageAC
-
Rated switching power for AC1 [VA]4000
-
Electrical durability AC1 [number of cycles]100000
-
Tripping time [s]15
Other technical data
-
Rated voltage230 V
-
Max. incandescent lamp load2000 W
-
Max. load fluorescent lamp (Duo circuit)1000 VA
-
Max. switching current (cos phi = 0.6)12 A
-
Adjustment range brightness value1 ... 100 lx
-
Push button inputYes
-
Max. conductor length light sensor50 m
-
Mounting method light sensorNaścienny
-
Width in number of modular spacings1
-
Degree of protection (IP)IP20
-
Rated frequency50 ... 60 Hz
-
Max. load fluorescent lamp1000 VA
-
Max. load fluorescent lamp (parallel compensated)750 VA
-
Rated switch current16 A
-
With programmable overnight shutoffYes
-
Rated voltage light sensor5 V
-
Protection class light sensorIII
-
Mounting methodDIN rail
-
Built-in depth60.8 mm
-
Degree of protection (IP) light sensorIP54
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,150 | 0,864 |
| Width (m) | 0,092 | 0,275 |
| Length (m) | 0,053 | 0,095 |
| Depth (m) | 0,157 | 0,165 |
