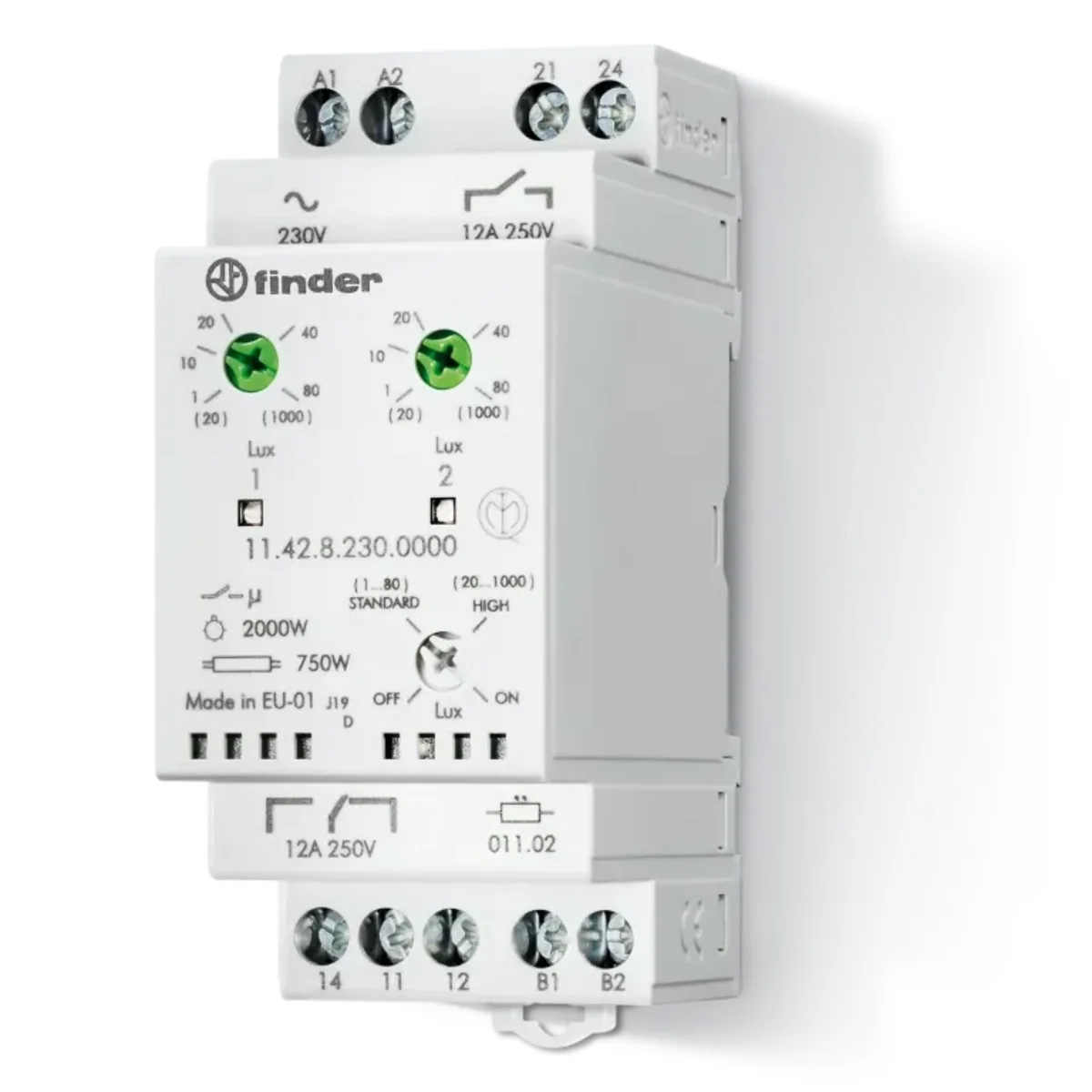

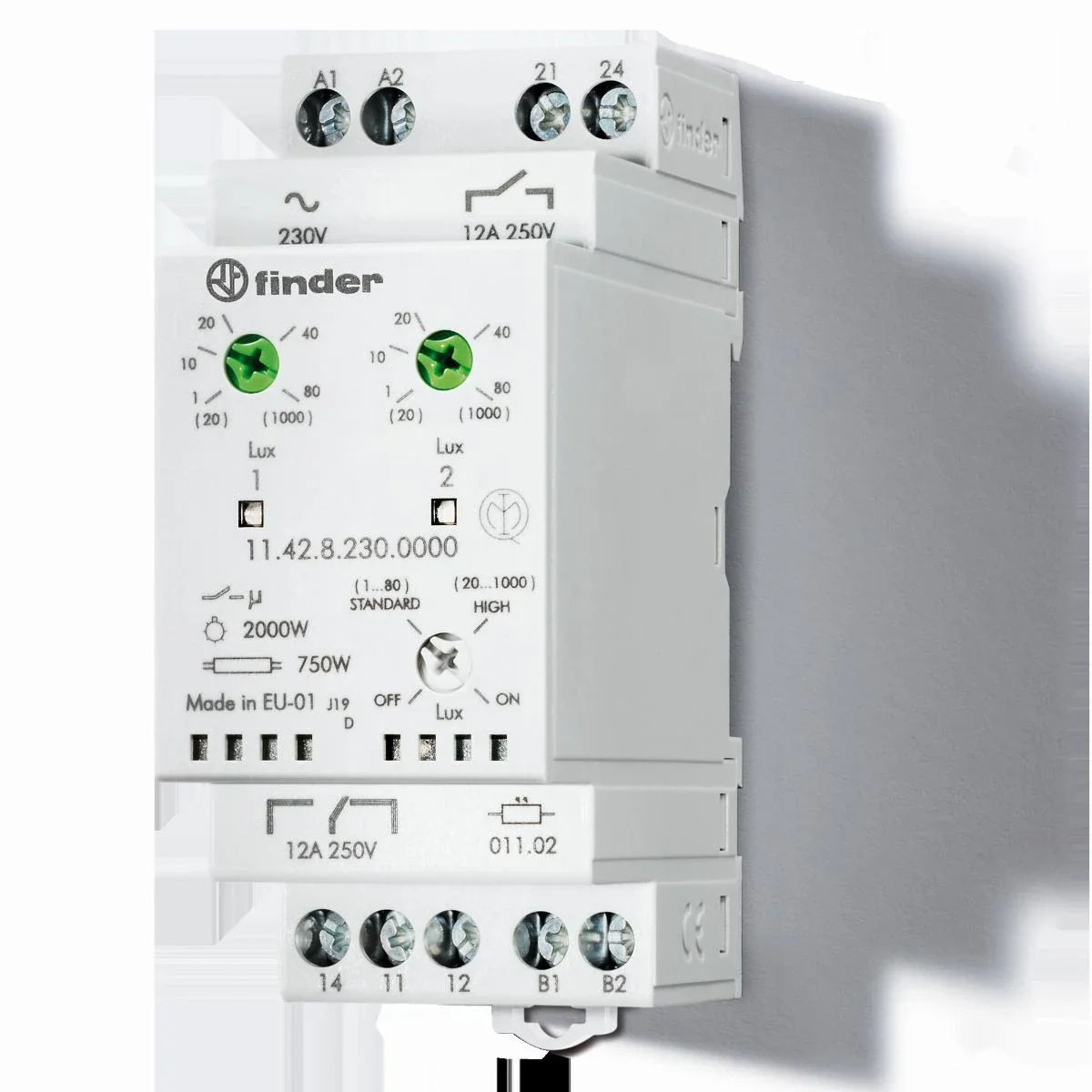

Twilight modular relay with sensor 1P + 1NO 12A 230V AC 1-80/20-1000lx IP20/IP54 114282300000
Index local:
APF001FIND
Numéro de catalogue:
114282300000
Code EAN:
8012823347813
Producteur:
FINDER
Contact material: AgSnO2
Installation: On the TH-35 rail
AC coil voltage [V]: 230
508
45
zł
gross / pcs.
(y compris la TVA 23%)
Disponibilité
Dostępne jusqu'à 2 semaines
Sur commande
Dostępność w oddziale
Choisissez votre grossiste
Sélectionner
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
Relays for automatic lighting control depending on the level of external light intensity – with a separate light intensity sensor.
Features:
- Two independent outputs with individual sensitivity settings
- 4 mode switch:
- Standard range (1…80 lx threshold setting)
- High range (20…1000 x threshold setting)
- Constant light (helpful with installation, commissioning and maintenance)
- Light off (e.g. as holiday mode)
- For the first 6 cycles (total for channels 1 and 2) the delay time (On and Off) is reduced to zero for ease of installation
- LED indicator
Données techniques
-
Contact materialAgSnO2
-
AC coil voltage [V]230
-
Overvoltage resistance [kV]4
-
Power consumption [W]2.8
-
Family11
-
Width [number of modules]2
-
Number of contacts1P + 1Z
-
Rated AC switching voltage [V]400
-
Rated switching power for AC15 (230V AC) [VA]750
-
Sensitivity setting range [lx]1-80/20-1000
-
Return time [s]thirty
-
InstallationOn the TH-35 rail
-
Rated voltage [V]230
-
Power consumption [VA]7.4
-
Rated current [A]12
-
Level of securityIP20/IP54
-
Rated inrush current [A]24
-
Type of coil voltageAC
-
Rated switching power for AC1 [VA]3000
-
Electrical durability AC1 [number of cycles]100000
-
Tripping time [s]15
Autres données techniques
-
Type of sensorSeparate light sensor
-
Engaging brightness1 ... 80 lx
-
Switch-off delay30 s
-
Max. switching power3000 W
-
Suitable for C-loadYes
-
Mounting methodOther
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7035
-
Nominal voltage230 V
-
Operating temperature-20 ... 50 °C
-
With DALI interfaceNo
-
Height84 mm
-
Compatible with Apple HomeKitNo
-
Compatible with Amazon AlexaNo
-
ContactsOther
-
Switching-off brightness1 ... 80 lx
-
Switching-on delay15 s
-
Max. switching power LED400 W
-
With automatic night switch-offNo
-
SwivellingNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
Max. switching current (resistive load)12 A
-
Suitable for degree of protection (IP)IP20
-
Width35 mm
-
Depth56.5 mm
-
Compatible with Google AssistantNo
-
IFTTT support availableNo
Détails du fabricant
-
ProducteurFinder S.p.A. con unico socio
-
Adresse10040 Almese Via Drubiaglio 14 Włochy
-
E-mail
Emballage en vrac
| Une sorte de paquet | C62 | C62 |
| Quantité | 1 pcs. | 5 pcs. |
| poids (kg) | 0,186 | 1,049 |
| Largeur (m) | 0,092 | 0,275 |
| Longueur (m) | 0,053 | 0,095 |
| Profondeur (m) | 0,157 | 0,165 |
