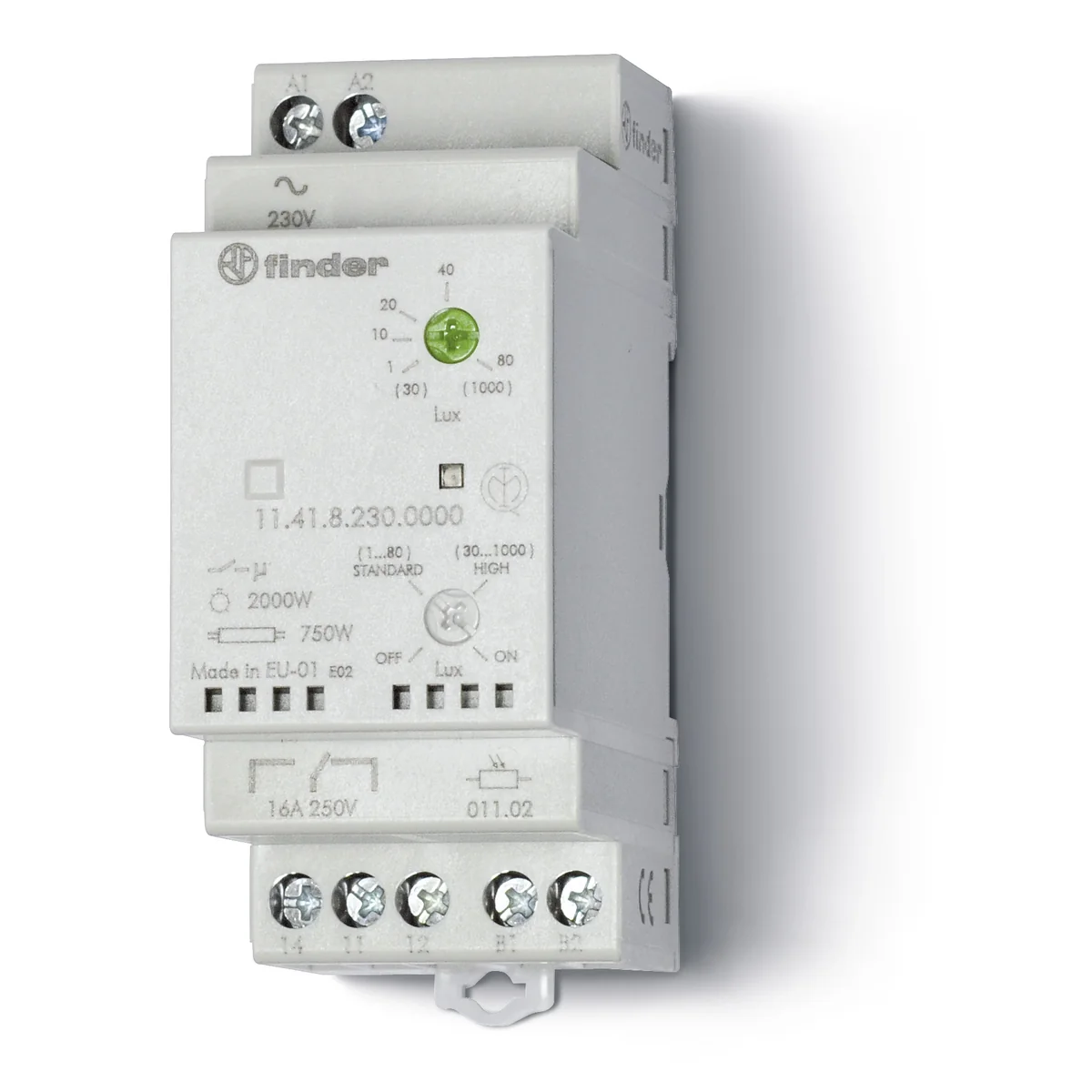

Twilight modular relay with sensor 1P 16A 230V AC 1-80/30-1000lx IP20/IP54 114182300000

local index:
APF010FIND
Catalog No:
114182300000
EAN code:
8012823347790
Manufacturer: FINDER
Contact material: AgSnO2
Installation: On the TH-35 rail
AC coil voltage [V]: 230
Price:
66,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Relays for automatic lighting control depending on the level of external light intensity – with separate light intensity sensor.

Features:

  • European patent “zero hysteresis” for energy saving
  • Italian patent “reverse light compensation”
  • 4 mode switch
    • Standard range (threshold setting 1…80 lx)
    • High range (threshold setting 30…1000 lx)
    • Continuous light (helpful during installation, commissioning and maintenance)
    • Light off (e.g. as holiday mode)
  • For the first three operating cycles, the delay time (On and Off) is reduced to zero for ease of installation
  • LED indicator
  • SELV safe separation between contact and power circuit
  • Double insulation between power and sensor
  • Cadmium-free contact material
  • Cadmium-free sensor (IC photodiode)

Technical data

  • Contact material
    AgSnO2
  • AC coil voltage [V]
    230
  • Overvoltage resistance [kV]
    4
  • Power consumption [W]
    2
  • Family
    11
  • Width [number of modules]
    2
  • Number of contacts
    1P
  • Rated AC switching voltage [V]
    400
  • Rated switching power for AC15 (230V AC) [VA]
    750
  • Sensitivity setting range [lx]
    1-80/30-1000
  • Return time [s]
    thirty
  • Installation
    On the TH-35 rail
  • Rated voltage [V]
    230
  • Power consumption [VA]
    5.2
  • Rated current [A]
    16
  • Level of security
    IP20/IP54
  • Rated inrush current [A]
    thirty
  • Type of coil voltage
    AC
  • Rated switching power for AC1 [VA]
    4000
  • Electrical durability AC1 [number of cycles]
    100000
  • Tripping time [s]
    15

Other technical data

  • Rated voltage
    230 V
  • Max. incandescent lamp load
    2000 W
  • Max. load fluorescent lamp (Duo circuit)
    1000 VA
  • Max. switching current (cos phi = 0.6)
    12 A
  • Adjustment range brightness value
    1 ... 1000 lx
  • Push button input
    Yes
  • Max. conductor length light sensor
    50 m
  • Mounting method light sensor
    Naścienny
  • Width in number of modular spacings
    2
  • Degree of protection (IP)
    IP20
  • Rated frequency
    50 ... 60 Hz
  • Max. load fluorescent lamp
    1000 VA
  • Max. load fluorescent lamp (parallel compensated)
    750 VA
  • Rated switch current
    16 A
  • With programmable overnight shutoff
    Yes
  • Rated voltage light sensor
    5 V
  • Protection class light sensor
    III
  • Mounting method
    DIN rail
  • Built-in depth
    60.8 mm
  • Degree of protection (IP) light sensor
    IP54

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,172 0,979
Width (m) 0,092 0,275
Length (m) 0,053 0,095
Depth (m) 0,157 0,165
