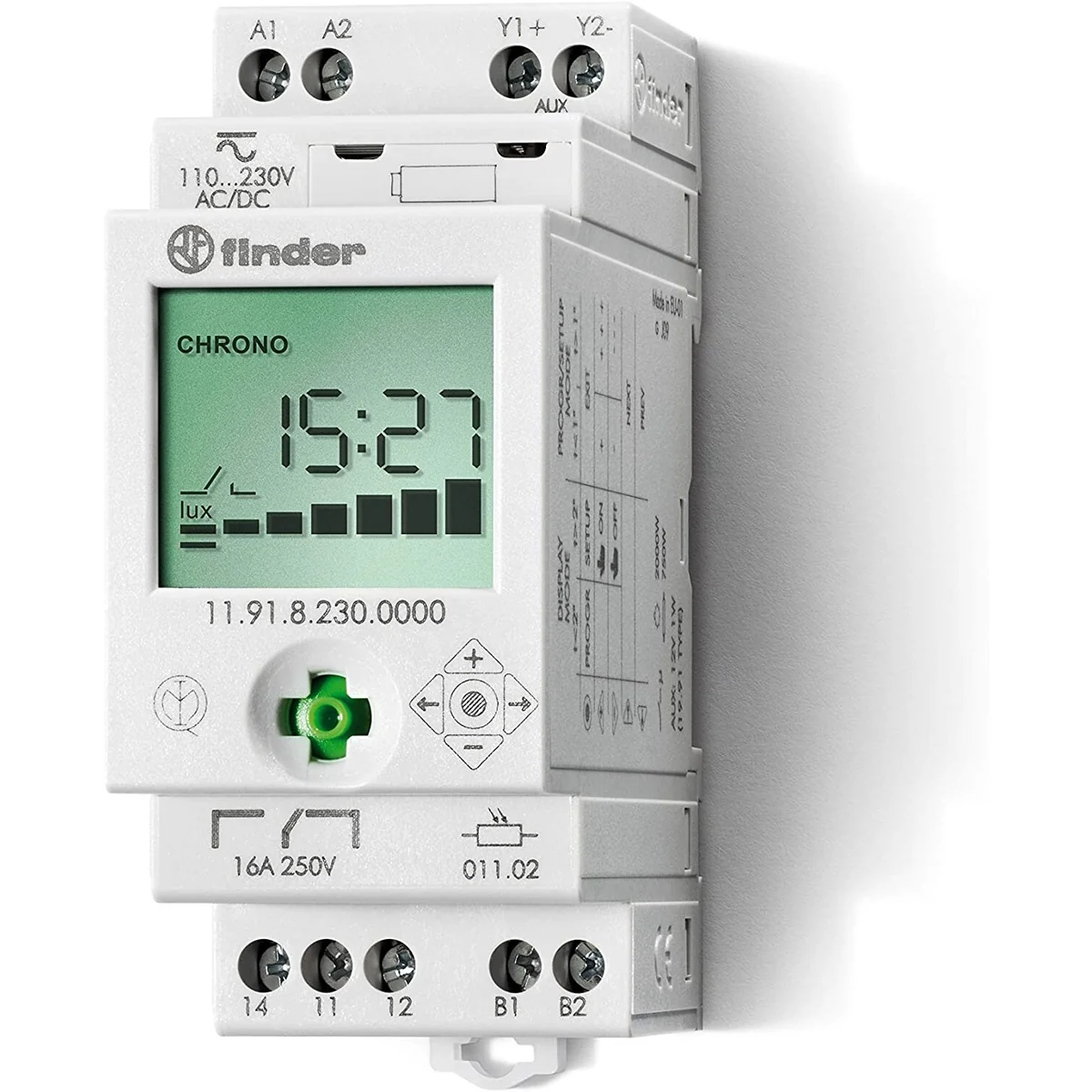

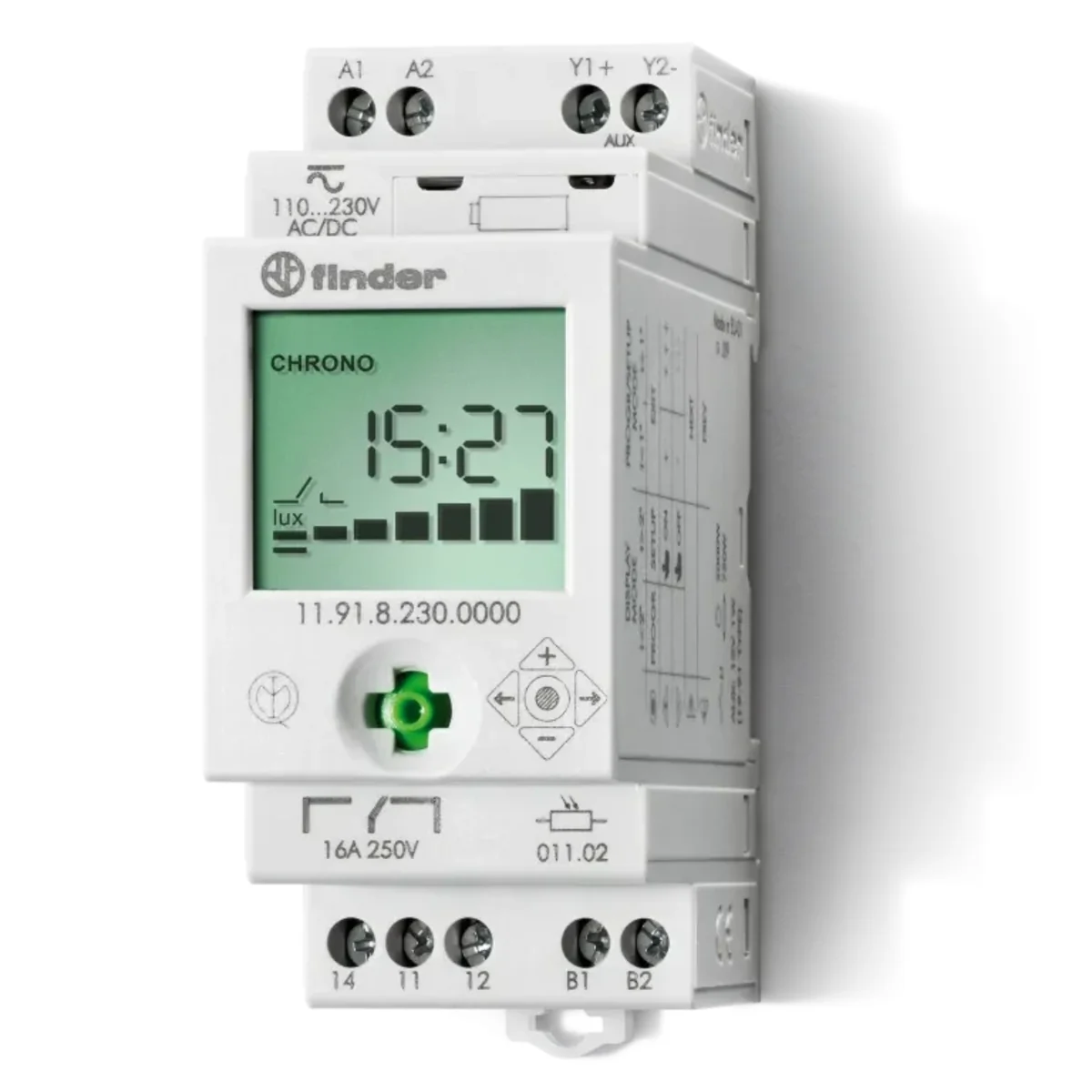

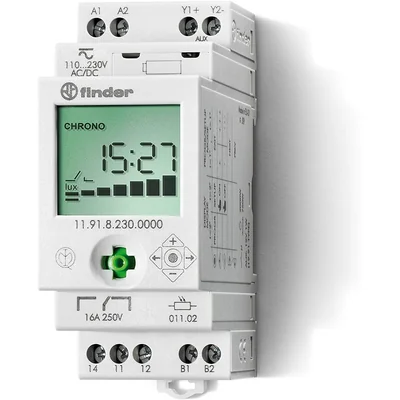

Twilight modular relay with a sensor with a daily clock 1P + auxiliary output 16A 230V AC 1-150lx IP20/IP54 119182300000PAS

local index:
APF002FIND
Catalog No:
119182300000PAS
EAN code:
8012823347448
Manufacturer: FINDER
Contact material: AgSnO2
Installation: On the TH-35 rail
AC coil voltage [V]: 110-230
Price:
90,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 12 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Relays for automatic lighting control depending on the level of external light intensity – with a separate light intensity sensor.

Features:

  • On delay function - programmable output shutdown (for energy saving)
  • Auxiliary output - directly controlled by photosensor
  • Italian patent of “reverse light compensation”
  • Adjustable sensitivity from 1 to 150 lux
  • LCD display, adjustable and programmable
  • Built-in battery for setting/programming without connection and for memory of settings in case of power failure (5 years)
  • Low power consumption in standby mode
  • SELV safe separation between contact and power circuit
  • Double insulation between power and sensor
  • Cadmium-free contact material
  • Cadmium-free sensor (photodiode IC)

Technical data

  • Contact material
    AgSnO2
  • AC coil voltage [V]
    110-230
  • Rated voltage [V]
    230
  • Power consumption [VA]
    5
  • Rated current [A]
    16
  • Level of security
    IP20/IP54
  • Rated inrush current [A]
    thirty
  • Type of coil voltage
    AC/DC
  • Rated switching power for AC1 [VA]
    4000
  • Electrical durability AC1 [number of cycles]
    100000
  • Tripping time [s]
    25
  • Installation
    On the TH-35 rail
  • DC coil voltage [V]
    110-230
  • Overvoltage resistance [kV]
    4
  • Power consumption [W]
    2.1
  • Family
    11
  • Width [number of modules]
    2
  • Number of contacts
    1P + 1 auxiliary output
  • Rated AC switching voltage [V]
    400
  • Rated switching power for AC15 (230V AC) [VA]
    750
  • Sensitivity setting range [lx]
    1-150
  • Return time [s]
    50
