F&F

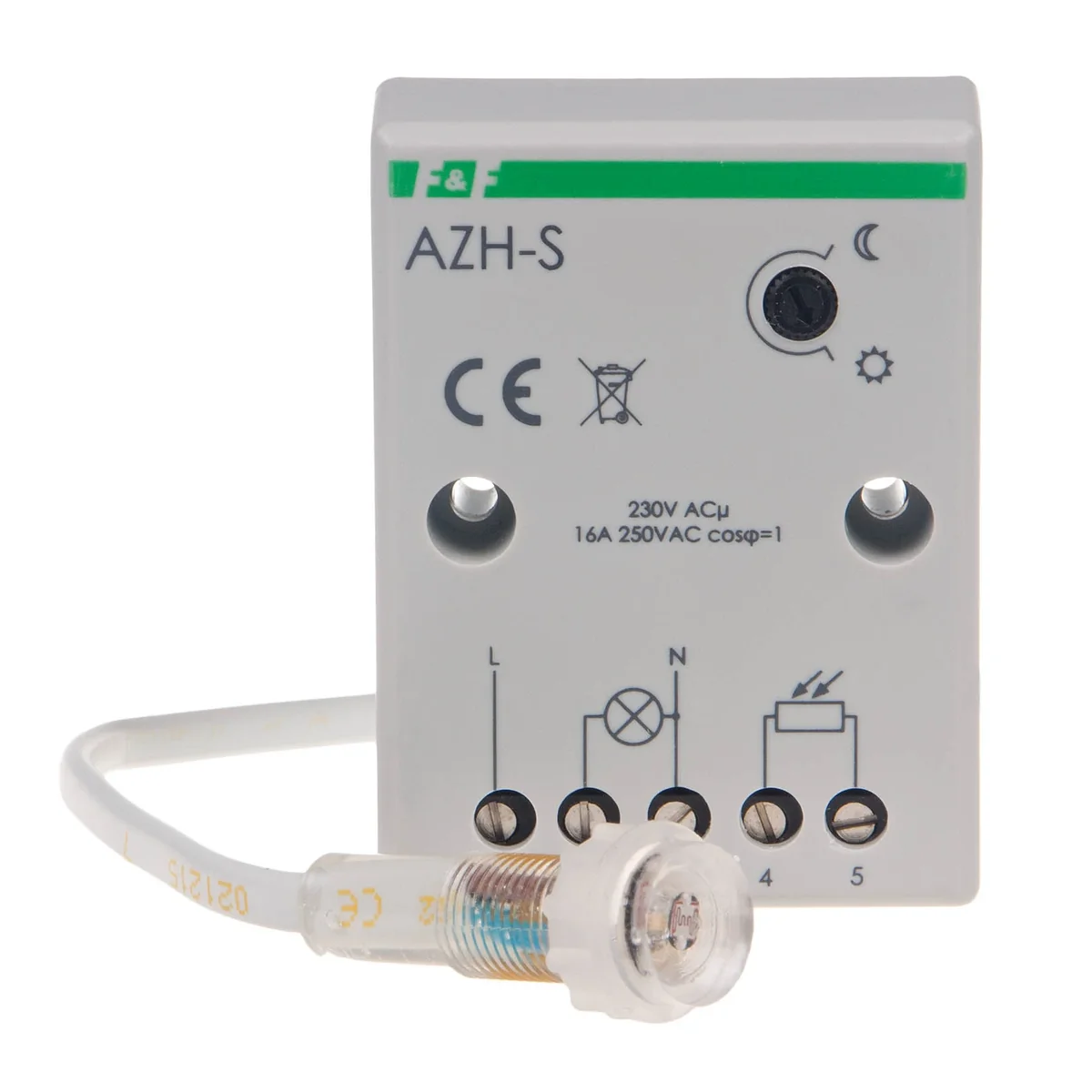

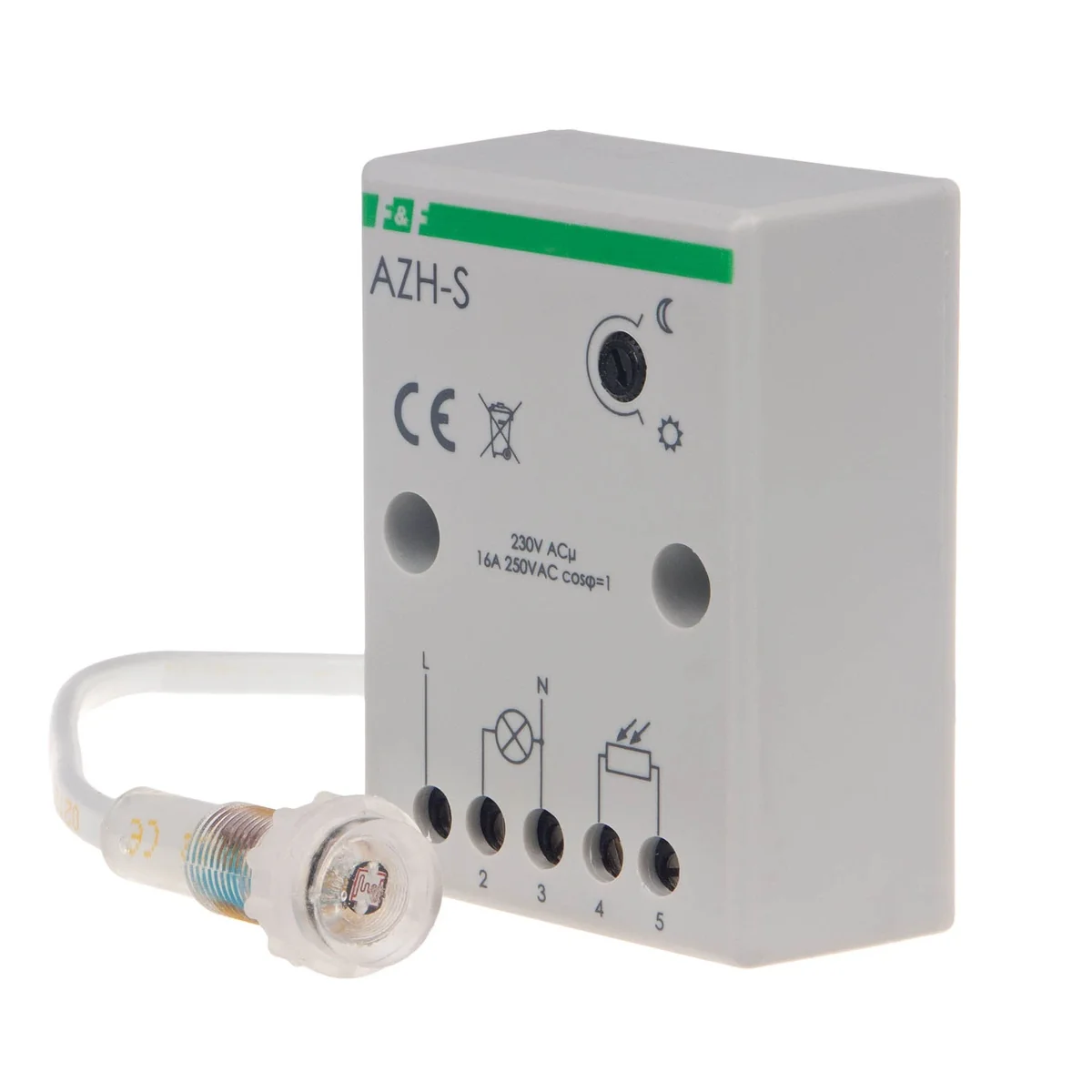

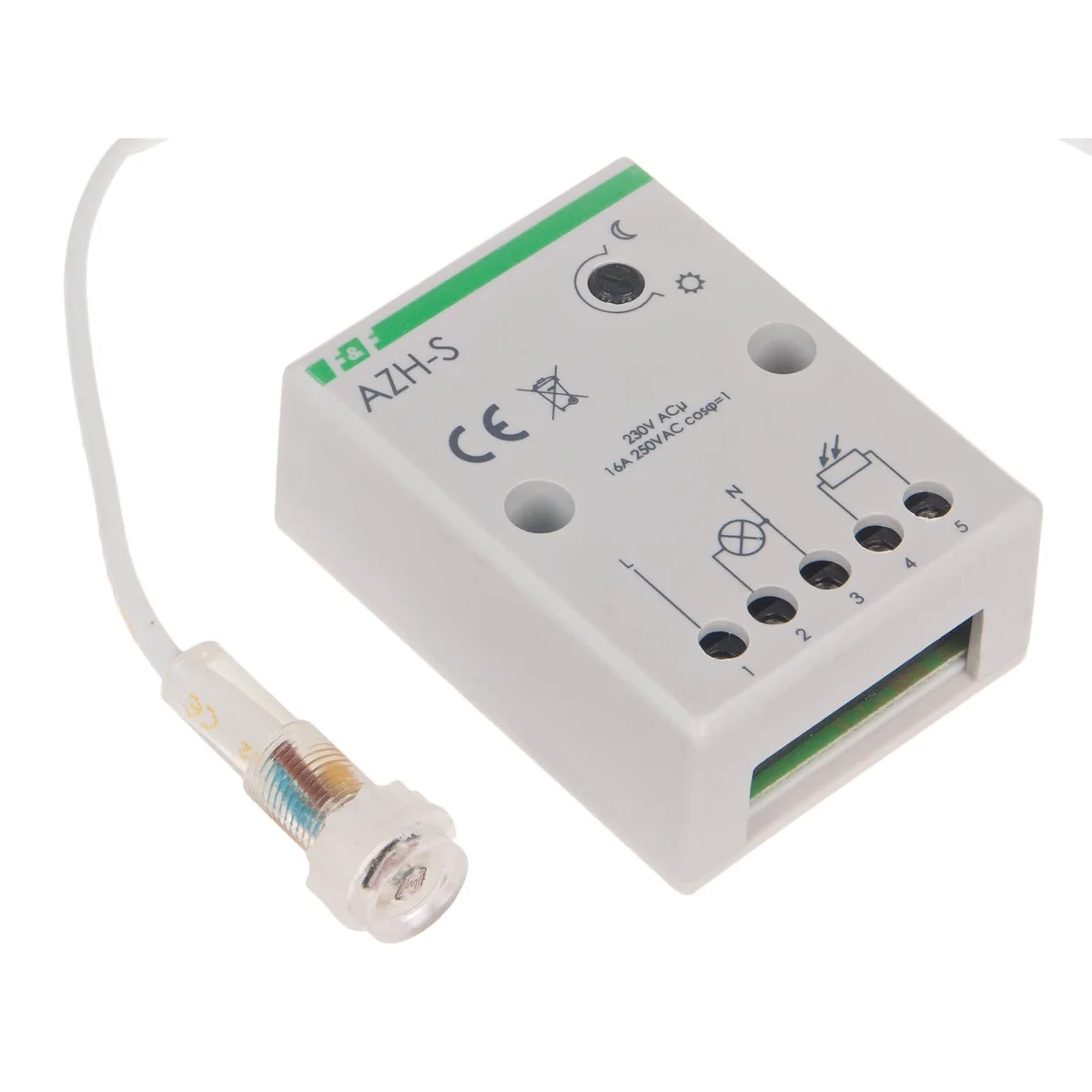

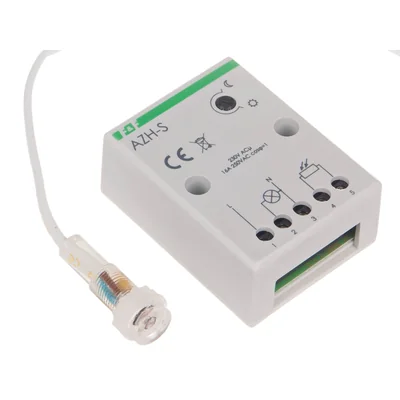

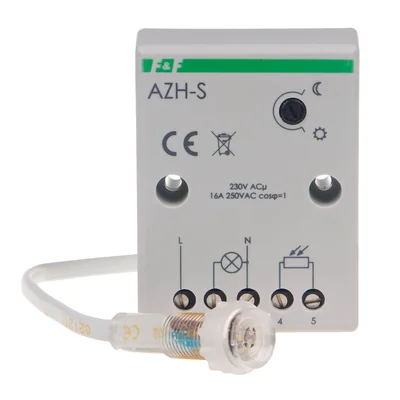

Twilight automaton with external hermetic probe AZH-S AZH-S

local index:
APF104FIFQ
Catalog No:
AZH-S
EAN code:
5908312591030
Price:
22,26 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 34 pcs.
Delivery:
From 3,69 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

The twilight switch is used to automatically turn on the lighting of streets, squares, exhibitions, advertisements, etc. at dusk and turn off the lighting at dawn. When checking the operation of the machine, cover the whole machine tightly, e.g. with a cardboard box or a dark, thick cloth. Covering only the "eye" probe, e.g. with a finger, is insufficient, because the intensity of sunlight is very strong and penetrates the photoelement through the plastic housing and the human body.

Technical data

  • Depth [mm]
    25
  • Power [W]
    0.56
  • ON delay [s]
    1-15
  • load current [A]
    <10
  • Actuation threshold - set [Lx]
    7
  • Mounting method
    For screws
  • Width [mm]
    33
  • Height [mm]
    81
  • Package width [mm]
    33
  • Hysteresis
    15
  • Rated voltage [V]
    230
  • Shutdown activation delay [s]
    10-30
  • Actuation threshold - adjustable [Lx]
    2-1000
  • connection
    OMY 3×1.0mm ; l=0.8m
  • Level of security
    IP65
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    81
  • Package weight [kg]
    0.25

Other technical data

  • Type of sensor
    Separate light sensor
  • Engaging brightness
    2 ... 1000 lx
  • Switch-off delay
    10 s
  • Max. switching power
    2300 W
  • Material
    Plastic
  • Halogen free
    yes
  • Transparent
    no
  • Max. switching current (resistive load)
    10 A
  • Contacts
    1 make contact (NO)
  • Switching-off brightness
    7 ... 7 lx
  • Switching-on delay
    5 s
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Nominal voltage
    230 V
  • Suitable for degree of protection (IP)
    IP65
