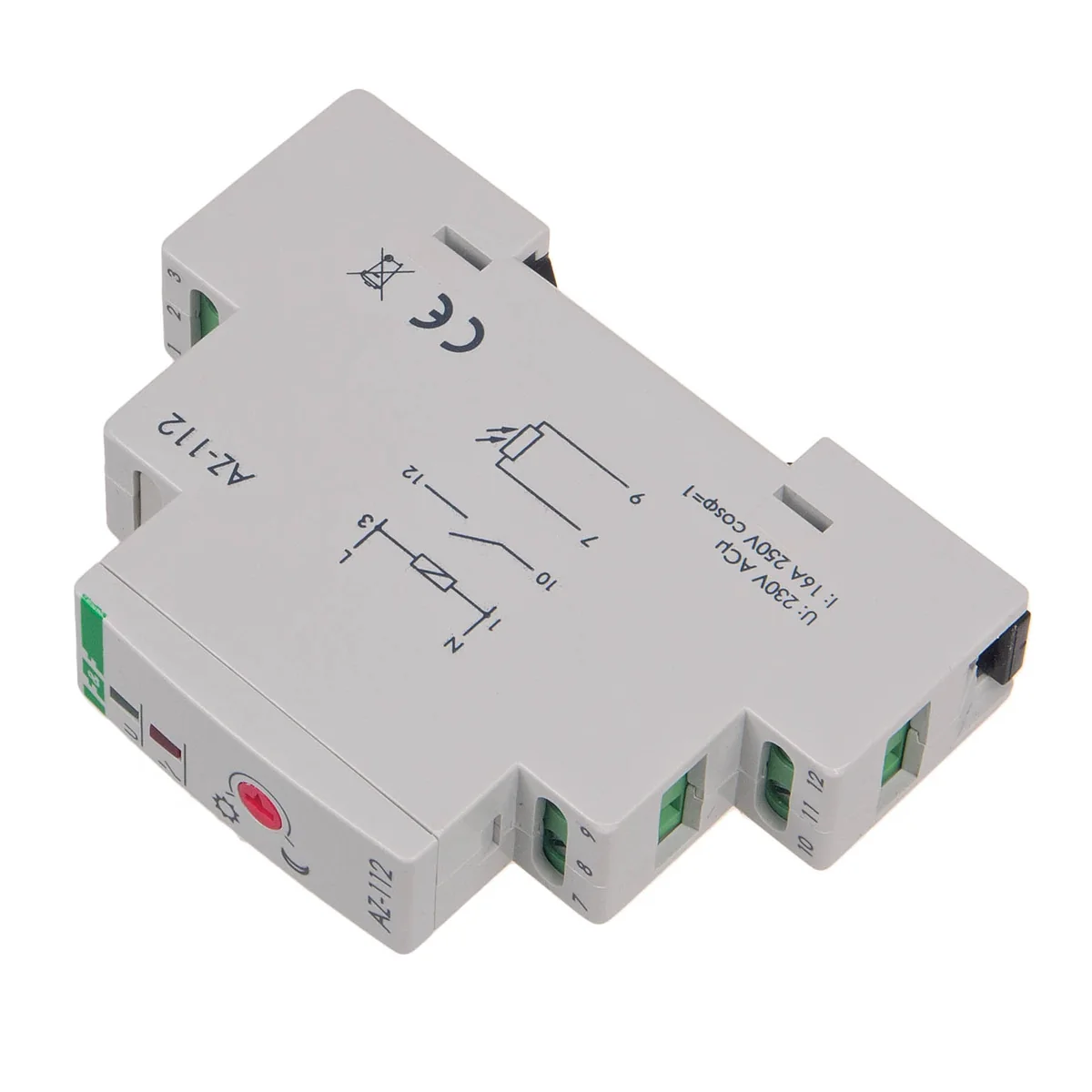

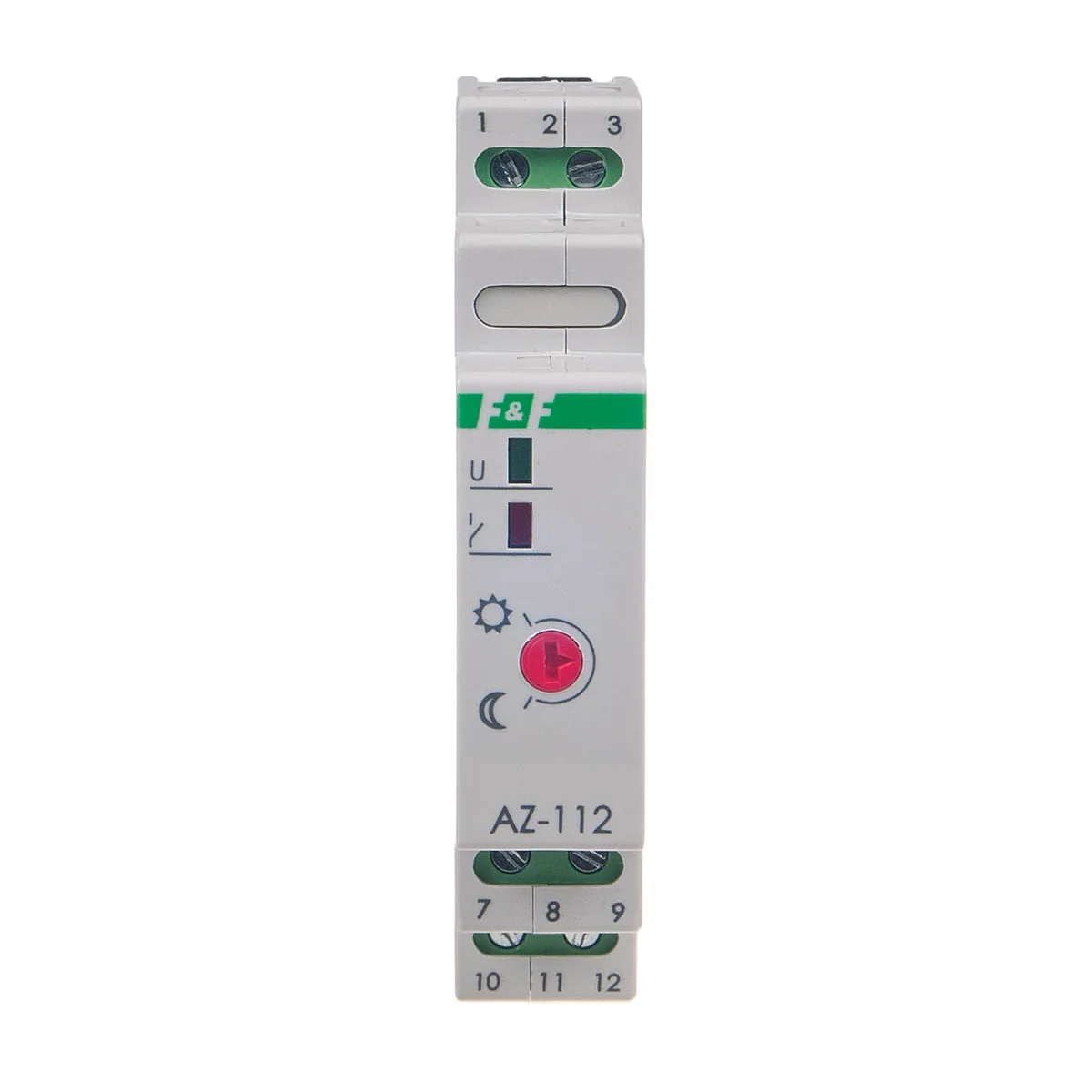

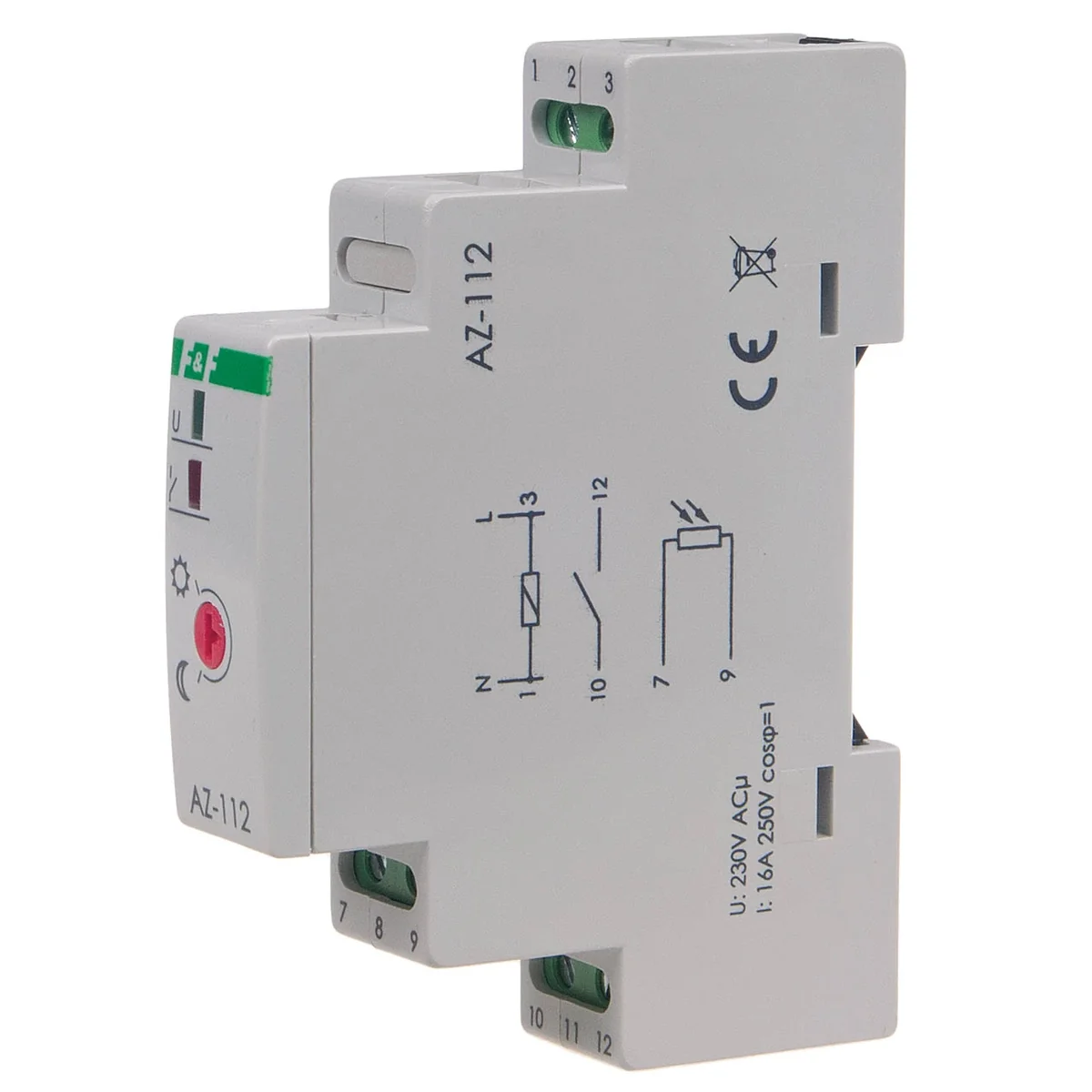

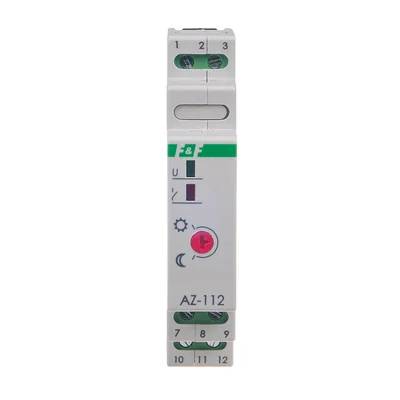

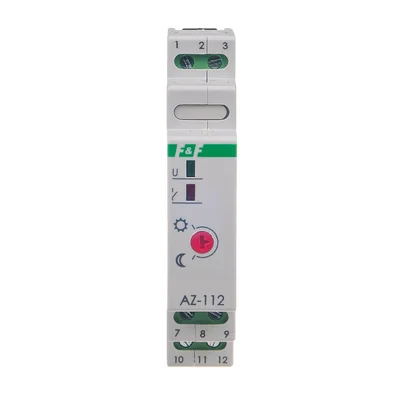

Twilight automaton with external hermetic probe AZ-112 AZ-112
local index:
APF105FIFQ
Catalog No:
AZ-112
EAN code:
5908312591061
Price:
27,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The twilight switch is used to automatically switch on the lighting of streets, squares, exhibitions, advertisements, etc. at dusk and switch off the lighting at dawn.
Technical data
-
HysteresisApprox. 15Lx
-
InstallationOn the TH-35 rail
-
Tripping delay [s]1-15
-
load current [A]16
-
Actuation threshold - set [Lx]7
-
The degree of protection of the probeIP 65
-
Dimensions1 module (18mm)
-
Package height [mm]150
-
Package weight [kg]0.35
-
Power [W]0.8
-
Rated voltage [V]230
-
Shutdown activation delay [s]10-30
-
Actuation threshold - adjustable [Lx]2-1000
-
connection2.5mm screw terminals
-
Working temperature [°C]-25-50
-
Power [V]230
-
Package width [mm]20
-
PKWIU27.12.23.0
Other technical data
-
Rated frequency50 ... 50 Hz
-
Max. load fluorescent lamp550 VA
-
Max. load fluorescent lamp (parallel compensated)800 VA
-
Adjustment range brightness value2 ... 1000 lx
-
Mounting method light sensorOther
-
Width in number of modular spacings1
-
Degree of protection (IP) light sensorIP65
-
Max. incandescent lamp load2300 W
-
Max. load fluorescent lamp (Duo circuit)1000 VA
-
Rated switch current16 A
-
Protection class light sensorI
-
Mounting methodDIN rail
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerF&F FILIPOWSKI SPÓŁKA KOMANDYTOWA
-
Address95-200 UL. KONSTANTYNOWSKA 79/81
-
E-mail
-
Tax identification number7310005314
Bulk packaging
| A kind of package | Sztuka | Karton |
| Quantity | 1 pcs. | 12 pcs. |
| Weight (kg) | 0,102 | - |
| Width (m) | 0,041 | - |
| Length (m) | 0,095 | - |
| Depth (m) | 0,070 | - |
