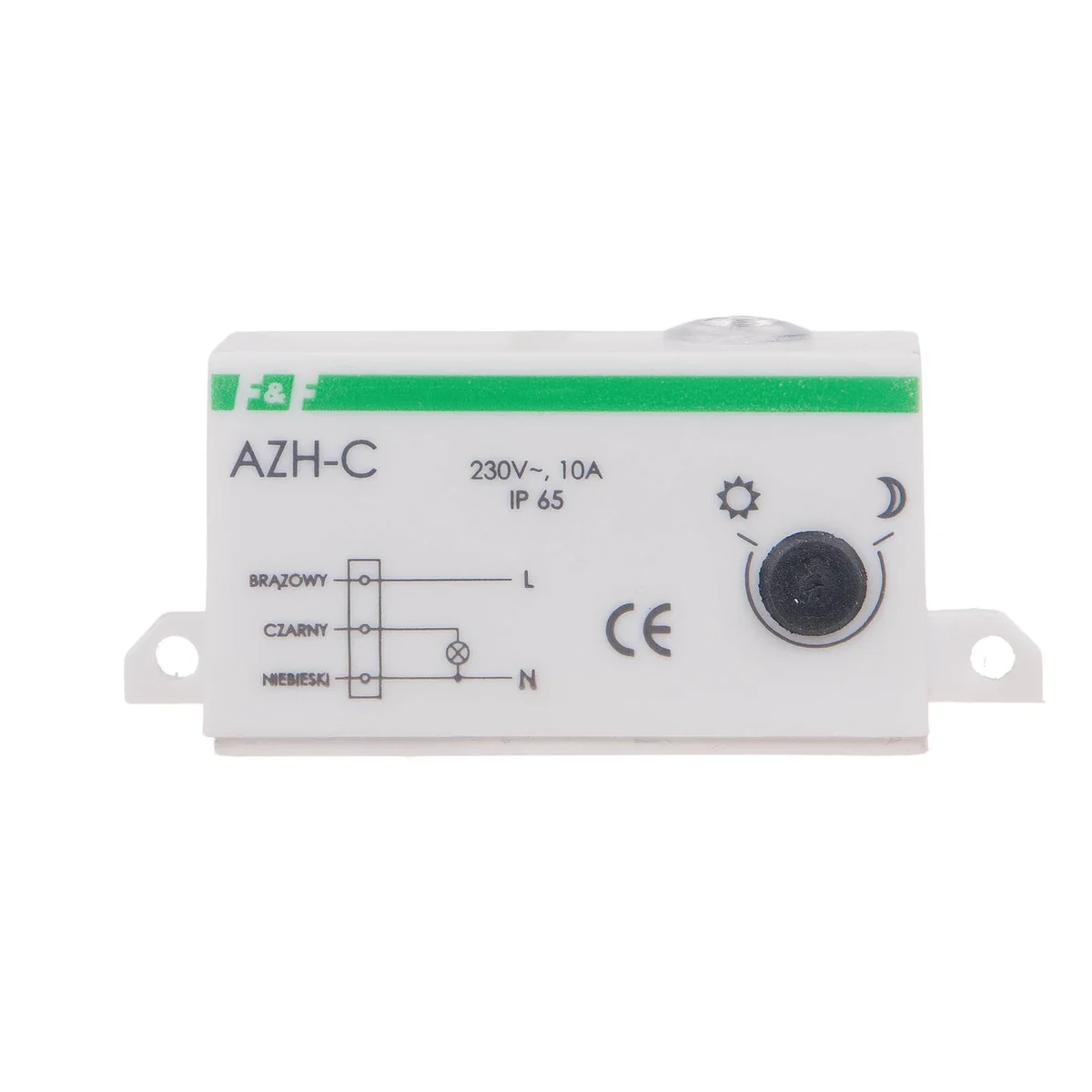

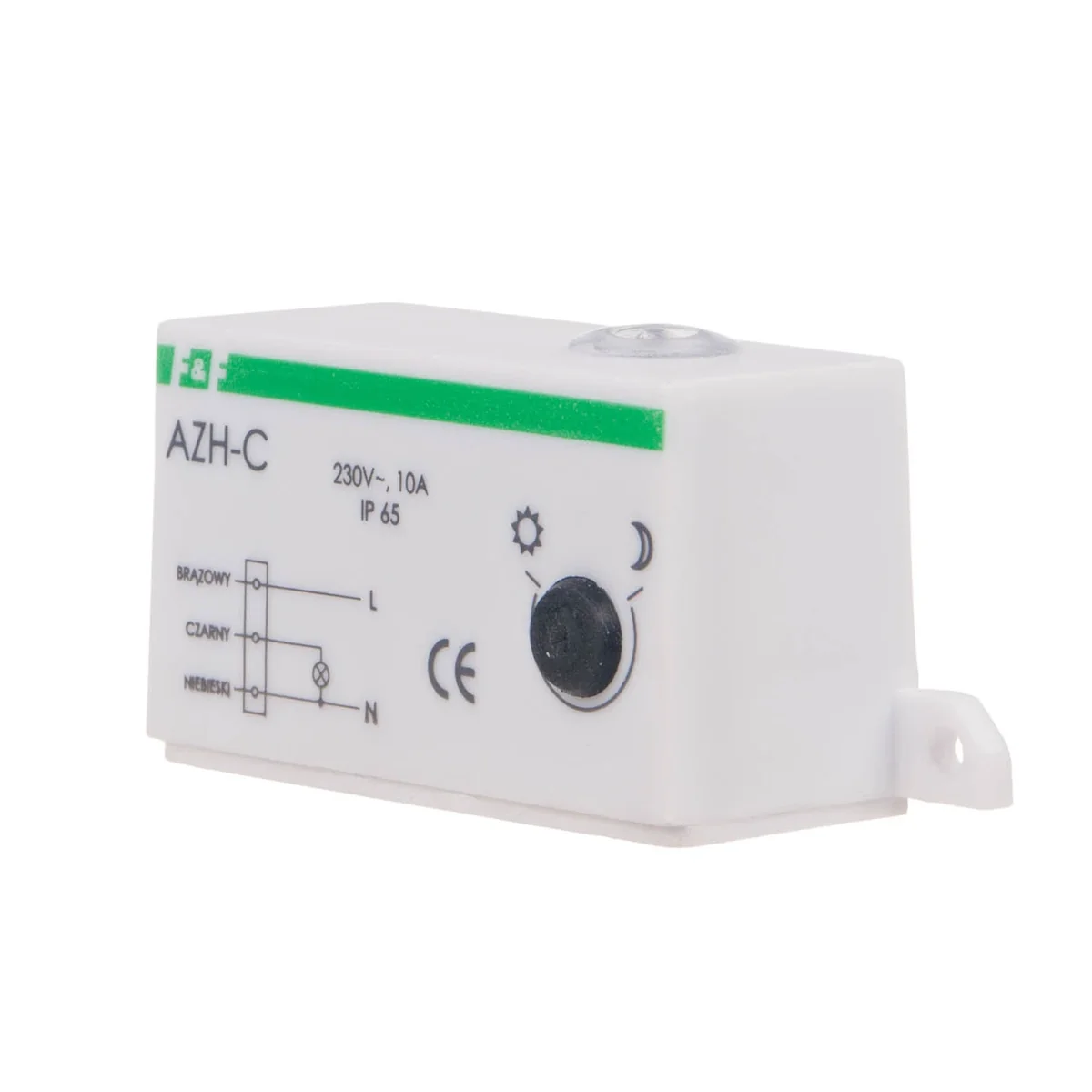

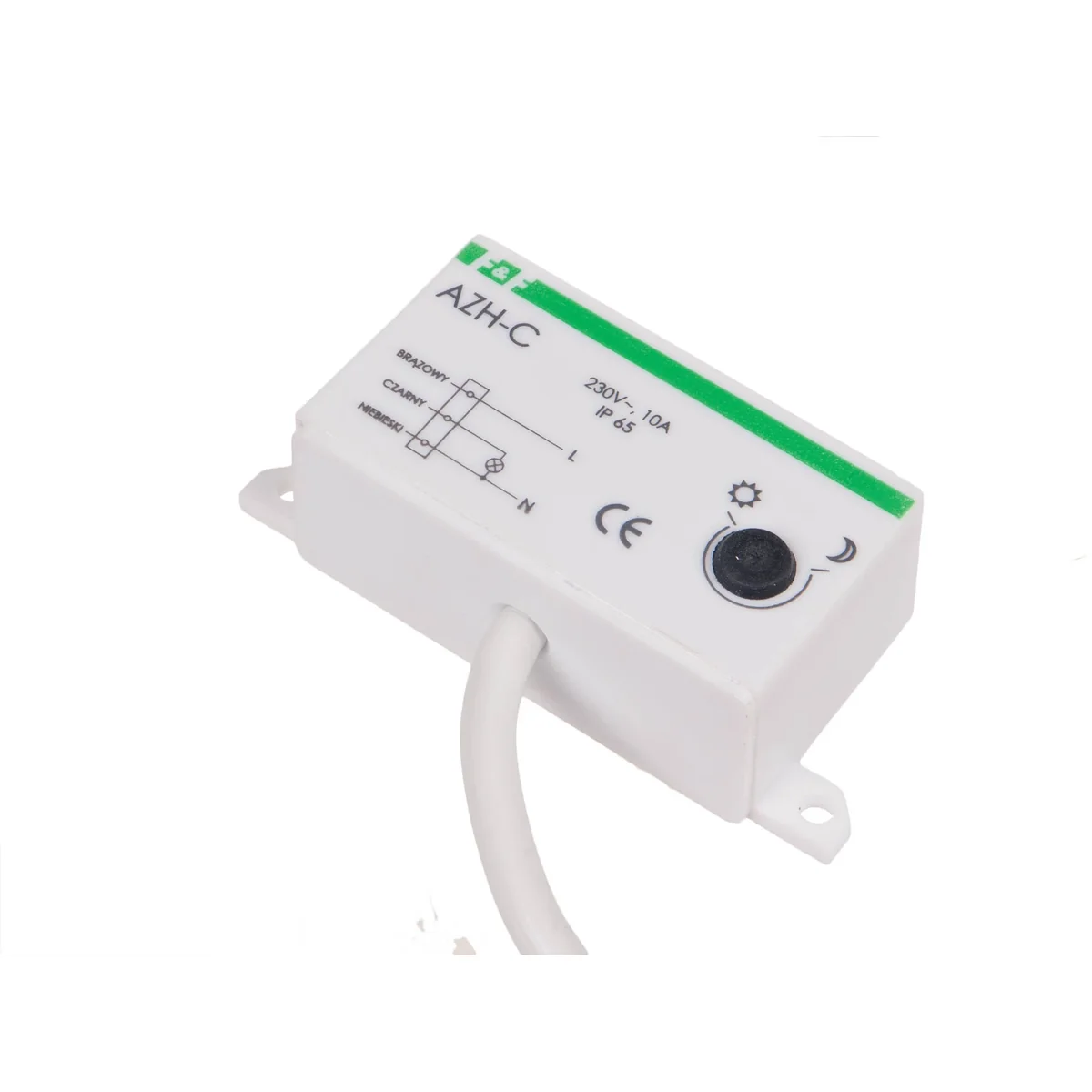

Twilight automaton with an internal photosensitive sensor AZH-C AZH-C

local index:
APF101FIFQ
Catalog No:
AZH-C
EAN code:
5908312591023
Manufacturer: F&F
Hysteresis: 15
Shutdown delay [s]: 1-15
Shutdown activation delay [s]: 10-30
Price:
18,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 27 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The twilight switch is used to automatically turn on the lighting of streets, squares, exhibitions, advertisements, etc. at dusk and turn off the lighting at dawn. When checking the machine's operation, cover the whole machine tightly, e.g. with a cardboard box or a dark, thick cloth. Covering only the "eye" probe, e.g. with a finger, is insufficient, because the intensity of sunlight is very strong and penetrates the photoelement through the plastic housing and the human body.

Technical data

  • Hysteresis
    15
  • Shutdown activation delay [s]
    10-30
  • Actuation threshold - adjustable [Lx]
    2-1000
  • Power
    230V AC
  • Package height [mm]
    81
  • Package weight [kg]
    0.1
  • Shutdown delay [s]
    1-15
  • load current [A]
    <10
  • Actuation threshold - set [Lx]
    Approx. 7Lx
  • Power [V]
    230
  • Package width [mm]
    33
  • PKWIU
    27.12.23.0

Other technical data

  • Type of sensor
    Built-in light sensor
  • Engaging brightness
    2 ... 1000 lx
  • Switch-off delay
    10 s
  • Max. switching power
    0.3 W
  • Material
    Plastic
  • Halogen free
    Yes
  • Transparent
    No
  • Max. switching current (resistive load)
    10 A
  • Suitable for degree of protection (IP)
    IP65
  • Contacts
    1 make contact (NO)
  • Switching-off brightness
    7 ... 7 lx
  • Switching-on delay
    5 s
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Nominal voltage
    230 V
  • Operating temperature
    -25 ... 50 °C

Manufacturer details

  • Manufacturer
    F&F Filipowski Spółka Komandytowa
  • Address
    95-200 Pabianice ul. Konstantynowska 79/81
  • Phone number
  • Tax identification number
    7310005314
  • GLN
    5900009915815

Bulk packaging

A kind of package Sztuka Karton
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,070 -
Width (m) 0,026 -
Length (m) 0,095 -
Depth (m) 0,070 -
