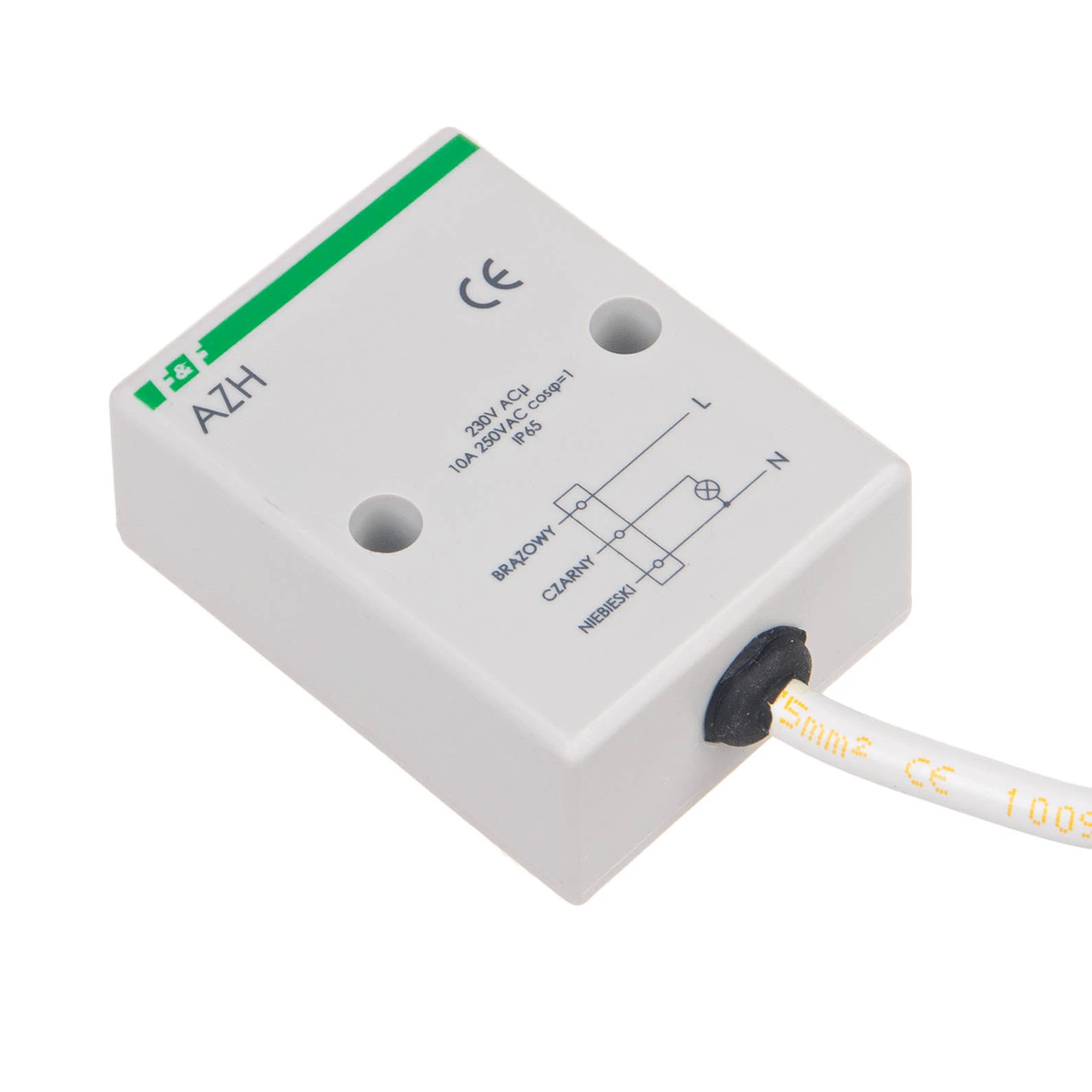

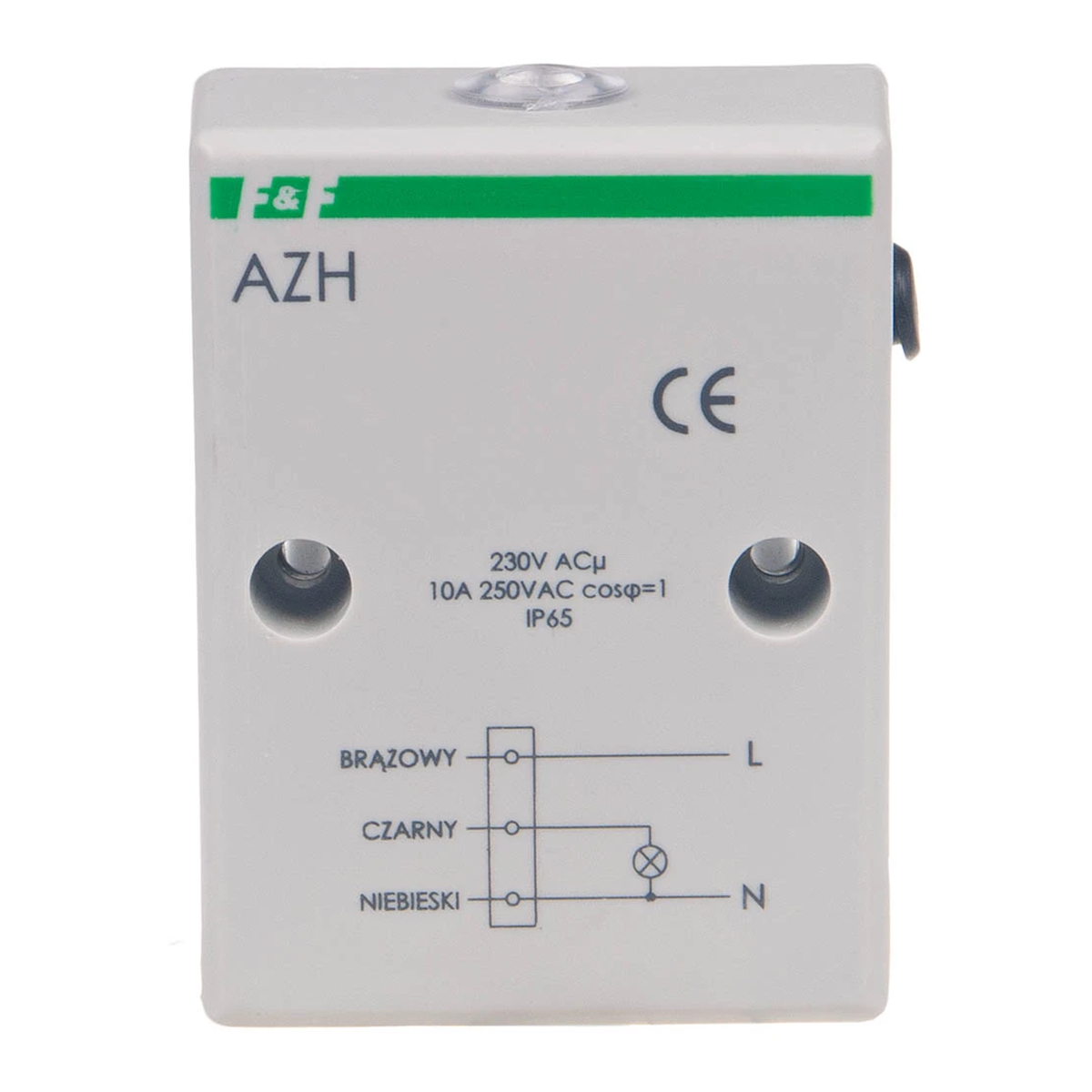

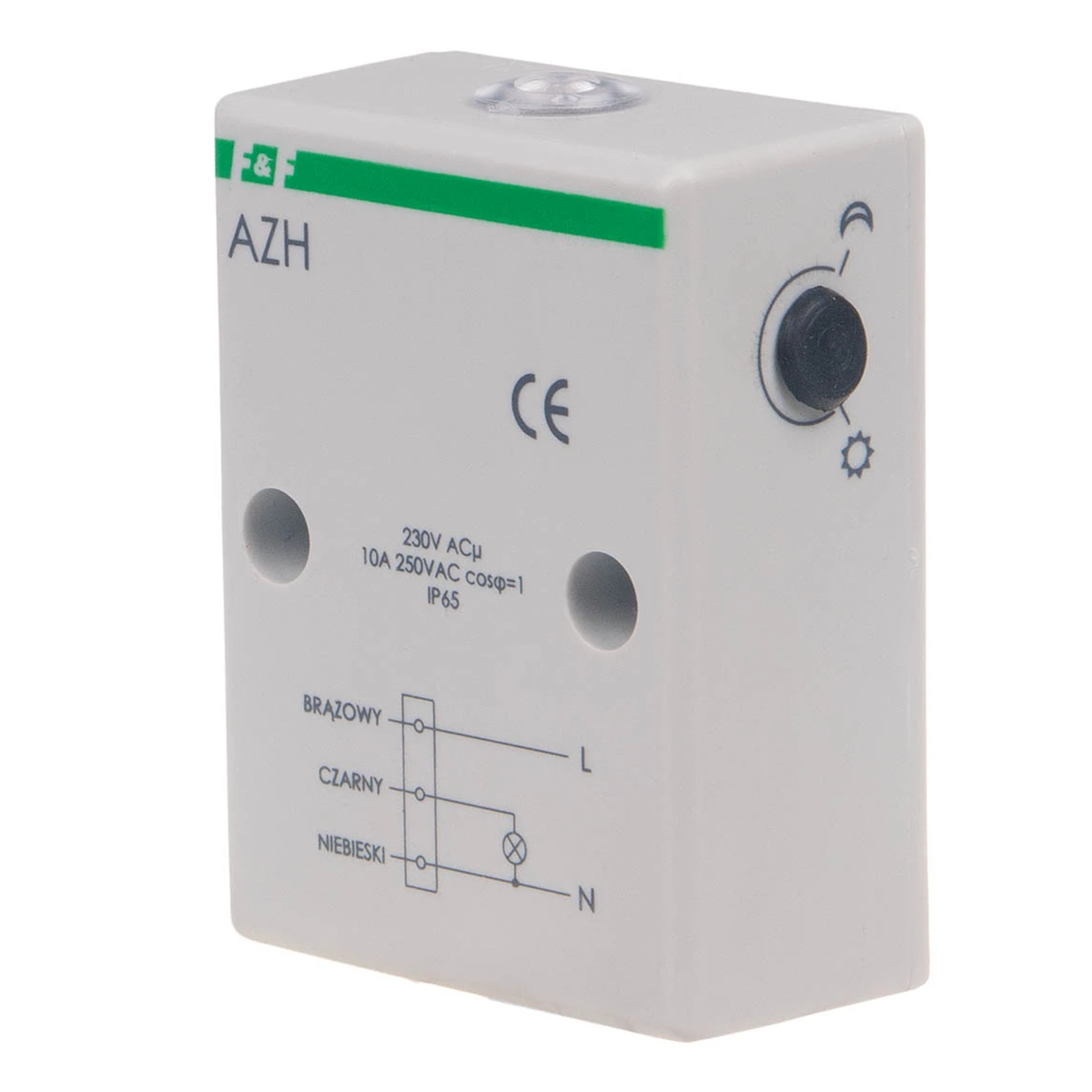

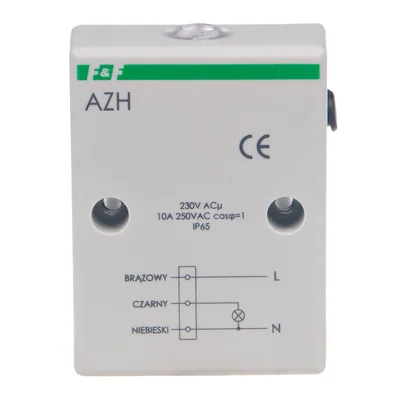

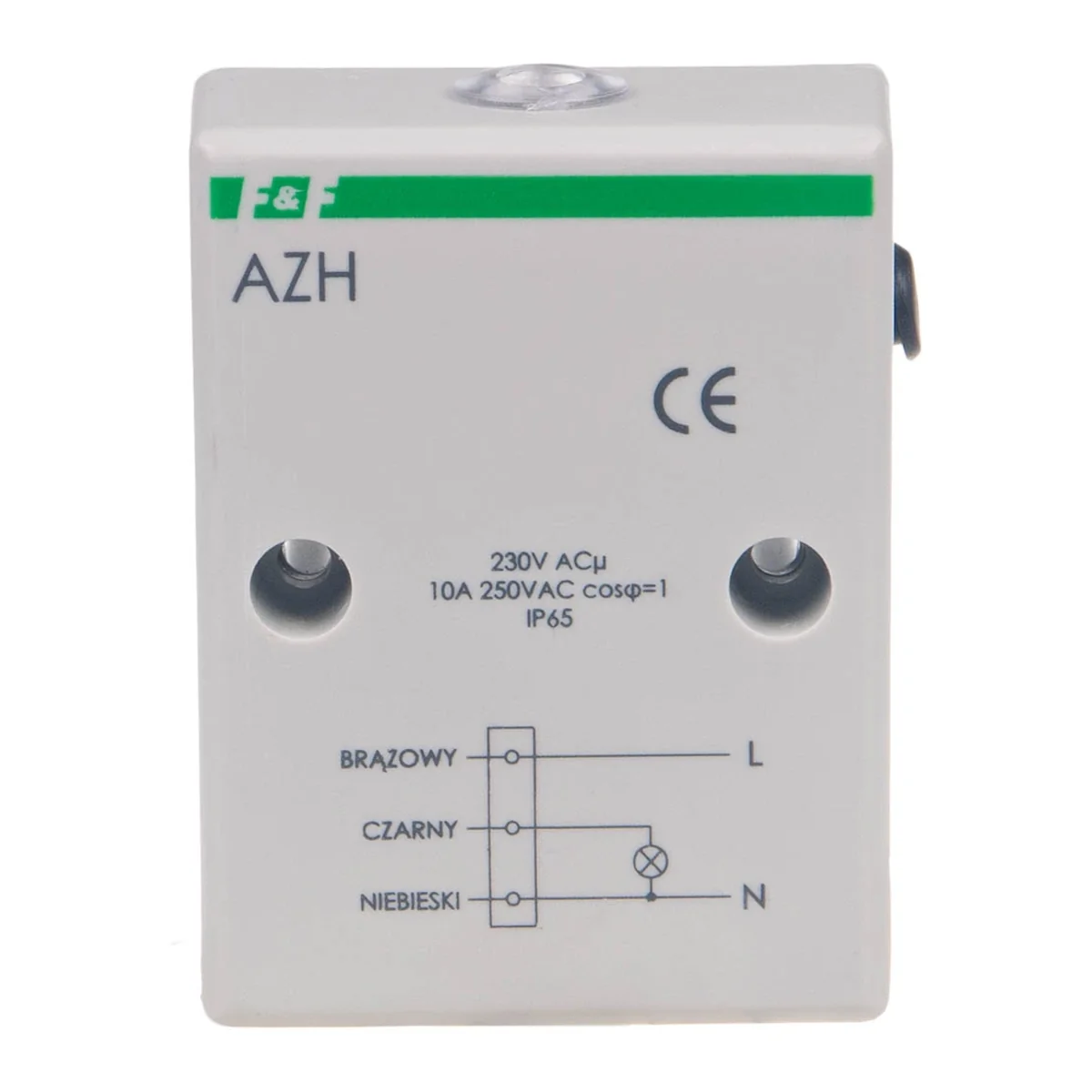

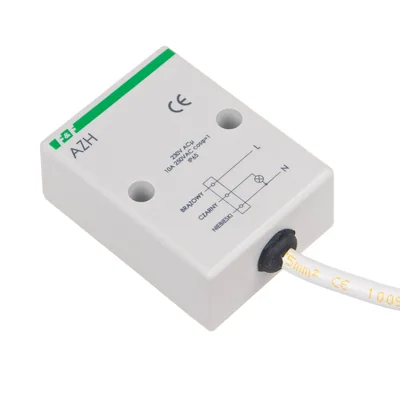

Twilight automaton with an internal AZH photosensitive sensor AZH

local index:
APF102FIFQ
Catalog No:
AZH
EAN code:
5908312591016
Manufacturer: F&F
Hysteresis: Approx. 15Lx
Power [W]: 0.8
Installation: On the TH-35 rail
Price:
16,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 41 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The twilight switch is used to automatically turn on the lighting of streets, squares, exhibitions, advertisements, etc. at dusk and turn off the lighting at dawn. If the length of the probe's connection cable exceeds 10 m, it should not be run close to the parallel cable under voltage. mains or carrying large currents. When checking the operation of the machine, cover the whole machine tightly, e.g. with a cardboard box or a dark, thick cloth. Covering only the "eye" probe, e.g. with a finger, is insufficient, because the intensity of sunlight is very strong and penetrates the photoelement through the plastic housing and the human body.

Technical data

  • Hysteresis
    Approx. 15Lx
  • Installation
    On the TH-35 rail
  • Shutdown activation delay [s]
    10-30
  • Actuation threshold - adjustable [Lx]
    2-1000
  • connection
    2.5mm screw terminals
  • Working temperature [°C]
    -25-50
  • Power [V]
    230
  • AZ-B UNI / AZ-B PLUS UNI power supply
    12-264
  • Package width [mm]
    40
  • PKWIU
    27.12.23.0
  • Power [W]
    0.8
  • Tripping delay [s]
    1-15
  • load current [A]
    16
  • Actuation threshold - set [Lx]
    7
  • The degree of protection of the probe
    IP 65
  • Dimensions
    2 modules (35mm)
  • AZ-B / AZ-B PLUS power supply
    230V AC
  • Package height [mm]
    150
  • Package weight [kg]
    0.2

Other technical data

  • Type of sensor
    Built-in light sensor
  • Engaging brightness
    2 ... 1000 lx
  • Switch-off delay
    10 s
  • Max. switching power
    1500 W
  • Material
    Plastic
  • Halogen free
    Yes
  • Transparent
    No
  • Suitable for degree of protection (IP)
    IP65
  • Contacts
    1 make contact (NO)
  • Switching-off brightness
    7 ... 7 lx
  • Switching-on delay
    5 s
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Max. switching current (resistive load)
    10 A

Bulk packaging

A kind of package Sztuka Karton
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,108 -
Width (m) 0,031 -
Length (m) 0,095 -
Depth (m) 0,070 -
