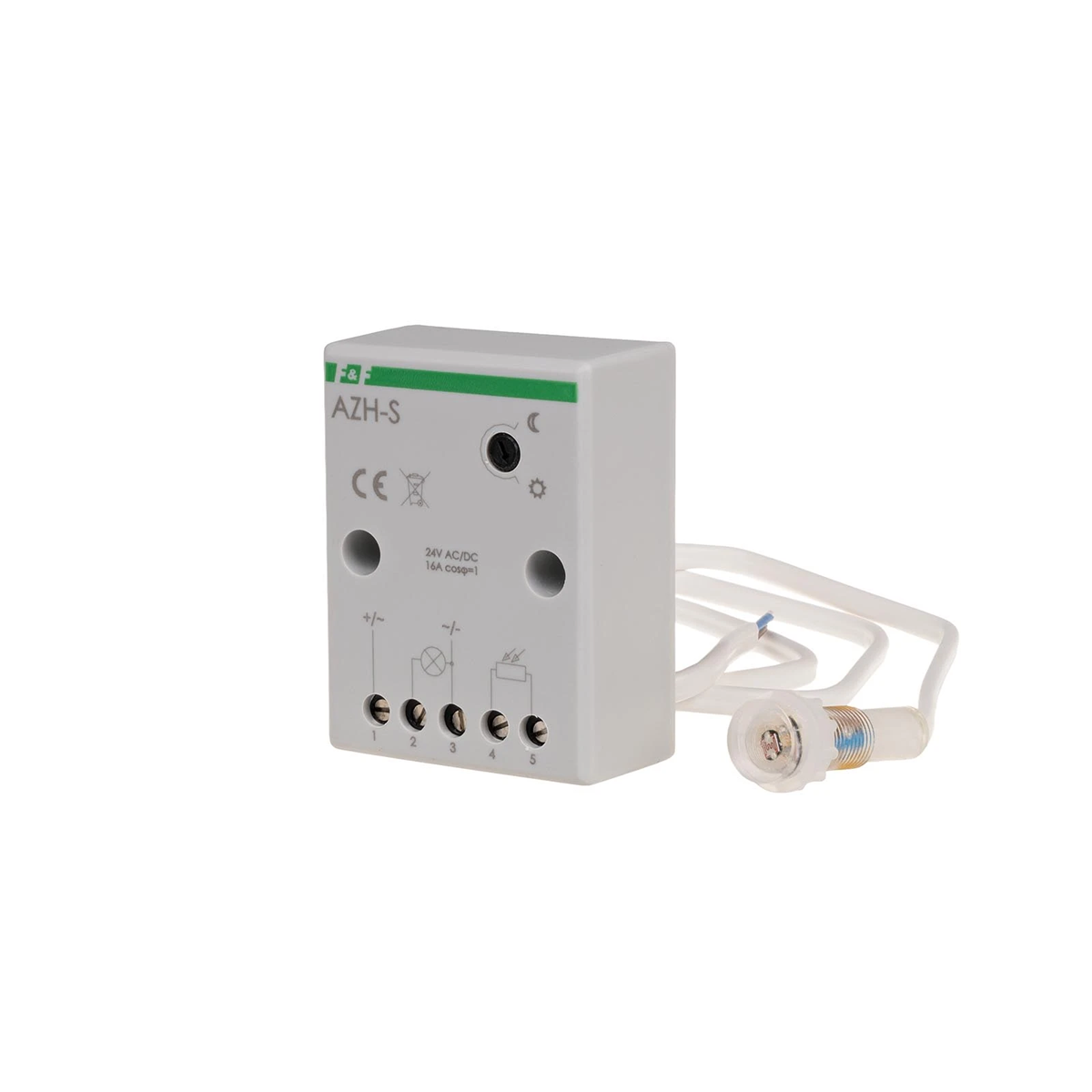

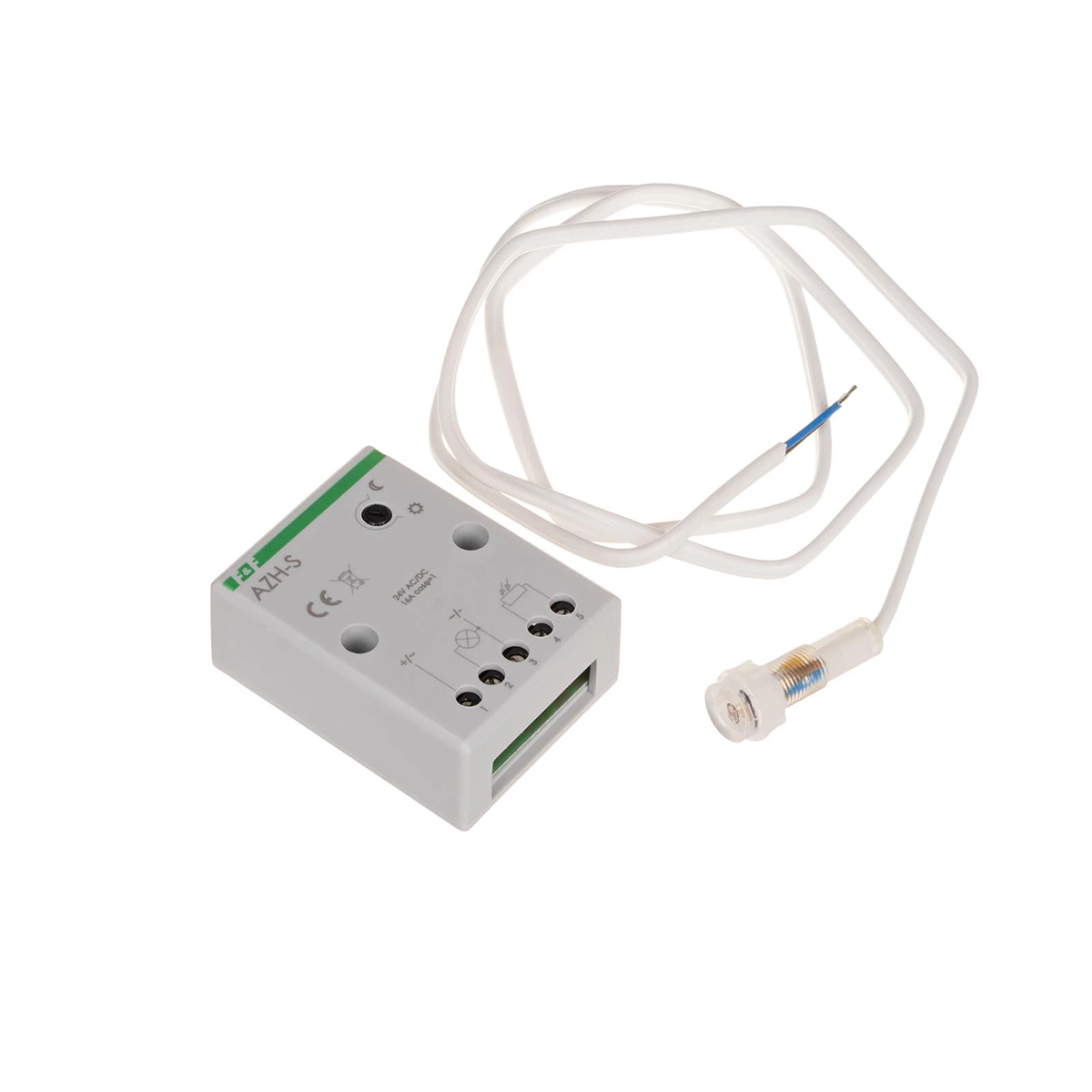

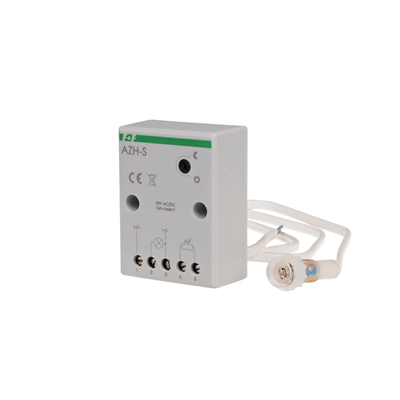

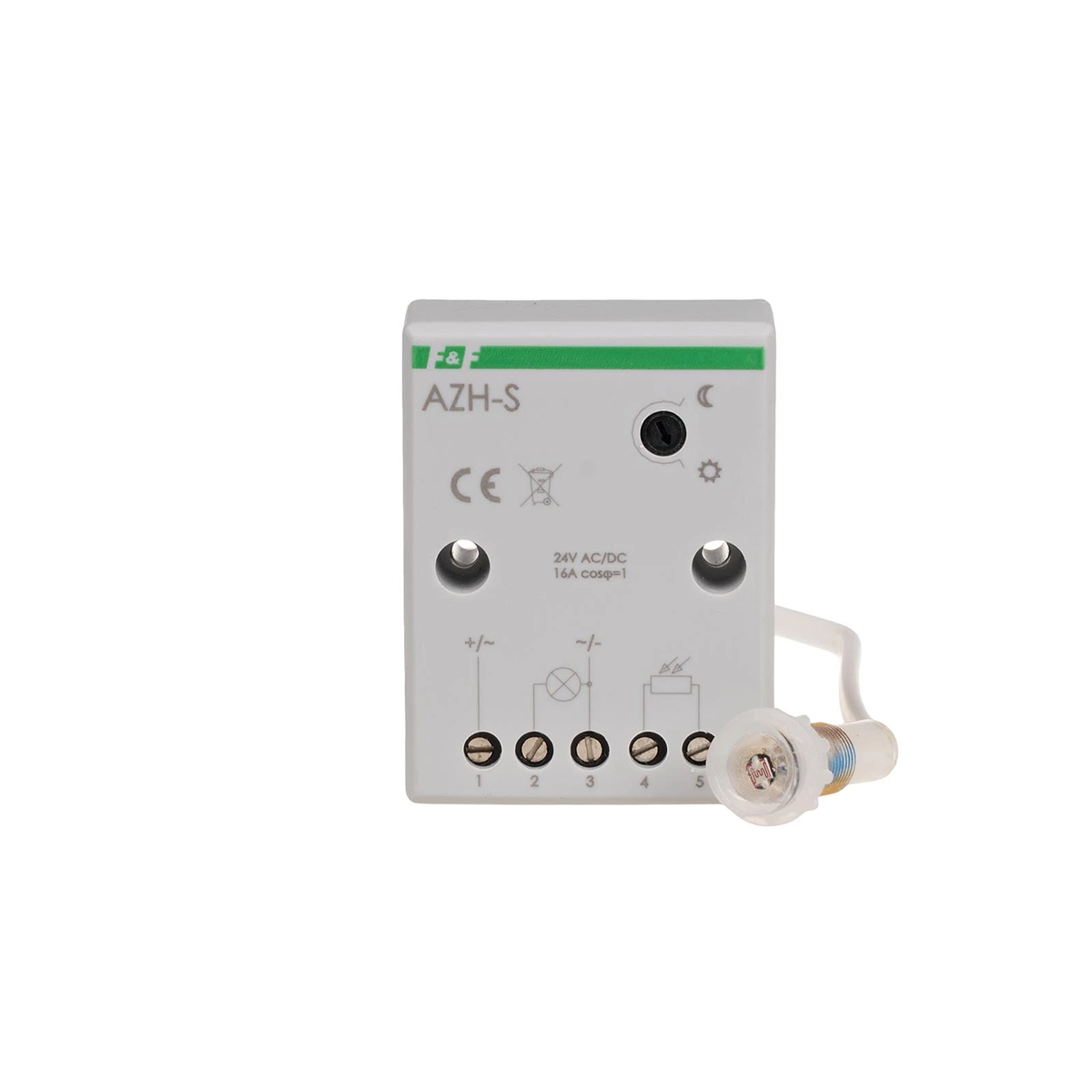

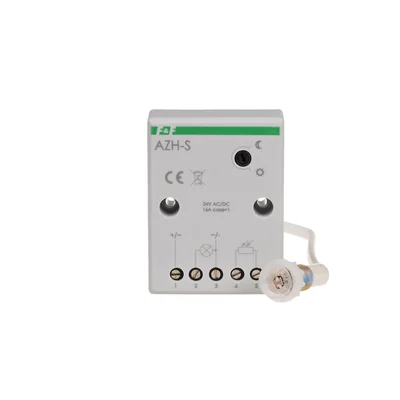

Twilight automaton with an external 24V hermetic probe AZH-S-24V
local index:
APF003FIFQ
Catalog No:
AZH-S-24V
EAN code:
5908312590163
Price:
25,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The dusk switch is used to automatically switch on the lighting of streets, squares, exhibitions, advertisements, etc. at dusk and turn off the lighting at dawn.
Technical data
-
HysteresisApprox. 15
-
Shutdown delay [s]10/30
-
Actuation threshold - adjustable [Lx]2-1000
-
Level of securityIP20
-
Working temperature [°C]-25-50
-
Package height [mm]70
-
Package weight [kg]0.2
-
On delay [s]d
-
load current [A]<16
-
Actuation threshold - set [Lx]around 7
-
The degree of protection of the probeIP65
-
Power [V]24
-
Package width [mm]50
-
PKWIU27.12.23.0
Other technical data
-
Type of sensorBuilt-in light sensor
-
Switch-off delay5 s
-
Max. switching power2300 W
-
MaterialPlastic
-
Halogen freeYes
-
ColourWhite
-
Nominal voltage-24 V
-
Operating temperature-25 ... 40 °C
-
Contacts1 make contact (NO)
-
Switching-on delay5 s
-
Mounting methodOther
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
TransparentNo
-
Max. switching current (resistive load)16 A
-
Suitable for degree of protection (IP)IP65
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,009 |
| Width (m) | 0,031 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
