el12
Automation
Relays and drivers
Photoelectric relays

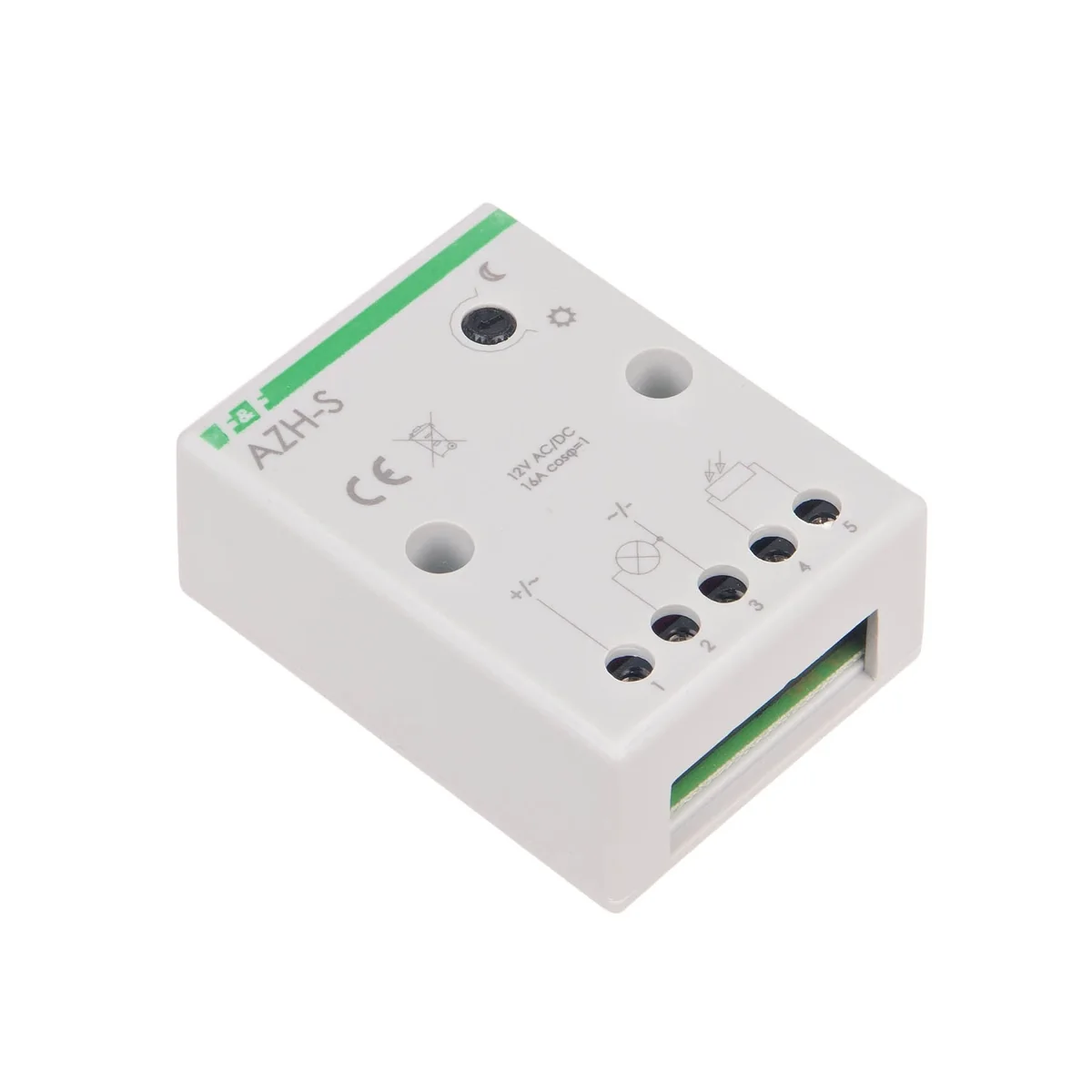

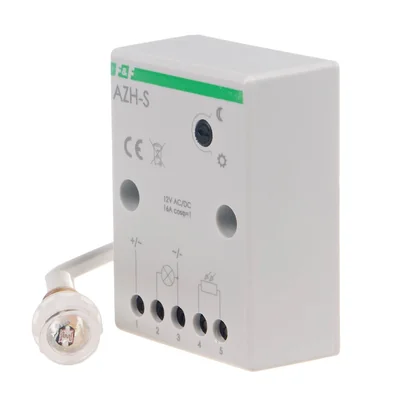

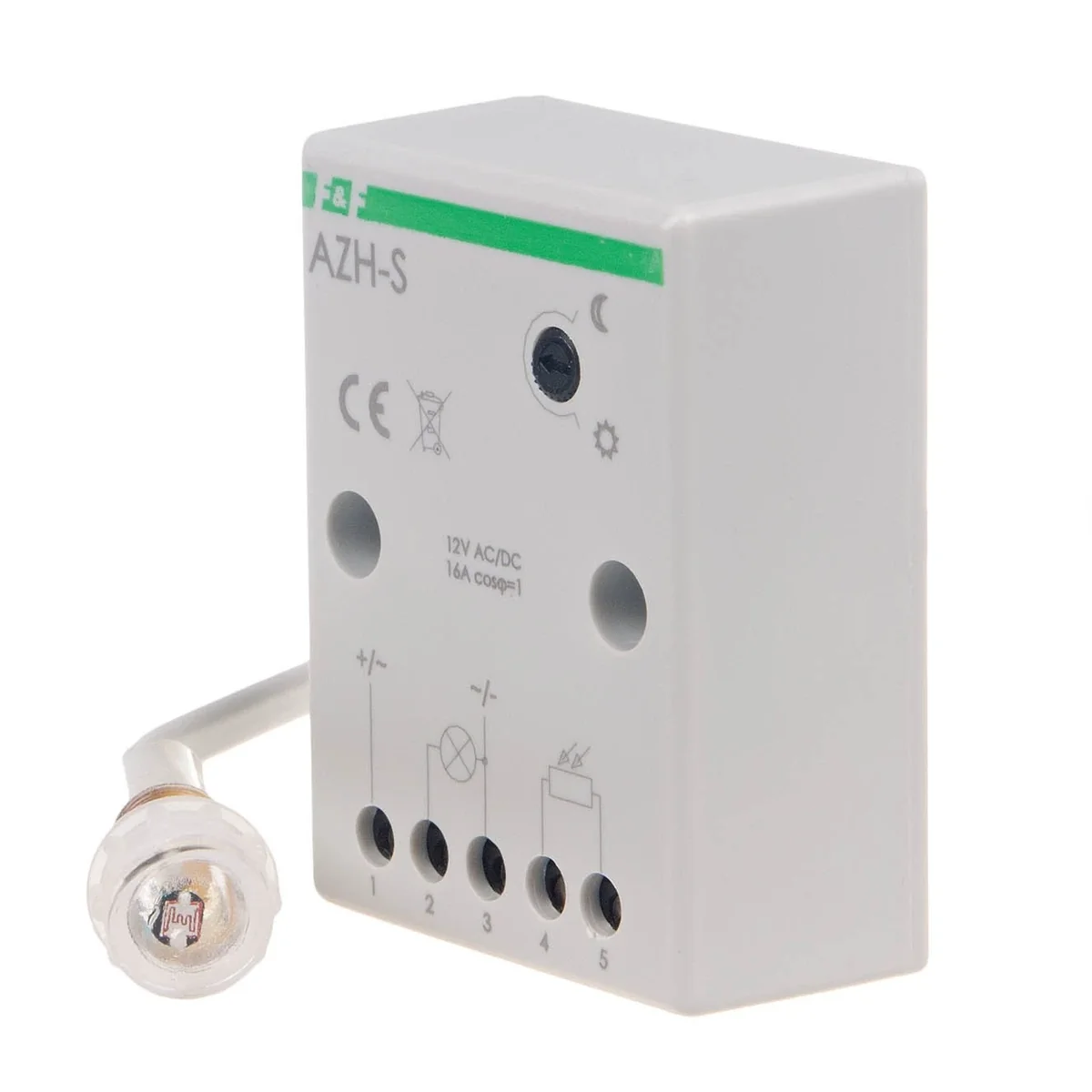

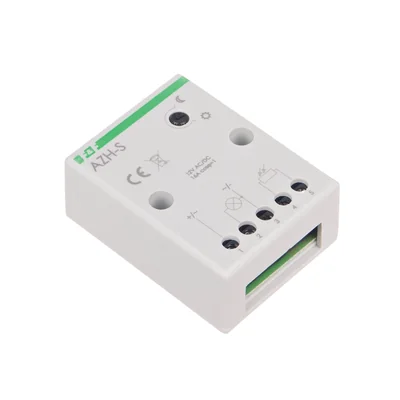

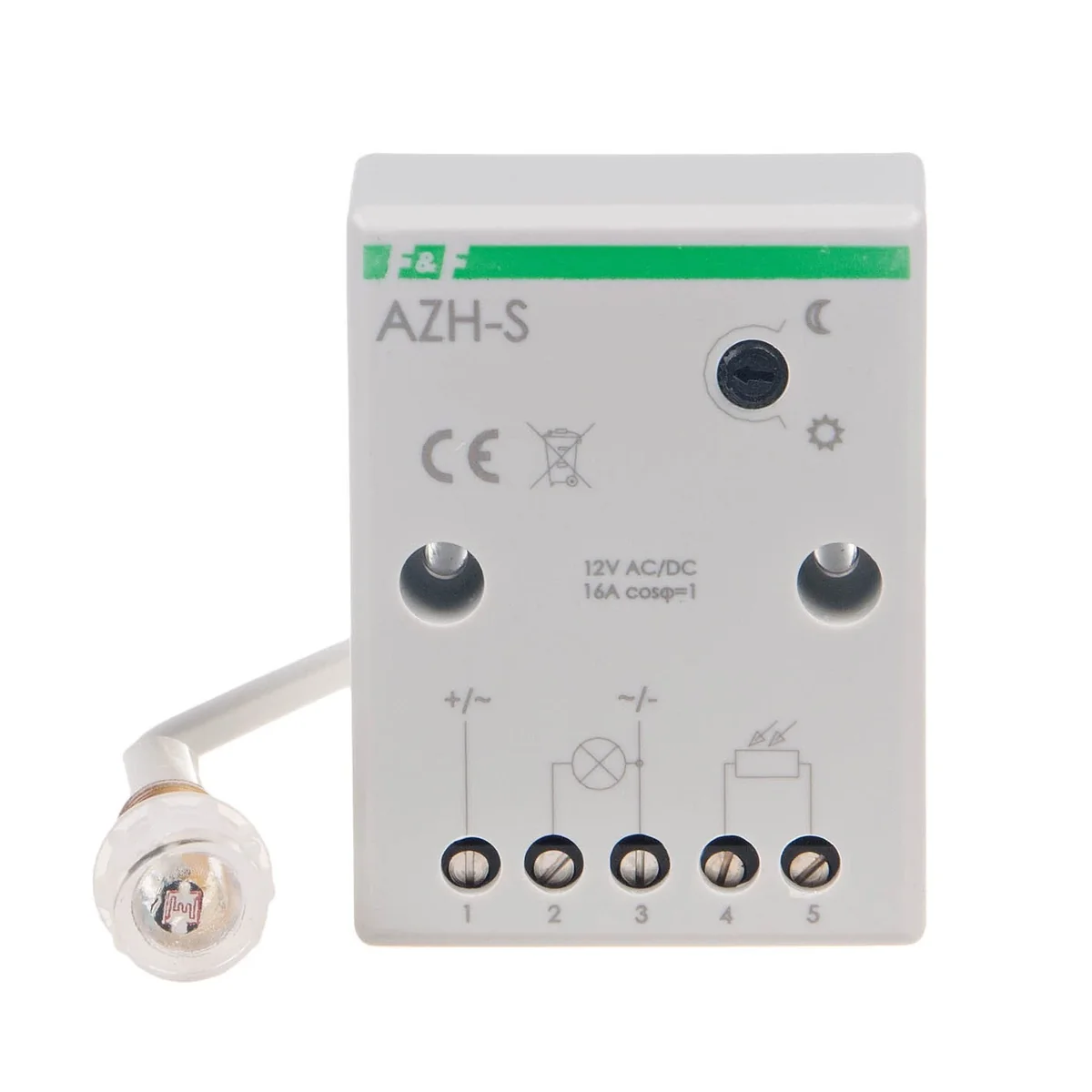

Twilight automaton with an external 12V hermetic probe AZH-S-12V
local index:
APF002FIFQ
Catalog No:
AZH-S-12V
EAN code:
5908312590156
Click on the photo to enlarge
Manufacturer:
F&F
Hysteresis:
Approx. 15
On delay [s]:
1/15
Shutdown delay [s]:
10/30
See full description
Price:
25,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Files to download
Product description
The twilight switch is used to automatically switch on the lighting of streets, squares, exhibitions, advertisements, etc. at dusk and switch off the lighting at dawn.
Technical data
Hysteresis
Approx. 15
Shutdown delay [s]
10/30
Actuation threshold - adjustable [Lx]
2-1000
Level of security
IP20
Working temperature [°C]
-25-50
Package height [mm]
70
Package weight [kg]
0.2
On delay [s]
1/15
load current [A]
<16
Actuation threshold - set [Lx]
around 7
The degree of protection of the probe
IP65
Power [V]
12
Package width [mm]
50
PKWIU
27.12.23.0
Other technical data
Type of sensor
Built-in light sensor
Switch-off delay
5 s
Max. switching power
2300 W
Material
Plastic
Halogen free
Yes
Colour
White
Nominal voltage
-12 V
Operating temperature
-25 ... 50 °C
Contacts
1 make contact (NO)
Switching-on delay
5 s
Mounting method
Other
Material quality
Thermoplastic
Surface protection
Untreated
Transparent
No
Max. switching current (resistive load)
16 A
Suitable for degree of protection (IP)
IP65
Manufacturer details
Manufacturer
F&F Filipowski Spółka Komandytowa
Address
95-200 Pabianice ul. Konstantynowska 79/81
Phone number
422152383
E-mail
fif@fif.com.pl
WWW
https://www.fif.com.pl
Tax identification number
7310005314
GLN
5900009915815
Bulk packaging
A kind of package
Sztuka
Quantity
1 pcs.
Weight (kg)
0,096
Width (m)
0,031
Length (m)
0,095
Depth (m)
0,070
Files to download
FF_RoHS_2022.pdf
UE_FF001_20_AZ_AZH_AWZ_dek_zgod_CE_1.pdf
FF_RoHS_2022.pdf
UE_FF001_20_AZ_AZH_AWZ_dek_zgod_CE_1.pdf
