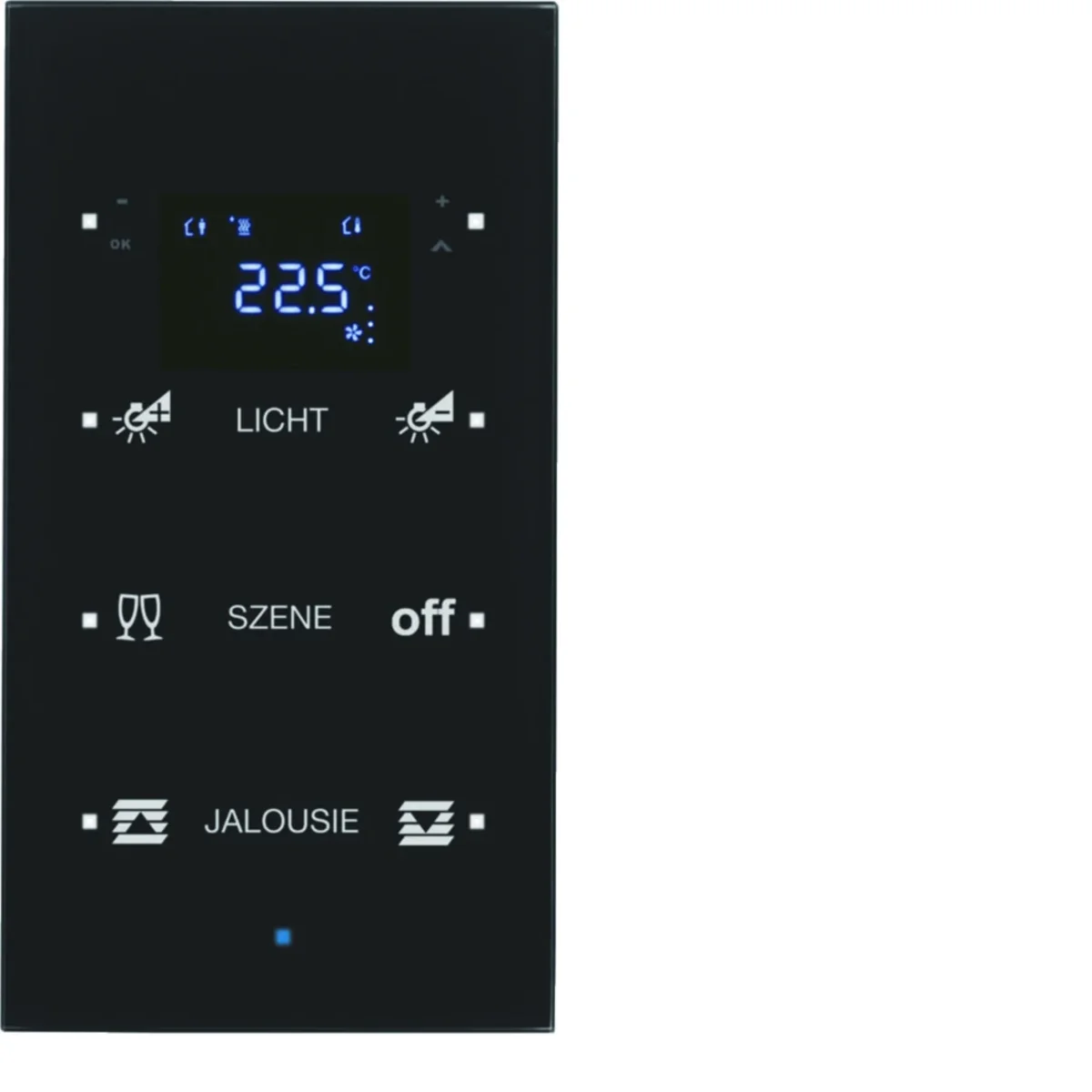

TS KNX 3-fold sensor with temperature controller configurable glass black 75643135

local index:
AIK400HAGE
Catalog No:
75643135
EAN code:
4011334319382
Manufacturer: HAGER
Halogen free: NO
Depth [mm]: 37.7
Color: Black
Price:
1172,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Glass touch sensor 3-fold with temperature regulator. Main design line: KNX - Berker TS Sensor. Configurable - defined by the user: possible symbols, colors and descriptions are selected using the configurator on the website.

Functions

  • operating modes controller: comfort, standby, night and frost/overheat protection
  • with valve protection
  • for switching, touch, dimming, blinds and temperature controllers
  • Controls and indicators

    • multiple interface
    • LED display with symbols
    • operating mode display controller locks, indoor/outdoor temp., time (clock required)

    LED control

    • with blue LED Operation LED and 6 white status LEDs

    Series characteristics:

    The BERKER TS SENSOR touch sensor is characterized by the gentleness of touching a perfectly smooth surface, enabling switching on lights, operating blinds, roller shutters, etc. The focus of the operating concept on a completely smooth surface makes it the ideal solution for particularly demanding interiors.

    • designed for bus systems or relay installation
    • thanks to the use of electronics directly under the rear part of the glass plate, high reliability of switching is guaranteed
    • the use of a completely flat solution enables a perfectly flat composition on the wall
    • operational readiness and switching states are signaled by LEDs
    • Completely smooth surface thanks to screw-free mounting

Technical data

  • Halogen free
    NO
  • Color
    Black
  • Family
    TS SENSOR KNX
  • Width [mm]
    86
  • Operating temperature range [°C]
    from -5 to 45
  • DC operating voltage [V]
    21 - 32
  • Depth [mm]
    37.7
  • Material
    Glass
  • Level of security
    IP20
  • Height [mm]
    160
  • Surface finish
    Overprint
  • PKWIU
    27.12.31.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • With anti-theft/dismantling protection
    Yes
  • Number of actuation points
    8
  • With LED indication
    Yes
  • With display
    Yes
  • Material quality
    Other
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9005
  • With room temperature controller
    Yes
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    Yes
  • Number of buttons
    0
  • With label area
    No
  • Material
    Glass
  • Surface protection
    Other
  • Colour
    Black
  • Transparent
    No
  • With IR sensor
    No
  • Min. depth of built-in installation box
    27 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 368 pcs.
Weight (kg) 0,380 0,450 190,600
Width (m) 0,086 0,125 0,800
Length (m) 0,038 0,085 1,500
Depth (m) 0,160 0,268 1,200
