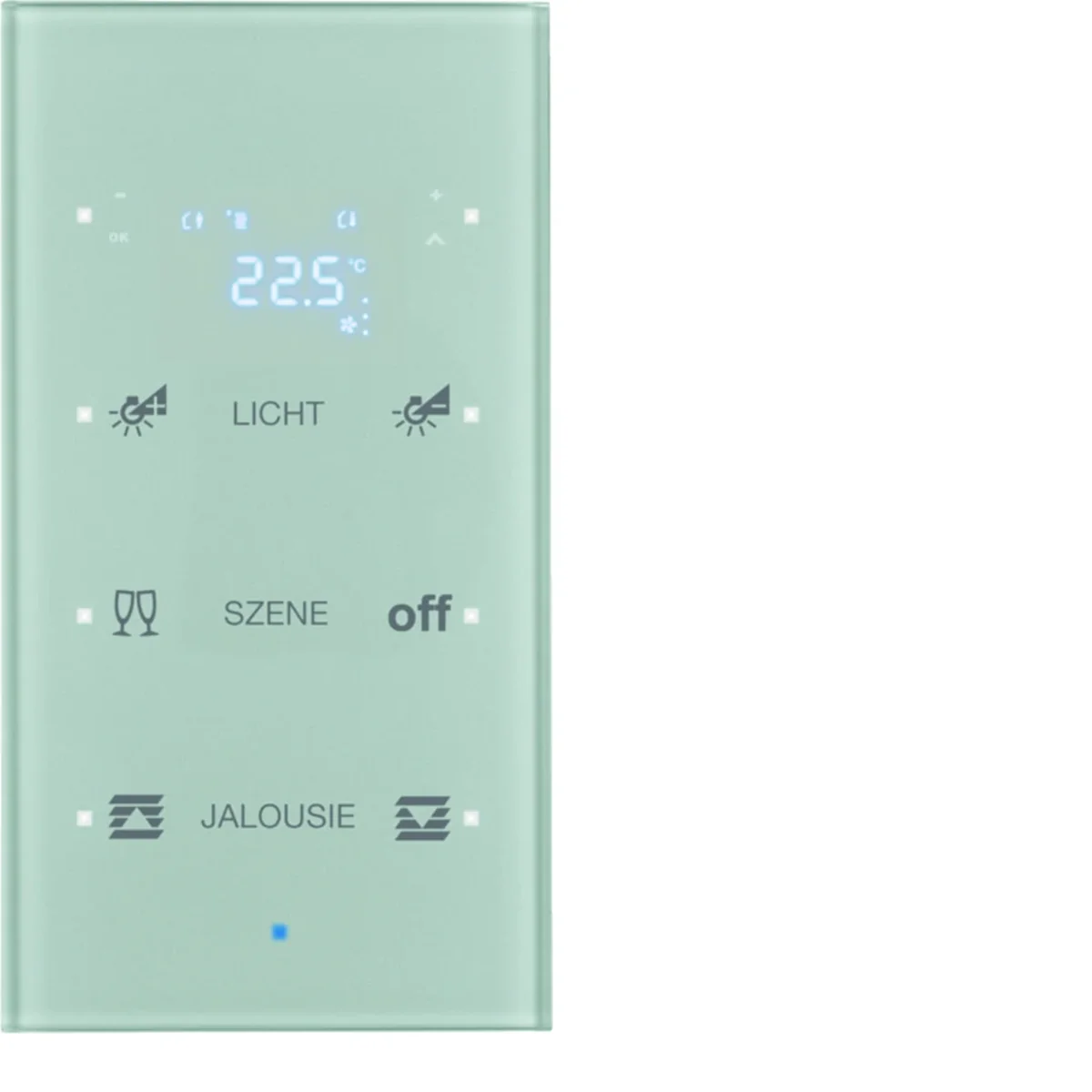

Glass touch sensor 3-fold with temperature regulator. Main design line: KNX - Berker TS Sensor. Configurable - defined by the user: possible symbols, colors and descriptions are selected using the configurator on the website.

Functions

operating modes controller: comfort, standby, night and frost/overheat protection
with valve protection
for switching, touch, dimming, blinds and temperature controllers

Controls and indicators

multiple interface
LED display with symbols
operating mode display controller locks, indoor/outdoor temp., time (clock required)

LED control

with blue LED Operation LED and 6 white status LEDs

Series characteristics:

The BERKER TS SENSOR touch sensor is characterized by the gentleness of touching a perfectly smooth surface, enabling switching on lights, operating blinds, roller shutters, etc. The focus of the operating concept on a completely smooth surface makes it the ideal solution for particularly demanding interiors.

designed for bus systems or relay installation
thanks to the use of electronics directly under the rear part of the glass plate, high reliability of switching is guaranteed
the use of a completely flat solution enables a perfectly flat composition on the wall
operational readiness and switching states are signaled by LEDs
Completely smooth surface thanks to screw-free mounting

Halogen free

NO
Color

Silver
Family

TS SENSOR KNX
Width [mm]

86
Operating temperature range [°C]

from -5 to 45
Accurate color

Aluminum
PKWIU

27.12.31.0

Depth [mm]

37.7
Material

Glass
Level of security

IP20
Height [mm]

160
Surface finish

Overprint
DC operating voltage [V]

21 - 32

Other technical data

Bus system KNX

Yes
Bus system radio frequent

No
Bus system Powernet

No
Radio frequent bidirectional

No
With anti-theft/dismantling protection

Yes
Number of actuation points

8
With LED indication

Yes
With display

Yes
Material quality

Other
Surface finishing

Glossy
RAL-number (similar)

9006
With room temperature controller

Yes
Degree of protection (IP)

IP20

Bus system KNX-RF (Radio Frequent)

No
Bus system LON

No
Other bus systems

None
Mounting method

Flush-mounted
With bus connection

Yes
Number of buttons

0
With label area

No
Material

Glass
Surface protection

Other
Colour

Aluminium
Transparent

No
With IR sensor

No
Min. depth of built-in installation box

27 mm

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	368 pcs.
Weight (kg)	0,380	0,450	190,600
Width (m)	0,086	0,125	0,800
Length (m)	0,038	0,085	1,500
Depth (m)	0,160	0,268	1,200
