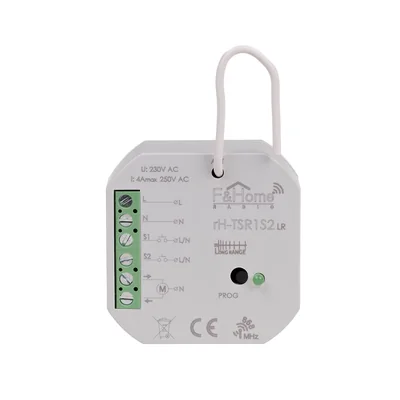

Tri-state relay with double transmitter (roller shutter controller) - Long Range RH-TSR1S2-LR

local index:
API119FIFQ
Catalog No:
RH-TSR1S2-LR
EAN code:
5908312597612
Manufacturer: F&F
Number of inputs: 2
Maximum power [W]: 500
Installation: Flush-mounted
Price:
76,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

rH-TSR1S2 is a combination of a three-state relay and two contact inputs. The module sends information about the opening and closing of contacts to the system and controls the relay that can switch bidirectional electrical receivers. Communication with the server takes place via radio. The module has two physical inputs for connecting two monostable potential-free contacts, and two relay inputs. The load on the relay contacts can be resistive, inductive or capacitive, both in DC and AC circuits.< tr>
Maximum number of shutter outputs1



Technical data

  • Number of inputs
    2
  • Installation
    Flush-mounted
  • Family
    F&HOME RADIO
  • Package height [mm]
    80
  • Package weight [kg]
    0.3
  • Maximum power [W]
    500
  • Switching current [A]
    2
  • Level of security
    IP20
  • Package width [mm]
    80
  • PKWIU
    27.12.24.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Mounting method
    Flush-mounted
  • Local operation/hand operation
    Yes
  • Number of inputs
    2
  • Max. switching power
    500 W
  • With switch function
    Yes
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Other
  • With bus connection
    No
  • With LED indication
    Yes
  • Switching current (resistive)
    2 A
  • Max. number of venetian-blind outputs
    1
  • Type of current
    AC

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,070
