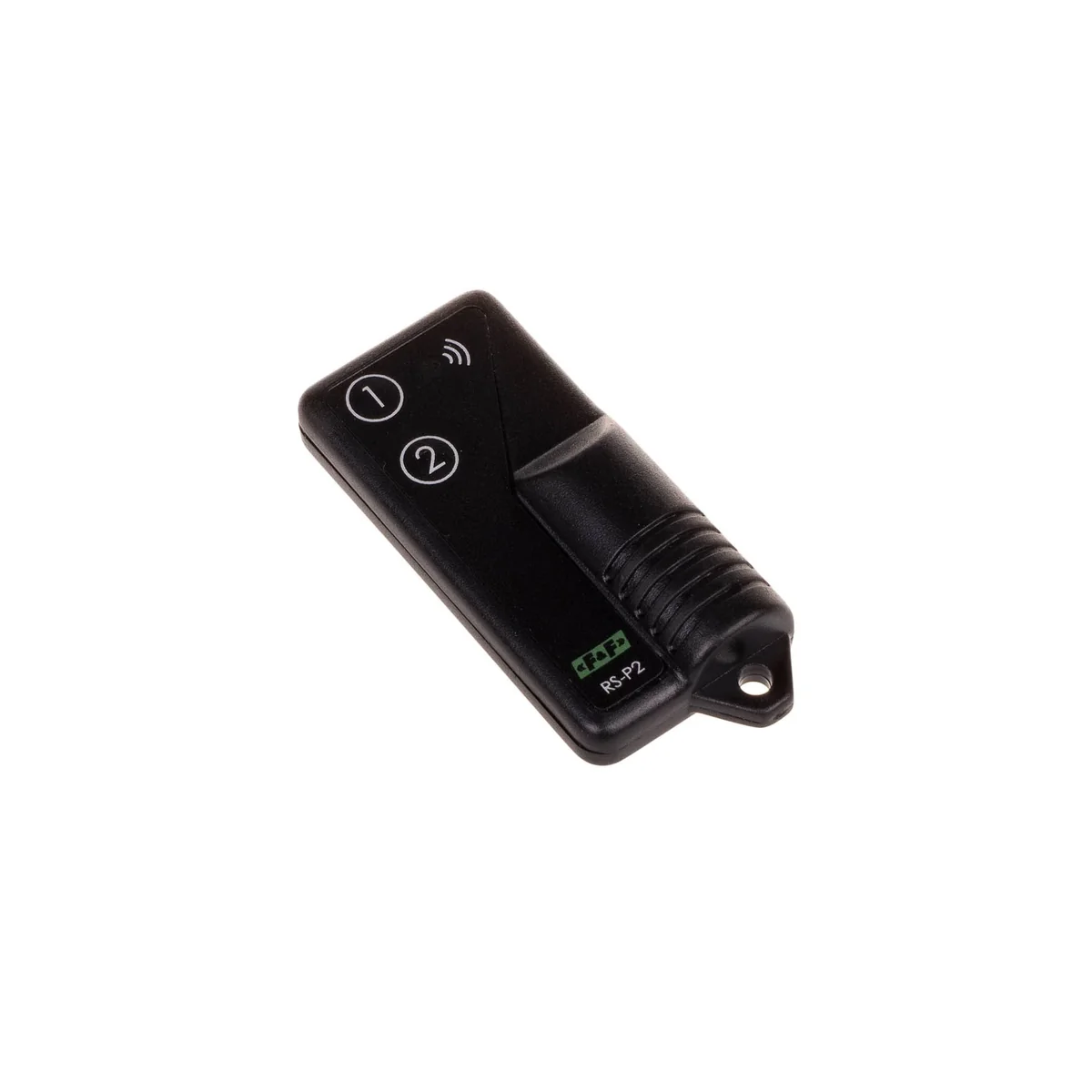

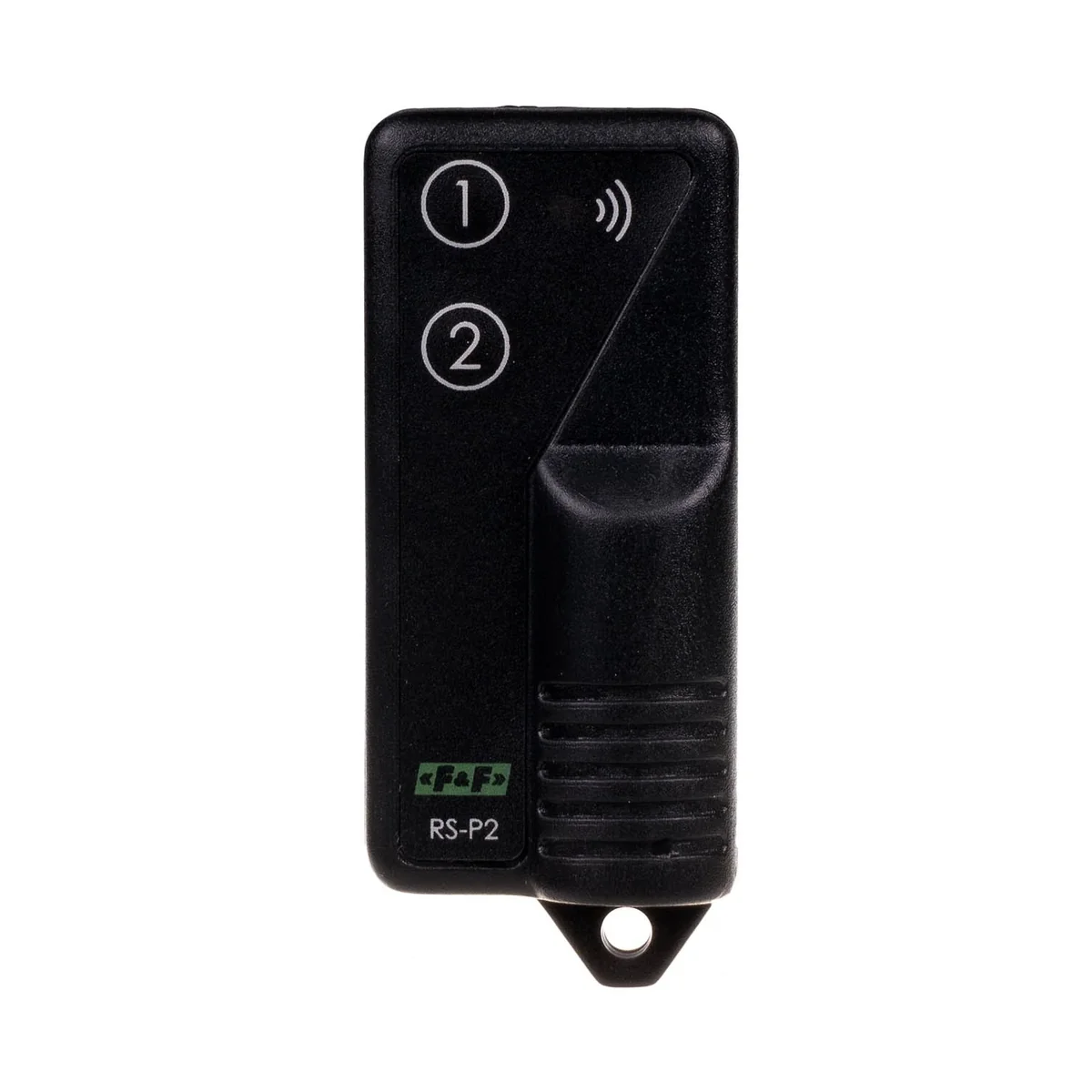

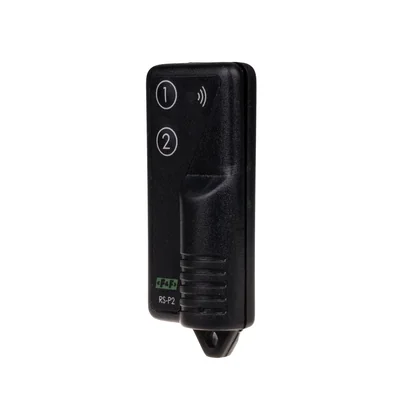

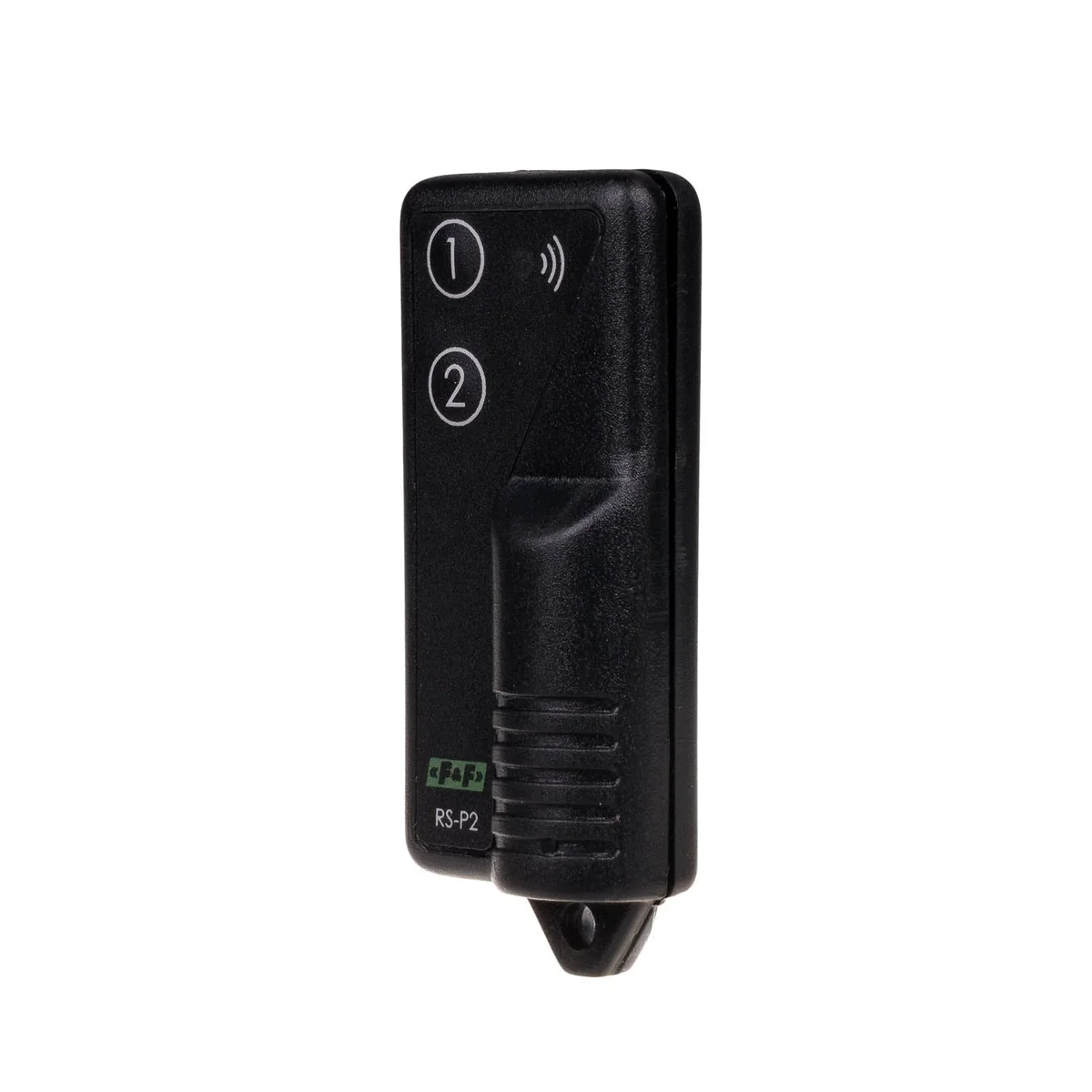

Transmitter - RS-P2 two-button remote control RS-P2

local index:
APL207FIFQ
Catalog No:
RS-P2
EAN code:
5908312594482
Manufacturer: F&F
Battery: A23
Number of buttons: 2
Color: Black
Price:
21,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electronic radio transmitters are used to remotely control gates, roller shutters, lighting, arming alarm systems, etc. The remote control system consists of a transmitter and a receiver (relay). There is a possibility of cooperation of many transmitters with one receiver and a single transmitter with many receivers. The RS-P... remote control works with dedicated F&F devices: monostable RS-407M receiver and bistable RS-407B receiver. The impulse caused by pressing the button on the remote control sends the coded signal to the receiver. The remote control has protection against breaking the transmission after releasing the button. Thanks to this, even the shortest activation of the function results in the transmission of a full data frame. Data transmission from the remote control is signaled by the flashing red LED on the remote control. It is possible to cooperate with many remote controls with one receiver and a single transmitter with many receivers.

Technical data

  • Battery
    A23
  • Color
    Black
  • Family
    RS
  • Package height [mm]
    68
  • Package weight [kg]
    0.1
  • Frequency [MHz]
    868
  • PKWIU
    26.30.12.0
  • Number of buttons
    2
  • Rated voltage [V]
    12
  • Working temperature [°C]
    -25-50
  • Package width [mm]
    thirty
  • Frequency [MHz]
    868
  • Accurate color
    Black

Other technical data

  • With manual transmitter
    Yes
  • Number of channels
    2
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Transparent
    No
  • Suitable for switch
    No
  • Suitable for venetian shutter switch
    No
  • Suitable for movement sensor
    No
  • Signal transmission
    Radio frequency (RF)
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Black
  • Range
    100 m
  • Suitable for dimmer
    No
  • Suitable for indication element
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,032
Width (m) 0,080
Length (m) 0,040
Depth (m) 0,018
