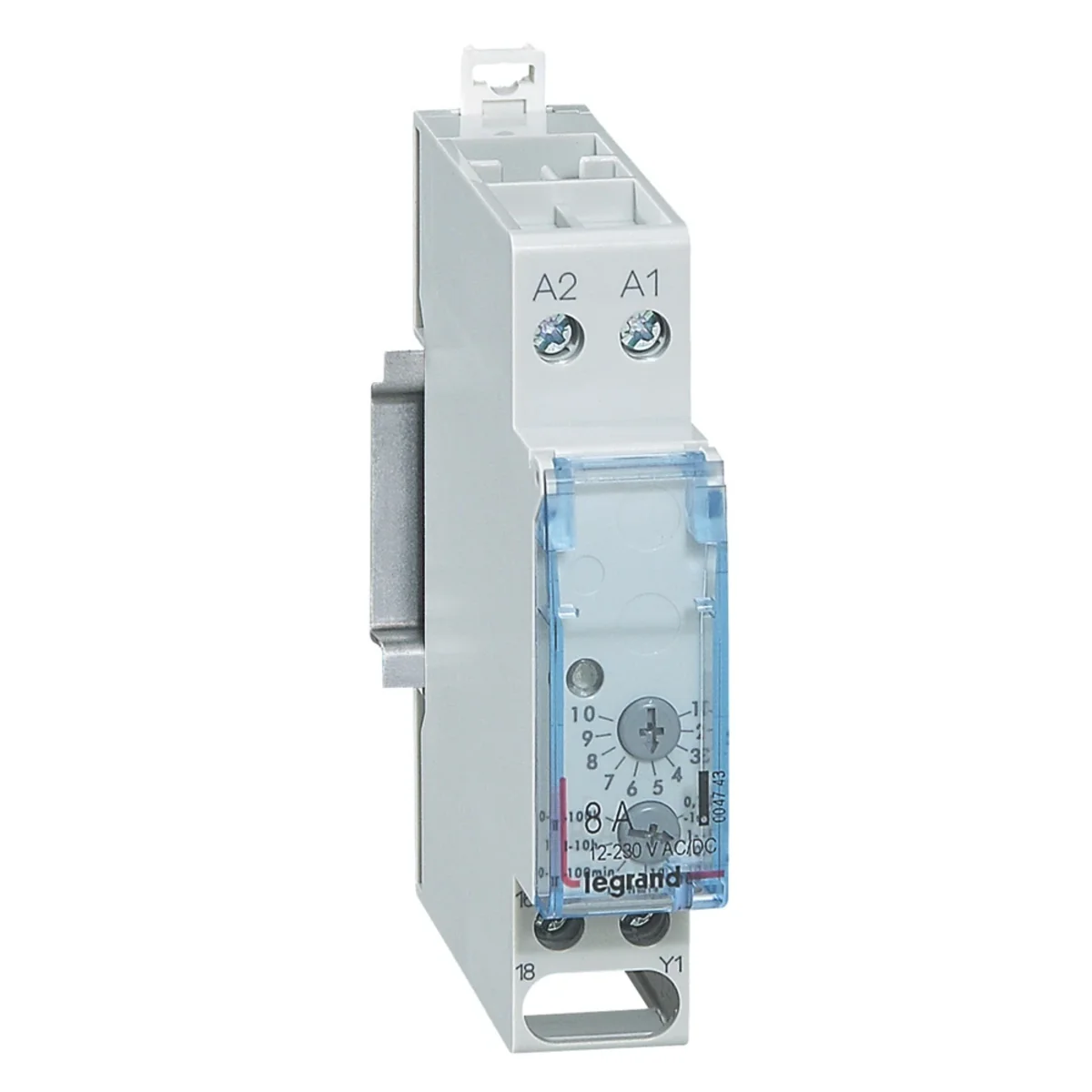

Time relays are used to control the switching on and off of the electrical installation, ventilation
machines, and production equipment, e.g. process lines, automation elements
Time can be selected in the range from 0.1 second to 100 hours
Supply voltage: 12 up to 230 V~ (50/60 Hz) and DC
Output load: 8 A - 250 V~ - μ what φ = 1 for one contact
After applying the control voltage (Y1), the output contacts (15-18) are closed
The time of their closing is set by the user, and its beginning is when the control voltage (Y1) appears
Function can be repeated many times in the presence of supply voltage
Width in 17.5 mm modules: 1
