LEGRAND

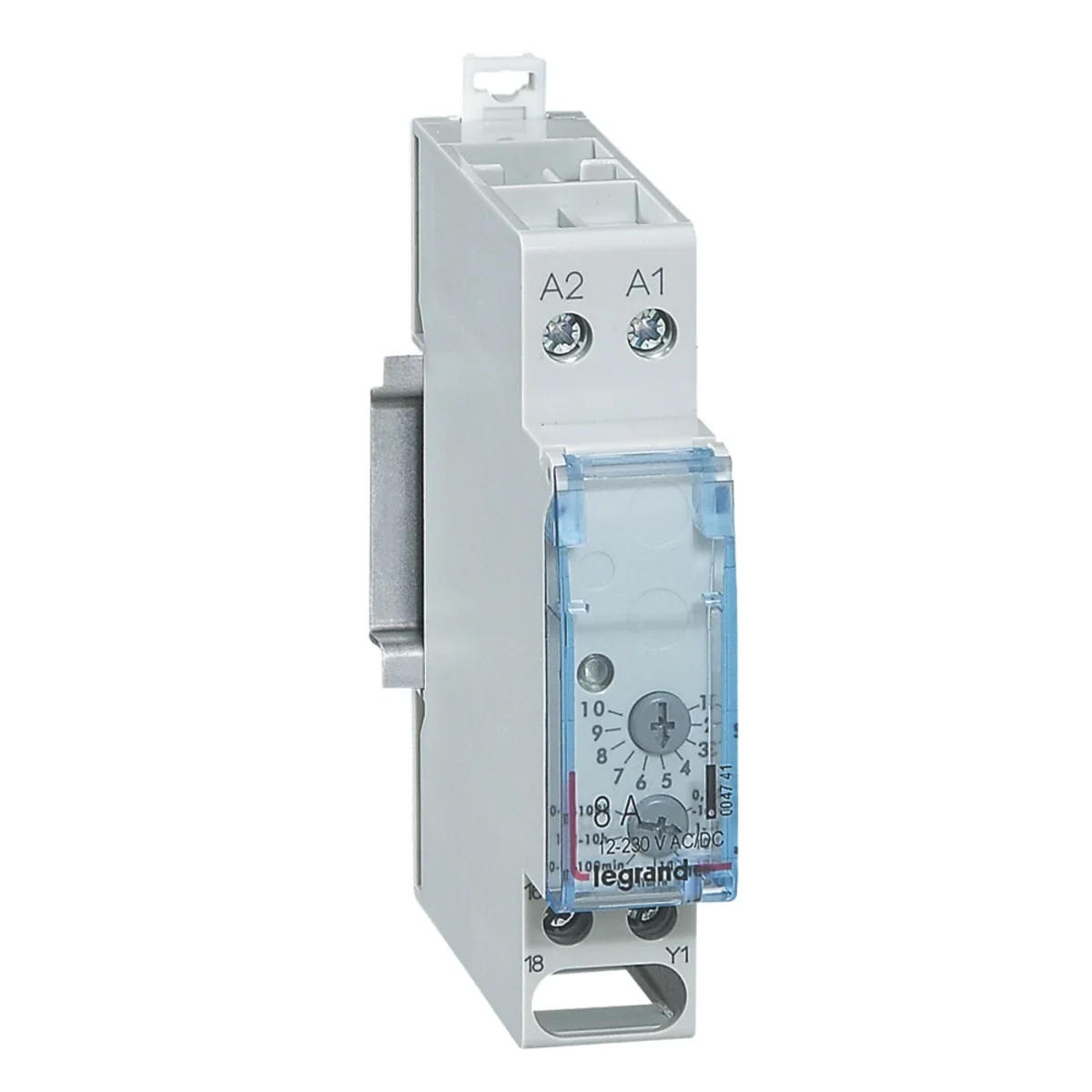

Time relay RC312 004741

local index:
APR018LEGR
Catalog No:
004741
EAN code:
3245060047412
Price:
99,51 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,46 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Time relays are used to control the switching on and off of the electrical installation, ventilation
machines and production equipment, e.g. technological lines, automation elements
Time can be selected in the range from 0.1 second to 100 hours
Supply voltage: 12 up to 230 V~ (50/60 Hz) and DC
Output load: 8 A - 250 V~ - μ what φ = 1 per contact


Product parameters

Timers
Off delay
When the control voltage (Y1) is applied, the output contacts (15-18) are closed
The time of their short-circuit is set by the user, and the delay time is counted from the moment of control voltage decay (Y1)
The function can be repeated many times in the presence of supply voltage
Width in 17.5 mm modules: 1

Technical data

  • Installation
    On the TH-35 rail

Other technical data

  • Type of excitation
    Analogue with single function
  • 1st interval unit
    Seconds/hours
  • Mounting method
    DIN rail
  • Built-in height
    70 mm
  • Liczba styków rozwiernych
    0
  • Control voltage 1
    12 ... 230 V
  • Frequency control voltage 1
    50 ... 60 Hz
  • Nominal switching current at 250 V AC
    8 A
  • Function
    Release-delay
  • 1st interval
    0.1 ... 360000
  • Width in number of modular spacings
    1
  • Liczba styków zwiernych
    0
  • Number of changeover switches
    1
  • Type of control voltage 1
    AC/DC
  • Voltage type (supply voltage)
    AC

Catalog cards, diagrams, certificates
