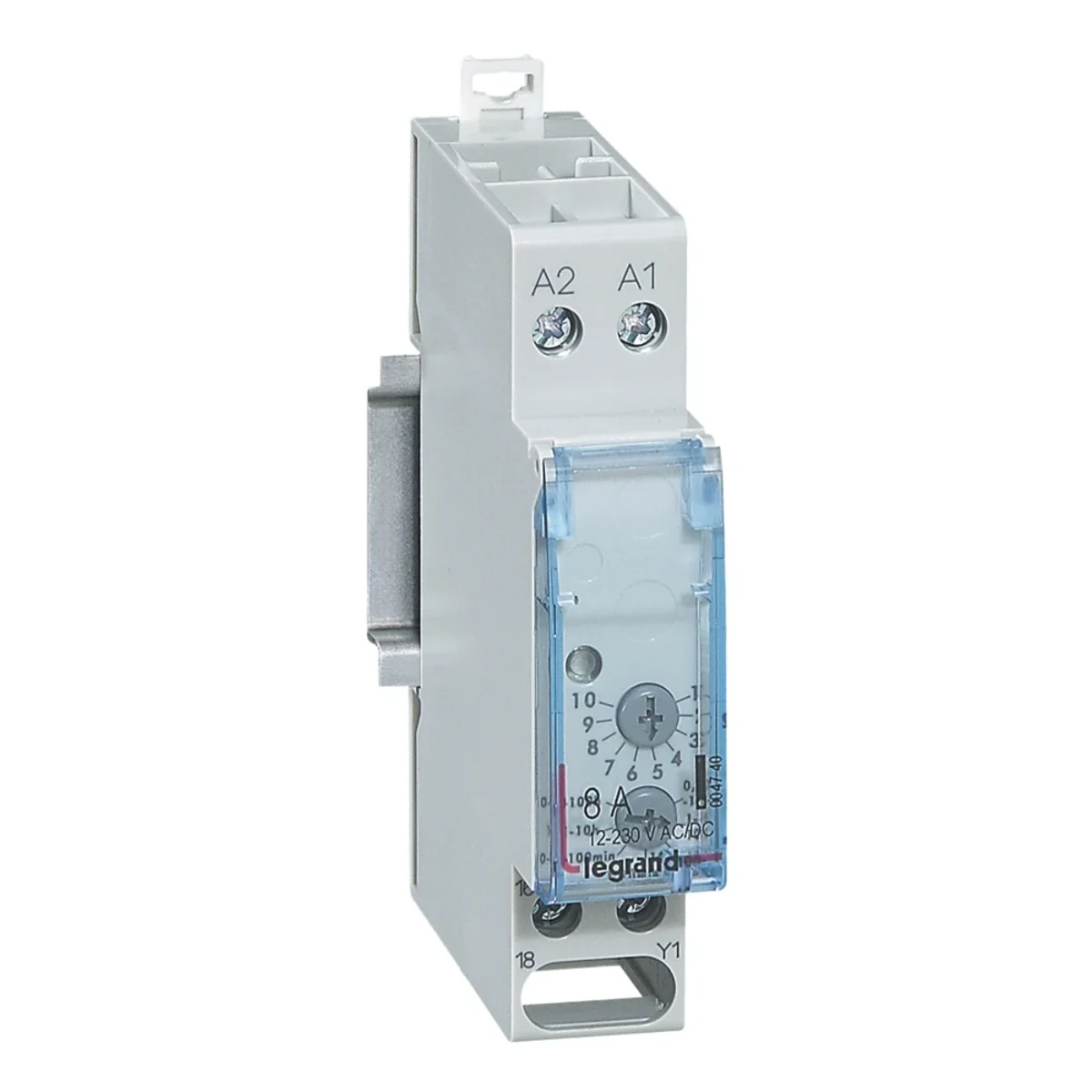

Time relay RC302 004740

Time relays are used to control the switching on and off of the electrical installation, ventilation
machines and production equipment, e.g. technological lines, automation elements
Time can be selected in the range from 0.1 second to 100 hours
Supply voltage: 12 up to 230 V~ (50/60 Hz) and DC
Output load: 8 A - 250 V~ - μ what φ = 1 per contact


Product parameters

Timers
On delay
After applying the control voltage (Y1) with a delay (T) defined by the user, the contacts are closed ( 15-18)
The short-circuit lasts as long as the control voltage is present
The function can be repeated many times in the presence of the supply voltage
Width in 17.5 mm modules: 1
