Three-phase voltage indicator WN-723 WN-723

local index:
API017FIFQ
Catalog No:
WN-723
EAN code:
5908312596066
Manufacturer: F&F
Reading accuracy [V]: 2.5
Power [W]: 2.2
Installation: On the TH-35 rail
Price:
43,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

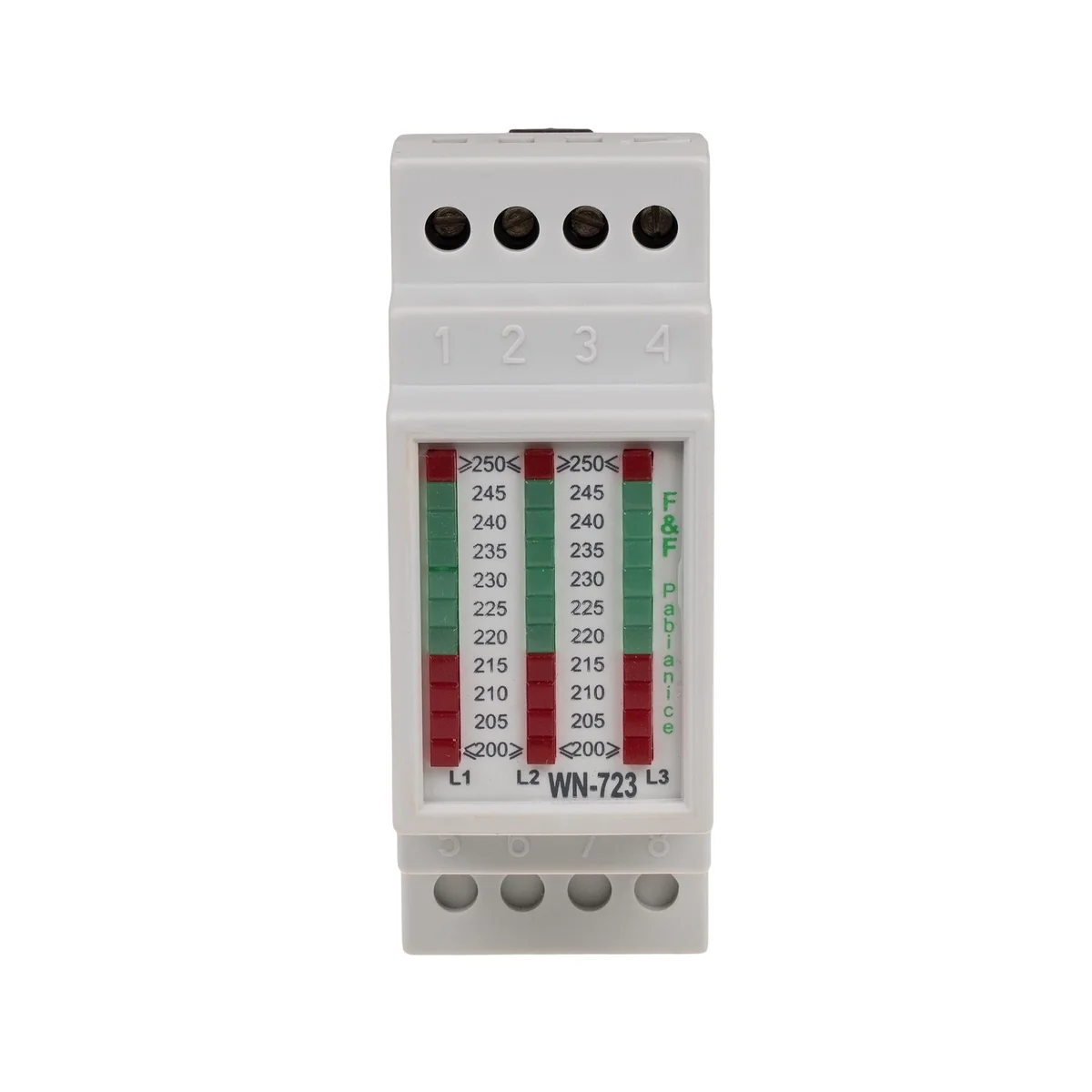

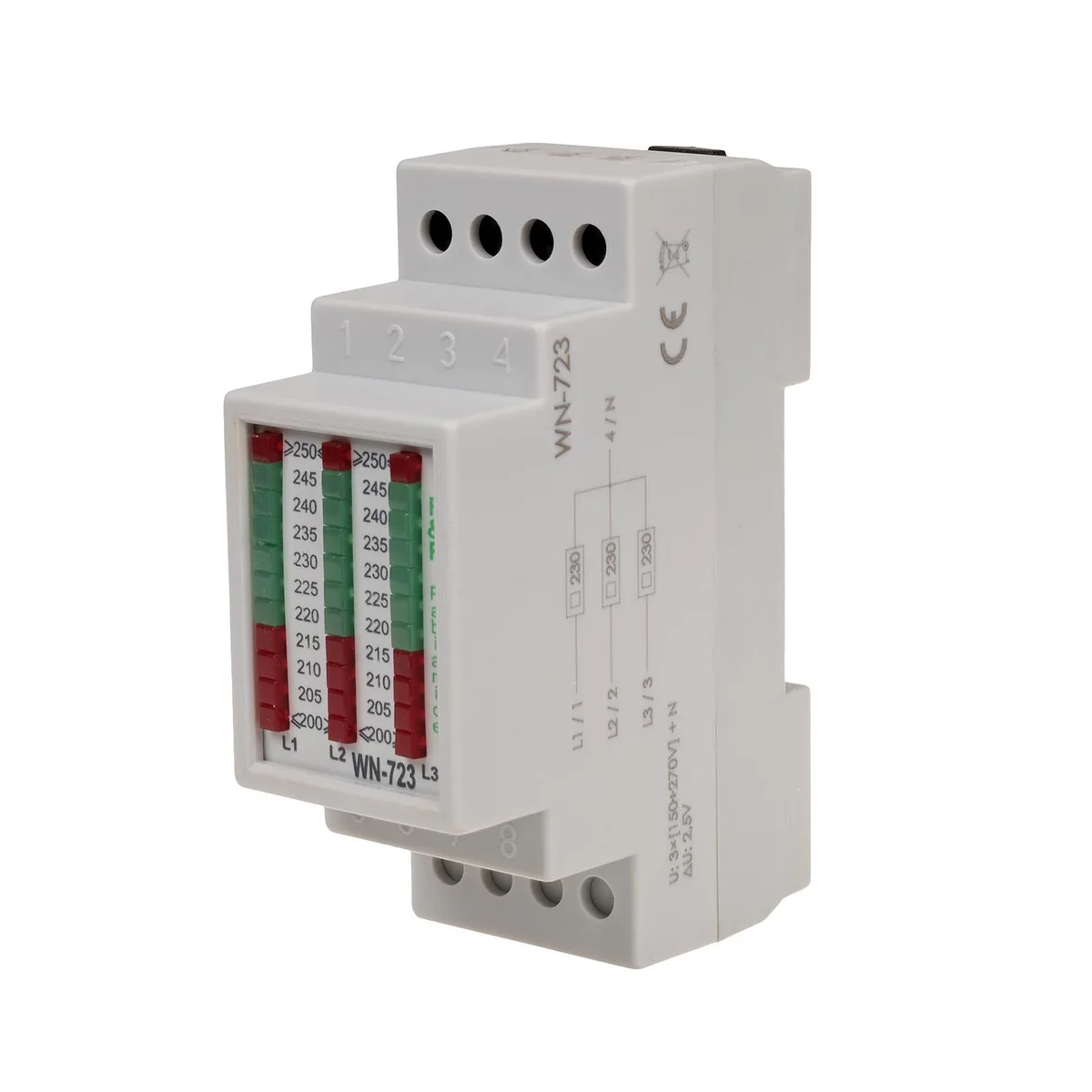

The voltage indicator WN-723 is used for continuous measurement of voltage in a three-phase network. The range of indicated voltage for each phase is from 205 to 245V with a reading accuracy of 2.5V. LED lighting indicates the voltage value described at its height. If two LEDs are lit, the voltage value is the average of the values described at their heights. The voltage value within the tolerance range (215 to 245V) is indicated by the green LEDs, other values are indicated by the red LEDs. Voltage equal to or higher than 250V is indicated by the highest red LED lighting up. Voltage equal to or lower than 200V is indicated by lighting of the lowest red LED

Technical data

  • Reading accuracy [V]
    2.5
  • Installation
    On the TH-35 rail
  • Pitch [V]
    5
  • Working temperature [°C]
    -25-50
  • Dimensions
    2 modules (35mm)
  • Package width [mm]
    40
  • PKWIU
    26.51.43.0
  • Power [W]
    2.2
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Voltage indicator
    3x11 LEDs
  • Package height [mm]
    150
  • Package weight [kg]
    0.11

Other technical data

  • Initial value measuring range voltage
    200 V
  • Frequency rated current
    50 Hz
  • With switching output
    No
  • End value measuring range voltage
    250 V
  • Type of analogy output
    Other

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,114
Width (m) 0,041
Length (m) 0,095
Depth (m) 0,070
