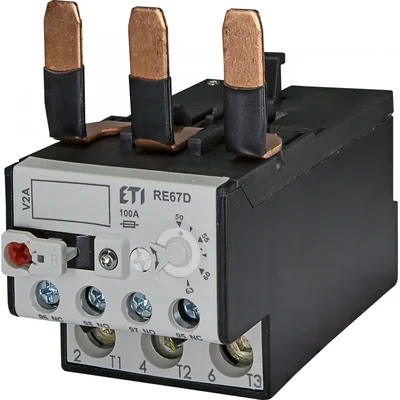

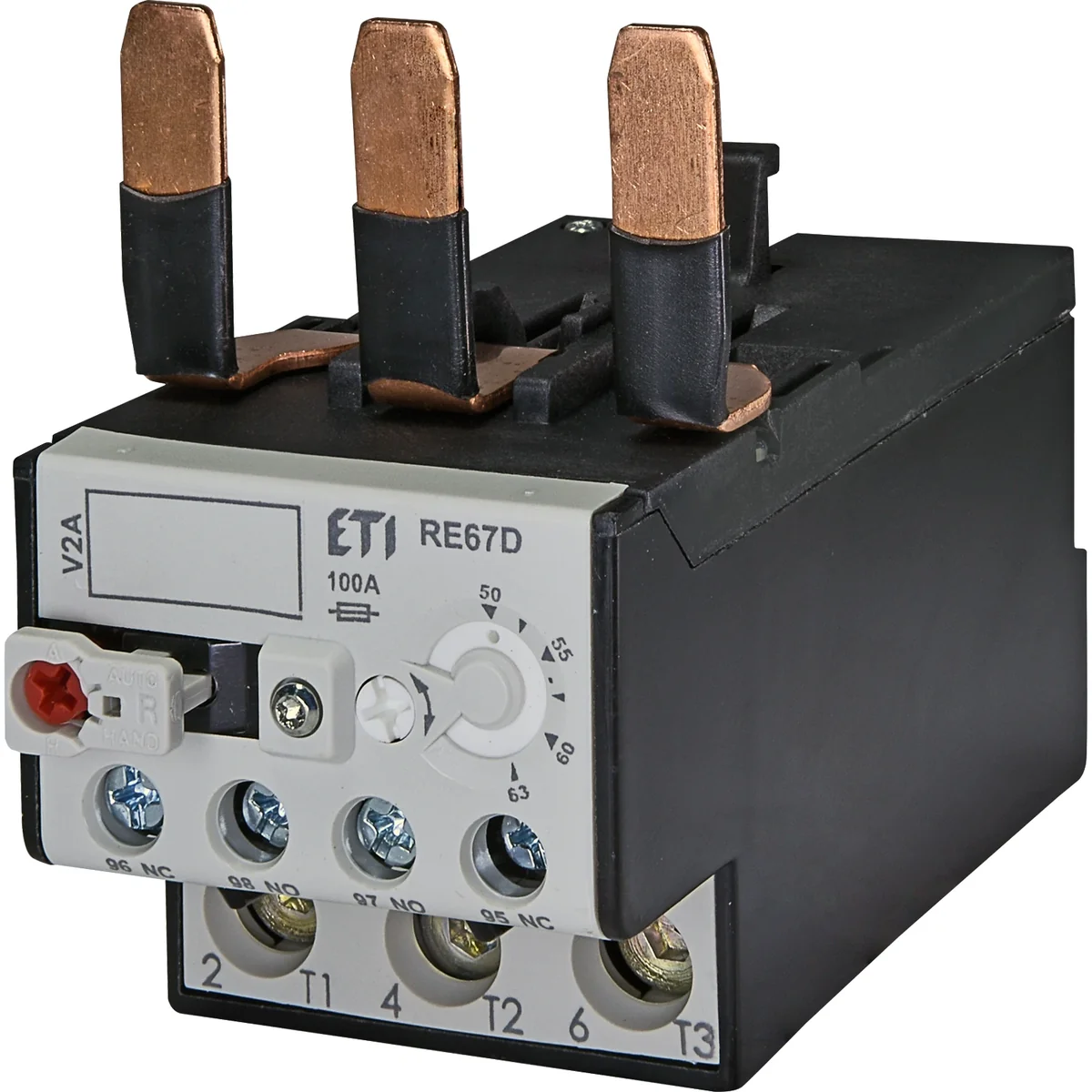

Thermal relay RE67.2D-63 004644418

local index:
APE005ETIP
Catalog No:
004644418
EAN code:
7890355110300
Manufacturer: ETI POLAM
Extra protection: 100
Number of modules: 1
Number of poles: 2
Price:
78,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Thermal relay RE67.2D-63 for contactor CEM50...CEM80

Technical data

  • Extra protection
    100
  • Number of poles
    2
  • Current setting range [A]
    50 - 63
  • Current setting range [A] from
    50
  • Number of modules
    1
  • Type
    RE67.2D-63
  • Current setting range [A] to
    63
  • PKWIU
    27.12.23.0

Other technical data

  • Adjustable current range
    50 ... 63 A
  • Type of electrical connection of main circuit
    Flat plug-in connection
  • Number of auxiliary contacts as normally open contact
    1
  • Mounting method
    Direct attachment/single positioning
  • Number of auxiliary contacts as normally closed contact
    1
  • Release class
    CLASS 10
