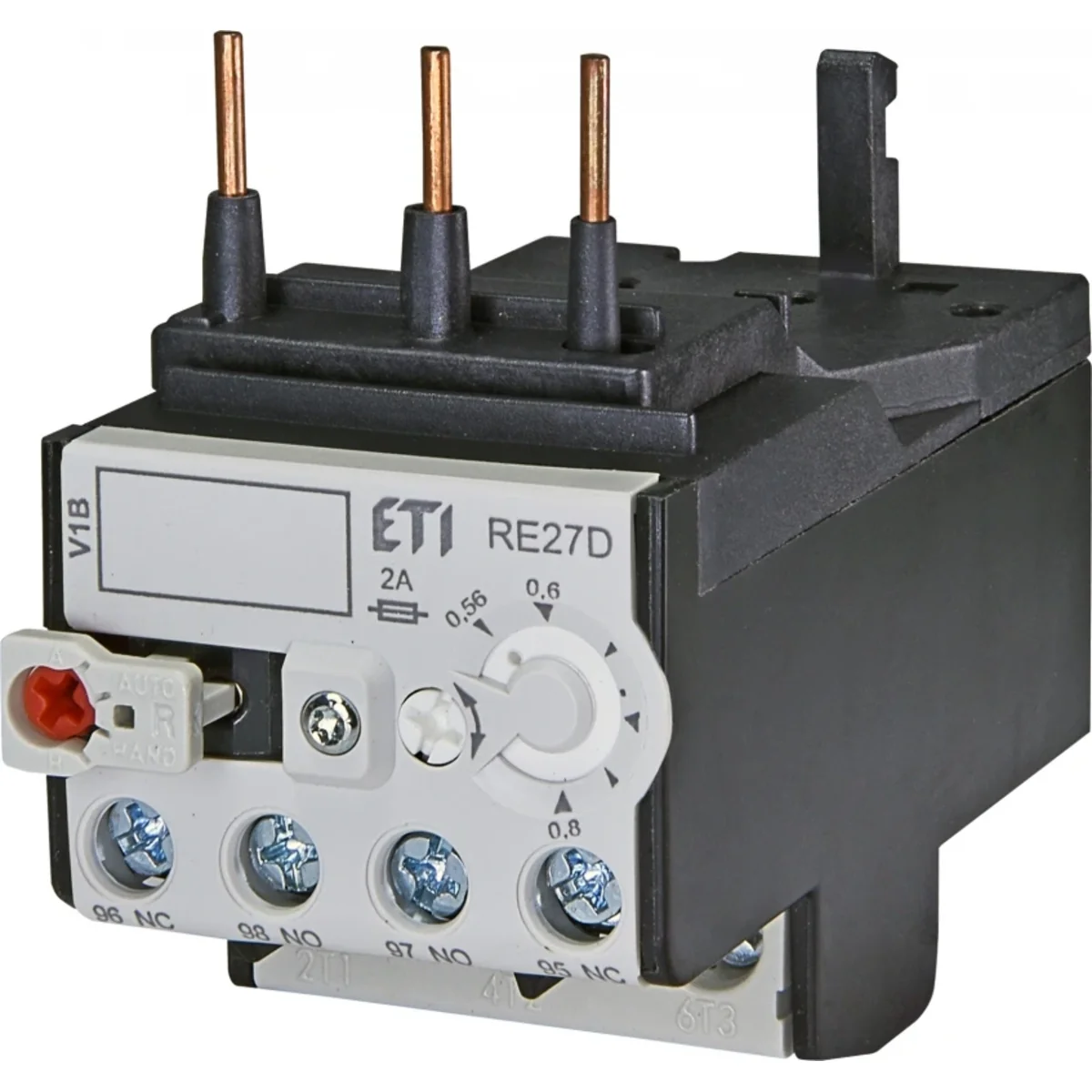

Thermal relay RE27D-0.8 004642402

local index:
APE012ETIP
Catalog No:
004642402
EAN code:
7890355110140
Manufacturer: ETI POLAM
Number of poles: 4
Rated insulation voltage [V]: 415
Working temperature [°C]: from -25 to +60
Price:
31,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - Miniature auxiliary contactors are designed to create complex control, regulation and automation systems. Due to their small dimensions, they allow you to reduce the amount of space needed in the switchgear. Additional time relays (on-delay, off-delay, star/delta relay) enable the implementation of simple functions. Miniature motor contactors are designed for remote control and protection (together with thermal relays) of electric motors and other receivers, the power of which does not exceed 7.5 kW (at voltage 400 and AC3 operation).

Advantages:
→ AC-3 operating type up to 16A load.
→ Making contactors for AC and DC in the same size, which makes it easy to design and use.
→ Rated insulation voltage - 690.
→ Low power consumption and low power losses (heating) allows them to be controlled directly (without a relay) by a PLC.
→ wide range of accessories, compact design and quick mounting on a TH35 rail and on a printed circuit board.
→ Protection against accidental touch - IP20 rating

Technical data

  • Number of poles
    4
  • Working temperature [°C]
    from -25 to +60
  • Compliance with standards
    IEC/EN 60 947, DIN VDE 0660, UL, CSA
  • Rated insulation voltage [V]
    415
  • Type
    CAE04.31-230-50/60Hz
  • PKWIU
    27.12.23.0

Other technical data

  • Adjustable current range
    0.56 ... 0.8 A
  • Type of electrical connection of main circuit
    Flat plug-in connection
  • Number of auxiliary contacts as normally open contact
    1
  • Mounting method
    Direct attachment/single positioning
  • Number of auxiliary contacts as normally closed contact
    1
  • Release class
    CLASS 10
