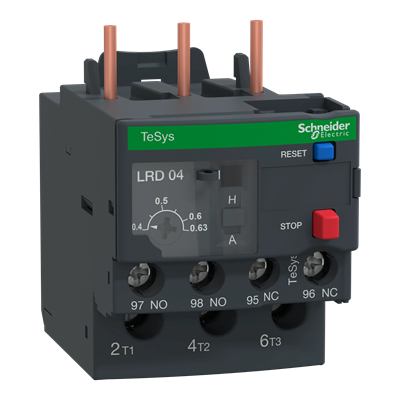

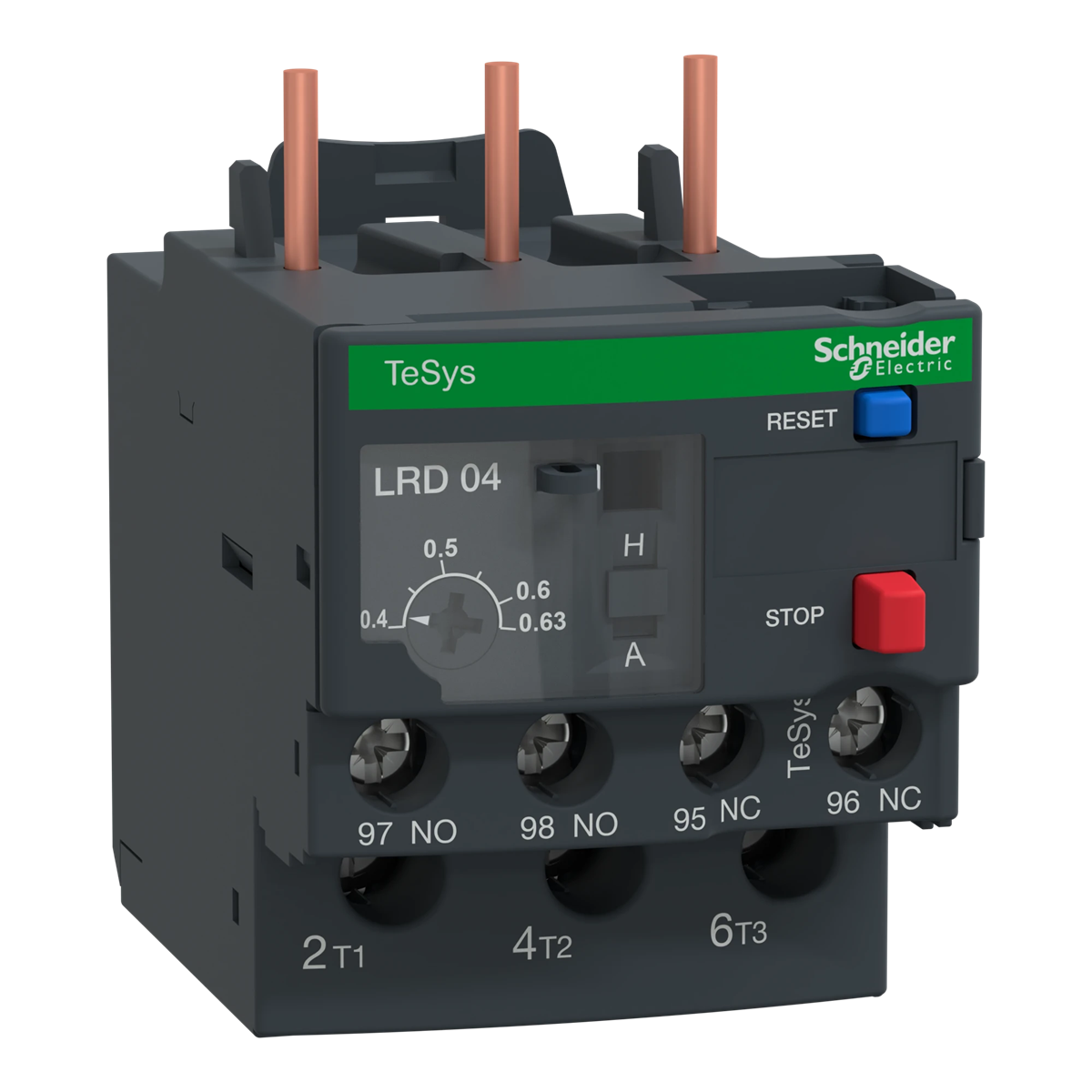

Thermal overload relay TeSys LRD 0.4-0.63A box terminals LRD04
local index:
APL103SCHN
Catalog No:
LRD04
EAN code:
3389110346749
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Width [mm]:
45
See full description
Price:
45,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Thermal overload relay TeSys LRD 0.4-0.63A box terminals
Technical data
Width [mm]
45
PKWIU
27.12.22.0
Other technical data
Adjustable current range
0.4 ... 0.63 A
Mounting method
Direct attachment
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as change-over contact
0
Reset function input
No
Reset function push-button
Yes
Max. rated operation voltage Ue
690 V
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally open contact
1
Release class
CLASS 10 A
Reset function automatic
Yes
Files to download
Internal PEP ENVPEP080206EN_V2.pdf
EoLI_ENVEOLI0802006_V2.pdf
UK_Doc_LRD01-35_LR3D01-35_SC16031603-UK.docx.pdf
