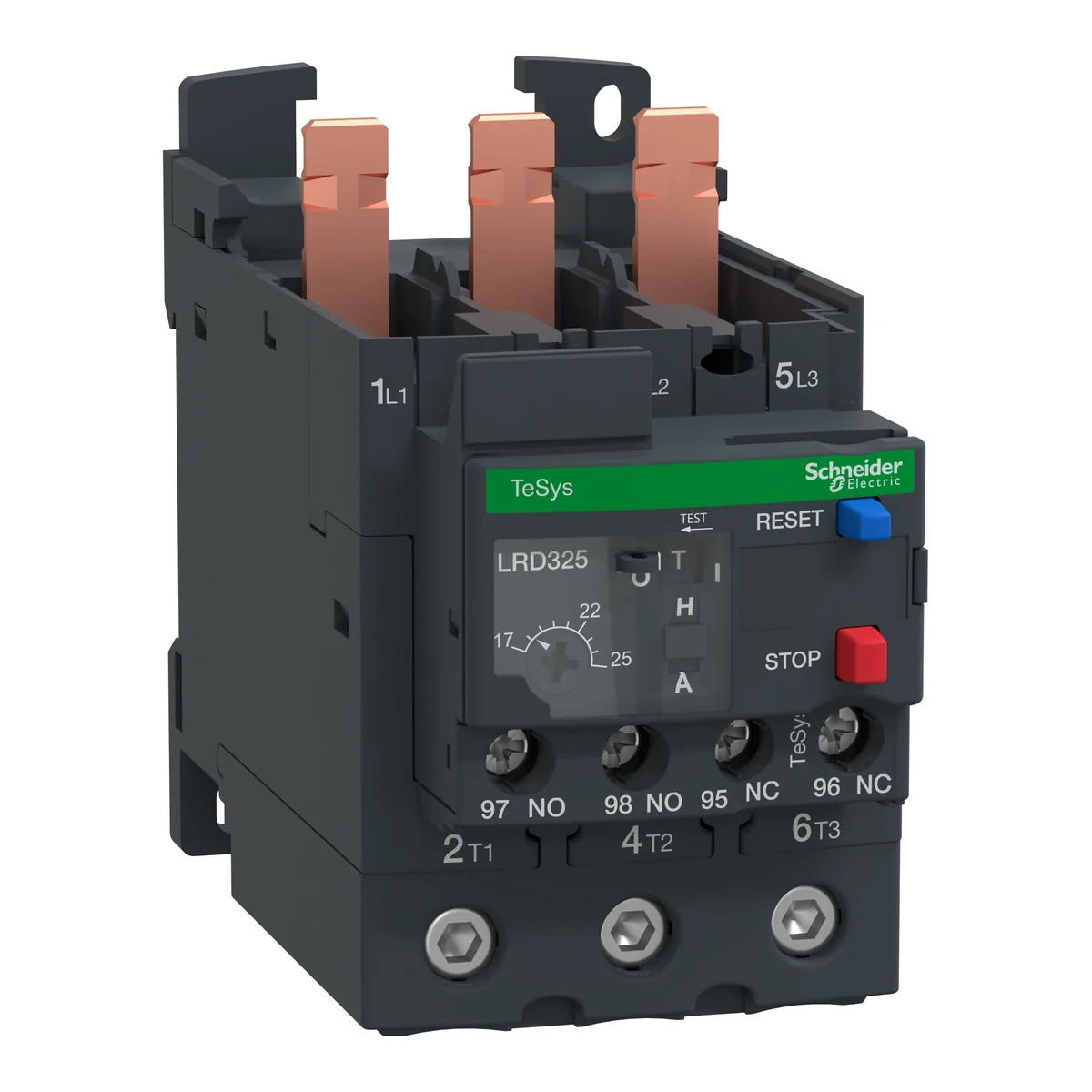

Thermal overload relay, TeSys Deca, 17-25A, class 10, box terminals LRD325
local index:
APE070SCHN
Catalog number:
LRD325
EAN code:
3389119215473
Manufacturer:
SCHNEIDER ELECTRIC
Price:
747,79 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
-
PKWIU27.12.22.0
Other technical data
-
Adjustable current range17 ... 25 A
-
Mounting methodDirect attachment/single positioning
-
Number of auxiliary contacts as normally closed contact1
-
Number of auxiliary contacts as change-over contact0
-
Reset function inputNo
-
Reset function push-buttonYes
-
Max. rated operation voltage Ue690 V
-
Type of electrical connection of main circuitScrew connection
-
Number of auxiliary contacts as normally open contact1
-
Release classCLASS 10 A
-
Reset function automaticYes
Manufacturer details
-
ManufacturerSchneider Electric Polska
-
Address02-673 Warszawa Konstruktorska 12 Polska
-
