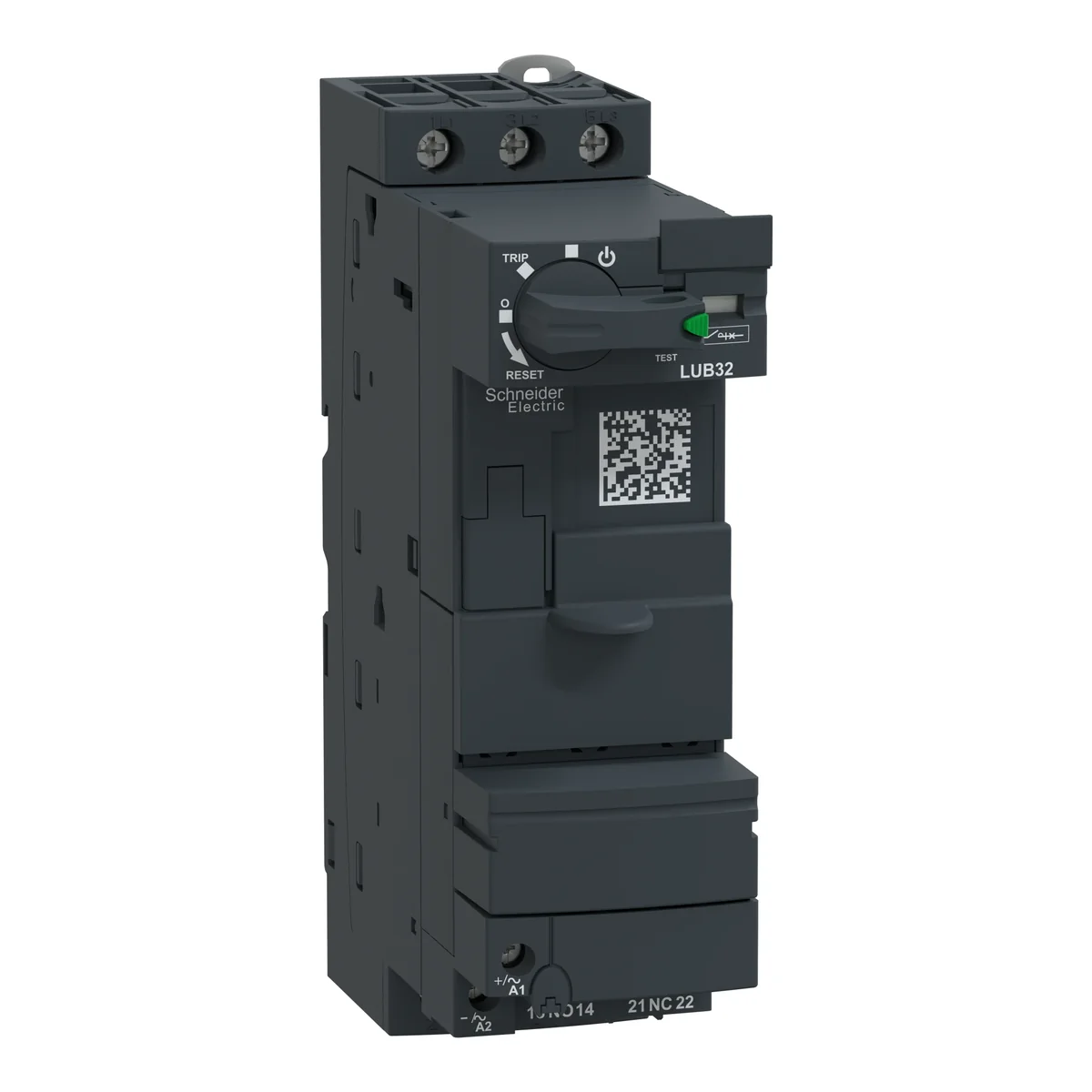

TeSys U 32A basic base screw terminals LUB32
local index:
API068SCHN
Catalog No:
LUB32
EAN code:
3389110362787
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]:
145
See full description
Price:
229,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
TeSys U 32A basic base screw terminals
Technical data
Height [mm]
145
PKWIU
27.12.23.0
Other technical data
Type of motor starter
Direct online starter (DOL)
Rated control supply voltage AC 50 Hz
24 ... 240 V
Rated control supply voltage DC
24 ... 220 V
Rated operation power at AC-3, 230 V, 3-phase
7.5 kW
Rated power, 460 V, 60 Hz, 3-phase
15 kW
Rated operation current Ie
32 A
Rated conditional short-circuit current, type 1, 480 Y/277 V
10000 A
Rated conditional short-circuit current, type 2, 230 V
50000 A
Number of auxiliary contacts as normally open contact
1
Ambient temperature, upper operating limit
70 °C
Type of electrical connection for auxiliary- and control current circuit
Screw connection
With transformer
No
Suitable for emergency stop
No
Number of indicator lights
0
With fuse
No
Supporting protocol for TCP/IP
No
Supporting protocol for CAN
No
Supporting protocol for ASI
No
Supporting protocol for Data-Highway
No
Supporting protocol for SUCONET
No
Supporting protocol for PROFINET IO
No
Supporting protocol for SERCOS
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for other bus systems
No
Height
154 mm
With short-circuit release
Yes
Rated control supply voltage AC 60 Hz
24 ... 240 V
Voltage type for actuating
AC/DC
Rated operation power at AC-3, 400 V
15 kW
Rated power, 575 V, 60 Hz, 3-phase
15 kW
Rated operation current at AC-3, 400 V
32 A
Rated conditional short-circuit current, type 1, 600 Y/347 V
4000 A
Rated conditional short-circuit current, type 2, 400 V
50000 A
Number of auxiliary contacts as normally closed contact
1
Type of electrical connection of main circuit
Screw connection
Rail mounting possible
Yes
Number of command positions
3
Coordination class according to IEC 60947-4-3
Class 2
External reset possible
No
Degree of protection (IP)
IP20
Supporting protocol for PROFIBUS
No
Supporting protocol for INTERBUS
No
Supporting protocol for Modbus
No
Supporting protocol for DeviceNet
No
Supporting protocol for LON
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for SafetyBUS p
No
Width
45 mm
Depth
126 mm
Files to download
ENVPEP080203EN_V1.pdf
ENVEOLI0802003_V1.pdf
SC16031606-UK.pdf
