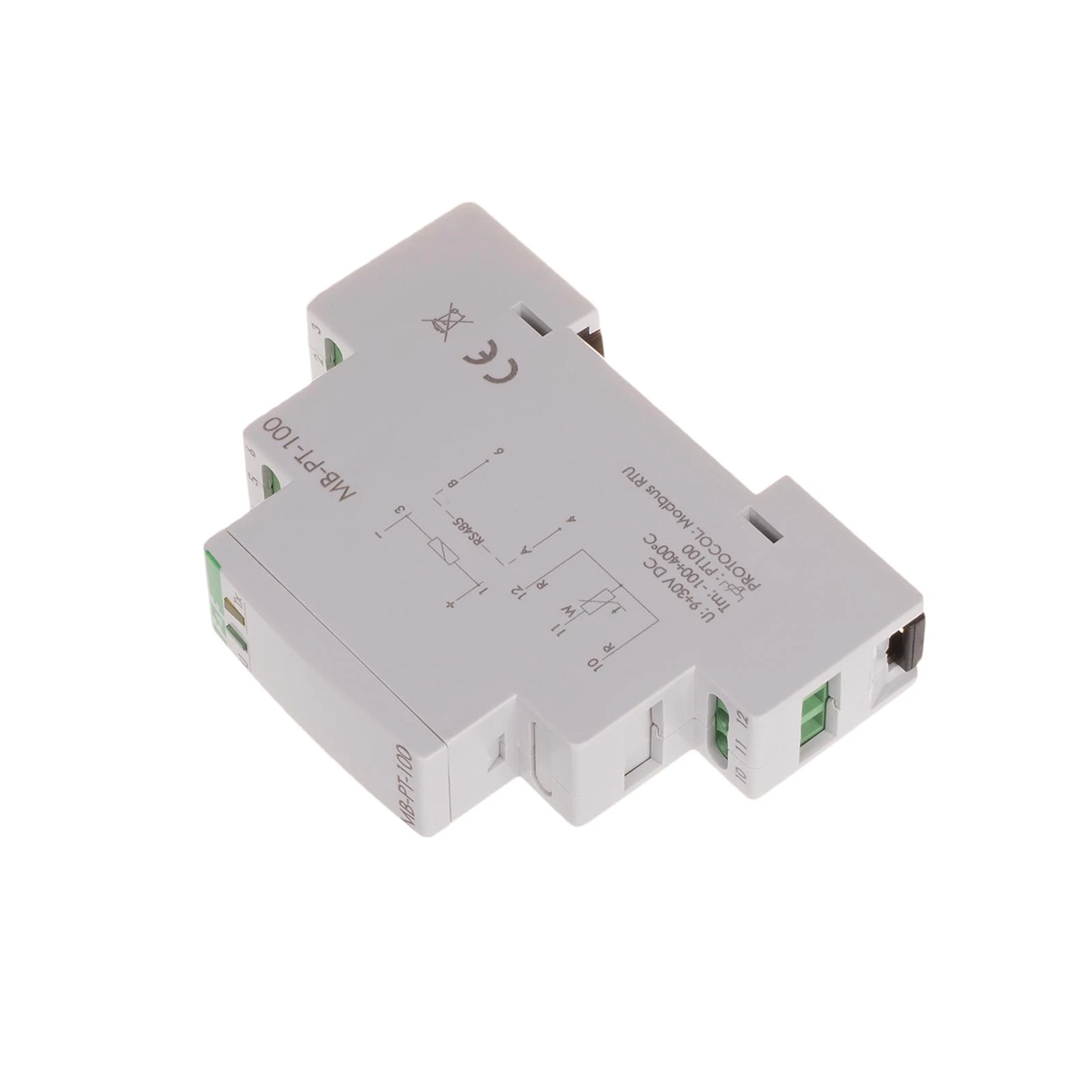

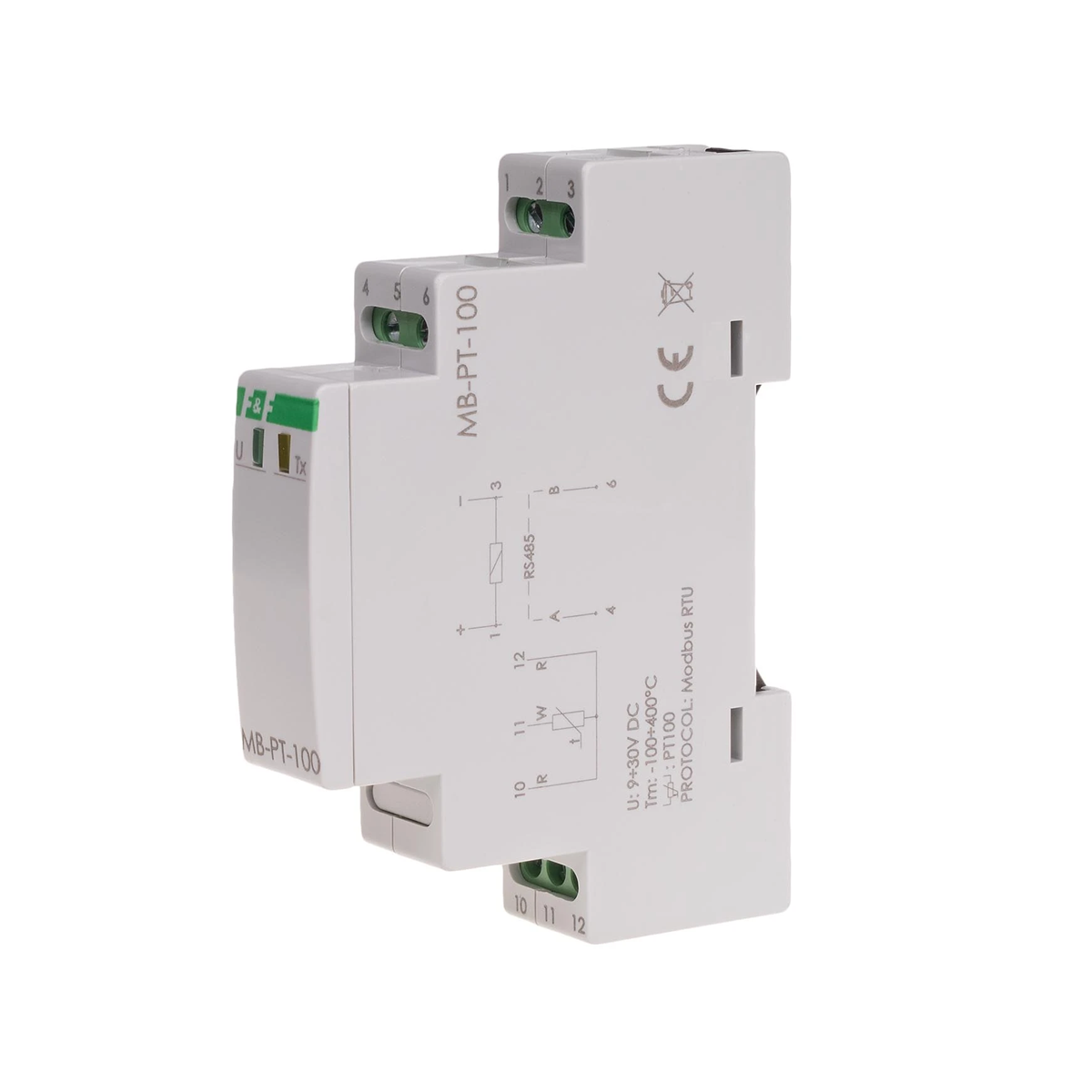

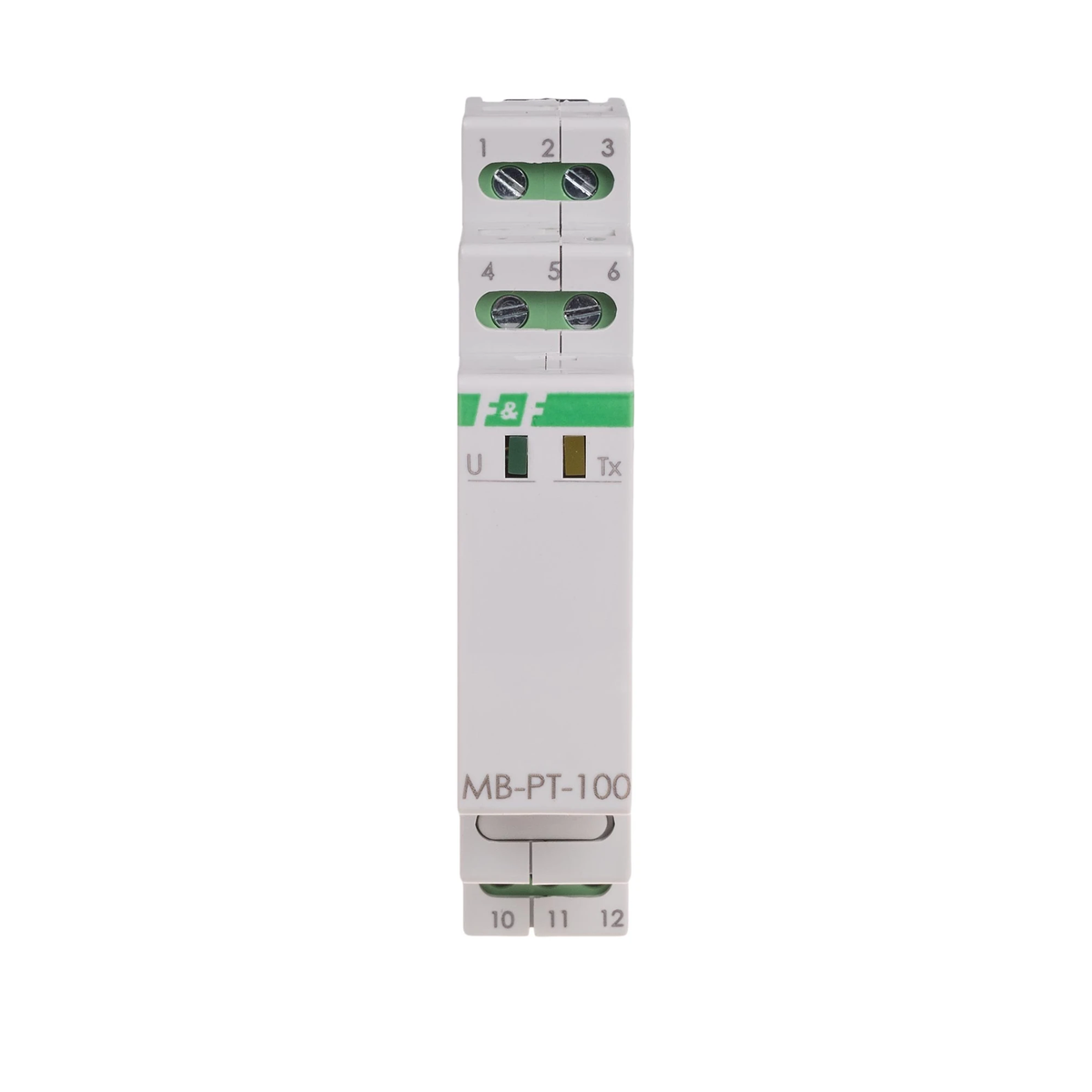

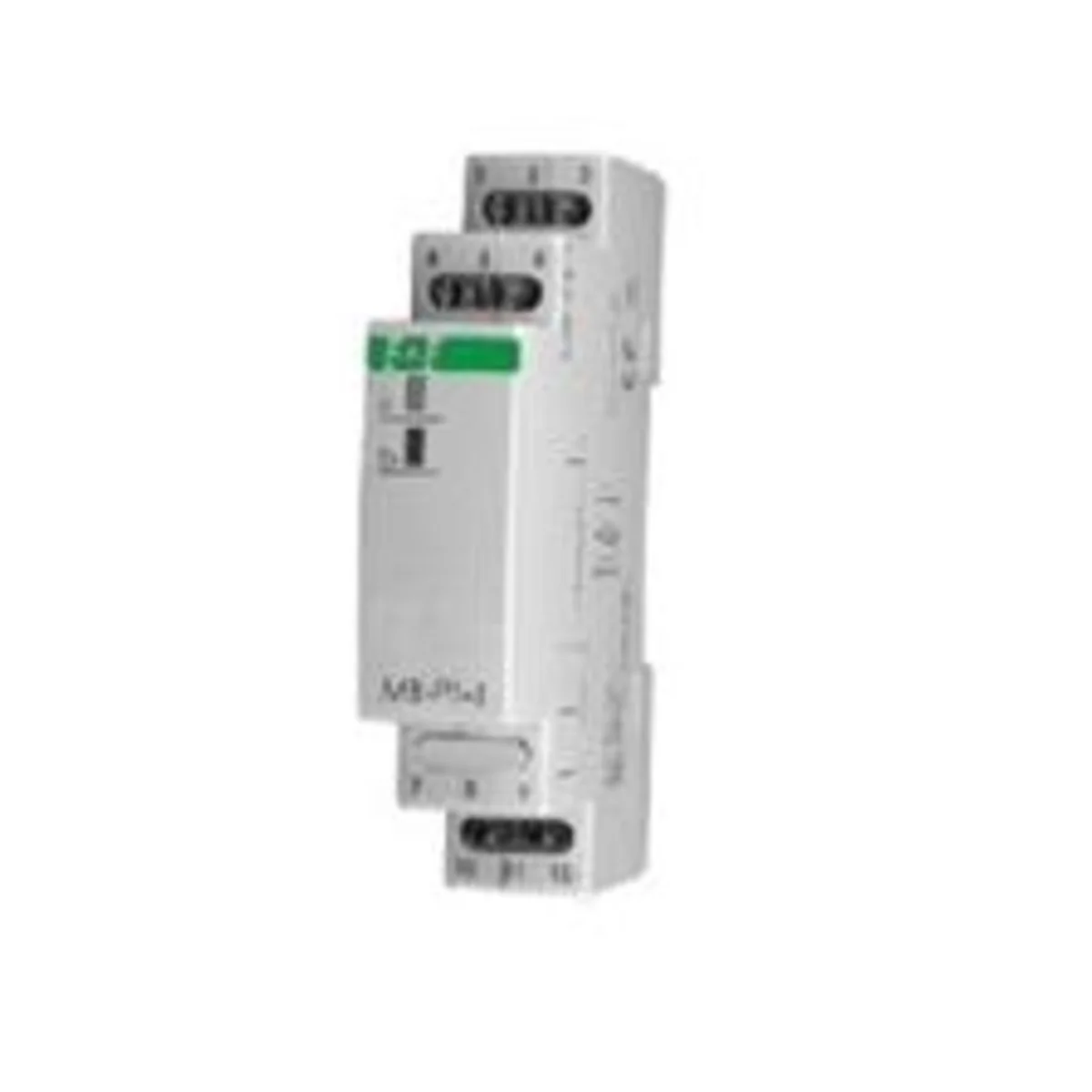

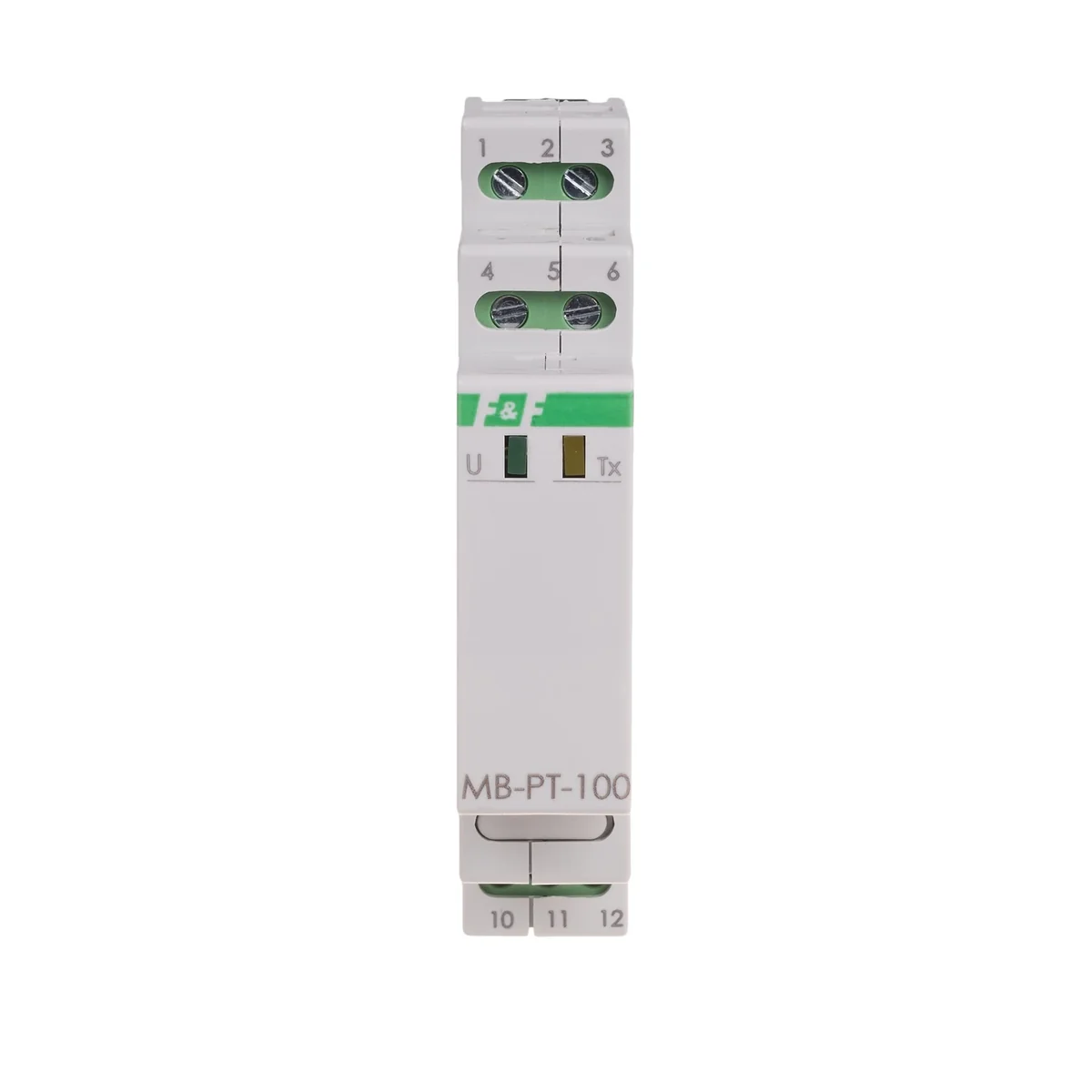

Temperature measurement transducer with MODBUS RTU output for PT-100 without probe MAX-MB-PT-100
local index:
APT015FIFQ
Catalog No:
MAX-MB-PT-100
EAN code:
5908312598015
Click on the photo to enlarge
Manufacturer:
F&F
Power [W]:
0.3
Harbor:
RS-485
Protocols:
MODBUS RTU
See full description
Price:
93,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Temperature measurement transducer with MODBUS RTU output for PT-100 without probe
Technical data
Power [W]
0.3
Protocols
MODBUS RTU
Working temperature [°C]
-20-50
Dimensions
1 module (18mm)
Package height [mm]
150
Package weight [kg]
0.2
maximum measurement error [°C]
1
Temperature sensor type
PT-100
PKWIU
26.30.23.0
Harbor
RS-485
Level of security
IP20
Job type
slave
Power [V]
9-30
Package width [mm]
20
Sampling frequency [Hz]
10
I/O breakdown voltage [kV]
2.1
Measuring range [°C]
-100-400
Other technical data
Measuring range
-100 ... 400 °C
Ambient temperature
-20 ... 50 °C
Modular version
Yes
Files to download
FF_RoHS_2022.pdf
UE_FF044_21_AT_MB_MR_RM_dek_zgod_CE.pdf
FF_RoHS_2022.pdf
UE_FF044_21_AT_MB_MR_RM_dek_zgod_CE.pdf
