Temperature controller without manual control with universal interface, with built-in BCU anthracite B.1/B.3/B.7 Glas 75441285

Name: Temperature controller without manual control with universal interface, with built-in BCU anthracite B.1/B.3/B.7 Glas
Brand: HAGER
SKU: APT012HAGE
Price: 577.14 PLN

local index:

APT012HAGE

Catalog No:

75441285

EAN code:

4011334289326

Temperature controller without manual control with universal interface, with built-in BCU anthracite B.1/B.3/B.7 Glas

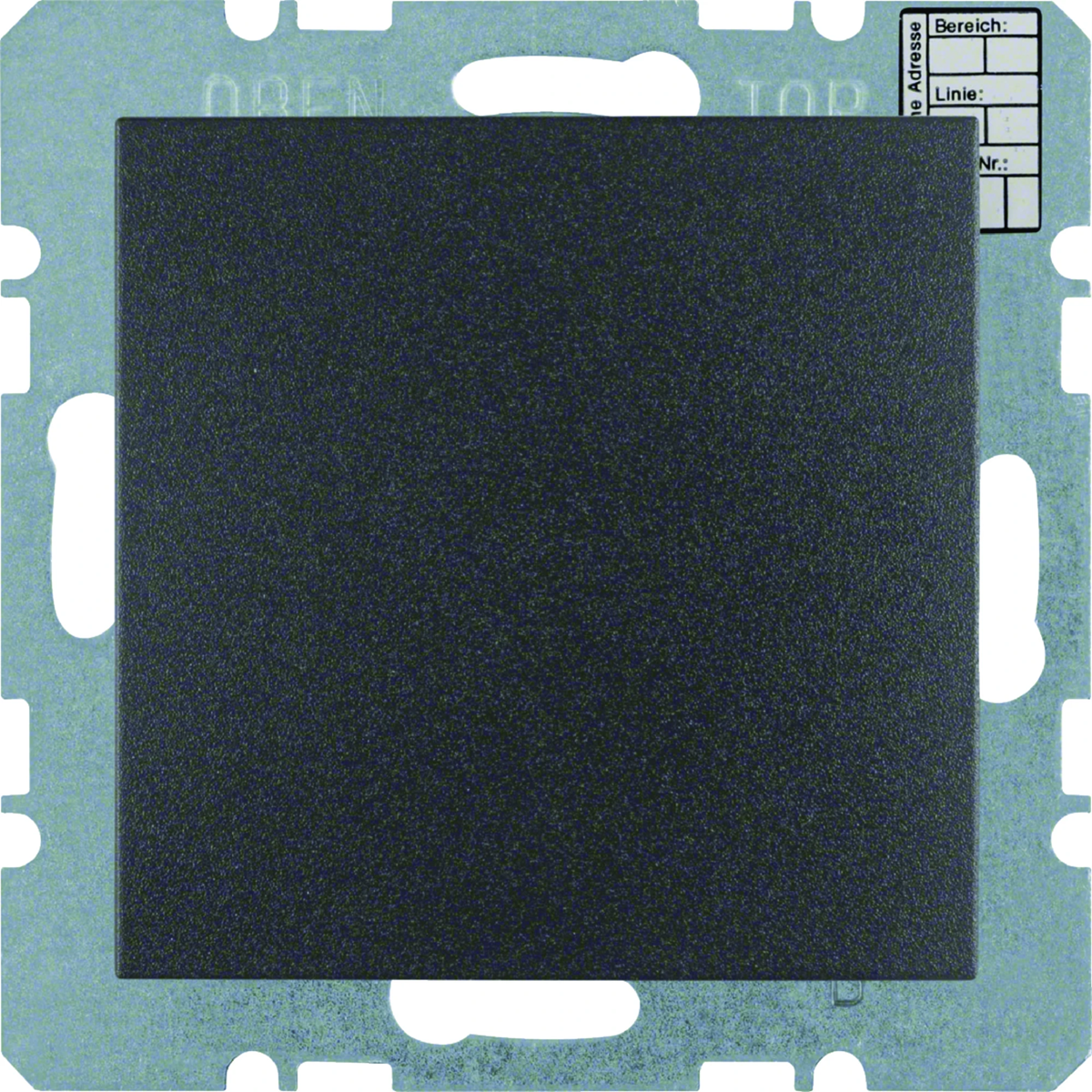

Click on the photo to enlarge

Manufacturer: HAGER

Halogen free: NO

Material: Plastic | Metal

Surface: Matt

See full description

Price:

577,14 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Bulk packaging

Product description

Temperature controller without manual control with universal interface, with built-in BCU anthracite B.1/B.3/B.7 Glas

Technical data

Halogen free

NO
Surface

Matt
Surface finish

Natural
Wire cross-section (cord) [mm²]

0.3 - 1
PKWIU

26.51.70.0

Material

Plastic Metal
Operating temperature range [°C]

from -5 to 45
Operating voltage via DC bus [V]

21 - 32
Conductor cross-section (wire) [mm²]

1.5

Other technical data

Bus system KNX

Yes
Bus system radio frequent

No
Bus system Powernet

No
Radio frequent bidirectional

No
Mounting method

Flush-mounted
With anti-theft/dismantling protection

Yes
With display

No
Material

Other
Surface protection

Untreated
Colour

Anthracite
Transparent

No
Manual set point setting

No
Parallel-service possible

No
With bus connection

Yes
Min. depth of built-in installation box

26 mm

Bus system KNX-RF (Radio Frequent)

No
Bus system LON

No
Other bus systems

None
Assembly arrangement

Basic element with central cover plate
With local operation

No
With LED indication

No
Liczba wejść binarnych

4
Material quality

Other
Surface finishing

Matt
RAL-number (similar)

7021
Czujnik zewnętrzny

No
Presence button

No
Degree of protection (IP)

IP20
Class of the temperature control

IV

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,109	0,110	4,400	163,800
Width (m)	0,070	0,085	0,300	0,800
Length (m)	0,050	0,075	0,225	1,050
Depth (m)	0,070	0,085	0,400	1,200
