Temperature controller with time control and central element alu B.1/B.3/B.7 Glas 20441404

local index:
APT003BERK
Catalog No:
20441404
EAN code:
4011334354666
Manufacturer: BERKER
Rated voltage [V]: 230
DC rated voltage [V]: 230
Power consumption [W]: 1.2
Price:
273,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

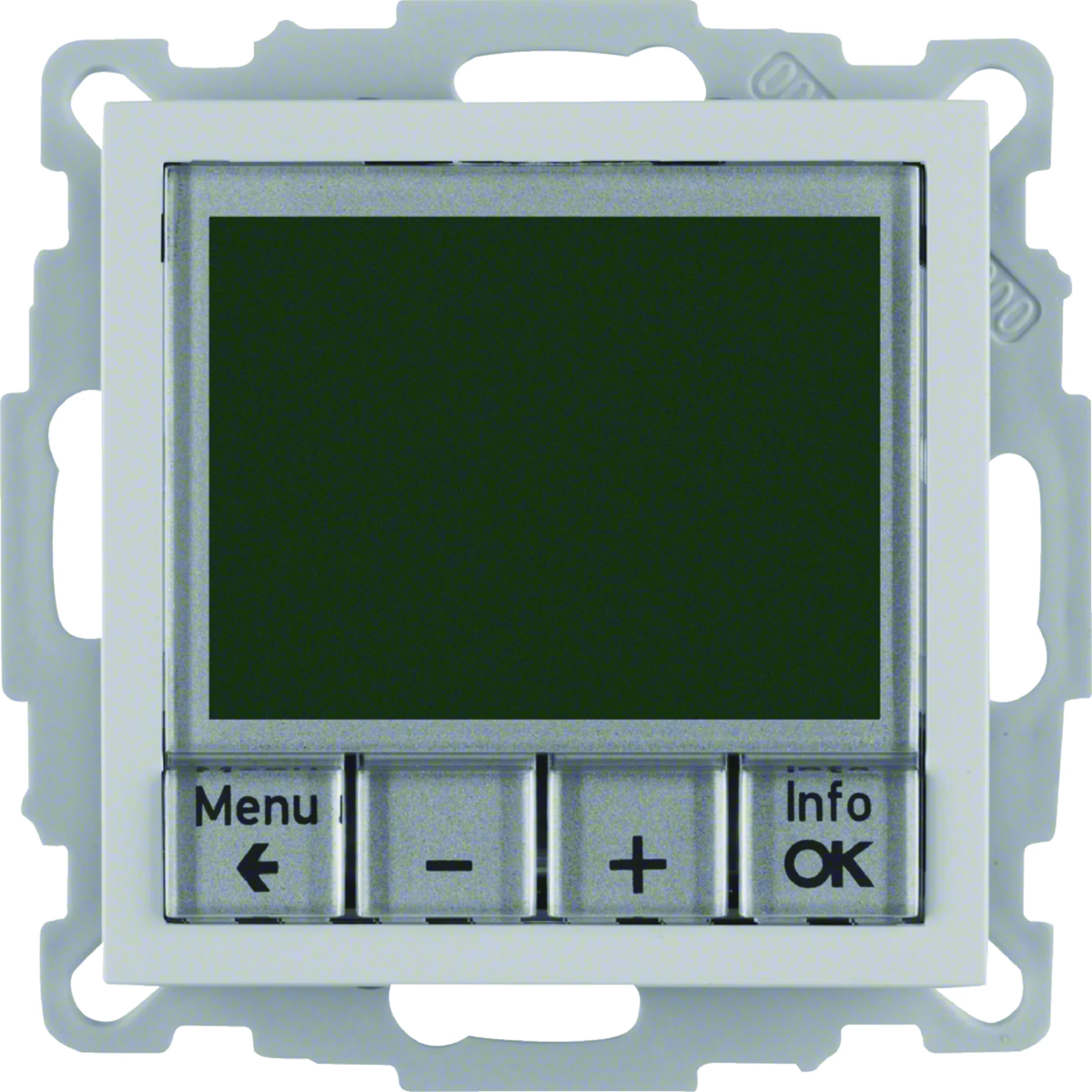

Temperature controller with time control and central element alu B.1/B.3/B.7 Glas

Technical data

  • Rated voltage [V]
    230
  • Power consumption [W]
    1.2
  • Switching temperature difference [K]
    ≈ 0.5
  • Connection type
    With screw terminals
  • DC rated voltage [V]
    230
  • Rated current [A]
    0.01
  • Mounting depth [mm]
    25
  • PKWIU
    26.51.70.0

Other technical data

  • Model
    On/Off
  • Temperature readable
    Yes
  • Mounting method
    Flush-mounted
  • Colour
    Other
  • Height
    71 mm
  • Depth
    42 mm
  • Differential value
    0.5 ... 0.5 K
  • Sensor/feeler type
    Resistance sensor
  • Degree of protection (IP)
    IP20
  • RAL-number
    9006
  • Width
    71 mm
  • Class of the temperature control
    IV

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,170 0,190 7,285 253,110
Width (m) 0,071 0,084 0,300 0,800
Length (m) 0,042 0,070 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
