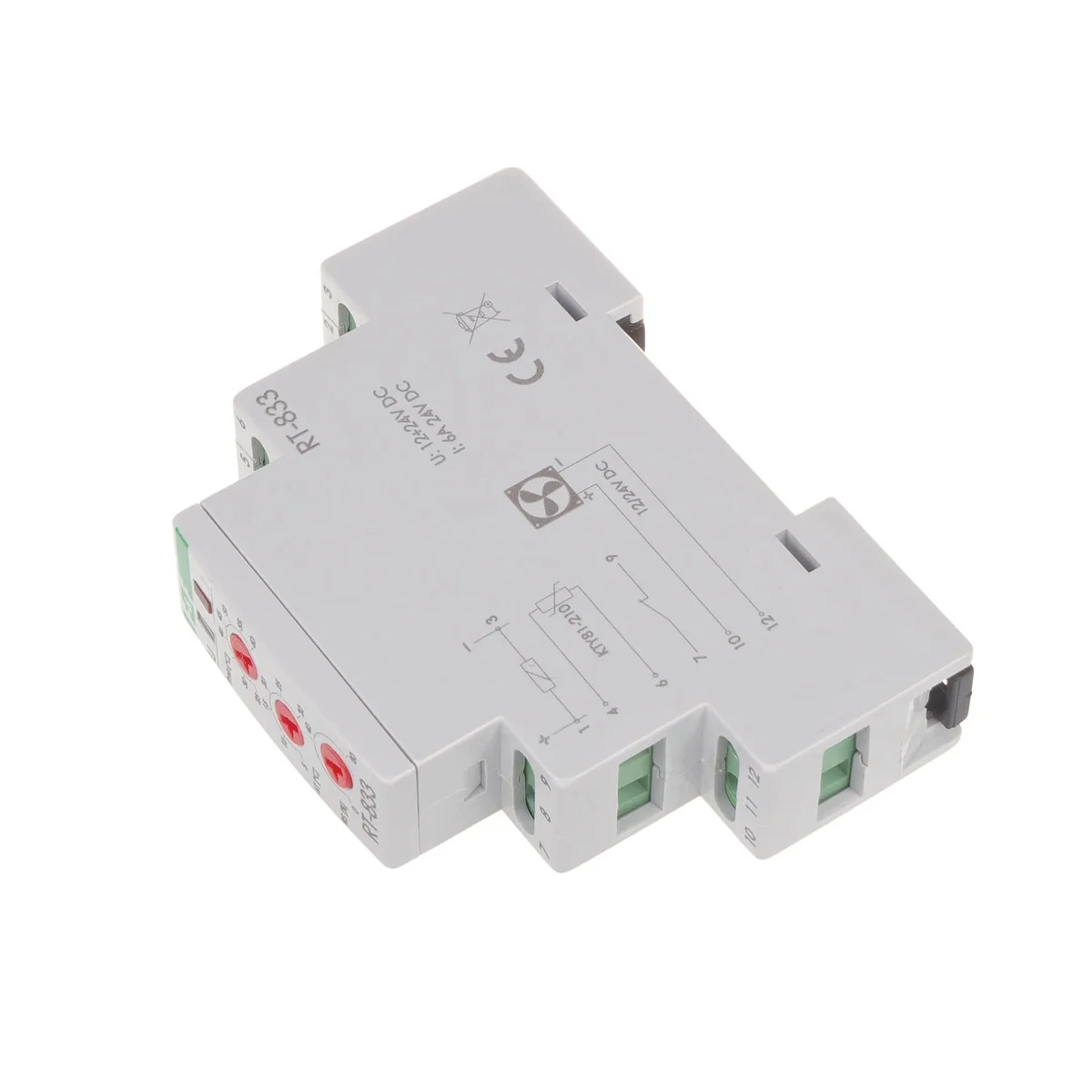

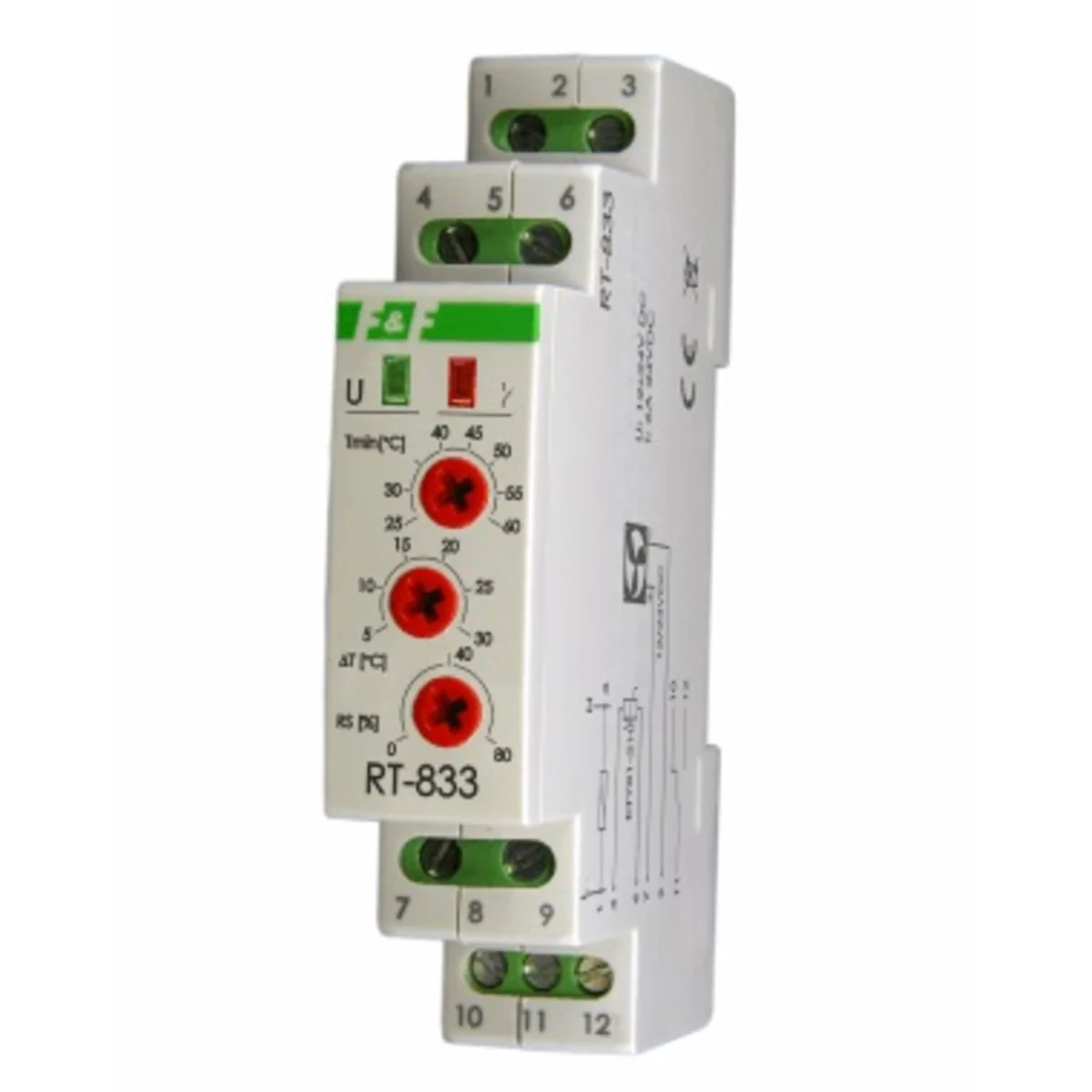

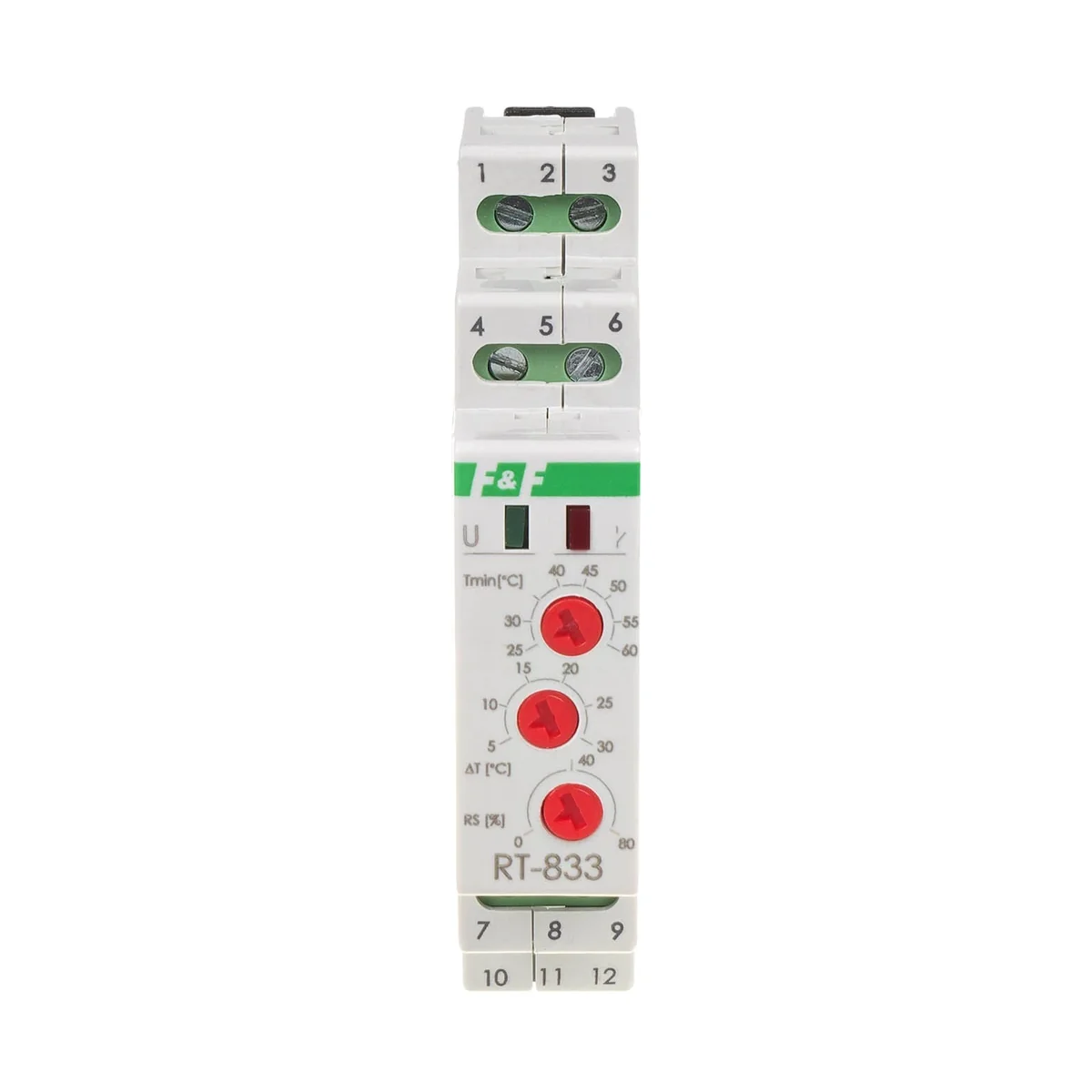

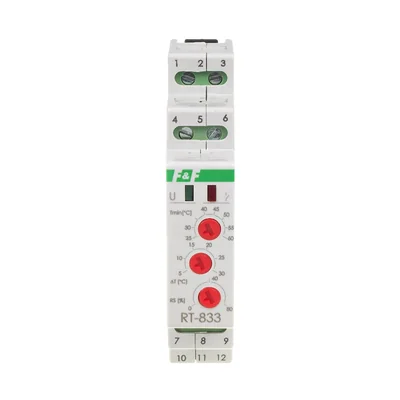

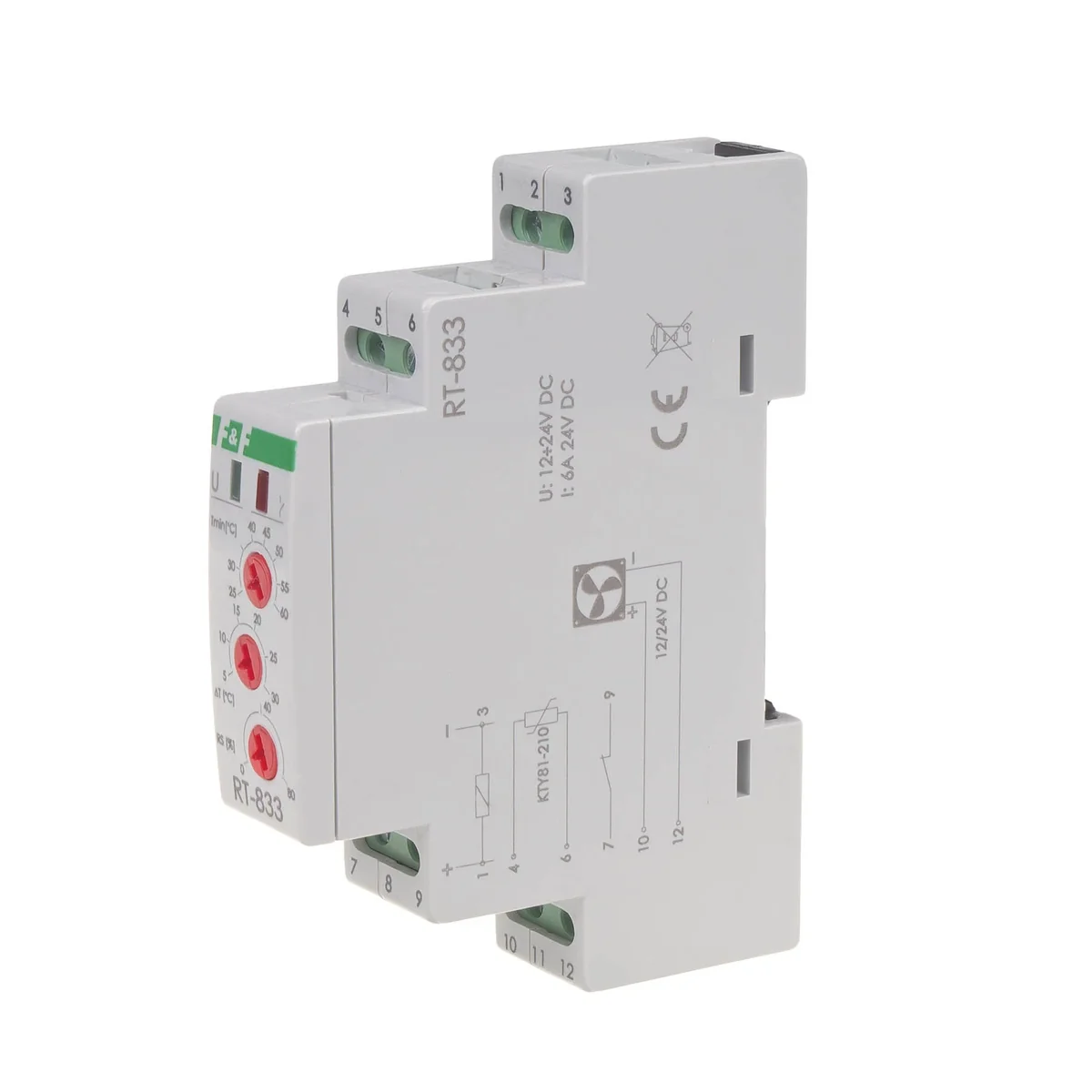

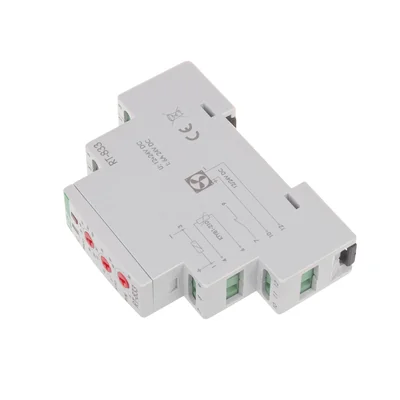

The regulator is designed to directly control the rotational speed of 12/24V DC fans in control cabinets (or similar installations) as a function of temperature.
Number of storage locations
1
Technical data
Number of channels
1
Dimensions
1 module (18mm)
Package width [mm]
20
PKWIU
26.51.70.0
Family
F&HOMERADIO
Package height [mm]
150
Package weight [kg]
0.2
Other technical data
Model
Digital
Rated voltage
12 ... 24 V
Number of channels
1
24 h program
No
Number of memory locations
1
Holiday program
No
Adjustment range comfort
25 ... 60 °C
Autonomy
0 h
Operation mode switch
No
Contact type
Change-over contact
Nominal switching current at 230 V, not potential free
10 A
Width in number of modular spacings
1
Sensor type
Remote sensor
Rated frequency
0 ... 0 Hz
Text guidance in display
No
Weekly program
No
Number of basic programs standard
1
Input for time program
No
Adjustment range set-back
0 ... 100 °C
Automatic switching summer-/winter time
No
Switching preselection
No
Nominal switching current at 250 V, potential free
