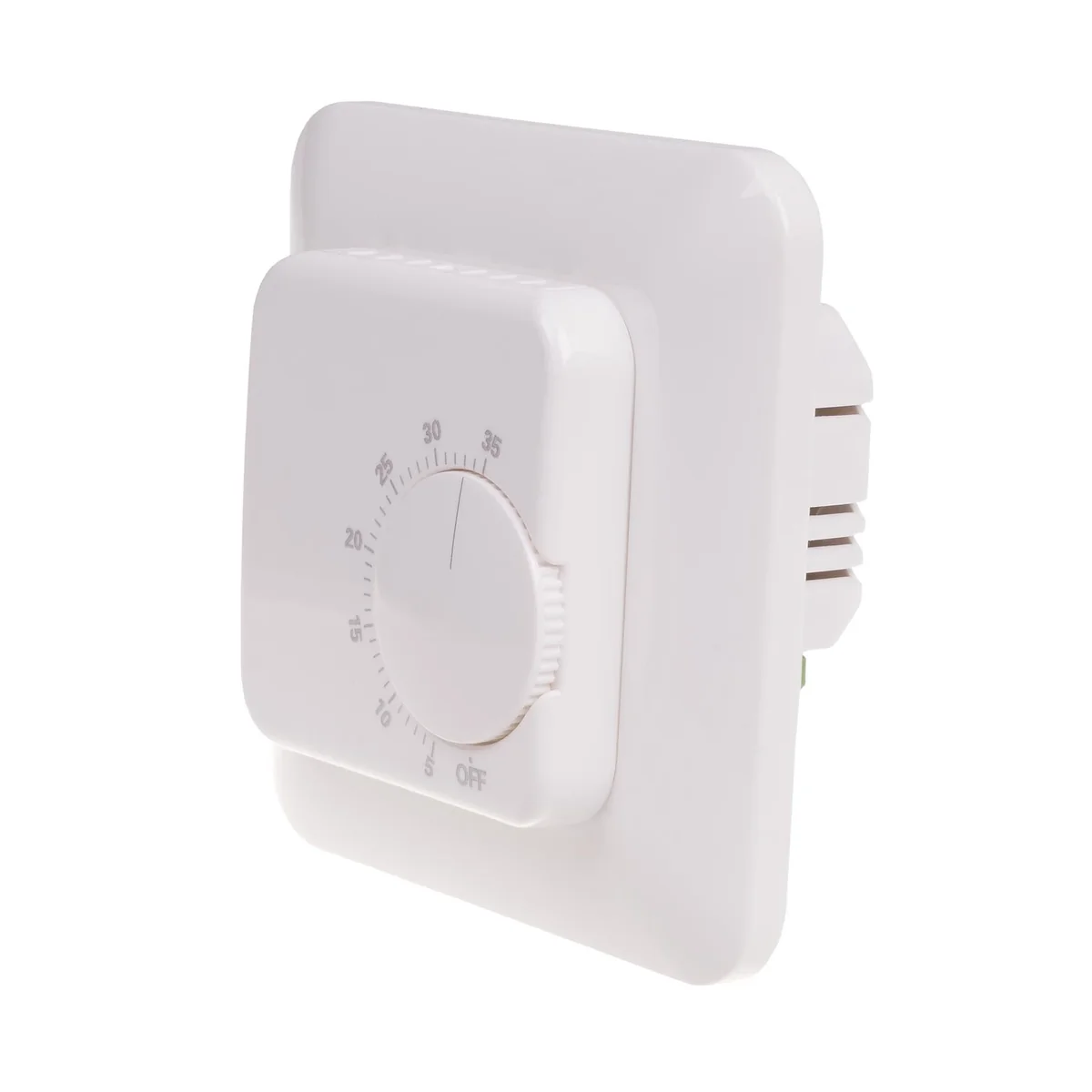

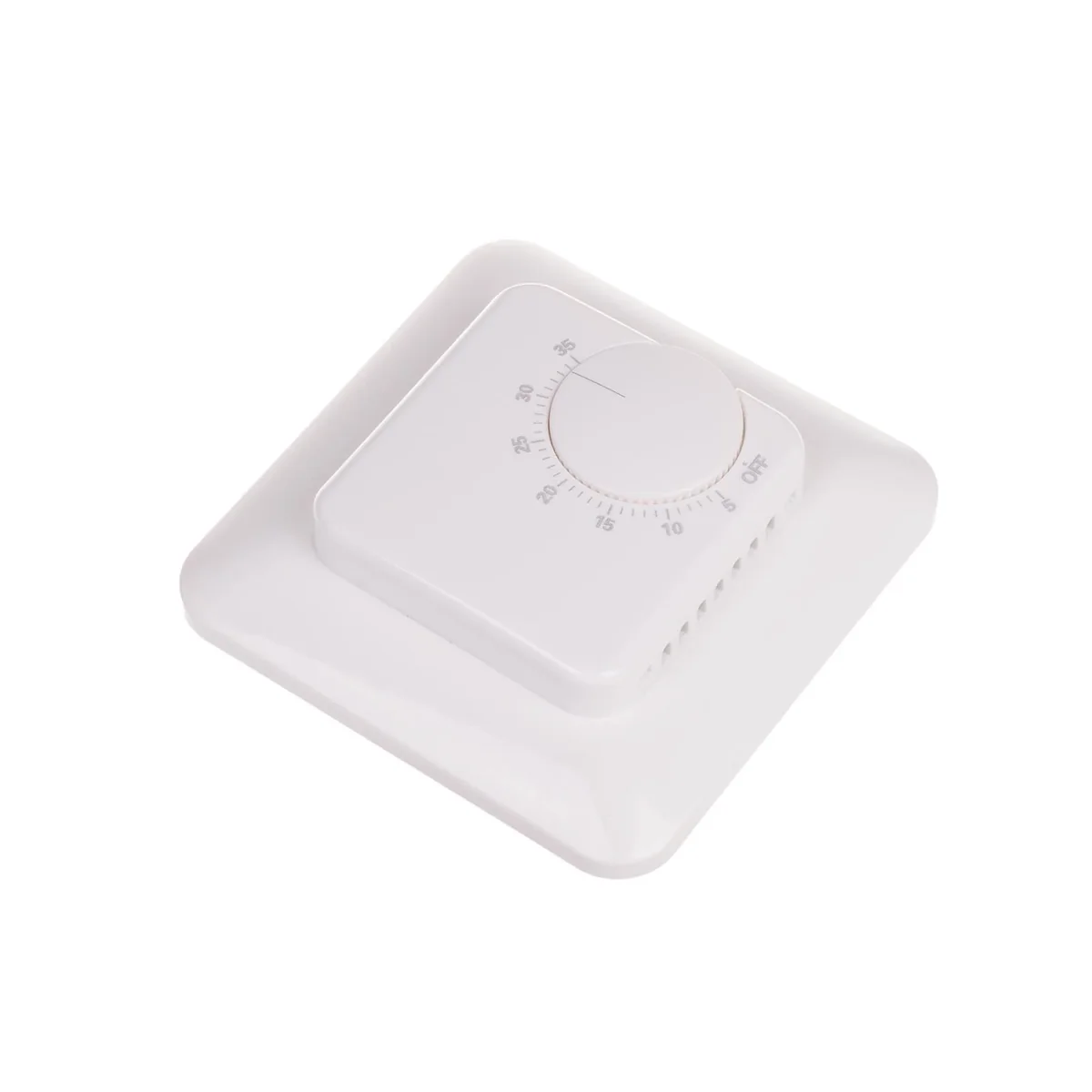

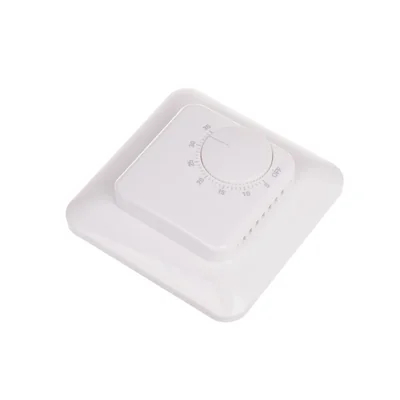

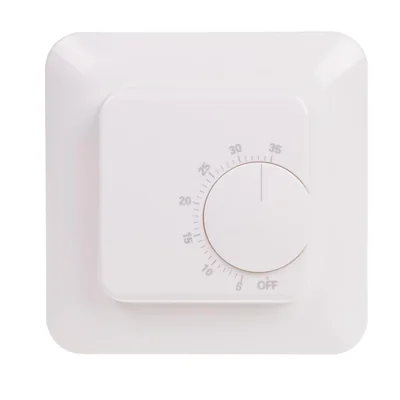

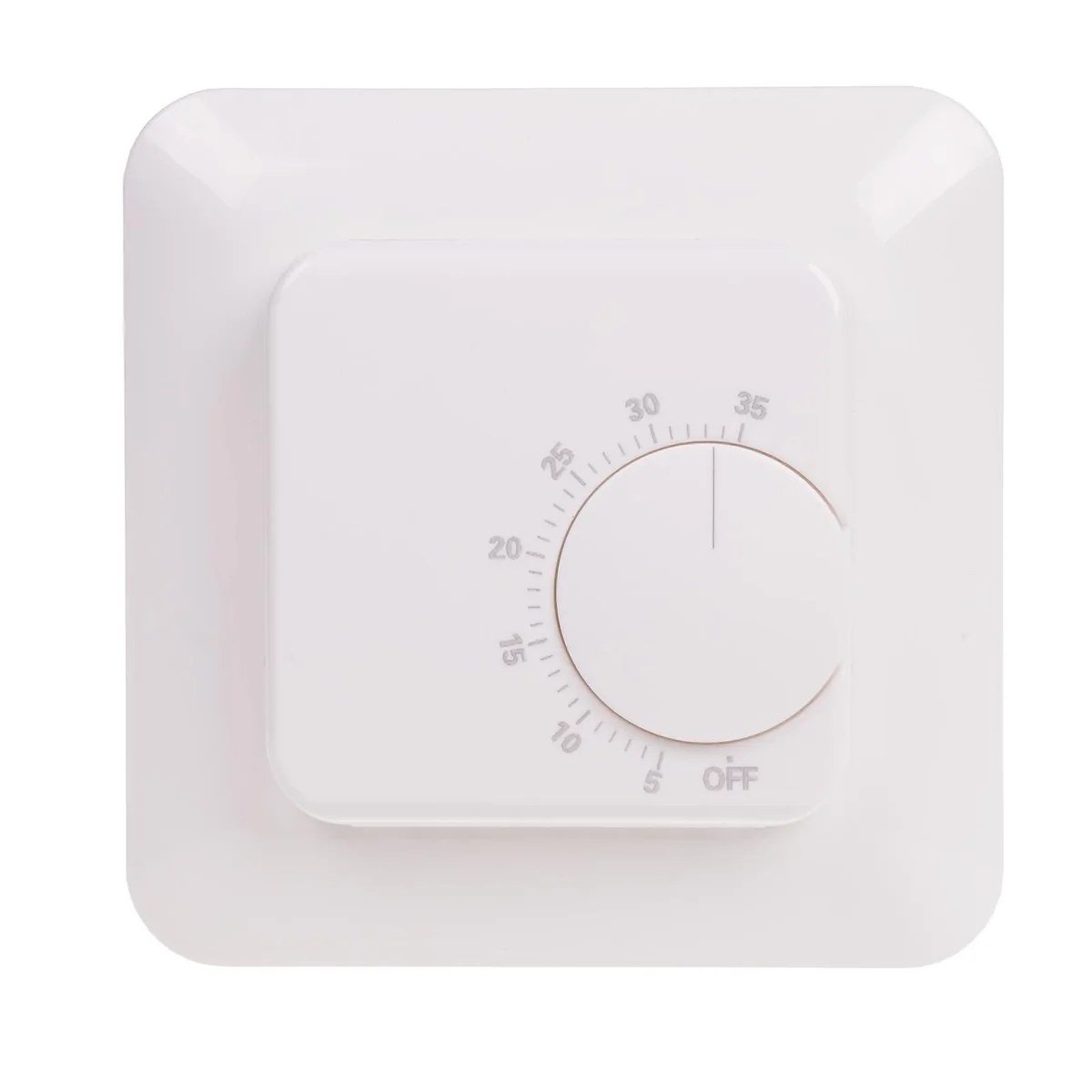

Temperature controller RT-824 RT-824

local index:
APT011FIFQ
Catalog No:
RT-824
EAN code:
5908312592631
Manufacturer: F&F
Installation: On the TH-35 rail
Rated voltage [V]: 230
load current [A]: <16
Price:
34,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Temperature regulators are used to control heating or ventilation devices in order to maintain a constant ambient temperature. Until the desired ambient temperature is reached, the relay contact is in the 2-1 position and the heating device is switched on. When the set temperature is reached, the contact switches to position 2-8 and the heating device is switched off, or the ventilation device is switched on. A decrease in temperature by the hysteresis value will switch on the heating device again (contacts 2-1 closed) until the set temperature is reached.

Technical data

  • Installation
    On the TH-35 rail
  • load current [A]
    <16
  • Contact
    1Z separated
  • Temperature adjustment range [°C]
    60-95
  • Package height [mm]
    150
  • Package weight [kg]
    0.15
  • PKWIU
    26.51.70.0
  • Rated voltage [V]
    230
  • Family
    F&HOMERADIO
  • Dimensions
    2 modules (35mm)
  • Temperature range [°C]
    5-35
  • Package width [mm]
    40
  • Temperature sensor
    KTY 81-210

Other technical data

  • Model
    On/Off
  • Connection
    2-wire

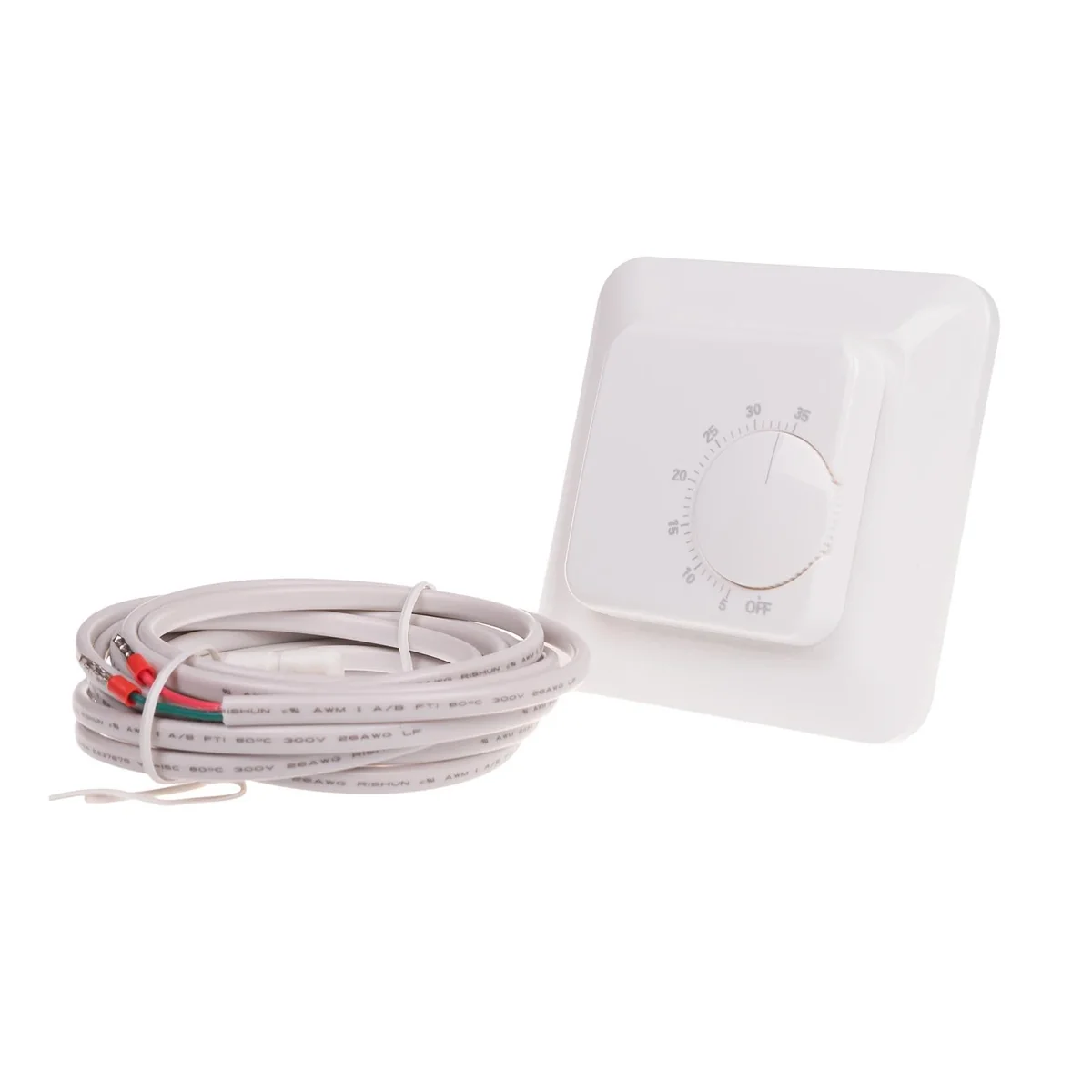

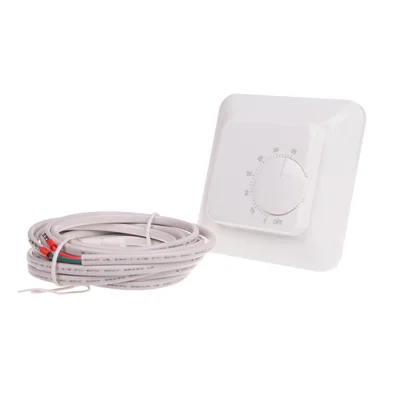

  • External sensor
    Yes
  • Suitable for heating
    Yes
  • Adjustable differential
    No
  • With sound indicator
    No
  • Mounting method
    Flush-mounted
  • Operation
    Turn
  • Max. contact voltage
    230 V
  • Degree of protection (IP)
    IP20
  • Colour
    White
  • Width
    83.5 mm
  • Standby power consumption (solstandby)
    0.8 W
  • Type of power supply
    230 V AC
  • Measuring range
    3 ... 5 °C
  • Control characteristic
    P
  • Number of heater outputs
    1
  • Temperature readable
    No
  • Sensor/feeler type
    Resistance sensor
  • With display
    No
  • Contact type
    Normally open contact (NO)
  • Max. contact load
    16 A
  • Explosion-proof
    No
  • Height
    83.5 mm
  • Depth
    22 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,228
Width (m) 0,113
Length (m) 0,123
Depth (m) 0,072
