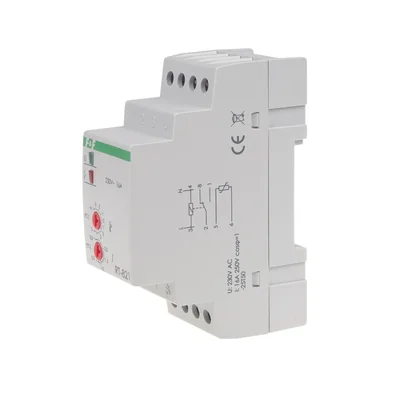

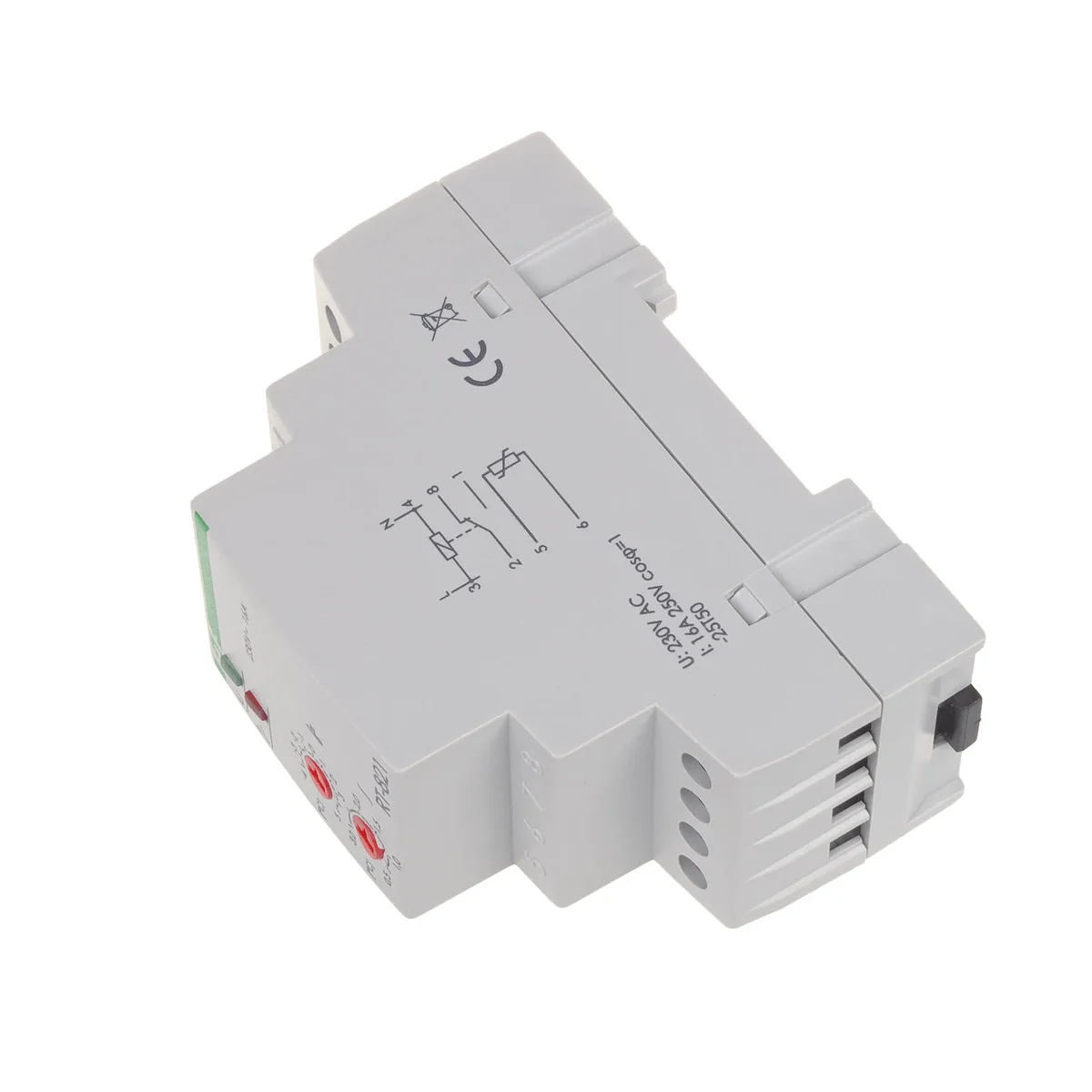

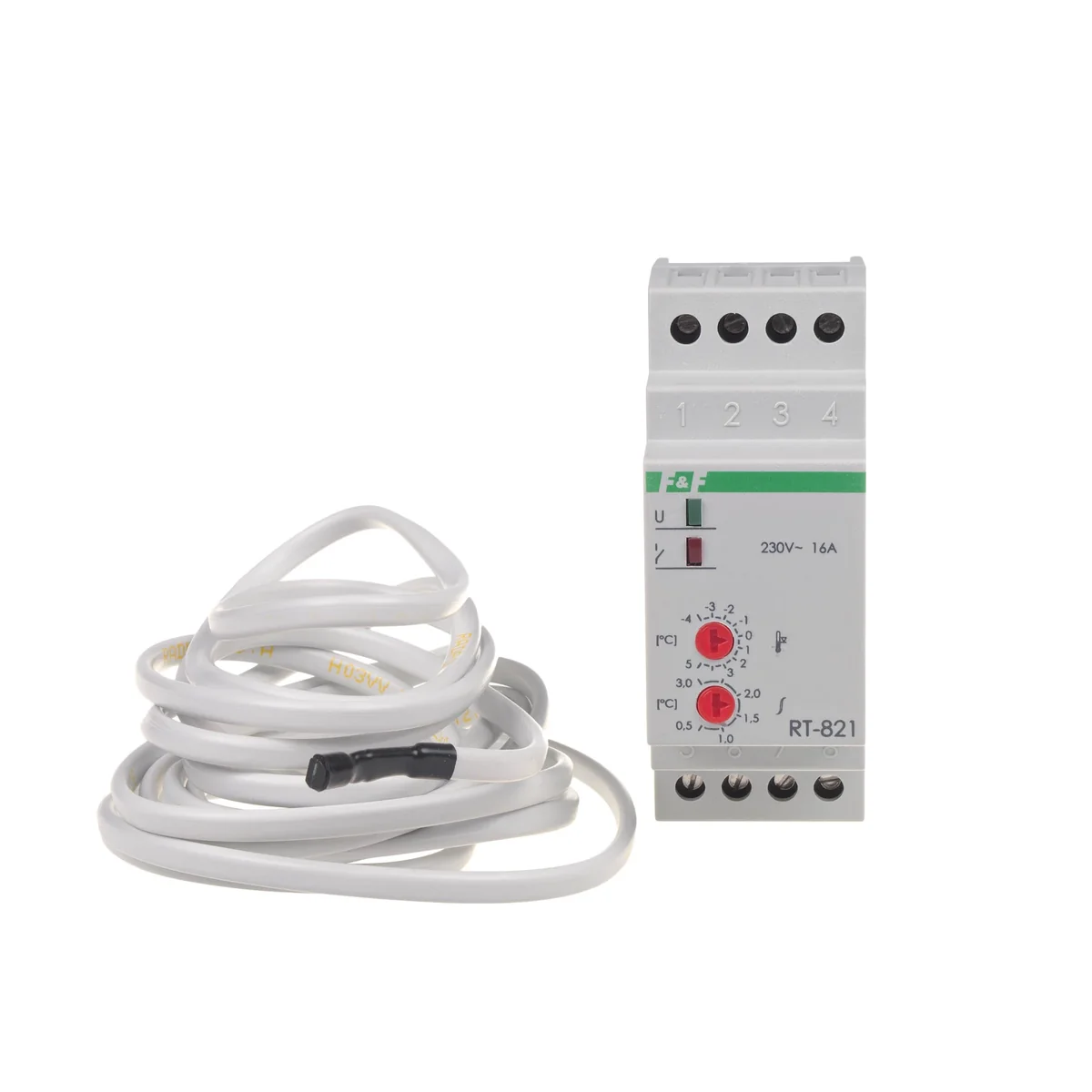

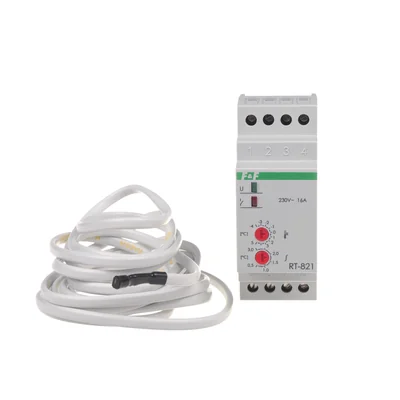

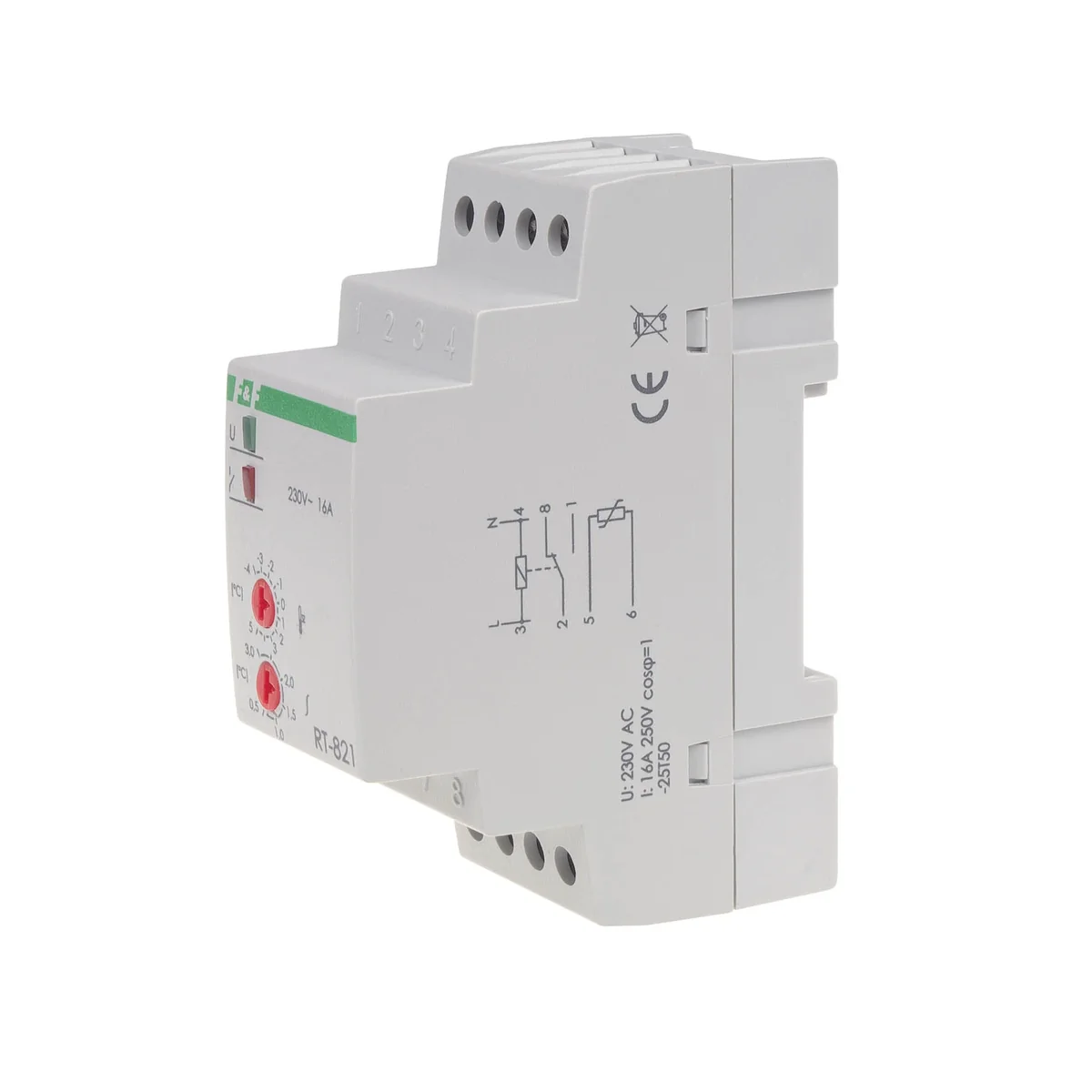

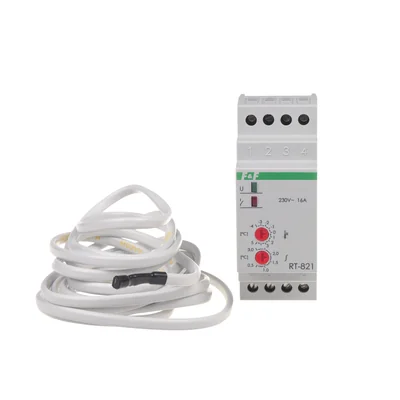

Temperature controller RT-821 RT-821

local index:
APT009FIFQ
Catalog No:
RT-821
EAN code:
5908312595717
Manufacturer: F&F
Installation: On the TH-35 rail
Rated voltage [V]: 230
load current [A]: <16
Price:
39,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 16 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Temperature regulators are used to control heating or ventilation devices in order to maintain a constant ambient temperature. Until the desired ambient temperature is reached, the relay contact is in the 2-1 position and the heating device is switched on. When the set temperature is reached, the contact switches to position 2-8 and the heating device is switched off, or the ventilation device is switched on. A decrease in temperature by the hysteresis value will switch on the heating device again (contacts 2-1 closed) until the set temperature is reached.

Technical data

  • Installation
    On the TH-35 rail
  • load current [A]
    <16
  • Contact
    1Z separated
  • Temperature range [°C]
    -4-5
  • Package width [mm]
    40
  • Temperature sensor
    KTY 81-210
  • Rated voltage [V]
    230
  • Family
    F&HOMERADIO
  • Dimensions
    2 modules (35mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.17
  • PKWIU
    26.51.70.0

Other technical data

  • Model
    Digital
  • Rated voltage
    230 ... 230 V
  • Number of channels
    1
  • 24 h program
    No
  • Input for time program
    No
  • Autonomy
    0 h
  • Operation mode switch
    No
  • Contact type
    Change-over contact
  • Degree of protection (IP)
    IP20
  • Assembly depth
    65 mm
  • Sensor type
    Remote sensor
  • Rated frequency
    50 ... 50 Hz
  • Text guidance in display
    No
  • Weekly program
    No
  • Adjustment range comfort
    -4 ... 5 °C
  • Automatic switching summer-/winter time
    No
  • Switching preselection
    No
  • Nominal switching current at 230 V, not potential free
    16 A
  • Width in number of modular spacings
    2

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,172
Width (m) 0,071
Length (m) 0,095
Depth (m) 0,070
