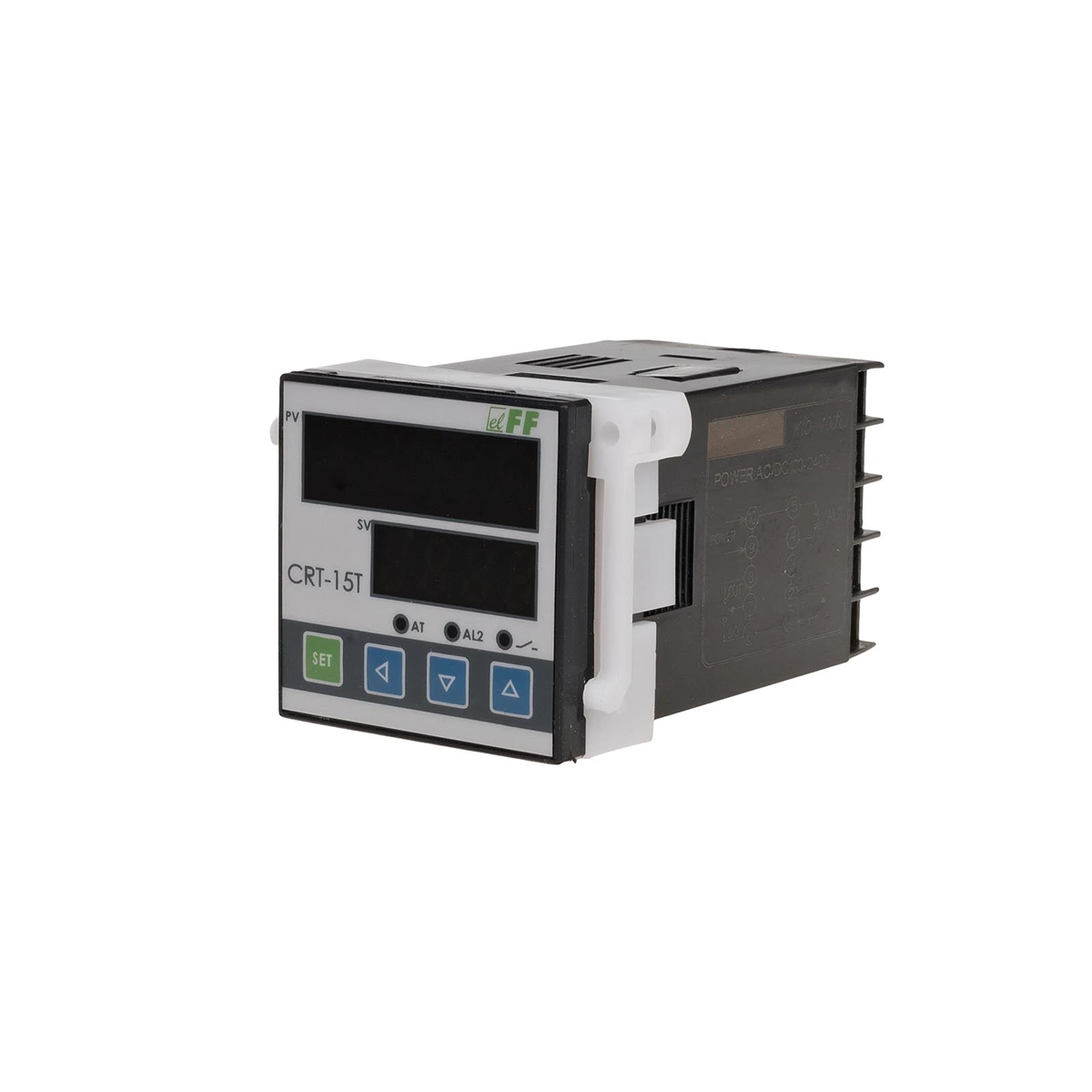

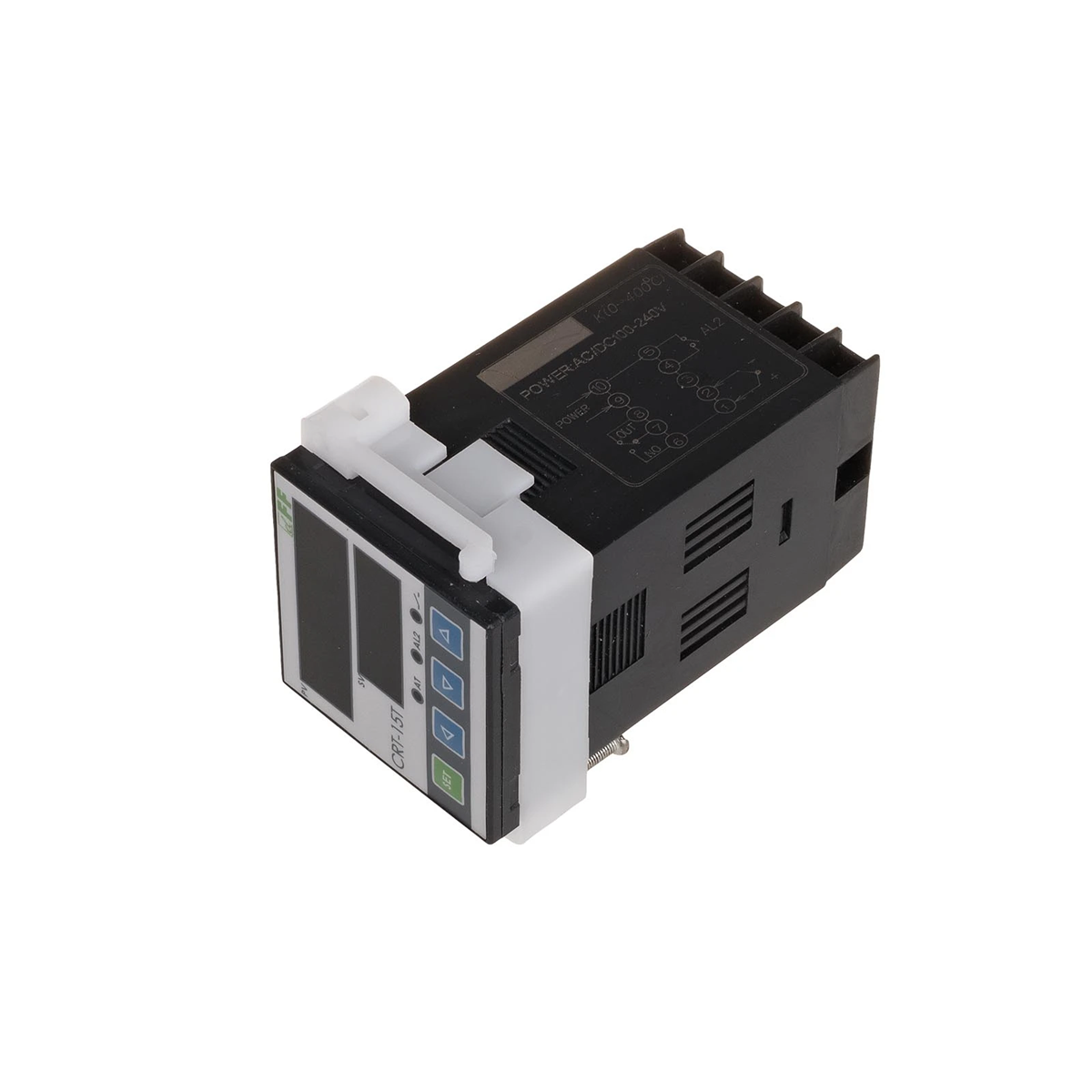

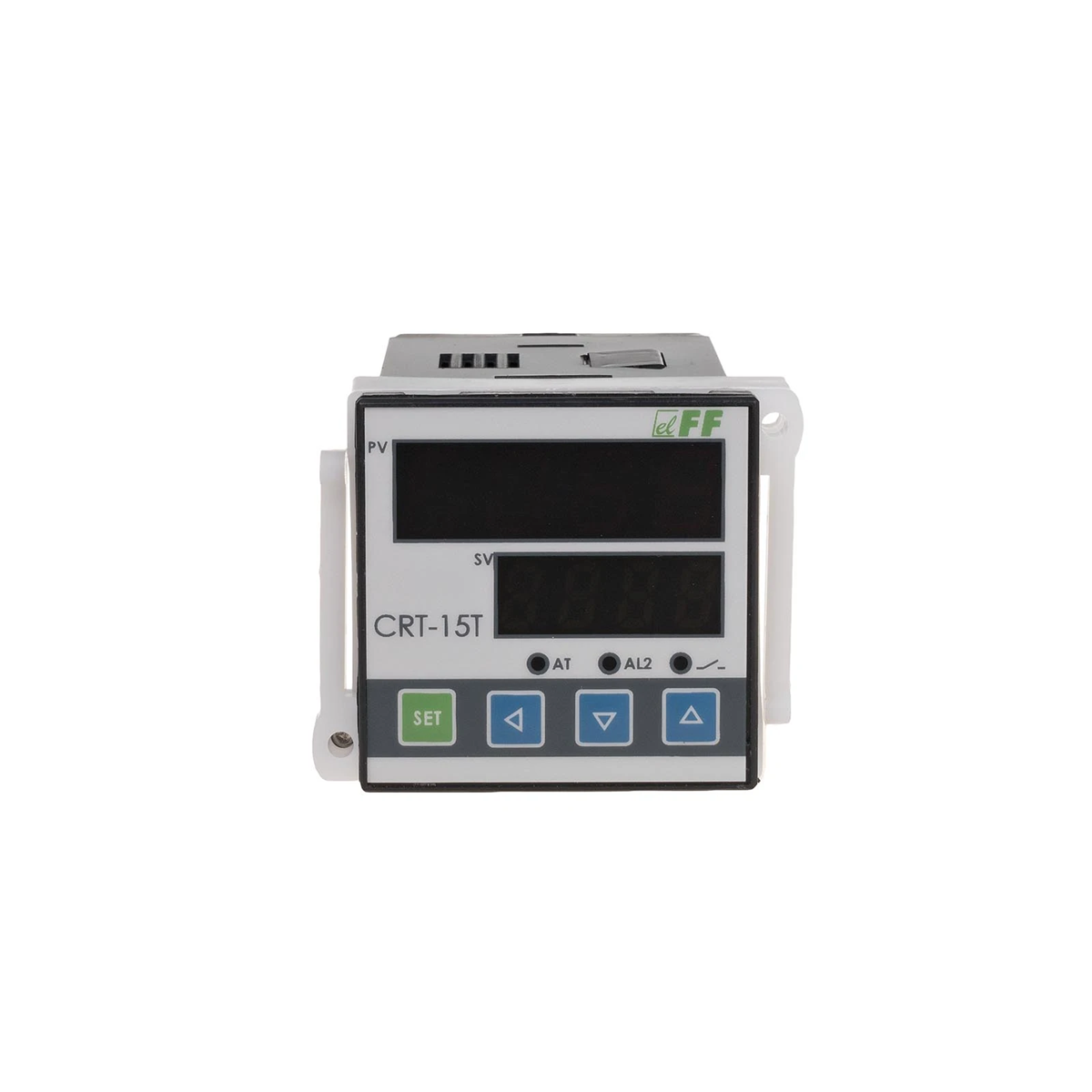

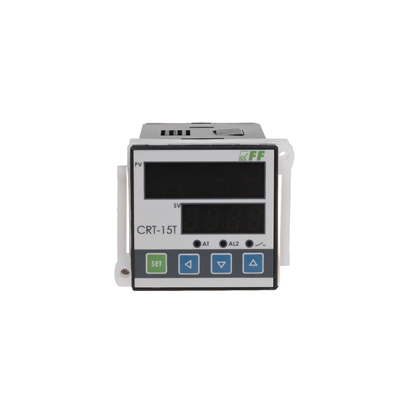

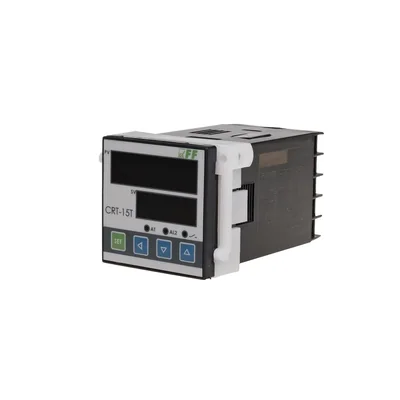

The CRT-15T is a digital temperature controller adapted to regulate the temperature by switching on and off the receiver connected to the relay output of the controller.
External temperature sensor
K400
Technical data
Depth [mm]
86
Rated voltage [V]
230
load current [A]
<3
Contact
1P separated
Working temperature [°C]
-10-40
Height [mm]
48
Temperature adjustment range [°C]
0-400
Package width [mm]
48
Standard Correction
±15
PKWIU
26.51.70.0
Sensor insulation
steel
Power consumption [VA]
<6
connection
2.5mm screw terminals
Width [mm]
48
Handle
M6
Sensor height [mm]
15
Package height [mm]
48
Package weight [kg]
1
Power consumption[VA]
<6
Other technical data
Model
Digital
Rated voltage
100 ... 240 V
Number of channels
1
24 h program
Yes
Number of memory locations
1
Input for time program
No
Autonomy
0 h
Operation mode switch
Yes
Contact type
Change-over contact
Nominal switching current at 230 V, not potential free
3 A
Width in number of modular spacings
3
Sensor type
Remote sensor
Rated frequency
50 ... 50 Hz
Text guidance in display
Yes
Weekly program
Yes
Holiday program
No
Adjustment range set-back
0 ... 100 °C
Automatic switching summer-/winter time
Yes
Switching preselection
No
Nominal switching current at 250 V, potential free
