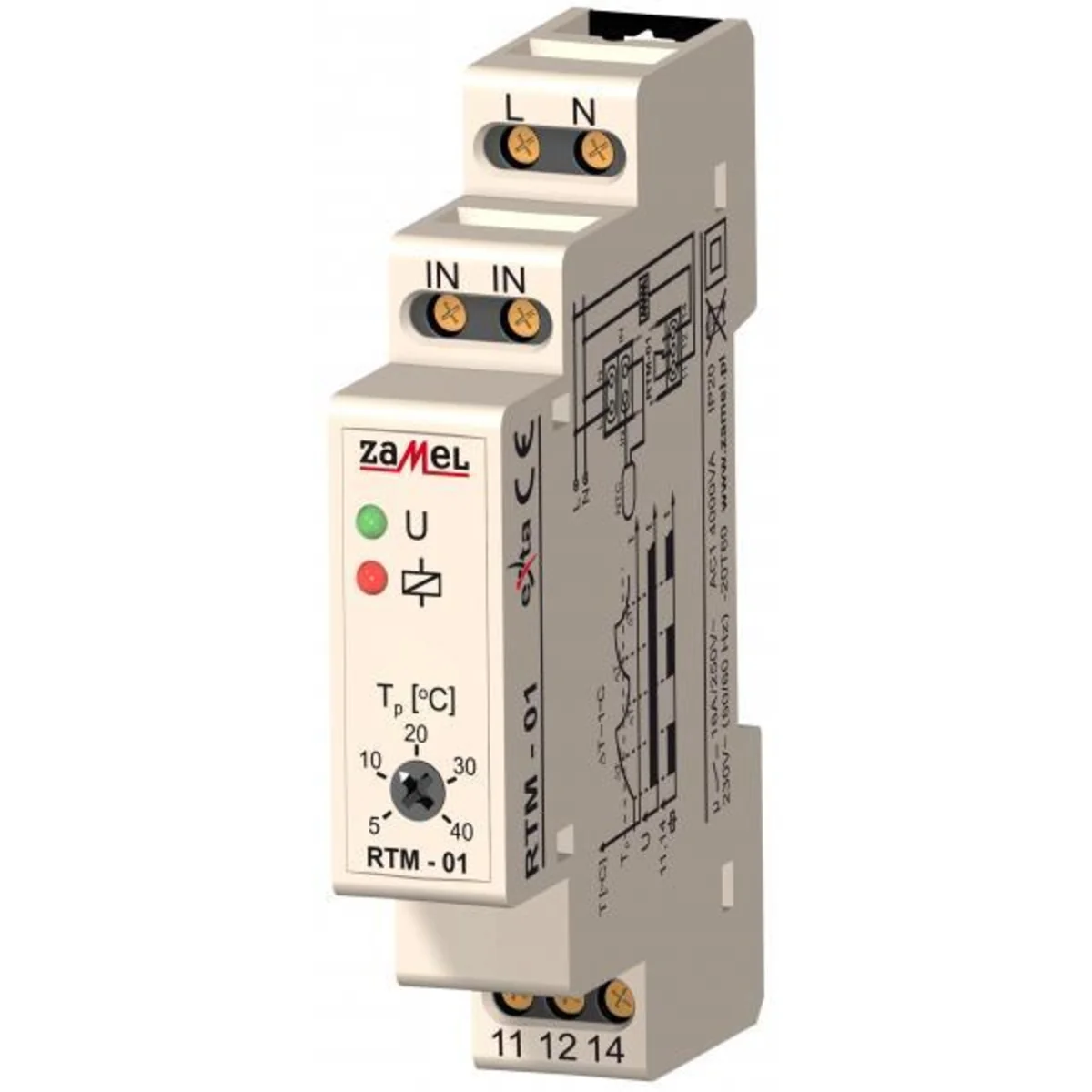

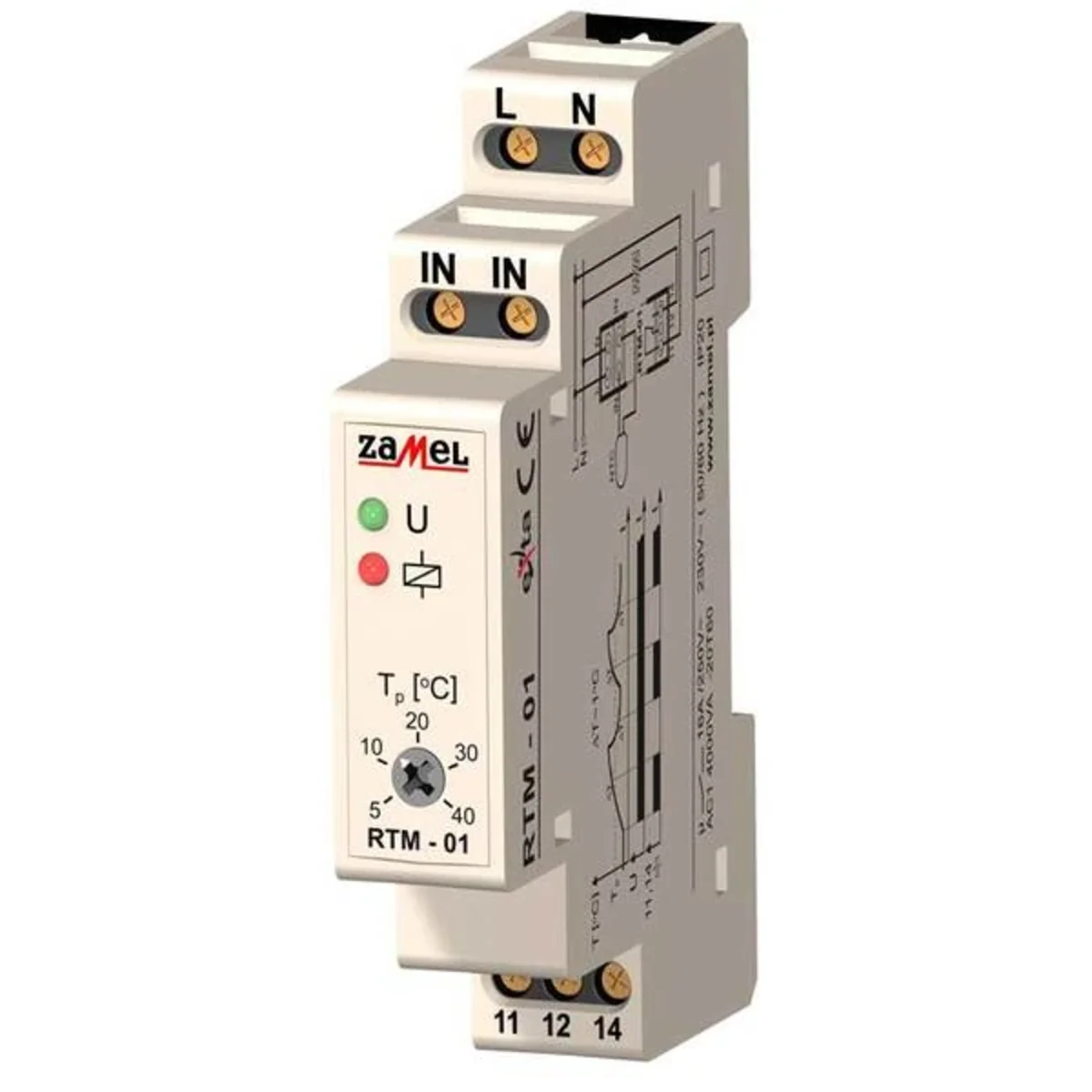

Temperature controller 5-40c without probe 230V AC TYPE: RTM-01 EXT10000114-WPL

Místní index:
APT014ZAME
Katalogové číslo.:
EXT10000114-WPL
EAN kód:
5903669007913
Výrobce: ZAMEL
Installation: On the TH-35 rail
Rated voltage [V]: 230
Relay current [A]: 16
Cena:
148,29 zł
gross / kusů.
(včetně DPH 23%)
Dodání do 3 hodin
do 2 týdnů (pracovní dny)
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

The RTM-01 temperature controller is used to control receivers (e.g. radiators, underfloor heating) depending on the temperature in the vicinity of the external NTC sensor. The device has the ability to adjust the set temperature using a potentiometer located on the front panel in the range of +5 oC ÷ +40 oC. For proper operation, the device requires the connection of an external NTC-03 probe. The probe is not included with the regulator and must be purchased separately. The probe cable is 3 m long and can be extended up to 50 m. The probes cannot be combined

Technické údaje

  • Installation
    On the TH-35 rail
  • Relay current [A]
    16
  • Type
    Regulators
  • Relay power [VA]
    4000
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Temperature range [°C]
    5-40
  • PKWIU
    27.12.40.0

Podrobnosti o výrobci

  • Výrobce
    ZAMEL SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
  • Adresa
    43-200 UL. ZIELONA 27
  • DIČ
    6380000669
