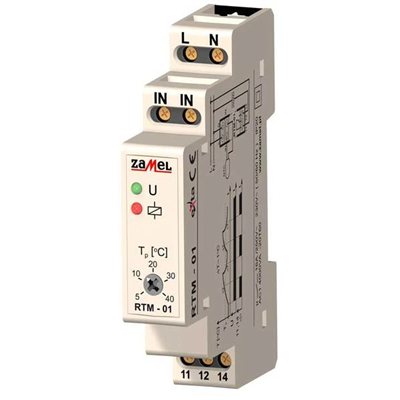

Temperature controller 5-40c without probe 230V AC TYPE: RTM-01 EXT10000114

local index:
APT014ZAME
Catalog No:
EXT10000114
EAN code:
5903669007913
Manufacturer: ZAMEL
Installation: On the TH-35 rail
Rated voltage [V]: 230
Relay current [A]: 16
Price:
33,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The RTM-01 temperature controller is used to control receivers (e.g. radiators, underfloor heating) depending on the temperature in the vicinity of the external NTC sensor. The device has the ability to adjust the set temperature using a potentiometer located on the front panel in the range of +5 oC ÷ +40 oC. For proper operation, the device requires the connection of an external NTC-03 probe. The probe is not included with the regulator and must be purchased separately. The probe cable is 3 m long and can be extended up to 50 m. The probes cannot be combined

Technical data

  • Installation
    On the TH-35 rail
  • Relay current [A]
    16
  • Type
    Regulators
  • Relay power [VA]
    4000
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Temperature range [°C]
    5-40
  • PKWIU
    27.12.40.0
