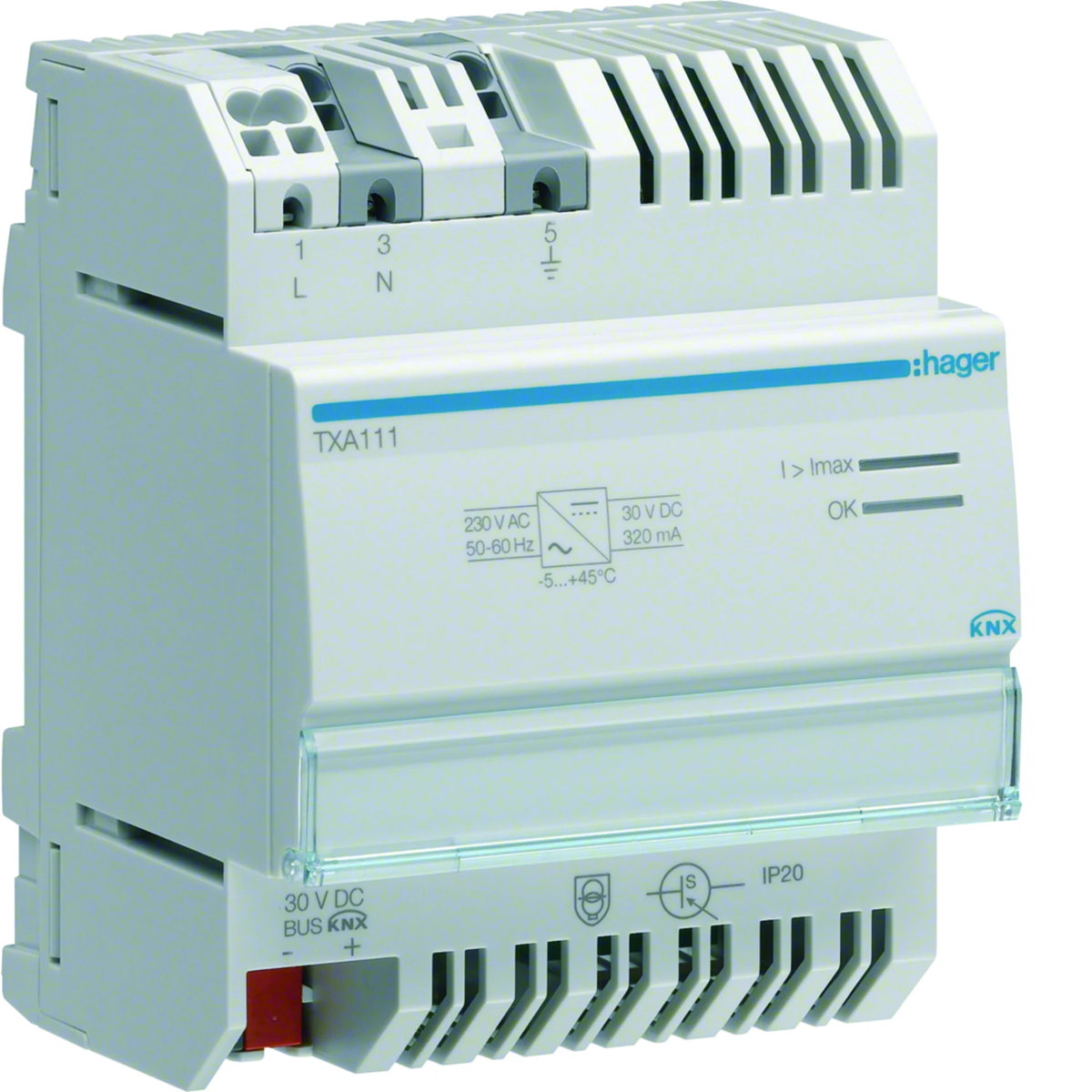

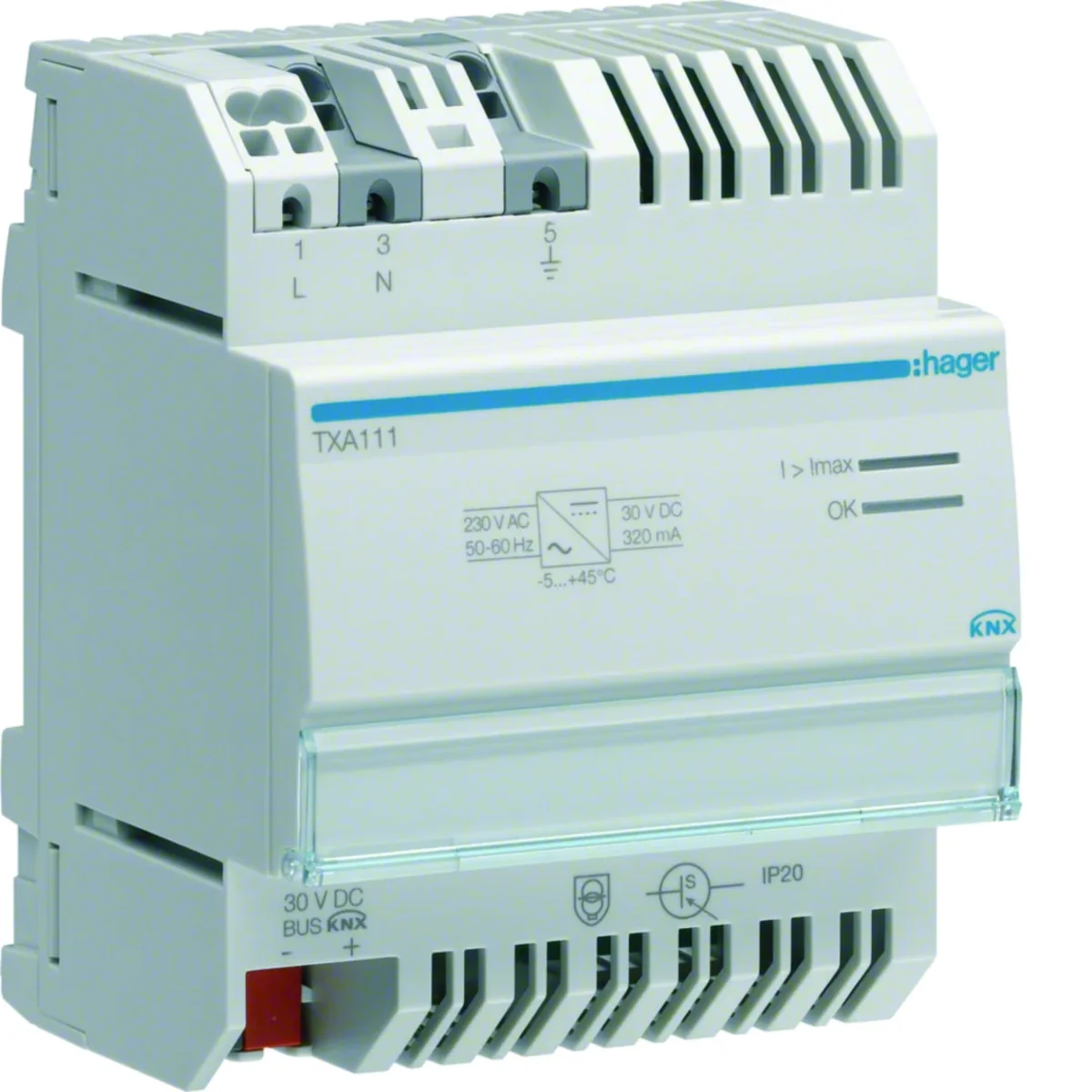

Tebis TX 30V DC 320mA power supply TXA111

local index:
AIK032HAGE
Catalog No:
TXA111
EAN code:
3250616049451
Manufacturer: HAGER
Frequency [Hz]: 50/60
Number of modules: 4
Rated voltage [V]: thirty
Price:
522,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

System Power Supply
• power supply 230V AC, output voltage (SELV) 30V DC

Technical data

  • Frequency [Hz]
    50/60
  • Rated voltage [V]
    thirty
  • Number of modules
    4
  • Number of modules
    4
  • Level of security
    IP20
  • PKWIU
    26.51.70.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • With LED indication
    Yes
  • Number of integrated choke coils
    1
  • Max. output current
    320 mA
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Width in number of modular spacings
    4
  • Bus voltage stockable
    No
  • Number of lines to feed
    1

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 1 pcs. 36 pcs. 864 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,180 6,700 160,890 0,180 6,700 160,890
Width (m) 0,080 0,310 0,800 0,080 0,310 0,800
Length (m) 0,080 0,230 1,070 0,080 0,230 1,070
Depth (m) 0,090 0,360 1,200 0,090 0,360 1,200
