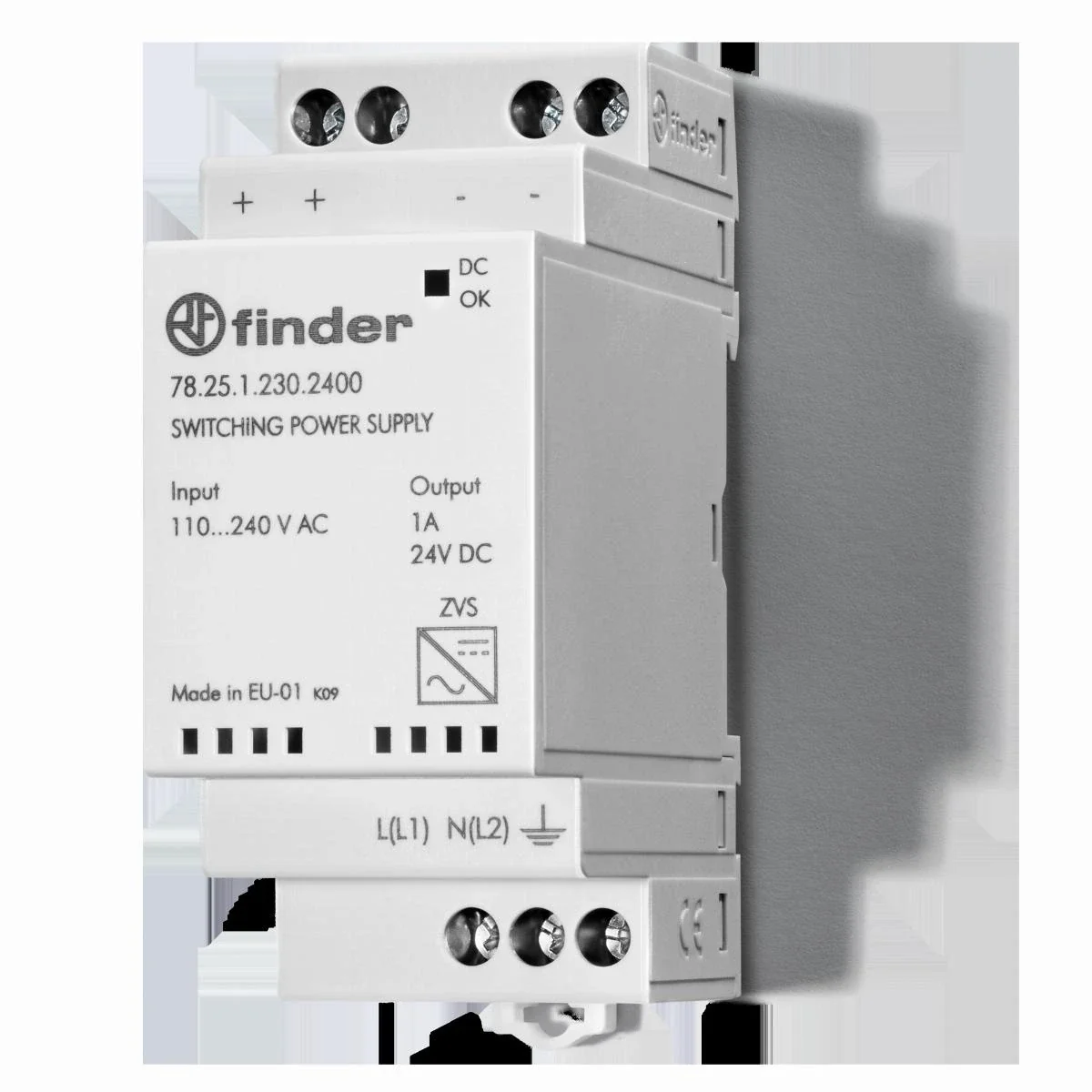

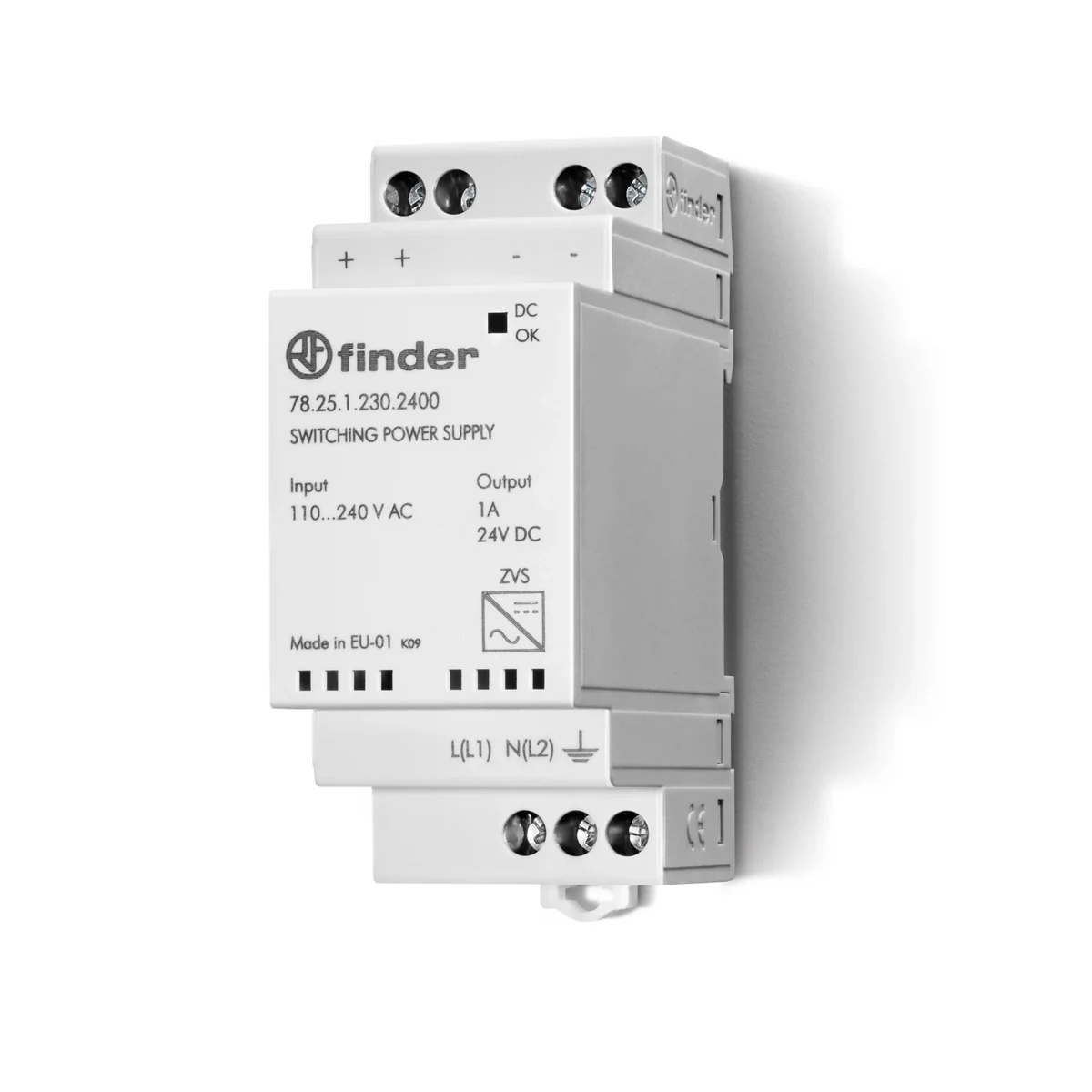

Switching power supply DC 25W 230V 24V IP20 782512302400
local index:
API007FIND
Catalog No:
782512302400
EAN code:
8012823421896
Price:
42,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Modular switching power supply for electrical cabinets
Features:
- Low (< 0.4 W) power consumption energy in standby mode
- Thermal protection: internal, excluding Vout
- Short-circuit protection: hiccup mode
- Surge protection: varistor
- Flyback topology
- Róparallel operation (redundancy) – with OR diode
- Can be connected in series and in dual mode
Technical data
-
Depth [mm]61
-
Coil voltage [V]230
-
Rated voltage [V]24
-
PSU efficiency [%]89
-
Width [number of modules]2
-
Rated input current [A]0.75
-
lifetime [h]400000
-
Starting current [A]20
-
Output voltage typeDC
-
Power [W]25
-
DC output voltage [V]24
-
Family78
-
Level of securityIP20
-
Width [mm]35
-
Rated output current [A]1
-
Power factor [λ]0.5
-
Input voltage typeAC/DC
-
Overload resistance [A]3
Manufacturer details
-
ManufacturerFINDER Polska Sp. z o.o.
-
Address62-080 Sady Logistyczna 27
-
E-mail
-
Tax identification number7792442331
-
GLN5907222322000
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,120 | 0,685 |
| Width (m) | 0,055 | 0,280 |
| Length (m) | 0,065 | 0,070 |
| Depth (m) | 0,105 | 0,137 |
