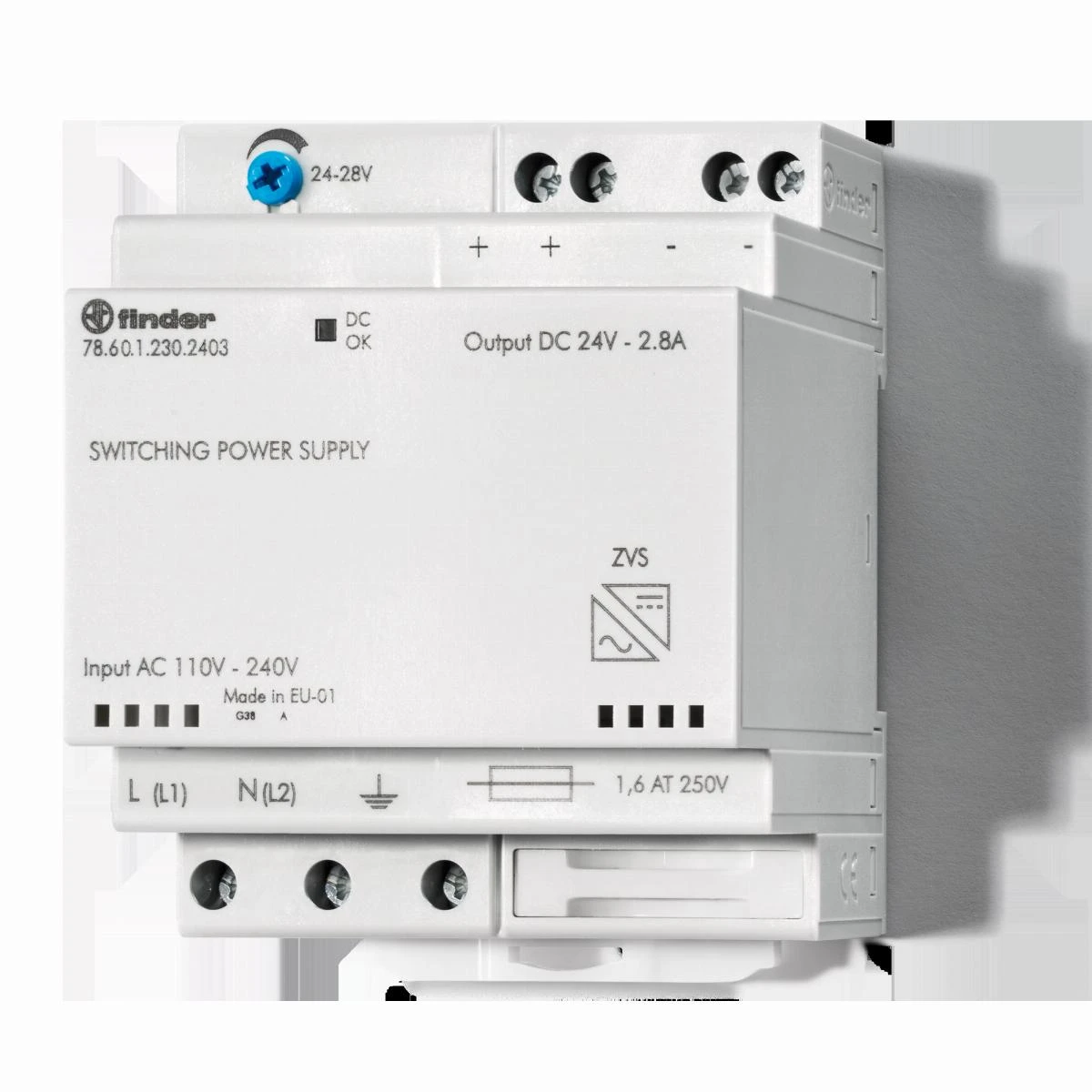

Switching power supply 24V DC 60W 786012302403PAS

Switching power supply from the 78 series, from the manufacturer FINDER. Product part number is 78.60.1.230.2403PAS.

• Output 24VDC, 60W.
• High efficiency (up to 91%).
• Low (< 0.4W) standby power consumption.
• Thermal protection: internal, excluding Vout.
• Short-circuit protection: hiccup mode.
• Input protection: replaceable fuse with spare.
• Surge protection: varistor.
• Flyback topology.
• Quasi-resonant zero-voltage switching (ZVS) technology.
• Compliant with EN 60950-1 and EN 61204-3.
• Parallel operation (redundancy ) - with OR diode.
• Can be connected in series and dual mode.
• Small dimensions: 70 mm (4 modules),  61mm deep.
• For mounting on 35mm DIN rail (EN 60715).
• Voltage regulation 24-28V.
• ZVS technology .
• Voltage change (no load, with load): < 1%.
• Rated voltage: 110…240 V AC (50/60 Hz), 220 V DC (no polarity).
• Range supply voltage: 88…265 V AC (50/60 Hz), 140…370 V DC.
• Power factor: 0.75.
• Replaceable fuse: 1.6 A - T.
