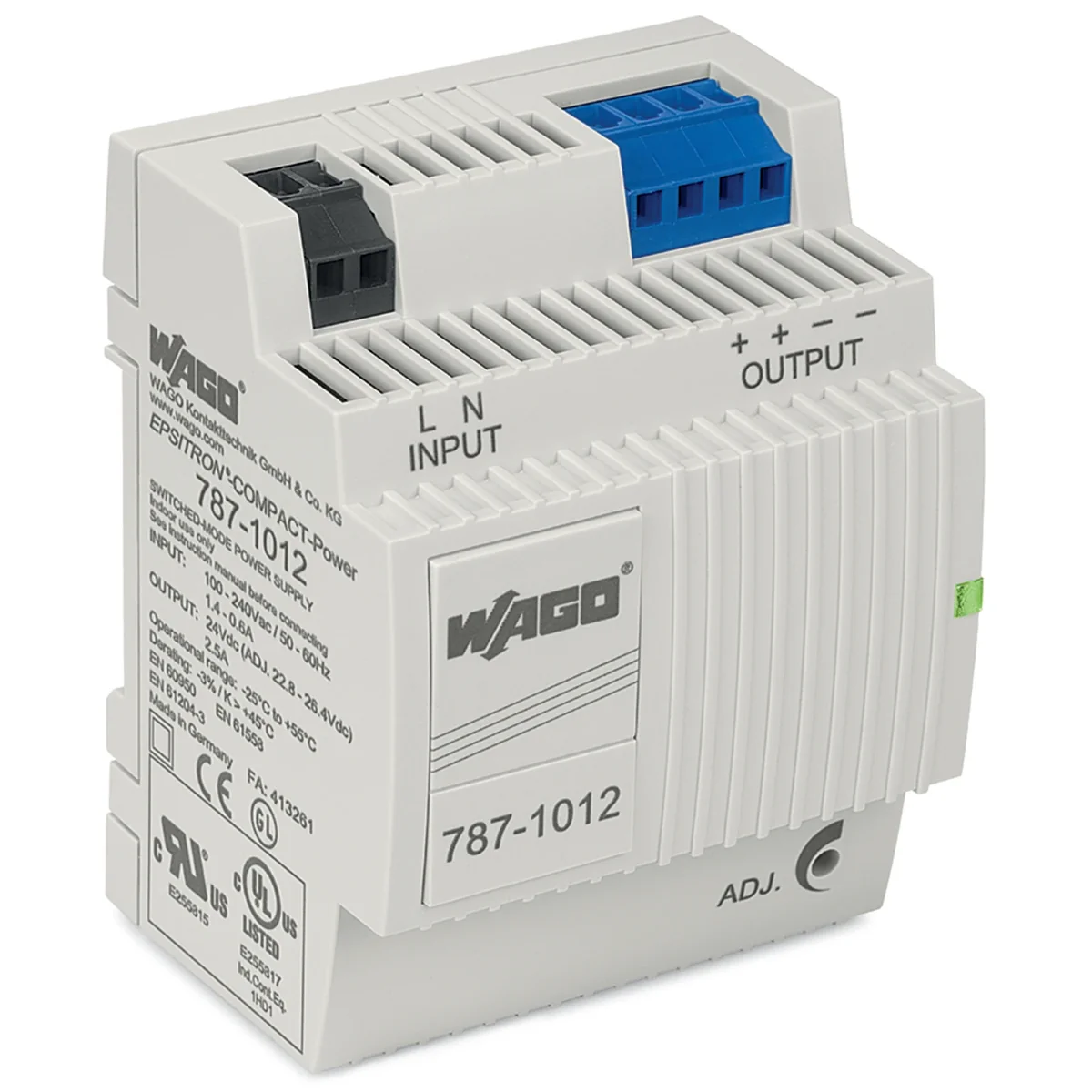

Switched-mode power supply on the primary side Compact 1-ph 787-1012 787-1012
local index:
API089WAGO
Catalog number:
787-1012
EAN code:
4050821297598
Manufacturer:
WAGO ELWAG
Price:
373,42 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Voltage type (supply voltage)AC/DC
-
Max. output current 12.5 A
-
Nominal value output voltage 124 V
-
Short-circuit-proofYes
-
Rated supply voltage AC 60 Hz85 ... 264 V
-
Output voltage stabilizedYes
-
Type of electric connectionSpring clamp connection
-
Wall mounting possibleNo
-
Width in number of modular spacings4
-

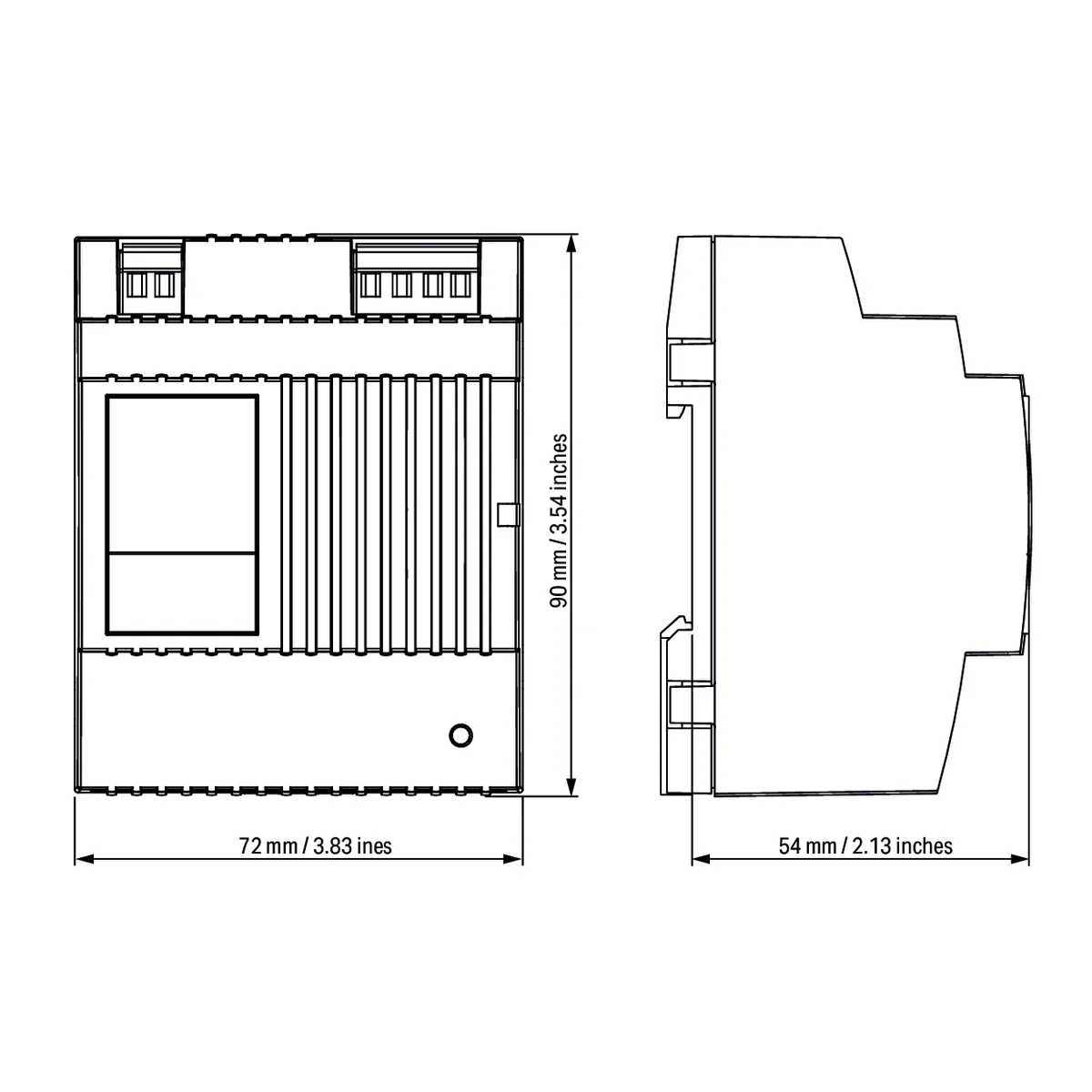

Width72 mm
-
Depth89 mm
-
Degree of protection (IP)IP20
-
1st secondary output voltage22.8 ... 26.4 V
-
Secondary voltage adjustableYes
-
Nominal value output current 12.5 A
-
Rated supply voltage AC 50 Hz85 ... 264 V
-
Rated supply voltage DC120 ... 373 V
-
StabilizedYes
-
Rail mounting possibleYes
-
Modular versionNo
-
Direct mounting possibleNo
-
Height59 mm
-
Suitable for safety functionsNo
Manufacturer details
-
ManufacturerWAGO GmbH & Co. KG
-
Address32423 Minden Hansastraße 27 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton |
| Quantity | 1 pcs. |
| Weight (kg) | 0,277 |
| Volume (m3) | 0,000 |
| Width (m) | 0,078 |
| Length (m) | 0,093 |
| Depth (m) | 0,068 |
