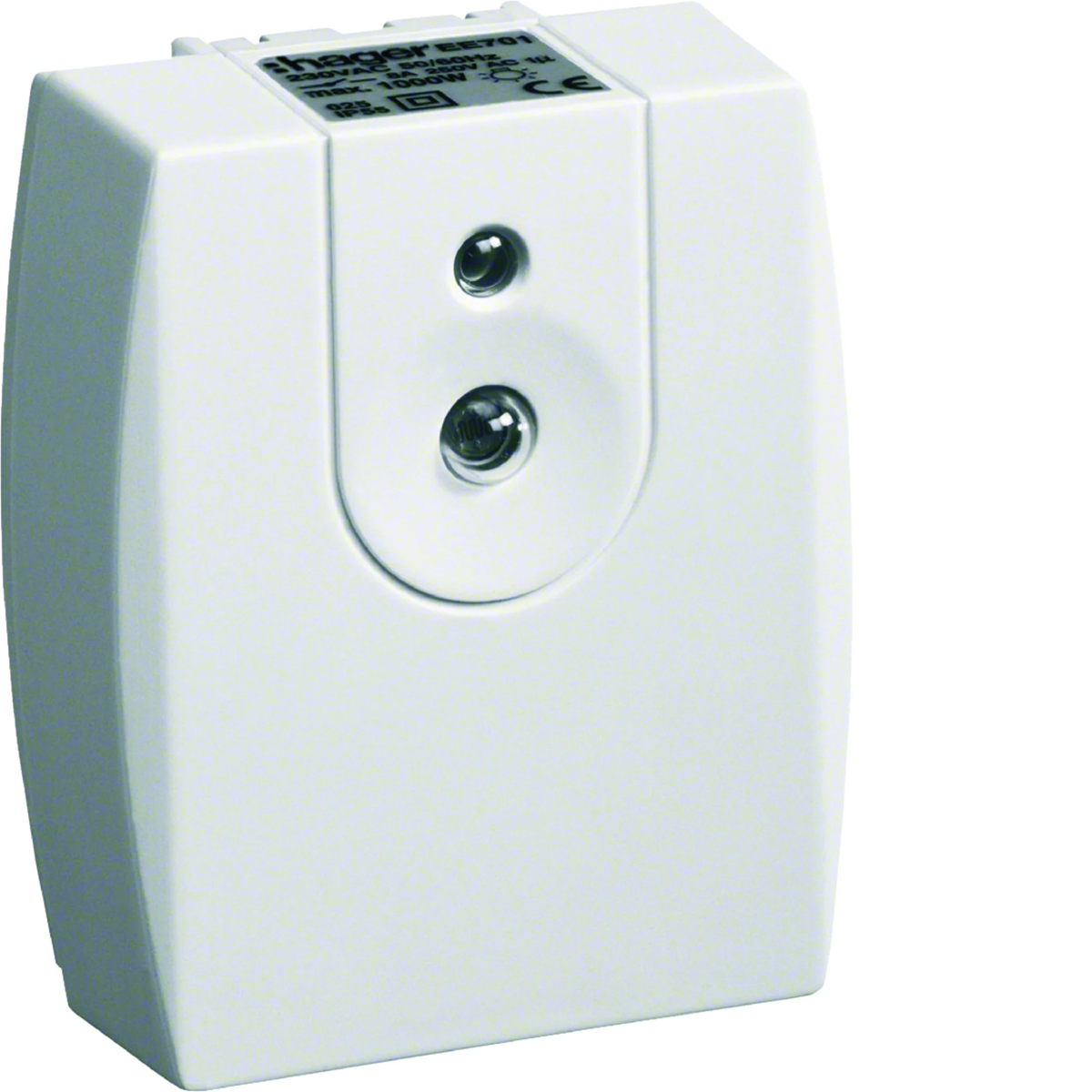

Surface-mounted twilight switch IP55 fixed settings 230V 1NO 8A EE701

local index:
APF001HAGE
Catalog No:
EE701
EAN code:
3250612257010
Manufacturer: HAGER
Installation: Surface-mounted
Rated voltage [V]: 230
Level of security: IP55
Price:
73,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Twilight switch:
Light intensity is measured by an external light sensor. The twilight switch turns on or off the current circuit, depending on the set threshold.
Examples of application:

  •  windows lighting
  •  street lighting< /li>
  •  access roads
  •  illuminated advertisements
  •  car park lighting

Twilight switch integrated in the timer:
The timer is used to determine the enabling times for the twilight switch. During the release time, the output is turned on only when the measured brightness is below the set value. If the measured brightness exceeds the set value or the timer is outside the release time, the output is turned off. Maximum fluorescent lamp power [VA] 400

Technical data

  • Installation
    Surface-mounted
  • Level of security
    IP55
  • Maximum bulb power [W]
    1000
  • Rated voltage [V]
    230
  • Number of modules
    2
  • PKWIU
    27.33.11.0

Other technical data

  • Contacts
    1 make contact (NO)
  • Switching-off brightness
    10 ... 30 lx
  • Switching-on delay
    40 s
  • Suitable for C-load
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Nominal voltage
    230 V
  • Suitable for degree of protection (IP)
    IP55
  • Engaging brightness
    10 ... 30 lx
  • Switch-off delay
    120 s
  • Max. switching power
    1000 W
  • Mounting method
    Surface mounted
  • Material quality
    Other
  • Surface protection
    Other
  • Colour
    White
  • Transparent
    No
  • Max. switching current (resistive load)
    8 A

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,200 0,240 8,148 218,552
Width (m) 0,043 0,102 0,315 0,800
Length (m) 0,095 0,059 0,215 1,010
Depth (m) 0,080 0,081 0,360 1,200
